MOXA

x86 Computers

Moxa’s x86 industrial-grade fanless computers have passed rigorous tests and strictly adhere to industrial standards to ensure they can provide long-lasting, reliable operation even in harsh environments, making them perfect for a variety of industrial-automation applications.

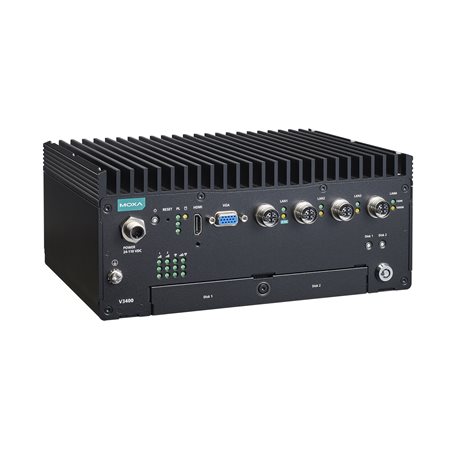

V3404-TL3-W-CT-T
V3400 Series

x86 computers with Intel® Core™ i3-1115G4E processor, 4 GbE ports, 2 serial ports, 2 DIs, 2 DOs, 2 USB 3.0 ports, 1 HDMI port, 1 VGA port, 2 hot-swappable HDD/SSD slots, multiple expansion slots for wireless modules, 24 to 110 VDC power input with isolation, -40 to 70°C operating temperature

Computer

  • CPU

    • TL3 models:
      11th gen Intel® Core™ i3-1115G4E (2C/4T, 6M, 2.2 GHz)
      TL7 models:
      11th gen Intel® Core™ i7-1185G7E (4C/8T, 12M, 1.8 GHz)

  • System Memory Slot

    • SODIMM DDR4 slots x 2 (64 GB max, 16 GB preinstalled)

  • System Memory Pre-installed

    • 16 GB DDR4

  • Storage Slot

    • 2.5-inch SSD slots x 2 (hot swappable)
      M.2 M key 2280 slot x 1 (NVMe; 128 GB preinstalled)

  • Storage Pre-installed

    • M.2 M key 128 GB SSD

  • Supported OS

    • Windows 11 IoT Enterprise LTSC 2024 64-bit
      Windows 10 IoT Enterprise LTSC 2021 64-bit
      Moxa Industrial Linux 3 (Debian 11, kernel 5.10, EOL 2031)

      Linux drivers supported:
      Debian 12
      Ubuntu 22.04 LTS (HWE)

  • Buttons

    • Disk hot-swap, Reset, Power
Computer Interface

  • Ethernet Ports

    • V3404 models:
      Auto-sensing 10/100/1000 Mbps x 3
      Auto-sensing 1000/2500 Mbps x 1
      V3408 models:
      Auto-sensing 10/100/1000 Mbps x 7
      Auto-sensing 1000/2500 Mbps x 1

  • Serial Ports

    • RS-232/422/485 ports x 2 (software-selectable, DB9 male connector)

  • Digital Input

    • DIs x 2

  • Digital Output

    • DOs x 2

  • USB 3.0

    • USB 3.0 hosts x 2, type-A connectors

  • Video Output

    • VGA x 1, 15-pin D-sub connector (female)
      HDMI x 1, HDMI connector (type A)

  • Expansion Slots

    • M.2 B key 3052 slots x 2 (for 5G with 2 Nano SIMs, 1 5G module preinstalled)
      M.2 E key slots x 1 (for Wi-Fi 6, 1 Wi-Fi 6 module preinstalled)
      mPCIe slots x 1 (for 4G with 2 Nano SIMs, or Wi-Fi 5)

  • Wireless Modules (preinstalled)

    • 5G x 1 (M.2 B key 3052 slot)
      Wi-Fi 6 x 1 (M.2 E key slot)

  • Wi-Fi Antenna Connector

    • QMA x 15
      7 QMA connectors preinstalled with 5G and Wi-Fi 6
      8 QMA connectors with cover to be used with optional wireless accessory packages

  • SIM Format

    • Nano

  • Number of SIMs

    • 6

  • TPM

    • TPM v2.0
Ethernet Interface

  • Connector

    • M12 X-coded push-pull type (female)
Serial Interface

  • Baudrate

    • 50 bps to 115.2 kbps

  • Connector

    • DB9 male

  • ESD

    • Contact: 6 kV; Air: 8 kV (level 3)

  • Isolation

    • 2 kV

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS, XON/XOFF
      Automatic Data Direction Control (ADDC) for RS-485
      RTS Toggle (RS-232 only)
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Isolation

    • 3k VDC

  • Sensor Type

    • Dry contact
      Wet contact (NPN)

  • Dry Contact

    • Logic 0: Close to GND
      Logic 1: Open

  • Wet Contact (COM to DI)

    • Logic 0: 10 to 30 VDC
      Logic 1: 0 to 3 VDC
Digital Outputs

  • Connector

    • Screw-fastened Euroblock terminal

  • Current Rating

    • 200 mA per channel

  • I/O Type

    • Sink

  • Voltage

    • 0 to 30 VDC

  • Isolation

    • 3k VDC
Cellular Interface

  • 5G NR Bands (5G module)

    • NSA and SA bands:
      n1 (2100 MHz), n2 (1900 MHz), n3 (1800 MHz), n5 (850 MHz), n7 (2600 MHz), n8 (900 MHz), n12 (700 MHz), n13 (700 MHz), n14 (700 MHz), n18 (800 MHz), n20 (800 MHz), n25 (1900 MHz), n26 (850 MHz), n28 (700 MHz), n29 (700 MHz), n30 (2300 MHz), n38 (2600 MHz),n40 (2300 MHz), n41 (2500 MHz), n48 (3600 MHz), n66 (1700 MHz), n71 (600 MHz), n75 (1500 MHz), n77 (3700 MHz), n78 (3500 MHz), n79 (4500 MHz)

  • LTE Bands (5G module)

    • B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B12 (700 MHz), B13 (700 MHz), B14 (700 MHz), B17 (700 MHz), B18
      (800 MHz), B19 (800 MHz), B20 (800 MHz), B25 (1900 MHz), B26 (850 MHz), B28 (700 MHz), B29 (700 MHz), B30 (2300 MHz), B32 (1500 MHz), B34 (2000 MHz), B38 (2600 MHz), B39 (1900 MHz), B40 (2300 MHz), B41 (2500 MHz), B42 (3500 MHz), B43 (3600 MHz), B46 (5200 MHz), B48 (3600 MHz), B66 (1700 MHz), B71 (600 MHz)

  • LTE Bands (LTE module)

    • Band 1 (2100 MHz), Band 2 (1900 MHz), Band 3 (1800 MHz) ,Band 4 (1700 MHz), Band 5 (850 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 9 (1800 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 18 (850 MHz), Band 19 (850 MHz), Band 20 (800 MHz), Band 25 (1900 MHz), Band 26 (850 MHz), Band 28 (700 MHz)

  • UMTS/HSPA Bands (5G module)

    • Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 6 (850 MHz), Band 8 (900 MHz), Band 19 (850 MHz)

  • UMTS/HSPA Bands (LTE module)

    • Band 1 (2100 MHz), Band 2 (1900 MHz), Band 4 (1700 MHz), Band 5 (850 MHz), Band 6 (850 MHz), Band 8 (900 MHz), Band 19 (850 MHz)

  • 2G Bands (LTE module)

    • Band 2 (PCS_1900), Band 3 (DCS_1800), Band 5 (GSM_850), Band 8 (EGSM_900)

  • Cables

    • 5G module:
      IPEX MHF4 to QMA cables x 5 (4 for data transition, 1 for GNSS)
      LTE module:
      IPEX MHF to QMA cables x 3 (2 for data transition, 1 for GNSS)
GPS Interface

  • Frequency Range

    • 5G module:
      Wide-band GNSS: 1559 to 1606 MHz (recommended) GPS: BW NB GPS 2.046 MHz
      (centered at 1575.42 MHz)
      GLONASS:
      BW 8.3 MHz approx. (1597.05 to 1606 MHz) BeiDou: 4.092 MHz BW (1559.05 to 1563.14 MHz) Galileo: 4.092 MHz BW (centered at 1575.42 MHz)
      LTE module:
      Wide-band GNSS: 1559 to 1606 MHz (recommended) State-of-the-art GNSS solution with GPS/GLONASS/BeiDou /Galileo/QZSS

  • Antenna Types Supported

    • 5G module:
      Active antenna (default)
      7.5 dB < Gain < 26 dB for nominal performance
      1.5 dB < Gain < 7.5 dB for nominal performance
      Configured via AT command
      Passive antenna:
      1.5 dBi < Gain < 3dBi
      LTE module:
      Typ. 14 dBi < Gain < 17 dBi (external active antenna with a GNSS pre-filter

  • Time to First Fix (TTFF)

    • 5G module:
      Hot start: 1 s
      Warm start: 27 s
      Cold start: 28 s
      Open Sky, mean TTFF
      LTE module:
      Hot start: 1.1s
      Warm start: 22.1s
      Cold start: 29.9s
      GPS + GLONASS simulator test

  • Sensitivity

    • 5G module:
      Cold starts: -146 dBm
      Tracking: -161 dBm
      Acquisition: -148 dBm
      LTE module:
      Cold starts: -145 dBm
      Tracking: -160 dBm
      Acquisition: -147 dBm

  • Update Rate

    • 1 Hz
      (min.)
WLAN Interface

  • WLAN Standards

    • Wi-Fi 6 module:
      802.11a/b/g/n/ac/ax
      Wi-Fi 5 module:
      802.11ac/a/b/g/n

  • Frequency Band

    • Wi-Fi 6 module:
      2.4 GHz/5 GHz/6 GHz
      Wi-Fi 5 module:
      2.4 GHz/5 GHz

  • Cables

    • Wi-Fi 6 module:
      IPEX MHF4 to QMA cables x 2
      Wi-Fi 5 module:
      IPEX MHF to QMA cables x 2
LED Indicators

  • System

    • Power x 1
      Storage x 1

  • LAN

    • 2 per port (LAN1: 1000/2500 Mbps, LAN2 to LAN8: 100/1000 Mbps)
      1 per LAN bypass pair (LAN7 - LAN8)

  • Serial

    • 2 per port (Tx, Rx)

  • Wireless Signal Strength

    • 3 per connection

  • User Programmable

    • 3
Power Parameters

  • Input Voltage

    • 24 to 110 VDC

  • Power Connector

    • M12 A-coded male connector

  • Power Consumption

    • V3404 models: 74.4 W (max.)
      V3408 models: 76.8 W (max.)
Physical Characteristics

  • Housing

    • Aluminum

  • IP Rating

    • IP30

  • Dimensions (without ears)

    • 106 x 250 x 180 mm (4,20 x 9.84 x 7.09 in)

  • Weight

    • Product Only: 5.2 kg (11.461 lb)
      Product with wall-mounting kit: 5.5 kg (12.13 lb)

  • Installation

    • Wall mounting
Environmental Limits

  • Operating Temperature

    • -40 to 70°C (-40 to 158°F)
      (with two 5G and one Wi-Fi 6 module)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/35

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Safety

    • EN 62368-1
      IEC 62368-1
      UL 62368-1

  • Railway Fire Protection

    • EN 45545-2:2020

  • Railway

    • EN 50121-4
      EN 50121-3-2
      EN 50155:2017

  • Shock

    • IEC 60068-2-27, IEC 61373

  • Vibration

    • IEC 60068-2-64, IEC 61373

  • International Approval

    • CE
      UKCA
      FCC

  • Wireless

    • EN 301 489-1/-17/-19/-52
      EN 62311
      EN 300 328 (WLAN 2.4G)
      EN 301 893 (WLAN 5G)
      EN 303 687 (WLAN 6 GHz)
      EN 301 908-1
      EN 303 413
      EN 301 511 (only for models with LTE)
      FCC
      UKCA
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • V3404 models: 764,543 hrs
      V3408 models: 654,694 hrs

  • Standards

    • Telcordia (Bellcore), GB, GC
