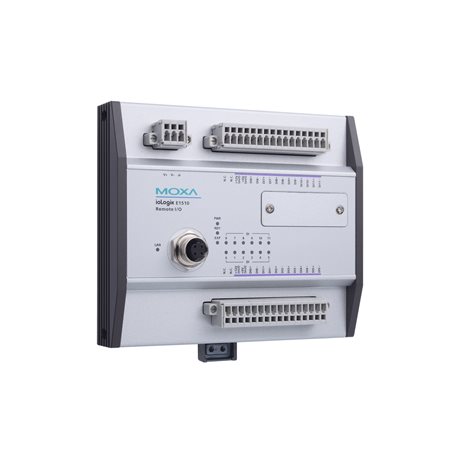

ioLogik E1512-M12-CT-T
ioLogik E1500 Series

Rugged I/O, 4 DIs, 4 DIOs, -40 to 85°C operating temperature, conformal coating

Input/Output Interface
  • Digital Input Channels

    • 4
  • Configurable DIO Channels (by software)

    • 4
  • Isolation

    • 3k VDC or 2k Vrms
  • Buttons

    • Reset button
Digital Inputs
  • Connector

    • Spring-type Euroblock terminal
  • Counter Frequency

    • 250 Hz
  • Digital Filtering Time Interval

    • Software configurable
  • Dry Contact

    • On: short to GND
      Off: open
  • I/O Mode

    • DI or event counter
  • Points per COM

    • 2 channels
  • Sensor Type

    • Dry contact
      Wet contact (NPN or PNP)
  • Wet Contact (DI to GND)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
Digital Outputs
  • Connector

    • Spring-type Euroblock terminal
  • Current Rating

    • 200 mA per channel
  • I/O Mode

    • DO or pulse output
  • I/O Type

    • Sink
  • Over-Current Protection

    • 0.65 A per channel @ 25°C
  • Over-Temperature Shutdown

    • 175°C (typical), 150°C (min.)
  • Over-Voltage Protection

    • 35 VDC
  • Pulse Output Frequency

    • 500 Hz
Ethernet Interface
  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    • 1
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP)
      Windows Utility (ioSearch)
  • Industrial Protocols

    • Modbus TCP Server (Slave)
      Moxa AOPC (Active Tag)
      MXIO Library
  • Management

    • BOOTP
      DHCP Client
      HTTP
      IPv4
      TCP/IP
      UDP
LED Interface
  • LED Indicators

    • PWR, RDY, EXP, LAN, DI channels, DO channels
Modbus TCP
  • Mode

    • Server (Slave)
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16
Power Parameters
  • Power Connector

    • Spring-type Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 150 mA @ 24 VDC
Physical Characteristics
  • Housing

    • Aluminum
  • Dimensions

    • 144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in)
  • Weight

    • 825 g (1.82 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 16 to 26 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4
      EN 50155
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 554,122 hrs
  • Standards

    • Telcordia SR332
Warranty
