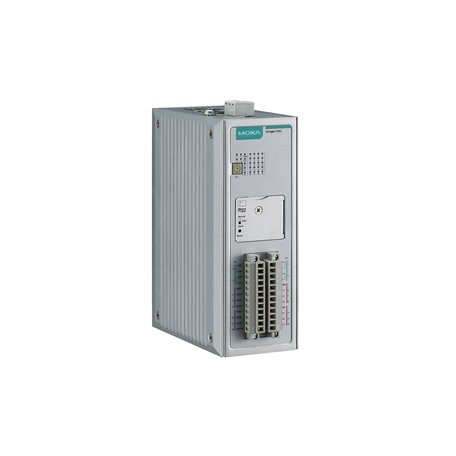

ioLogik 2512
ioLogik 2500 Series

Universal controller, 8 DIs, 8 DIOs, Click&Go Plus, -10 to 60°C operating temperature

Memory
  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
      Note: For units operating in extreme temperatures, industrial-grade, wide-temperature microSD cards are required.
Control Logic
  • Language

    • Click&Go Plus
Input/Output Interface
  • Digital Input Channels

    • 8
  • Configurable DIO Channels (by software)

    • 8
  • Buttons

    • Reset button
  • Isolation

    • 3k VDC or 2k Vrms
Digital Inputs
  • Connector

    • Screw-fastened Euroblock terminal
  • Sensor Type

    • Dry contact
      Wet contact (NPN or PNP)
  • I/O Mode

    • DI or event counter
  • Dry Contact

    • On: short to GND
      Off: open
  • Wet Contact (DI to COM)

    • On: 10 to 30 VDC
      Off: 0 to 3 VDC
  • Counter Frequency

    • 2.5 kHz
  • Digital Filtering Time Interval

    • Software configurable
  • Points per COM

    • 8 channels
Digital Outputs
  • Connector

    • Screw-fastened Euroblock terminal
  • I/O Type

    • Sink
  • I/O Mode

    • DO or pulse output
  • Current Rating

    • 500 mA per channel
  • Pulse Output Frequency

    • 5 kHz (max.)
  • DIO Output Leakage Current

    • < 1 mA @ 30 VDC
  • Over-Current Protection

    • 1.5 A per channel @ 25°C
  • Over-Temperature Shutdown

    • 175°C (typical), 150°C (min.)
  • Over-Voltage Protection

    • 45 VDC (typical)
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 4, 1 MAC address
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Windows Utility (IOxpress)
  • Industrial Protocols

    • CGI commands
      Modbus TCP Client (Master)
      Modbus TCP Server (Slave)
      Moxa AOPC (Active Tag)
      MXIO Library
      RESTful API
      SNMPv1/v2c/v3
      SNMPv1/v2c Trap
  • Management

    • BOOTP, IPv4, SMTP, TCP/IP, DHCP Client
  • MIB

    • Device Settings MIB
  • Security

    • HTTPS/SSL
  • Time Management

    • SNTP
LED Interface
  • LED Indicators

    • PWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
Serial Interface
  • Baudrate

    • 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps
  • Connector

    • 8-pin RJ45
  • Data Bits

    • 5, 6, 7, 8
  • Flow Control

    • None
      RTS/CTS
      XON/XOFF
  • No. of Ports

    • 2
  • Parity

    • None
      Even
      Odd
  • Serial Standards

    • RS-232
      RS-422
      RS-485
  • Stop Bits

    • 1, 2
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU Master
Platform
  • Real-time Clock (RTC)

    • Real-time clock with capacitor backup
Power Parameters
  • Power Connector

    • Screw-fastened Euroblock terminal
  • No. of Power Inputs

    • 1
  • Input Voltage

    • 12 to 48 VDC
  • Power Consumption

    • 254 mA @ 24 VDC
      529 mA @ 12 VDC
      133 mA @ 48 VDC
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
  • Weight

    • 1,265 g (2.79 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
  • Wiring

    • I/O cable, 16 to 26 AWG
      Power cable, 12 to 24 AWG
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m
Standards and Certifications
  • EMC

    • EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Vibration

    • IEC 60068-2-6
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • Safety

    • UL 508
  • Radio

    • EN 301 489-1/17
  • Radio Frequency

    • EN 301 908
      EN 301 489-24
      EN 301 511
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 467,032 hrs
  • Standards

    • Telcordia SR332
Warranty
