ioMirror E3200 Series

Ethernet peer-to-peer I/O with 8 digital inputs and 8 digital outputs

moxa-iomirror-e3200-series-image-1-(1).jpg | Moxa
moxa-iomirror-e3200-series-image-2-(1).jpg | Moxa
moxa-iomirror-e3200-series-image-3-(1).jpg | Moxa

Features and Benefits

  • Direct input-to-output signal communication over IP
  • High-speed peer-to-peer I/O within 20 ms
  • One physical alarm port for connectivity status
  • Utility for quick and easy web-based settings
  • Local alarm channel
  • Remote alarm message
  • Supports Modbus TCP for remote monitoring
  • Optional LCD module for easy configuration

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The ioMirror E3200 Series, which is designed as a cable-replacement solution to connect remote digital input signals to output signals over an IP network, provides 8 digital input channels, 8 digital output channels, and a 10/100M Ethernet interface. Up to 8 pairs of digital input and output signals can be exchanged over Ethernet with another ioMirror E3200 Series device, or can be sent to a local PLC or DCS controller. Over a local area network, the ioMirror can achieve a low signal latency (typically less than 20 ms). With the ioMirror, remote sensors can be connected to local controllers or display panels over copper, fiber, or wireless Ethernet infrastructures, and signals can be transmitted over virtually unlimited distances, without noise problems.

Split Sensor Signals to 16 Different Locations

The ioMirror E3200 Series can split one input signal to two digital output channels at two different IP addresses. Eight tank level signals can be monitored at 16 different display panels, all at the same time.

Local Alarm and Remote Alarm Messages for Monitoring Connectivity

The ioMirror E3200 Series has a 24 VDC alarm output channel that can activate an attached buzzer or LED display when the connection fails. In addition, both ioMirror modules can send messages to the ioEventLog software, ensuring that at least one of the warning messages will reach the ioEventLog software.

  • Digital Input Channels

    8

  • Digital Output Channels

    8

  • Alarm Contact Channels

    1

  • Isolation

    3k VDC or 2k Vrms

  • Buttons

    Reset button

  • Connector

    Screw-fastened Euroblock terminal

  • Digital Filtering Time Interval

    Software configurable

  • Dry Contact

    On: short to GND
    Off: open

  • I/O Mode

    DI

  • Over-Voltage Protection

    36 VDC

  • Points per COM

    8 channels

  • Sensor Type

    Dry contact
    Wet Contact (NPN)

  • Wet Contact (DI to GND)

    On: 10 to 30 VDC
    Off: 0 to 3 VDC

  • Connector

    Screw-fastened Euroblock terminal

  • Current Rating

    200 mA per channel

  • I/O Mode

    DO

  • I/O Type

    Sink

  • Over-Current Protection

    0.6 A per channel @ 25°C

  • Over-Temperature Shutdown

    160°C (min.)

  • Over-Voltage Protection

    35 VDC

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Web Console (HTTP)
    Windows Utility (ioMirrorAdmin)

  • Industrial Protocols

    Modbus TCP Server (Slave)

  • Management

    BOOTP
    DHCP Client
    HTTP
    TCP/IP
    UDP

  • Time Management

    SNTP

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16

  • LED Indicators

    PWR, Ready

  • Power Connector

    Screw-fastened Euroblock terminal

  • No. of Power Inputs

    1

  • Input Voltage

    12 to 48 VDC

  • Power Consumption

    136 mA @ 24 VDC

  • I/O Type

    Sink

  • Current Rating

    Max. 200 mA per channel

  • Connector

    Screw-fastened Euroblock terminal

  • Housing

    Plastic

  • Dimensions

    115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)

  • Weight

    205 g (0.45 lb)

  • Wiring

    I/O cable, 16 to 26 AWG
    Power cable, 16 to 26 AWG

  • Installation

    Wall mounting
    DIN-rail mounting

  • Operating Temperature

    -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m
    Note: Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

  • Freefall

    IEC 60068-2-32

  • EMI

    EN 61000-6-4, FCC Part 15B Class A

  • Safety

    UL 508

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Time

    231,020 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Firmware for ioMirror E3200 Series (E3210)
905.8 KB
Firmware
SHA-512
v1.4
Sep 18, 2020 Sep 18, 2020 Release notes
Firmware for ioMirror E3200 Series
838.6 KB
Firmware
SHA-512
v1.0
Feb 11, 2018 Feb 11, 2018 Release notes
MX-AOPC UA Logger
44.2 MB
Utility
SHA-512
v1.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
Jun 14, 2017 Jun 14, 2017 Release notes
MX-AOPC UA Server
36.3 MB
Utility
SHA-512
v1.6
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
Jun 14, 2017 Jun 14, 2017 Release notes
Software Package for ioMirror E3200 Series
8.4 MB
Software Package
SHA-512
v1.0
Jan 10, 2017 Jan 10, 2017 Release notes
ioMirrorAdmin Configuration Utility
4.1 MB
Utility
SHA-512
v1.3
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows XP
Jun 02, 2016 Jun 02, 2016 Release notes
ioEventLog Utility
3.4 MB
Utility
SHA-512
v1.4
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows XP
Dec 15, 2008 Dec 15, 2008 Release notes

Support Documents

Name Type Version Release Date
Declaration of Conformity for ioMirror E3210 Series
300.7 KB
Declaration v1.0 Jan 08, 2024 Jan 08, 2024
QIG for ioMirror E3200 Series
227.1 KB
QIG v1.1 May 05, 2021 May 05, 2021
Datasheet for ioMirror E3200 Series
604.5 KB
Datasheet v1.1 Aug 06, 2020 Aug 06, 2020
Manual for ioMirror E3200 Series
4.4 MB
Manual v1.0 Jun 26, 2017 Jun 26, 2017
2D CAD for ioLogik E3210
715.8 KB
2D CAD May 09, 2007 May 09, 2007

Available Models (1)

Show Images

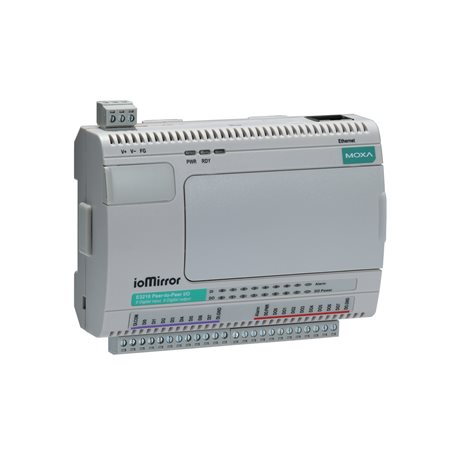

moxa-iomirror-e3210-image.jpg | MoxaioMirror E3210
