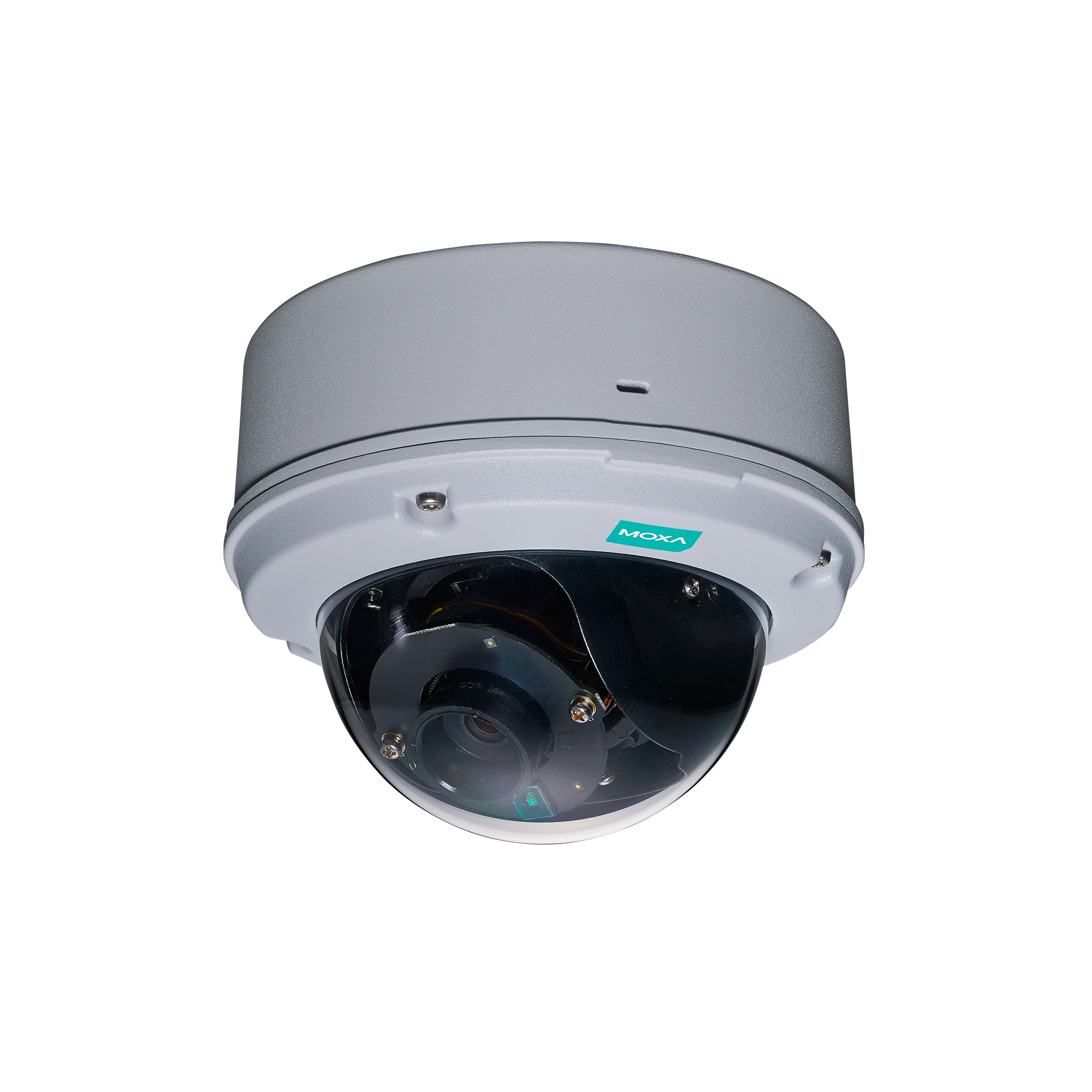

VPort 26A-1MP Series

HD, IP66, vandal-proof, day and night, fixed dome IP cameras

moxa-vport-26a-1mp-series-image-1-(1).jpg | Moxa

Features and Benefits

  • -40 to 50°C or -40 to 75°C (T model) operating temperature, without a heater or fan
  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
  • DNR and WDR for superb image quality
  • Triple video streams with H.264 and MJPEG
  • 3 to 9 mm day-and-night varifocal lens with a built-in ICR (removable IR-cut filter ICR)
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • ONVIF support for standardization and interoperability

Certifications

  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The VPort 26A-1MP is an IK10, IP66-rated, fixed dome HD IP camera with a maximum resolution of 1280 x 800, H.264/MJPEG triple video streams, and day-and-night camera lens. These robust features make it particularly suitable for harsh, outdoor environments.

  • SD Slot

    SDHC

  • Digital Input Channels

    1

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • Relay Channels

    1

  • Contact Current Rating

    Resistive load: 1 A @ 24 VDC

  • Connector

    Terminal block

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Standards

    VPort P26A-1MP Series: IEEE 802.3af for PoE

  • Protocols

    TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, Modbus TCP, HTTPS, 802.1X

  • Password

    User-level password protection

  • Filter

    IP address

  • Authentication

    802.1X

  • Encryption

    HTTPS

  • LED Indicators

    STAT: Indicates if the system is booted properly or not
    Power: Power on/off
    Network: 10 Mbps or 100 Mbps
    One dip switch to turn the LED light on/off

  • No. of Power Inputs

    1

  • Source of Input Power

    VPort P26A-1MP Series: PoE (IEEE 802.3af)

  • Input Voltage

    VPort 26A-1MP Series: 12/24 VDC, 24 VAC

  • Input Current

    VPort 26A-1MP Series: 0.5 A @ 12 VDC, 0.23 A @ 24 VAC
    VPort P26A-1MP Series: 0.18 A @ 48 VDC

  • Power Connector

    VPort 26A-1MP Series: 2-pin terminal block

  • Sensor

    1/2.7-in HD progressive scan CMOS

  • Lens

    3X zoom: f=3 mm (wide) to 9 mm (tele), F1.2 to F2.3
    Horizontal angle of view: 112° to 35°
    Vertical angle of view: 58° to 20°
    Diagonal angle of view: 40° to 115°

  • Minimum Illumination

    Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
    B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)

  • Day & Night

    Auto/Color/BW; ICR control

  • Synchronization

    Internal

  • White Balance

    ATW/AWB

  • Electronic Shutter

    Auto, Fixed (1/30 to 1/25000 sec)

  • S/N Ratio

    Maximum 50 dB (AGC off; DNR on)

  • ICR Control

    Auto (light sensor control) or DI control

  • DNR (digital noise reduction)

    Built-in 2D/3D DNR

  • WDR (wide dynamic range)

    110 dB

  • Flickerless Control

    Automatic, 50 Hz, 60 Hz modes

  • Image Rotation

    Flip, Mirror, and 180° rotation

  • Image Setting

    Manual tuning with saturation, sharpness, and contrast

  • AGC (auto gain control)

    2X, 4X, 8X, 16X, 32X, 64X

  • BLC (back light compensation)

    High/Medium/Low

  • IRIS

    Auto, DC Drive

  • Camera Angle

    Pan: ±175°, Tilt: 0° to 85°, Rotation: pan ±180° (controlled manually)

  • Video Compression

    H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Output

    via Ethernet

  • Video Streams

    3 independent H.264 or MJPEG video streams

  • NTSC/PAL

    Auto-sensing or manual

  • Video Resolution and FPS (frames per second)

  • Video Viewing

    DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

  • Audio Inputs

    1 x line-in with 2-pin terminal block connector

  • Audio Outputs

    1 x line-out with 2-pin terminal block connector

  • Audio Format

    Mono, PCM (G.711)

  • VPort SDK PLUS

    Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers.

  • Video Standards

    ONVIF Profile S

  • Intelligent Video

    Camera tampering detection

  • Video Motion Detection

    3 independently configurable areas

  • Scheduling

    Daily repeat timing schedule

  • Imaging

    JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    HTTP event servers for setting customized alarm actions

  • Email/FTP Messaging

    Automatic transfer of stored images via email or FTP as event-triggered actions

  • Pre-Alarm Buffer

    24 MB video buffer for JPEG snapshot images

  • Memory Size

    1 GB

  • Operating System

    Windows 7 or above

  • Browser

    Internet Explorer 9.x or above

  • Multimedia

    DirectX 9.0C or above

  • Housing

    IP66 rain and dust protection
    IK10 vandal-resistant support
    Metal housing, PC dome cover
    Transparent PC cover

  • Dimensions

    149 x 120 mm (5.86 x 4.72 in)

  • Weight

    1390 g (3.06 lb)

  • Installation

    Panel mounting, Wall mounting (with optional kit), Corner mounting (with optional kit)

  • Operating Temperature

    Standard Models: -40 to 50°C (-40 to 122°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Ingress Protection

    IEC 60529, IP66

  • Vandal Resistance

    EN 62262, IK10

  • Altitude

    2000 m

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Railway

    EN 50121-4

  • Freefall

    IEC 60068-2-31

  • Safety

    UL 60950-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    201,721 hrs

  • Standards

    Telcordia SR332

  • Warranty Period

    5 years
    Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.
