VPort P06HC-1MP-M12 Series

HD video image, square-type IP cameras for mobile surveillance

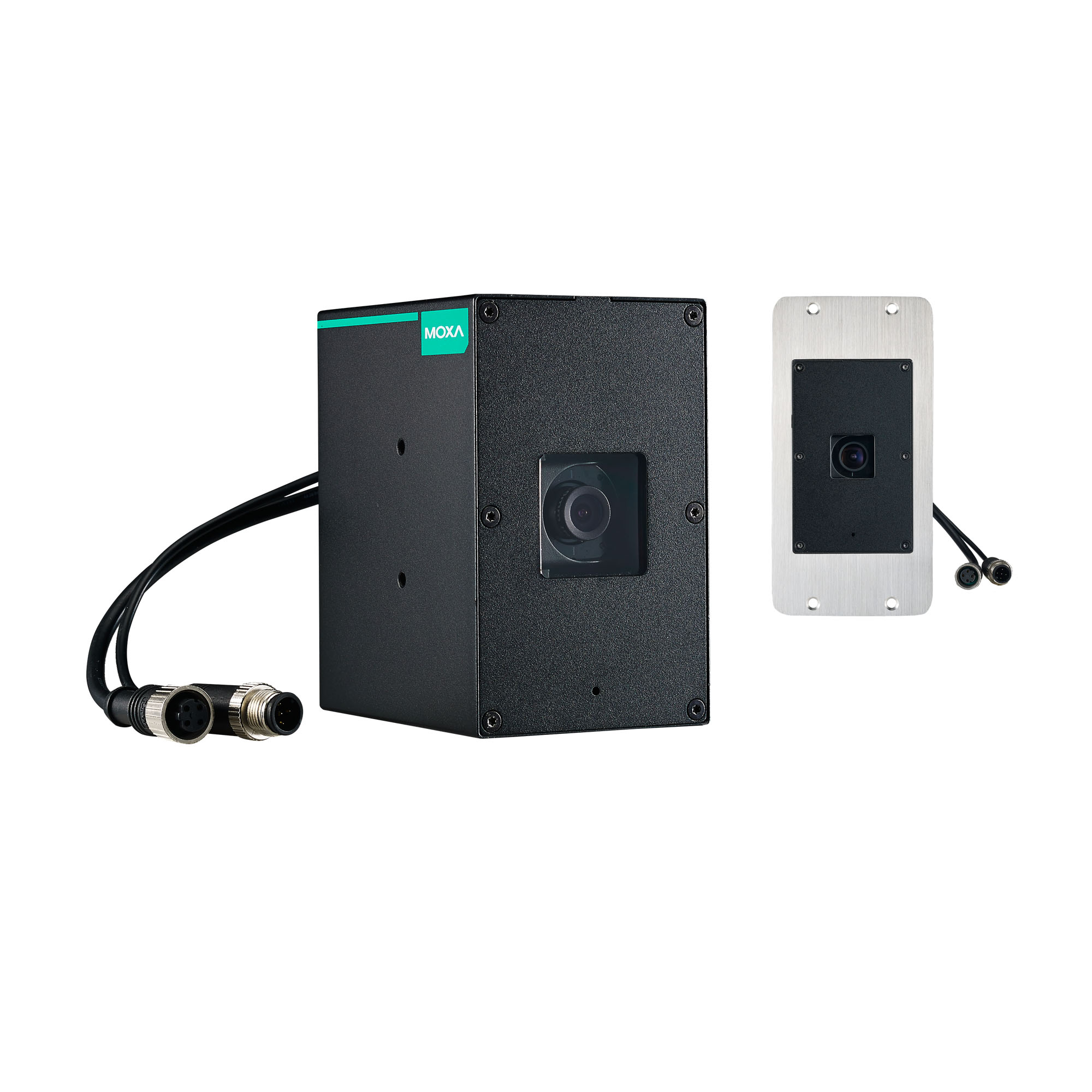

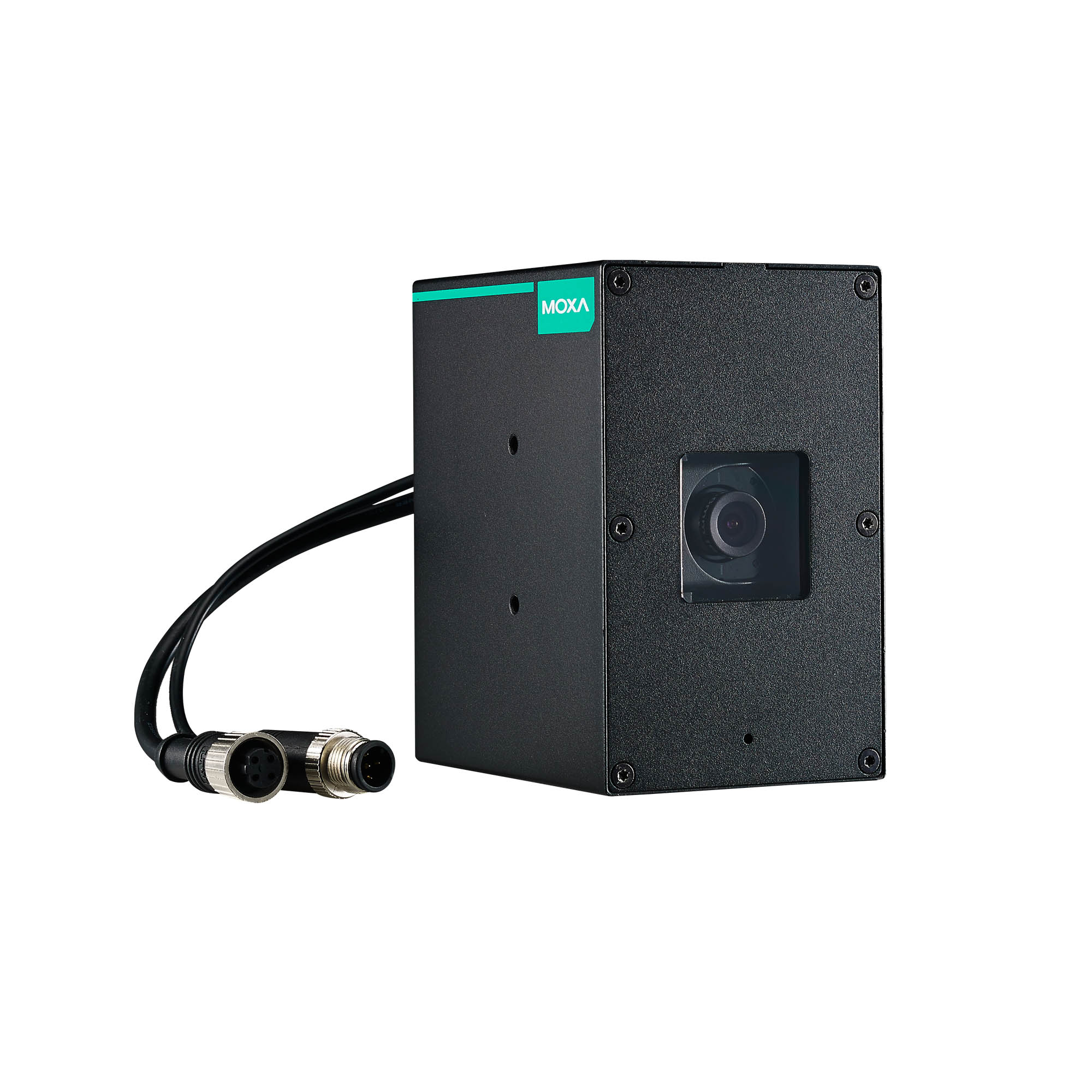

moxa-vport-p06hc-1mp-m12-series-image-1-(1).jpg | Moxa
moxa-vport-p06hc-1mp-m12-series-image-2-(1).jpg | Moxa

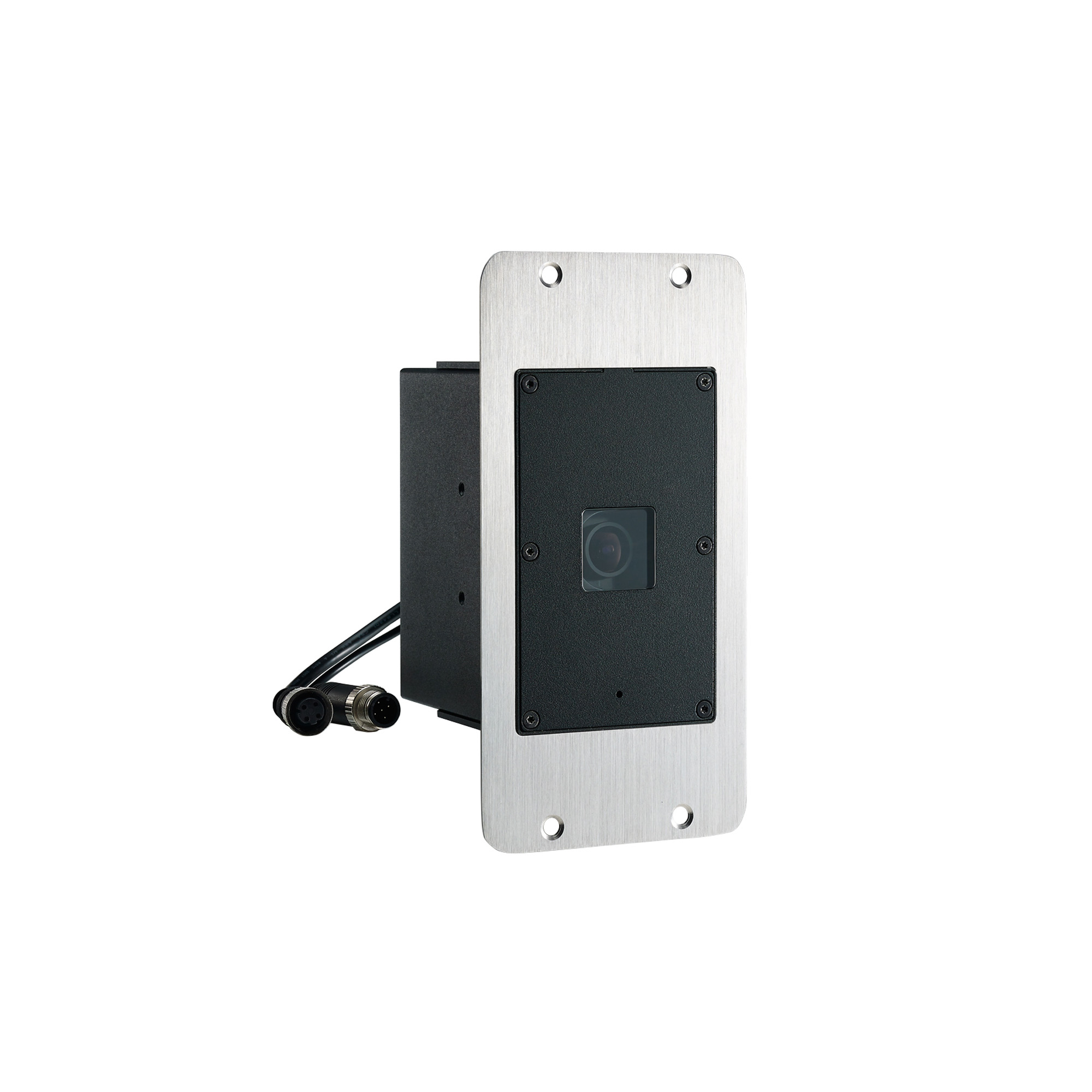

moxa-vport-p06hc-1mp-m12-series-image-3-(1).jpg | Moxa

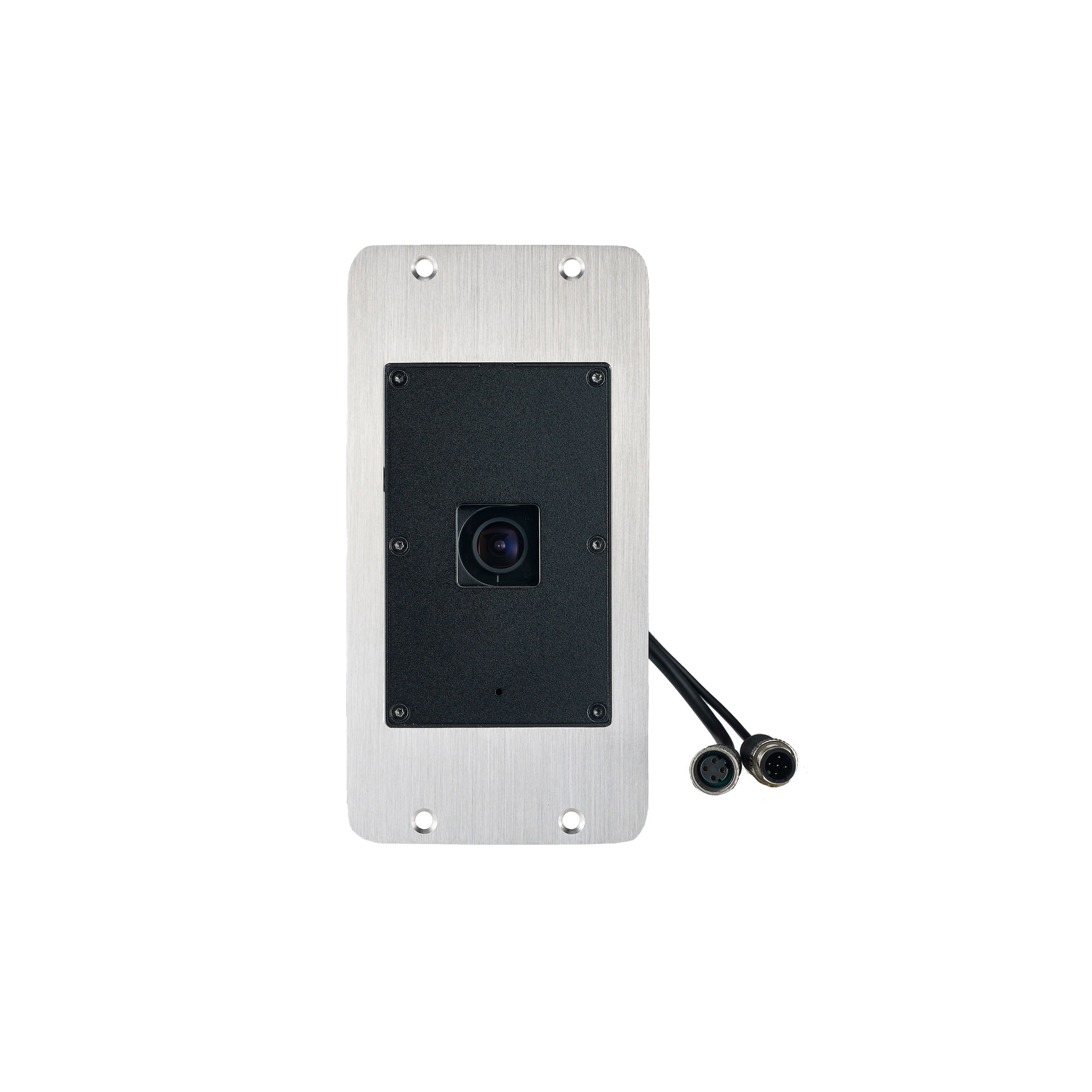

moxa-vport-p06hc-1mp-m12-series-image-4-(1).jpg | Moxa

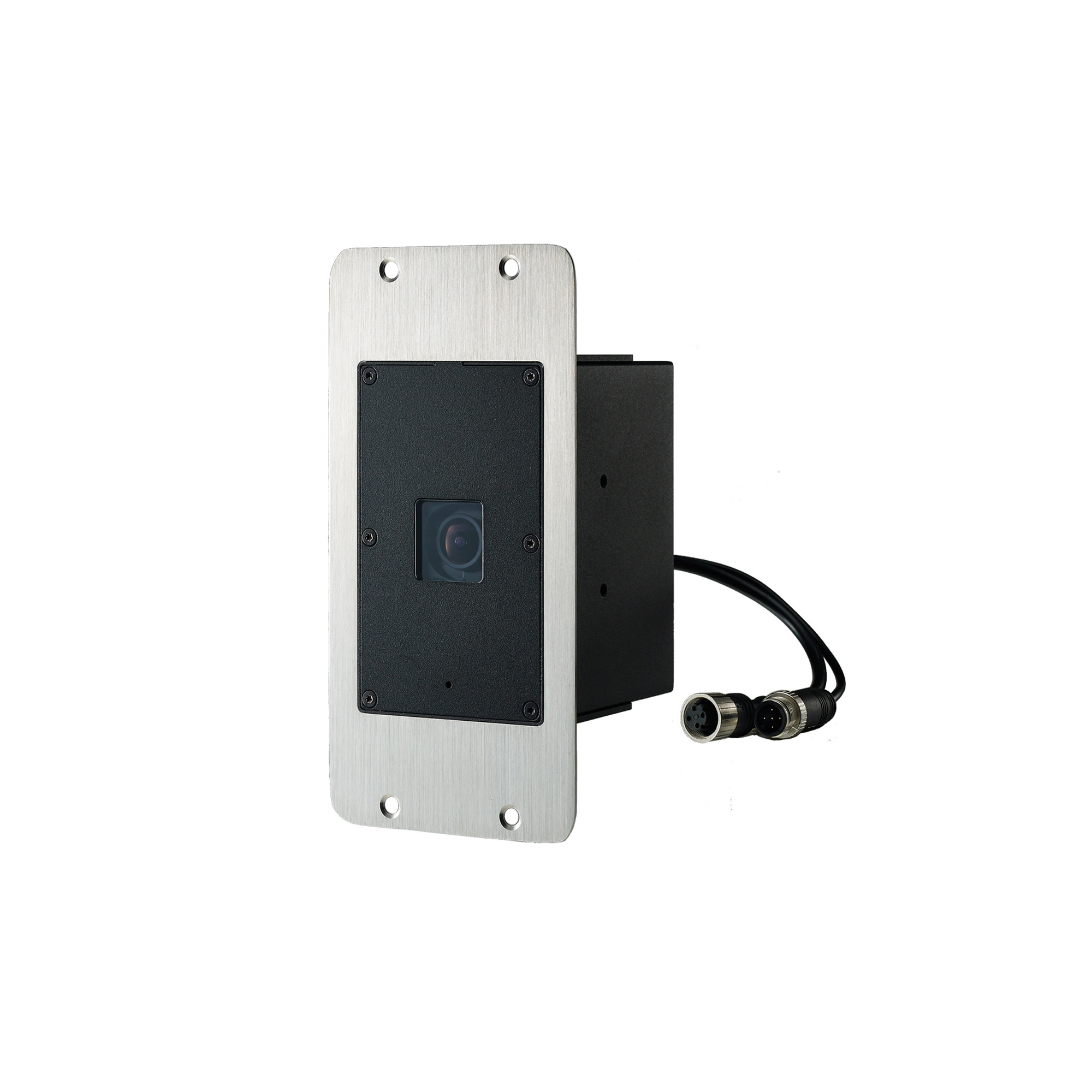

moxa-vport-p06hc-1mp-m12-series-image-5-(1).jpg | Moxa

Features and Benefits

  • -25 to 55°C operating temperature
  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
  • Flush mounting for hiding inside a panel, such as a wall or ceiling
  • Up to 3 H.264 or MJPEG independent video streams
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • Supports DHCP options 66 and 67 for auto-configuration
  • 1 built-in microphone for audio input, and 1 digital input for external sensor
  • ONVIF support for standardization and interoperability

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The VPort P06HC-1MP-M12 square-type IP cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness to excel in many different installations and environments for IP video surveillance applications. In addition, the cameras comply with a portion of EN 50155 specifications, This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, refer to: www.moxa.com/doc/specs/EN_50155_Compliance.pdf covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for a variety of industrial applications. The cameras feature a -25 to 55°C operating temperature, a rugged M12 Ethernet port, 1 built-in microphone, 1 digital input, PoE power inputs, IP66 rain and dust protection, and a selectable lens.

  • Digital Input Channels

    1

  • Digital Inputs

    +13 to +30 V for state 1
    -30 to +1 V for state 0
    Max. input current: 8 mA

  • Connector

    5-pin A-coded male M12 connector with 20 cm cable

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    1

  • Protocols

    TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67

  • Password

    User-level password protection

  • Filter

    IP address

  • No. of Power Inputs

    1

  • Source of Input Power

    PoE (IEEE 802.3af)

  • Input Current

    0.13 A @ 48 VDC

  • Sensor

    1/2.7-in HD progressive scan CMOS

  • Lens

    f=3.6 mm, F1.6, Diagonal 120°, Horizontal 96°, Vertical 56°

  • Minimum Illumination

    Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)

  • Synchronization

    Internal

  • White Balance

    ATW/AWB

  • Electronic Shutter

    Auto, Fixed (1/30 to 1/25000 sec)

  • S/N Ratio

    Maximum 50 dB (AGC off; DNR on)

  • DNR (digital noise reduction)

    Built-in 2D/3D DNR

  • WDR (wide dynamic range)

    69 dB

  • AGC (auto gain control)

    2X, 4X, 8X, 16X

  • Flickerless Control

    Automatic, 50 Hz, 60 Hz modes

  • Image Rotation

    Flip, Mirror, and 180° rotation

  • Image Setting

    Manual tuning with brightness and contrast

  • Video Compression

    H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Output

    via Ethernet

  • Video Streams

    3 independent H.264 or MJPEG video streams

  • Video Resolution and FPS (frames per second)

  • Video Viewing

    DynaStream™ support for changing the video frame rate automatically
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

  • Audio Inputs

    1 x built-in microphone

  • Audio Format

    Mono, PCM (G.711)

  • VPort SDK PLUS

    Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers

  • Video Motion Detection

    3 independently configurable areas

  • Scheduling

    Daily repeat timing schedule

  • Imaging

    JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    HTTP event servers for setting customized alarm actions

  • Email/FTP Messaging

    Automatic transfer of stored images via email or FTP as event-triggered actions

  • Pre-Alarm Buffer

    12 MB video buffer for JPEG snapshot images

  • Memory Size

    1 GB

  • Operating System

    Windows 7 or above

  • Browser

    Internet Explorer 9.x or above

  • Multimedia

    DirectX 9.0C or above

  • Housing

    Metal
    IP66 rain and dust protection
    Transparent PC cover

  • Dimensions

    109 x 68 x 90 mm (4.29 x 2.68 x 3.54 in)

  • Weight

    1100 g (2.43 lb)

  • Installation

    Wall mounting (with optional kit)

  • Protection

    VPort P06HC-1MP-M12-CAM36-CT: PCB conformal coating

  • Operating Temperature

    -25 to 55°C (-13 to 131°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Ingress Protection

    IEC 60529, IP66

  • Altitude

    2000 m

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Safety

    UL 60950-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Railway

    EN 50155 (complies with a portion of EN 50155 specifications)

  • Time

    1,275,915 hrs

  • Standards

    Telcordia SR332
