VPort P16-1MP-M12 Series

EN 50155, HD image, rugged IP cameras

moxa-vport-p16-1mp-m12-series-image-1-(1).jpg | Moxa

Features and Benefits

  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
  • Built-in light sensor for day & night images
  • High quality video imaging with DNR and WDR
  • Up to 3 H.264 or MJPEG independent video streams
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • Supports DHCP options 66 and 67 for auto-configuration
  • ONVIF support for standardization and interoperability

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The rugged VPort P16-1MP-M12 cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155, This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, refer to: www.moxa.com/doc/specs/EN_50155_Compliance.pdf covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications, and feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power inputs, IP66 rain and dust protection, and day & night image capability.

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    1

  • Protocols

    TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS

  • Password

    User-level password protection

  • Filter

    IP address

  • Encryption

    HTTPS

  • No. of Power Inputs

    1

  • Source of Input Power

    PoE (IEEE 802.3af)

  • Input Current

    0.35 A @ 48 VDC

  • Sensor

    1/2.7-in HD progressive scan CMOS

  • Lens

    VPort P16-1MP-M12-CAM36 Series: f=3.6mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
    VPort P16-1MP-M12-CAM80 Series: f=8.0mm, F1.6, Diagonal 45°, Horizontal 40°, Vertical 22°

  • Minimum Illumination

    Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
    B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)

  • Camera Angle

    Pan 350°, Tilt 65° (controlled manually)

  • Day & Night

    Auto/Color/BW; ICR control

  • ICR Control

    Auto

  • Synchronization

    Internal

  • White Balance

    ATW/AWB

  • Electronic Shutter

    Auto, Fixed (1/30 to 1/25000 sec)

  • S/N Ratio

    Maximum 50 dB (AGC off; DNR on)

  • DNR (digital noise reduction)

    Built-in 2D/3D DNR

  • WDR (wide dynamic range)

    110 dB

  • Flickerless Control

    Automatic, 50 Hz, 60 Hz modes

  • Image Rotation

    Flip, Mirror, and 180° rotation

  • Image Setting

    Manual tuning with saturation, sharpness, and contrast

  • AGC (auto gain control)

    2X, 4X, 8X, 16X, 32X, 64X

  • BLC (back light compensation)

    High/Medium/Low

  • Video Compression

    H.264 (ISO/IEC 14496-10) or MJPEG

  • Video Output

    via Ethernet

  • Video Streams

    3 independent H.264 or MJPEG video streams

  • Video Resolution and FPS (frames per second)

  • Video Viewing

    DynaStream™ support for changing the video frame rate automatically
    CBR Pro™ for good image quality in limited bandwidth transmissions
    3 privacy mask areas provided
    Adjustable image size and quality
    Timestamp and text overlay
    OSD (On Screen Display) position adjustable
    Maximum of 5 simultaneous unicast connections, 50 multicast clients

  • VPort SDK PLUS

    Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers

  • Video Standards

    ONVIF Profile S

  • Intelligent Video

    Camera tampering detection

  • Video Motion Detection

    3 independently configurable areas

  • Scheduling

    Daily repeat timing schedule

  • Imaging

    JPEG snapshots for pre/trigger/post alarm images

  • Custom Alarms

    HTTP event servers for setting customized alarm actions

  • Email/FTP Messaging

    Automatic transfer of stored images via email or FTP as event-triggered actions

  • Pre-Alarm Buffer

    12 MB video buffer for JPEG snapshot images

  • Memory Size

    1 GB

  • Operating System

    Windows 7 or above

  • Browser

    Internet Explorer 9.x or above

  • Multimedia

    DirectX 9.0C or above

  • Housing

    IP66 rain and dust protection
    Metal housing, PC dome cover
    IK10 vandal resistant protection

  • Dimensions

    125 x 125 x 120.7 mm (4.92 x 4.92 x 4.8 in)

  • Weight

    810 g (1.79 lb)

  • Installation

    Panel mounting

  • Protection

    -CT models: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 55°C (-13 to 131°F)
    Wide Temp. Models: -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Ingress Protection

    IEC 60529, IP66

  • Salt Spray Test

    ASTM-B117

  • Vandal Resistance

    EN 62262, IK10

  • Altitude

    2000 m

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Railway Fire Protection

    EN 45545-2

  • Safety

    UL 60950-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Railway

    EN 50155 (complies with a portion of EN 50155 specifications)

  • Time

    1,598,728 hrs

  • Standards

    Telcordia SR332

  • Warranty Period

    5 years
    Note: Limited warranty on moving parts; see Moxa's online warranty policy for details.

  • Details

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Firmware for VPort P16-1MP-M12 Series
19.1 MB
Firmware v1.3
2018-03-07 Mar 07, 2018 Release notes
SoftNVR-IA IP Surveillance Software Trial Version
48.1 MB
Software Package v3.5
  • Windows XP
  • Windows 7
2017-11-09 Nov 09, 2017 Release notes
Software Package for VPort P16-1MP-M12 Series (MIB file)
39.8 KB
Software Package v1.0
2014-09-16 Sep 16, 2014 Release notes
Moxa VPort and EtherDevice Configurator Utility
1.6 MB
Utility v5.3
  • Windows
2012-04-10 Apr 10, 2012

Support Documents

Name Type Version Release Date
Datasheet for VPort P16-1MP-M12 Series
700.9 KB
Datasheet v1.0 2018-11-12 Nov 12, 2018
Manual for VPort P16-1MP-M12 Series
6.9 MB
Manual v3.4 2018-02-09 Feb 09, 2018
QIG for VPort P16-1MP-M12 Series
1.5 MB
QIG v2.0 2017-03-21 Mar 21, 2017
3D CAD for VPort P16-1MP-M12
2.4 MB
3D CAD 2014-09-16 Sep 16, 2014
2D CAD for VPort P16-1MP-M12
389.2 KB
2D CAD 2014-09-16 Sep 16, 2014
Manual for SoftNVR-IA IP Surveillance Software
3.6 MB
Manual v1.0 2010-04-23 Apr 23, 2010

Available Models (8)

Show Images
moxa-vport-p16-1mp-m12-cam36-image.jpg | MoxaVPort P16-1MP-M12-CAM36moxa-vport-p16-1mp-m12-cam80-image.jpg | MoxaVPort P16-1MP-M12-CAM80moxa-vport-p16-1mp-m12-cam36-t-image.jpg | MoxaVPort P16-1MP-M12-CAM36-Tmoxa-vport-p16-1mp-m12-cam80-t-image.jpg | MoxaVPort P16-1MP-M12-CAM80-T
Lens3.6 mm8.0 mm3.6 mm8.0 mm
Operating Temp.-25 to 55°C-25 to 55°C-40 to 70°C-40 to 70°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-vport-p16-1mp-m12-cam36-ct-image.jpg | MoxaVPort P16-1MP-M12-CAM36-CTmoxa-vport-p16-1mp-m12-cam80-ct-image.jpg | MoxaVPort P16-1MP-M12-CAM80-CTmoxa-vport-p16-1mp-m12-cam36-ct-t-image.jpg | MoxaVPort P16-1MP-M12-CAM36-CT-Tmoxa-vport-p16-1mp-m12-cam80-ct-t-image.jpg | MoxaVPort P16-1MP-M12-CAM80-CT-T
Lens3.6 mm8.0 mm3.6 mm8.0 mm
Operating Temp.-25 to 55°C-25 to 55°C-40 to 70°C-40 to 70°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Added To Bag

VPort P16-1MP-M12 Series

VPort P16-1MP-M12-CAM36

moxa-vport-p16-1mp-m12-cam36-image.jpg | Moxa

Buy online from our distributors

VPort P16-1MP-M12 Series

VPort P16-1MP-M12-CAM80

moxa-vport-p16-1mp-m12-cam80-image.jpg | Moxa

Buy online from our distributors

VPort P16-1MP-M12 Series

VPort P16-1MP-M12-CAM36-T

moxa-vport-p16-1mp-m12-cam36-t-image.jpg | Moxa

Buy online from our distributors

VPort P16-1MP-M12 Series

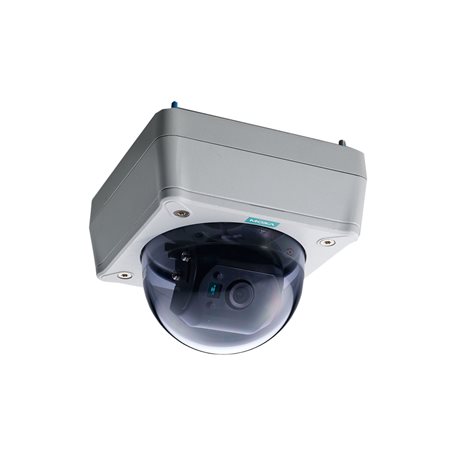

VPort P16-1MP-M12-CAM80-T
