CP-602E-I Series

2-port CAN interface PCI Express boards with 2 kV isolation

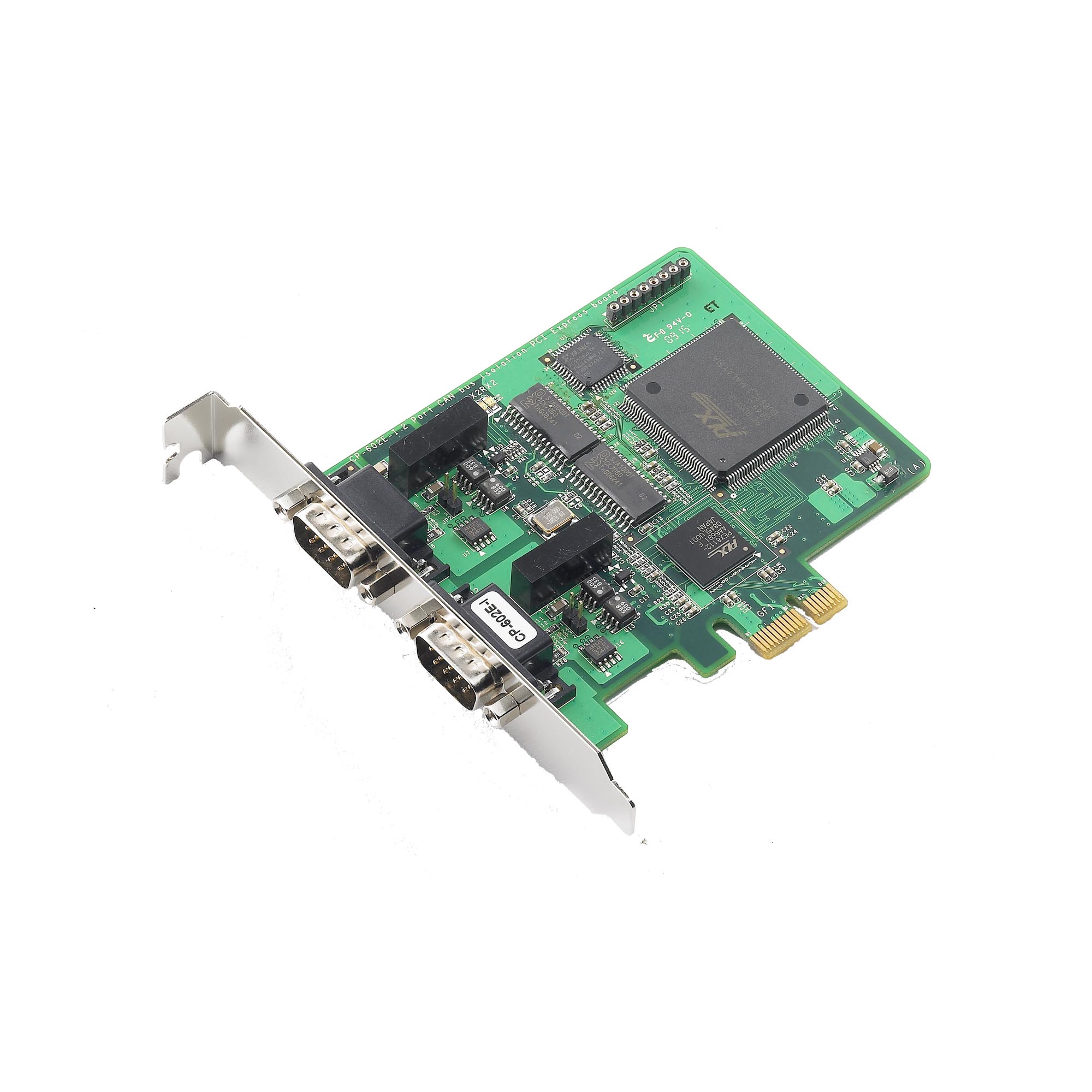

moxa-cp-602e-i-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Supports CAN 2.0A and CAN 2.0B
  • Two independent CAN communication ports
  • CAN transfer rate up to 1 Mbps
  • 2 kV electrical isolation
  • LED for transmit/receive status on each port
  • Optional 120-ohm terminal resistor for CAN bus network
  • DLL library and examples included
  • Windows driver provided

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’sCP-602E-I CAN (Controller Area Network) interface board supports the PCI Express interface. As a standalone CAN controller, the CP-602E-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602E-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602E-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

  • Baudrate

    10/20/50/125/250/500/800/1000 kbps, user-defined

  • Connector

    DB9 male

  • No. of Ports

    2

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    4,645,502 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for CP-602E-I Series (Linux)
36.3 KB
Driver v1.0
  • Linux 2.6.x
  • Linux 3.x
Nov 04, 2012 Nov 04, 2012 Release notes
Driver for CP-602E-I Series (Windows)
1.2 MB
Driver v1.0
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Dec 06, 2009 Dec 06, 2009 Release notes

Support Documents

Name Type Version Release Date
QIG for CAN Interface Boards
173.3 KB
QIG v3.2 May 19, 2021 May 19, 2021
Datasheet for CP-602E-I Series
484.7 KB
Datasheet v1.0 Nov 11, 2018 Nov 11, 2018
Manual for CP-602E-I Series
1.8 MB
Manual v2.0 Sep 11, 2009 Sep 11, 2009

Available Models (2)

Show Images
moxa-cp-602e-i-w-o-cable-image.jpg | MoxaCP-602E-I w/o Cablemoxa-cp-602e-i-t-w-o-cable-image.jpg | MoxaCP-602E-I-T w/o Cable
Serial BusPCI ExpressPCI Express
CAN SpecificationCAN 2.0 A/BCAN 2.0 A/B
No. of Serial Ports22
Serial Isolation Protection2 kV2 kV
Operating Temp.0 to 55°C-40 to 85°C
Add to QuoteView BagAdd to QuoteView Bag
