CP-602U-I Series

2-port CAN bus Universal PCI board with 2 kV electrical isolation

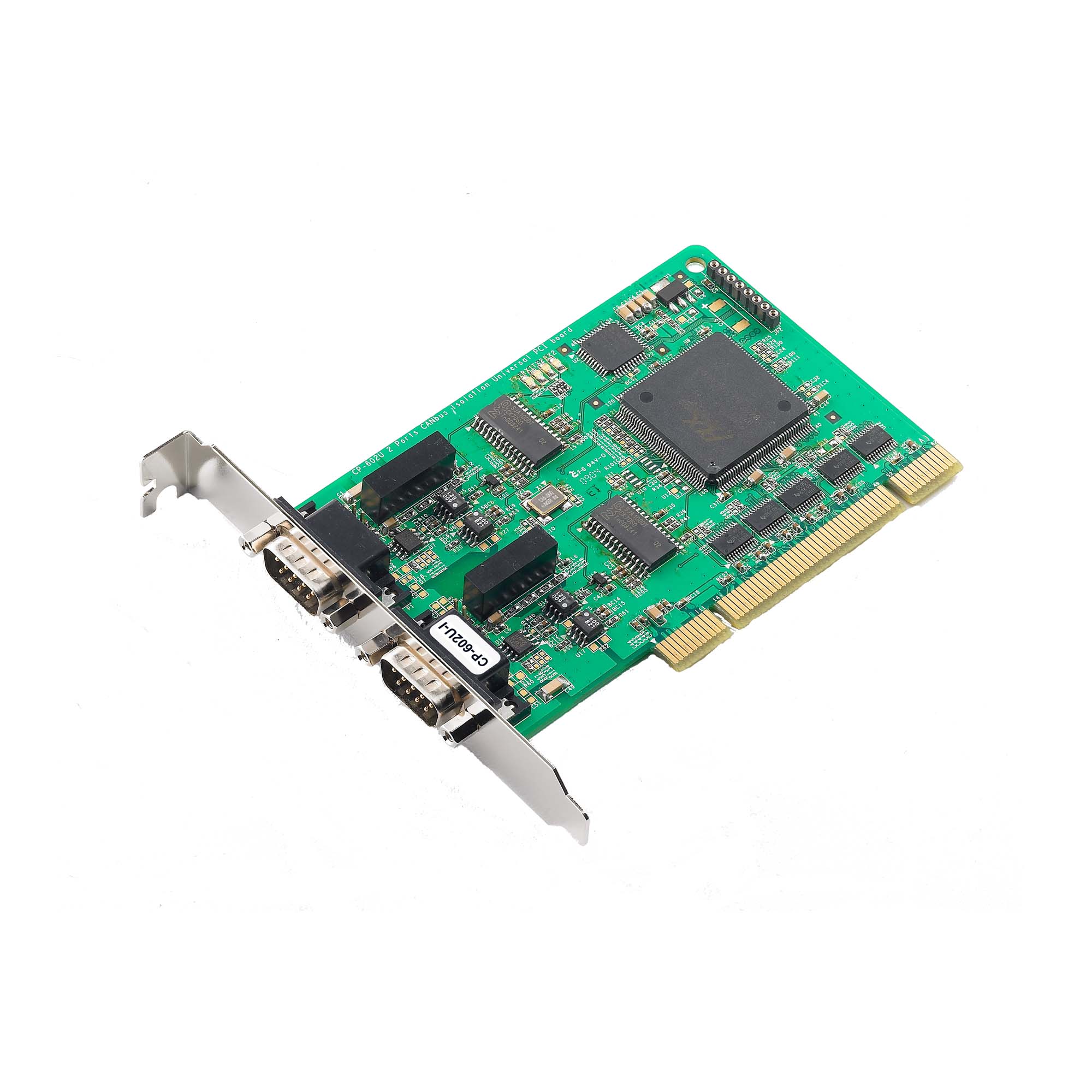

moxa-cp-602u-i-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Supports CAN 2.0A and CAN 2.0B
  • Two independent CAN communication ports
  • CAN transfer rate up to 1 Mbps
  • 2 kV electrical isolation
  • LED for transmit/receive status on each port
  • Optional 120-ohm terminal resistor for CAN bus network
  • DLL library and examples included
  • Windows driver provided

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s CP-602U-I CAN (Controller Area Network) interface board supports the Universal PCI interface. As a standalone CAN controller, the CP-602U-I is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602U-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602U-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.

  • Baudrate

    10/20/50/125/250/500/800/1000 kbps, user-defined

  • Connector

    DB9 male

  • No. of Ports

    2

  • Operating Temperature

    CP-602U-I w/o Cable: 0 to 55°C (32 to 131°F)
    CP-602U-I-T w/o Cable: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    1,989,990 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

All Driver
Name Type Checksum Version Operating System Release Date
Windows driver for CANbus Serial Boards (Windows 10, WHQL certified)
2.4 MB 		Driver
SHA-512
v3.0
  • Windows 10
  • Windows Server 2016
  • Windows Server 2019
 Nov 22, 2023 Nov 22, 2023 Release notes
Windows driver for CANbus Serial Boards (Windows 11, WHQL certified)
2.3 MB 		Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
 Nov 22, 2023 Nov 22, 2023 Release notes
Driver for Multiport Serial PCI Express Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB 		Driver
SHA-512
v3.1
  • Windows 10
  • Windows 10
  • Windows 7
  • Windows 7
  • Windows 8
  • Windows 8
  • Windows 8.1
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2019
  • Windows Server 2022
  • Windows Server 2022
 Sep 06, 2022 Sep 06, 2022 Release notes
Driver for CP-602U-I Series (Linux)
36.3 KB 		Driver
SHA-512
v1.0
  • Linux 2.6.x
  • Linux 3.x
 Nov 04, 2012 Nov 04, 2012 Release notes
Driver for CP-602U-I Series (Windows)
1.2 MB 		Driver
SHA-512
v1.0
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
 Dec 06, 2009 Dec 06, 2009 Release notes

Support Documents

FILTER

All Datasheet Declaration Manual QIG
Name Type Version Release Date
QIG for CAN Interface Boards
165.6 KB 		QIG v3.3 Jan 22, 2025 Jan 22, 2025
FOSS Statement for Multiple CAN Bus Board Windows Driver
143.5 KB 		Declaration v1.0 Oct 29, 2024 Oct 29, 2024
Declaration of Conformity for CP-602U-I Series
297.3 KB 		Declaration v1.0 May 29, 2024 May 29, 2024
Manual for Multiport Serial PCI Express Boards
15.7 MB 		Manual v12.0 Jun 23, 2022 Jun 23, 2022
Datasheet for CP-602U-I Series
485.0 KB 		Datasheet v1.1 Sep 24, 2021 Sep 24, 2021
QIG for CAN Interface Boards
173.3 KB 		QIG v3.2 May 19, 2021 May 19, 2021
Manual for CP-602U-I Series
1.8 MB 		Manual v2.0 Sep 11, 2009 Sep 11, 2009

Related Content

FILTER

All Technology Guide White Paper

Available Models (2)

Show Images
Compare
moxa-cp-602u-i-t-w-o-cable-image.jpg | MoxaCP-602U-I-T w/o Cable
Compare

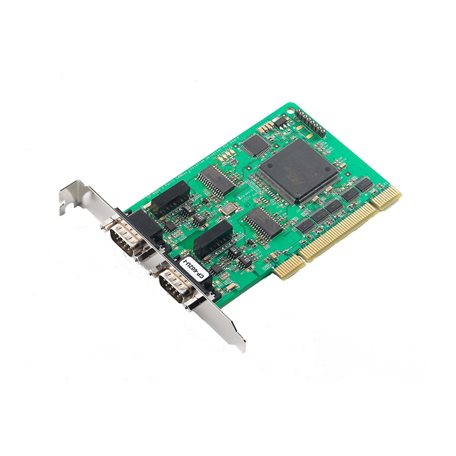

moxa-cp-602u-i-w-o-cable-image.jpg | MoxaCP-602U-I w/o Cable
