CA-132/132I Series

2-port RS-422/485 PC/104 modules with optional 2 kV isolation

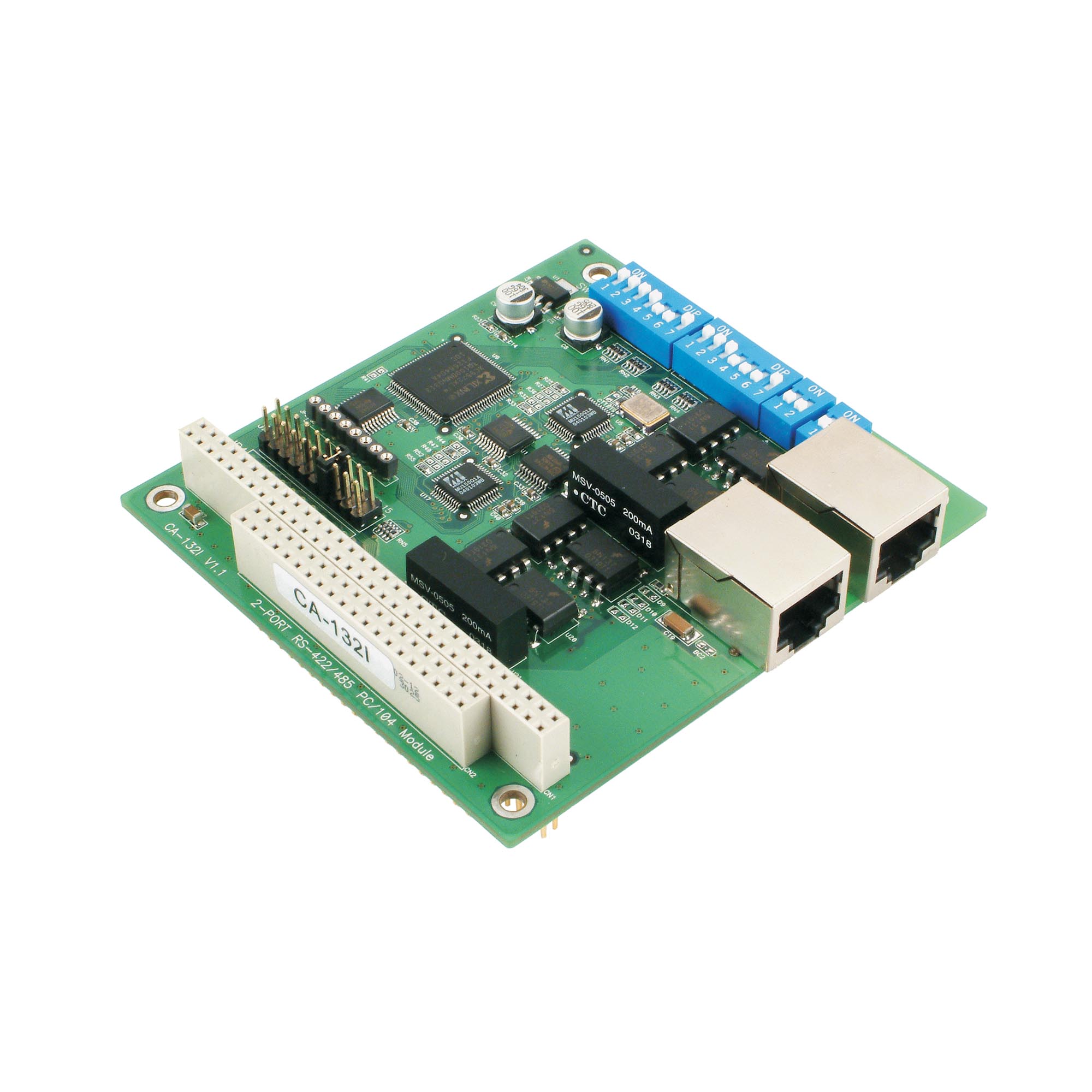

moxa-ca-132-132i-series-image-1-(1).jpg | Moxa

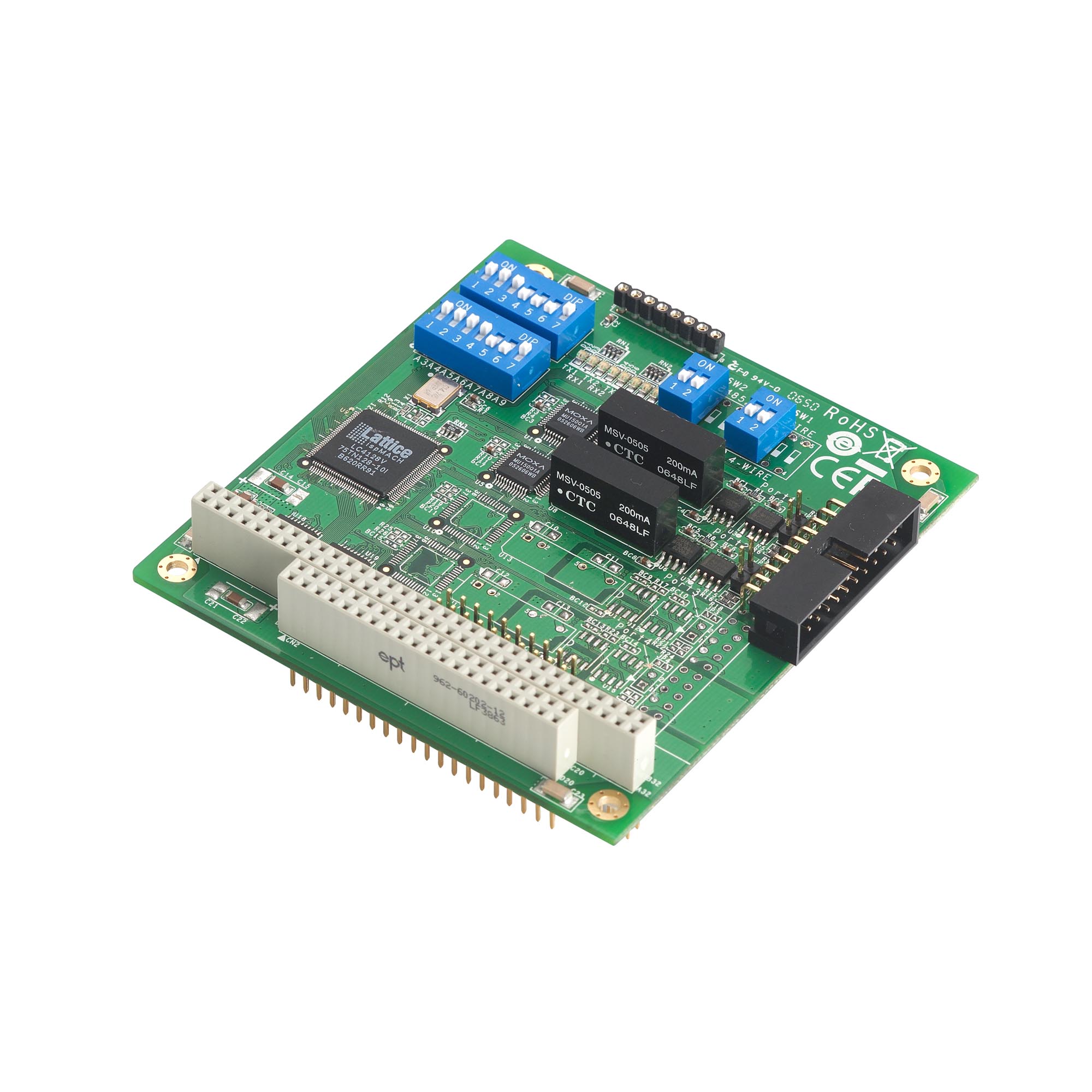

moxa-ca-132-132i-series-image-2-(1).jpg | Moxa

Features and Benefits

  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip software flow control
  • Onboard Tx and Rx LED indicators for each port
  • Supports RS-485 ADDC® (Automatic Data Direction Control)
  • Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
  • Wide-temperature models available for -40 to 85°C environments

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The CA-132/132I PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 2 RS-422/485 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.

  • Comm. Controller

    16C550C or compatible x 2

  • Bus

    PC/104 bus

  • Connector

    20-pin box header

  • DIP Switches

    I/O base address, Interrupt vector

  • IRQ

    3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)

  • FIFO

    64 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    2

  • Serial Standards

    RS-422, RS-485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, XON/XOFF

  • Isolation

    CA-132I/132I-T: 2 kV

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x

  • UNIX Drivers

    FreeBSD 4.x, QNX 4, SCO UNIX, OpenServer

  • Input Current

    CA-132 Series: 155 mA @ 5 VDC
    CA-132I Series: 190 mA @ 5 VDC

  • Input Voltage

    5 VDC

  • Dimensions

    90 x 96 mm (3.54 x 3.78 in)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 0.5 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-2
    IEC 60068-2-3
    IEC 60068-2-14

  • Safety

    EN 60950-1, UL 60950-1

  • Vibration

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    536,288 hrs

  • Standards

    Telcordia (Bellcore), GB
