PCIe/UPCI/PCI Serial Cards

Moxa's dedication to being a trusted provider of serial connectivity is demonstrated by our long-term commitment to serial products and service availability. Our PCI Express, Universal PCI, and PCI serial boards are built for industrial applications, and include models that can operate reliably in a wide temperature range.

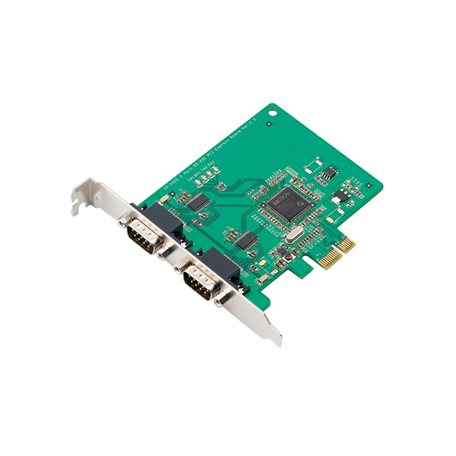

CP-102E
CP-102E/102EL Series

2-port RS-232 PCI Express x1 serial board

Serial Interface
  • Comm. Controller

    • MU860 (16C550C compatible)
  • Bus

    • PCI Express 1.0
  • Connector

    • 2 x DB9 male
  • FIFO

    • 128 bytes
  • Max. No. of Boards per PC

    • 8
  • No. of Ports

    • 2
  • Serial Standards

    • RS-232
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, XON/XOFF
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features
  • Windows Drivers

    • DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Drivers

    • Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
  • UNIX Drivers

    • QNX 6, Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6
Power Parameters
  • Input Current

    • 520 mA @ 3.3 VDC
Physical Characteristics
  • Dimensions

    • 85.04 x 100 mm (3.35 x 3.94 in)
LED Interface
  • LED Indicators

    • Built-in Tx, Rx LEDs for each port
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • -20 to 85°C (-4 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 4,947,552 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
