PCIe/UPCI/PCI Serial Cards

Moxa's dedication to being a trusted provider of serial connectivity is demonstrated by our long-term commitment to serial products and service availability. Our PCI Express, Universal PCI, and PCI serial boards are built for industrial applications, and include models that can operate reliably in a wide temperature range.

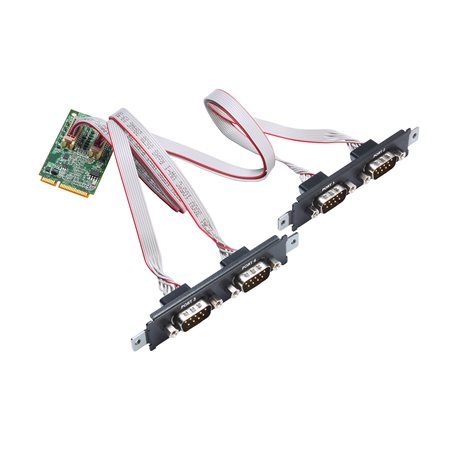

CP-104N-T
CP-104N Series

4-port RS-232 Mini PCI Express serial board, -40 to 85°C operating temperature

Serial Interface
  • Comm. Controller

    • 16C550C compatible
  • Bus

    • Mini PCI Express
  • Connector

    • DB9 male
  • FIFO

    • 128 bytes
  • No. of Ports

    • 4
  • Serial Standards

    • RS-232
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • None, RTS/CTS, XON/XOFF
  • Isolation

    • 2.5 kV
      (I models)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Serial Software Features
  • Windows Drivers

    • Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022
  • Linux Drivers

    • Linux kernel 4.x, Linux kernel 5.x
Power Parameters
  • Input Current

    • 365 mA @ 3.3 VDC
Physical Characteristics
  • Dimensions

    • 30 x 50.95 mm (1.18 x 2 in)
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -20 to 85°C (-4 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 3,673,087 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty
