CP-104UL/104JU Series

4-port RS-232 smart Universal PCI serial boards

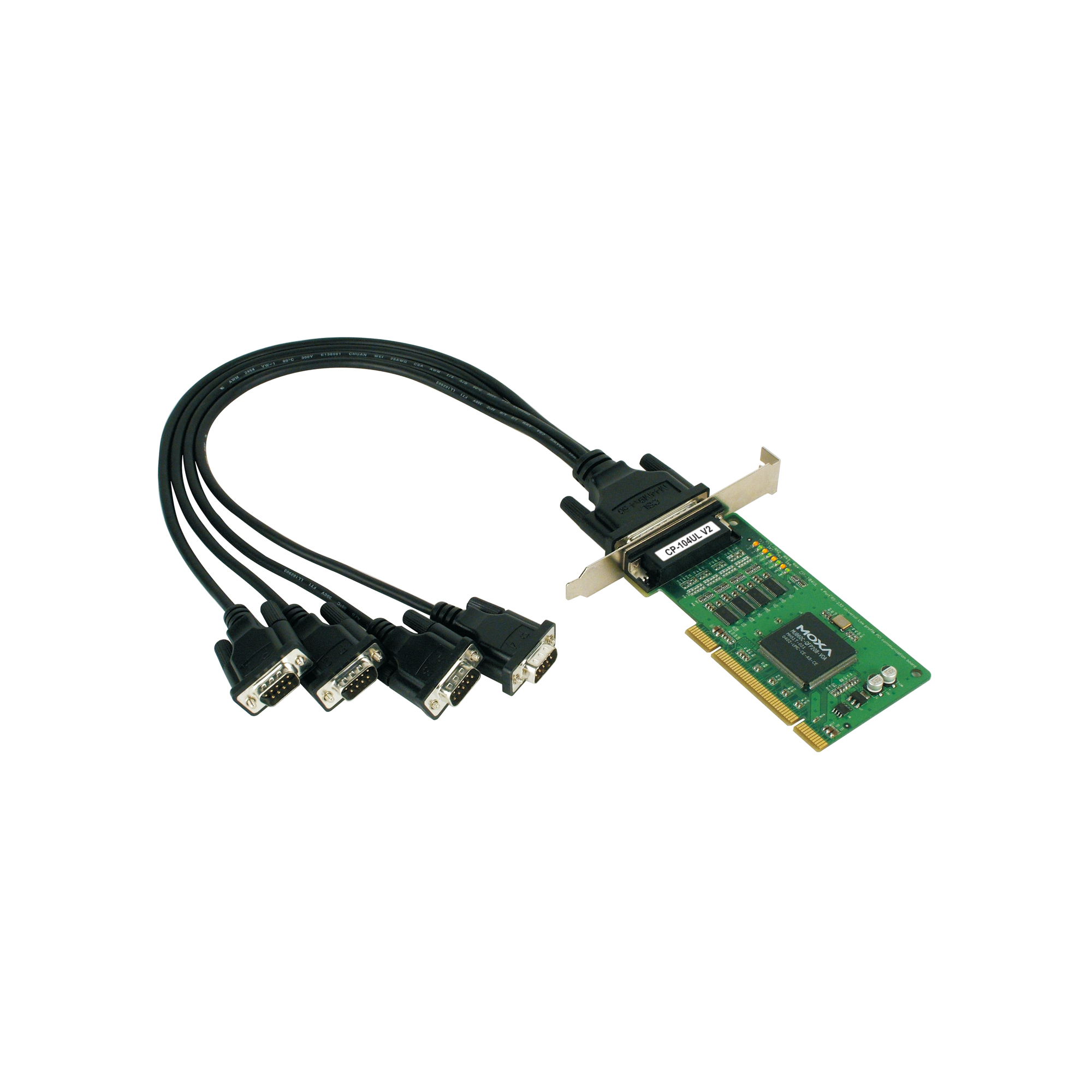

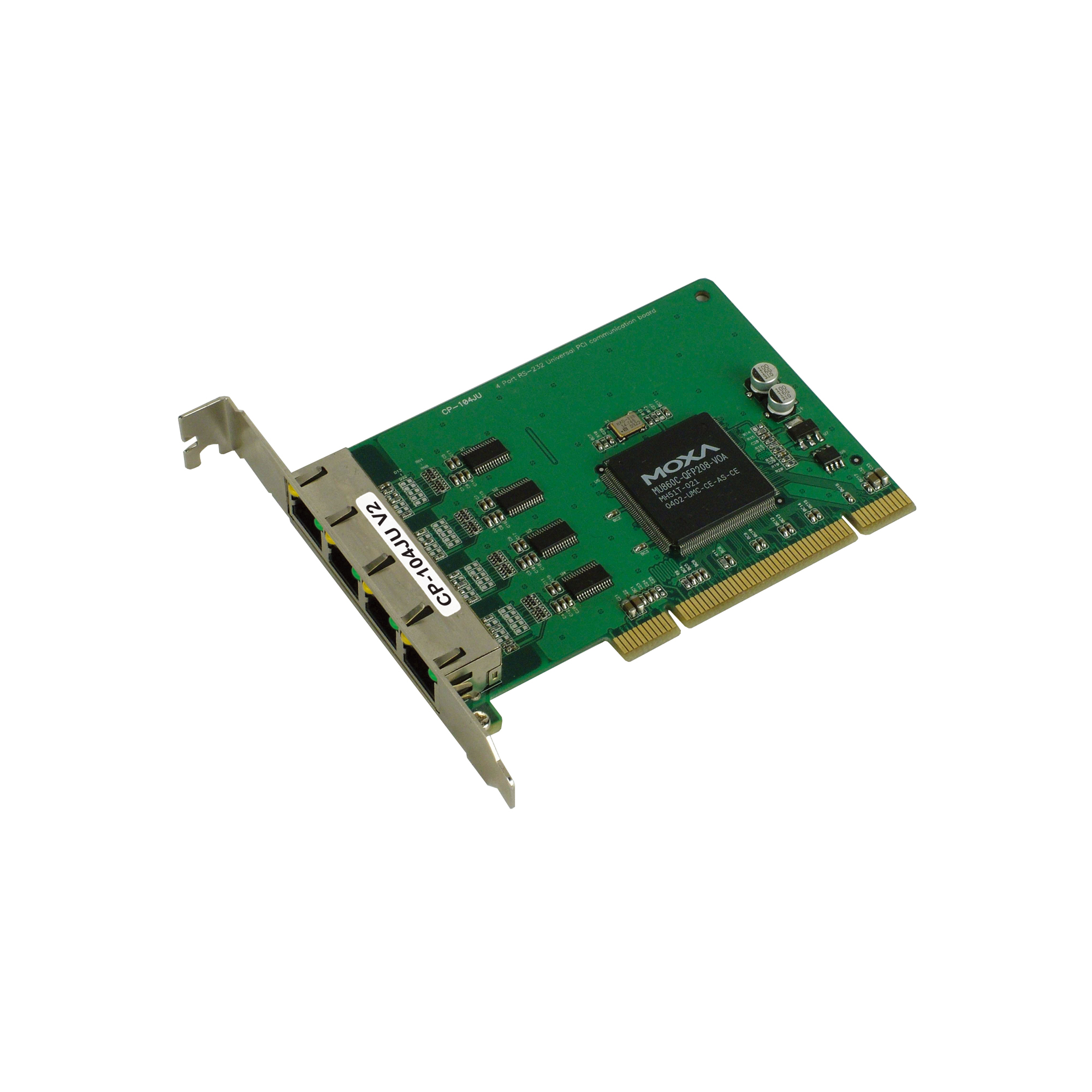

moxa-cp-104ul-104ju-series-image-1-(1).jpg | Moxa
moxa-cp-104ul-104ju-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Over 800 kbps data throughput for top performance
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide-temperature model available for -40 to 85°C environments

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The CP-104UL and CP-104JU 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the boards’ RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-104UL and CP-104JU provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any available PC server.

Built-In LEDs

  • Comm. Controller

    MU860 (16C550C compatible)

  • Bus

    32-bit Universal PCI

  • Connector

    CP-104UL Series: DB44 female
    CP-104JU Series: 4 x RJ45

  • FIFO

    128 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    4

  • Serial Standards

    RS-232

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

  • Input Current

    CP-104UL Series: 120 mA @ 5 VDC
    CP-104JU Series: 135 mA @ 5 VDC

  • Dimensions

    CP-104UL Series: 64.4 x 120 mm (2.53 x 4.72 in)
    CP-104JU Series: 83 x 120 mm (3.27 x 4.72 in)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    CP-104UL Series:
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

    CP-104JU Series:
    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

  • International Approval

    CP-104UL-DB9M: KC

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    CP-104UL Series: 558,961 hrs
    CP-104JU Series: 571,627 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Linux Kernel 6.x Driver for Multiport Serial PCI Express and Universal PCI Boards
780.0 KB
Driver
SHA-512
v6.1
  • Linux Kernel 6.x
Oct 01, 2024 Oct 01, 2024 Release notes
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
Utility
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 19, 2023 Jun 19, 2023 Release notes
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
Driver
SHA-512
v5.2
  • Linux Kernel 5.x
Jan 17, 2023 Jan 17, 2023 Release notes
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
Driver
SHA-512
v4.2
  • Linux Kernel 4.x
Jan 17, 2023 Jan 17, 2023 Release notes
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
Driver
SHA-512
v3.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Sep 06, 2022 Sep 06, 2022 Release notes
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 11 and Windows Server 2022, WHQL certified)
4.1 MB
Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
Sep 02, 2022 Sep 02, 2022 Release notes
MSB Linux kernel 4.x.x driver
161.9 KB
Driver
SHA-512
v4.1
  • Linux Kernel 4.x
Oct 25, 2021 Oct 25, 2021 Release notes
MSB Linux kernel 5.x.x driver
160.1 KB
Driver
SHA-512
v5.1
  • Linux Kernel 5.x
Oct 25, 2021 Oct 25, 2021 Release notes
Driver for Linux kernel 3.x.x
161.1 KB
Driver
SHA-512
v3.0
  • Linux Kernel 3.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for Linux kernel 2.x.x
161.3 KB
Driver
SHA-512
v2.0
  • Linux Kernel 2.6.x
Dec 31, 2019 Dec 31, 2019 Release notes
Driver for CP-104UL/104JU Series (Windows XP, 2008 or earlier)
759.9 KB
Driver
SHA-512
v1.24
  • Windows 2000
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Oct 17, 2017 Oct 17, 2017 Release notes
Driver for CP-104UL/104JU Series (DOS)
634.2 KB
Driver
SHA-512
v1.12
  • DOS
Mar 31, 2014 Mar 31, 2014 Release notes
Driver for CP-104UL/104JU Series (UnixWare)
330.0 KB
Driver
SHA-512
v1.13
  • SCO UnixWare 7
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-104UL/104JU Series (Sun Solaris)
118.0 KB
Driver
SHA-512
v1.1
  • Solaris 10
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-104UL/104JU Series (SCO 5)
649.5 KB
Driver
SHA-512
v1.13
  • SCO OpenServer 5
Mar 30, 2014 Mar 30, 2014 Release notes
Driver for CP-104UL/104JU Series (SCO 6)
322.0 KB
Driver
SHA-512
v1.13
  • SCO OpenServer 6
Mar 30, 2014 Mar 30, 2014 Release notes
PComm Lite - Serial Communication Tool for Windows
1.6 MB
Utility
SHA-512
v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
May 13, 2012 May 13, 2012 Release notes
Driver for CP-104UL/104JU Series (Windows ME or prior)
341.1 KB
Driver
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
Jul 12, 2010 Jul 12, 2010 Release notes
Driver for CP-104UL/104JU Series (WinCE 6)
280.7 KB
Driver
SHA-512
v1.0
  • Windows CE 6.0
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for CP-104UL/104JU Series (UnixWare 2.1)
270.0 KB
Driver
SHA-512
v1.7
  • SCO UnixWare 2.x
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for CP-104UL/104JU Series (WinCE 5)
370.8 KB
Driver
SHA-512
v1.1
  • Windows CE 5.0
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for CP-104UL/104JU Series (WinNT)
193.5 KB
Driver
SHA-512
v5.11
  • Windows NT
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for CP-104UL/104JU Series (Windows 95/98)
341.1 KB
Driver
SHA-512
v5.11
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
Jul 11, 2010 Jul 11, 2010 Release notes
Viewcom
451.1 KB
Utility
SHA-512
v1.0
  • Windows 2000
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
Jul 11, 2010 Jul 11, 2010 Release notes
Driver for CP-104UL/104JU Series (QNX6)
120.8 KB
Driver
SHA-512
v1.1
  • QNX 6.x
Feb 10, 2010 Feb 10, 2010 Release notes
Driver for CP-104UL/104JU Series (FreeBSD)
33.0 KB
Driver
SHA-512
v1.3
  • FreeBSD 4.x
  • FreeBSD 5.x
Feb 10, 2010 Feb 10, 2010 Release notes
Driver for CP-104UL/104JU Series (WinXP Embedded)
289.1 KB
Driver
SHA-512
v1.16
  • Windows XP Embedded
Feb 08, 2010 Feb 08, 2010 Release notes

Support Documents

Name Type Version Release Date
FOSS Statement for Multiport Serial PCI Express and Universal PCI Boards Linux Driver
108.4 KB
Declaration v1.0 Oct 29, 2024 Oct 29, 2024
FOSS Statement for Multiport Serial PCI Express and Universal PCI Boards Windows Driver
150.4 KB
Declaration v1.0 Oct 29, 2024 Oct 29, 2024
Declaration of Conformity for CP-104JU Series
295.7 KB
Declaration v1.0 May 20, 2024 May 20, 2024
Declaration of Conformity for CP-104UL Series
296.2 KB
Declaration v1.0 May 20, 2024 May 20, 2024
Datasheet for CP-104UL/104JU Series
1.1 MB
Datasheet v1.2 Sep 22, 2021 Sep 22, 2021
QIG for Universal PCI Smart Serial Board
301.8 KB
QIG v1.2 May 18, 2021 May 18, 2021
Manual for CP-104UL/104JU Series
10.8 MB
Manual v12.1 Dec 31, 2019 Dec 31, 2019
QIG for CP-104UL/104JU Series
332.0 KB
QIG v1.1 Dec 31, 2019 Dec 31, 2019
2D CAD for CP-104UL
1.3 MB
2D CAD May 14, 2012 May 14, 2012
Tech Note: The Secrets of RS-485 Half-duplex Communication
35.0 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
Tech Note: The Secrets of Flow Control in Serial Communication
42.8 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
Tech Note: The Secrets of UART FIFO
41.1 KB
Tech Note v1.0 Feb 22, 2010 Feb 22, 2010
Tech Note: WinXP Embedded System Images with Moxa MSB
133.5 KB
Tech Note v1.0 Feb 10, 2010 Feb 10, 2010

Available Models (5)

Show Images

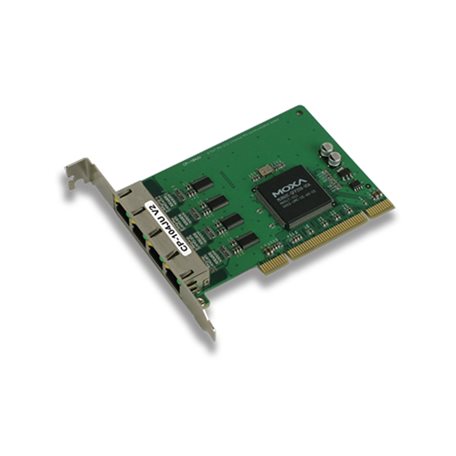

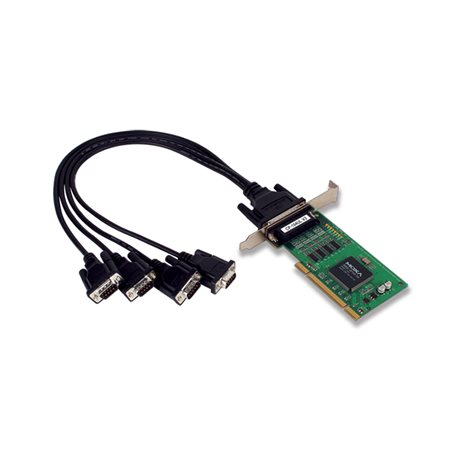

moxa-cp-104ul-db9m-image.jpg | MoxaCP-104UL-DB9Mmoxa-cp-104ju-image.jpg | MoxaCP-104JUmoxa-cp-104ju-t-image.jpg | MoxaCP-104JU-Tmoxa-cp-104ul-t-image.jpg | MoxaCP-104UL-T
