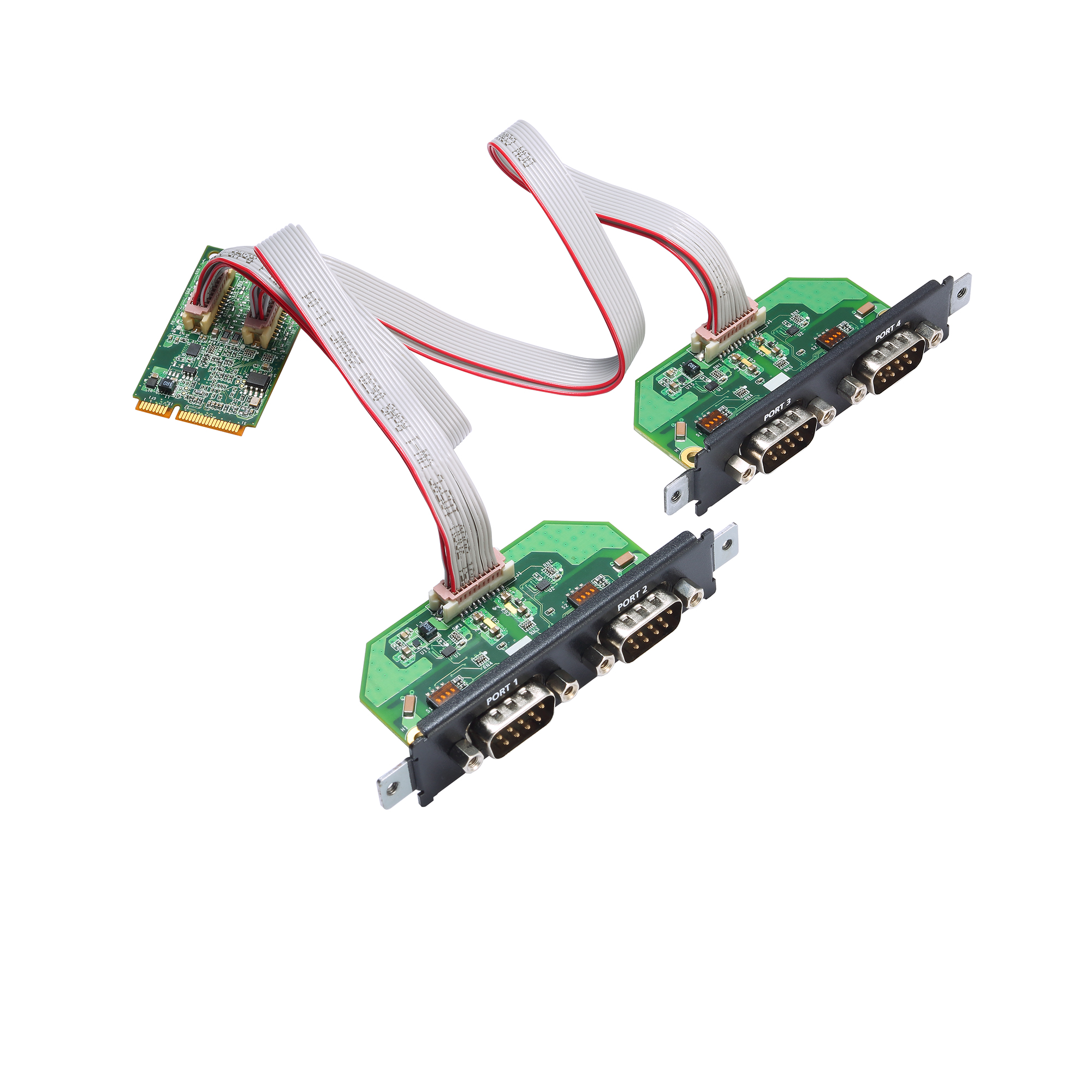

CP-114N Series

4-port RS-232/422/485 Mini PCI Express boards

moxa-cp-114n-series-image-(1).jpg | Moxa

Features and Benefits

  • Mini PCIe interface support
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Drivers provided for a broad selection of operating systems, including Windows and Linux

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The CP-114N is a Mini PCI Express multiport serial board designed for varies applications such as industrial automation system and industrial PC manufacturers. The CP-114N is compatible with any Mini PCI Express slot. The board requires only a 3.3 VDC power supply, which means it can work with host computers ranging from DIN-rail PCs to standard-sized PCs.

The CP-114N is a top choice of industrial automation engineers and system integrators and supports Windows and Linux operating systems. In addition, the four RS-232/422/485 serial ports support a fast 921.6 kbps baudrate. The CP-114N provides full-modem control signals to ensure compatibility with a wide range of serial peripherals. The board also provides 1 kV line-to-line surge protection, ensuring compatibility in a wide range of industrial environments.

A New Family of Mini PCI Express Multiport Serial Boards for Faster Time to Market

Moxa’s new Mini PCI Express multiport serial board family fulfills the need for customized expansion and enables faster time to market for OEMs and system integrators. It includes Isolated and non-Isolated RS-232/422/485 communication cards for various applications.

The serial boards feature high performance 16C950 compatible UARTs and are available in 4-port and 2-port versions compatible with all popular operating systems. They support data rates of up to 921.6 kbps and have 128-byte transmit and receive FIFOs. The serial boards can operate in the -40 to 85˚C temperature range. Door backets are included in the package for all models, enabling the installation of the serial boards in a Moxa IPC expansion slot.

  • Comm. Controller

    16C550C compatible

  • Bus

    Mini PCI Express

  • Connector

    DB9 male

  • FIFO

    128 bytes

  • No. of Ports

    4

  • Baudrate

    50 bps to 921.6 kbps (supports non-standard baudrates)

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • Serial Standards

    RS-232/422/485 (software selectable)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Windows Drivers

    Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022

  • Linux Drivers

    Linux kernel 4.x, Linux kernel 5.x

  • Input Current

    557 mA @ 3.3 VDC

  • Dimensions

    30 x 50.95 mm (1.18 x 2 in)

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -20 to 85°C (-4 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    3,077,789 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Linux Kernel 6.x Driver for Multiport Serial PCI Express and Universal PCI Boards
780.0 KB
Driver
SHA-512
v6.1
  • Linux Kernel 6.x
Oct 01, 2024 Oct 01, 2024 Release notes
PComm Lite Suite - Serial Communication Tool for Windows
3.5 MB
Utility
SHA-512
v1.7
  • Windows
  • Windows 10
  • Windows 11
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Windows Vista
  • Windows XP
Jun 19, 2023 Jun 19, 2023 Release notes
Linux Kernel 5.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
162.0 KB
Driver
SHA-512
v5.2
  • Linux Kernel 5.x
Jan 17, 2023 Jan 17, 2023 Release notes
Linux Kernel 4.x.x Driver for Multiport Serial PCI Express and Universal PCI Boards
161.1 KB
Driver
SHA-512
v4.2
  • Linux Kernel 4.x
Jan 17, 2023 Jan 17, 2023 Release notes
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 7 to 10 and Windows Server 2008 R2 to 2019, WHQL certified)
6.4 MB
Driver
SHA-512
v3.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
Sep 06, 2022 Sep 06, 2022 Release notes
Driver for Multiport Serial PCI Express Boards (Windows 11 and Windows Server 2022)
4.1 MB
Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
Sep 02, 2022 Sep 02, 2022 Release notes
Driver for Multiport Serial PCI Express and Universal PCI Boards (Windows 11 and Windows Server 2022, WHQL certified)
4.1 MB
Driver
SHA-512
v4.0
  • Windows 11
  • Windows Server 2022
Sep 02, 2022 Sep 02, 2022 Release notes
Driver for Linux kernel 4.x.x
154.1 KB
Driver
SHA-512
v4.1
  • Linux Kernel 4.x
Oct 25, 2021 Oct 25, 2021 Release notes
Driver for Linux kernel 5.x.x
152.9 KB
Driver
SHA-512
v5.1
  • Linux Kernel 5.x
Oct 25, 2021 Oct 25, 2021 Release notes

Support Documents

Name Type Version Release Date
Mini PCI Express Multiport Serial Board Series Quick Installation Guide
4.3 MB
QIG v1.3 Sep 13, 2024 Sep 13, 2024
Mini PCI Express Multiport Serial Board Series User Manual
11.1 MB
Manual v1.1 Sep 12, 2024 Sep 12, 2024
Declaration of Conformity for CP-102N/104N/112N/114N/132N/134N Series
311.1 KB
Declaration v1.0 Sep 06, 2024 Sep 06, 2024
Datasheet for CP-114N Series
1.1 MB
Datasheet v1.0 Jan 16, 2023 Jan 16, 2023
