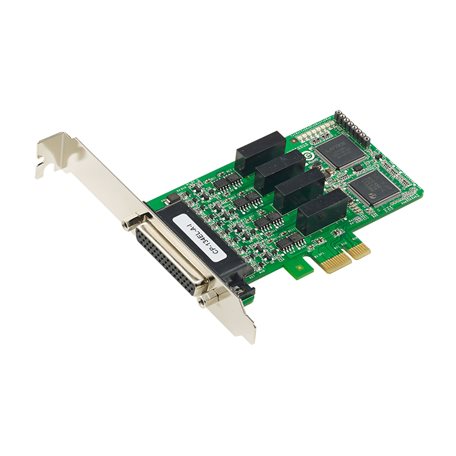

CP-134EL-A-I-DB25M
CP-134EL-A-I Series

4-port RS-422/485 low-profile PCI Express board with 4 kV surge protection, 2 kV electrical isolation, DB25 male cable, 0 to 55°C operating temperature

Serial Interface
  • Comm. Controller

    • 16C550C compatible
  • Bus

    • PCI Express 1.0
  • Connector

    • DB44 female
  • FIFO

    • 128 bytes
  • Max. No. of Boards per PC

    • 8
  • No. of Ports

    • 4
  • Serial Standards

    • RS-422
      RS-485
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None
      Even
      Odd
      Space
      Mark
  • Flow Control

    • None
      XON/XOFF
  • Isolation

    • 2 kV
  • Surge

    • 4 kV
Serial Signals
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Serial Software Features
  • Windows Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64)/2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Drivers

    • Linux kernel 5.x
      Linux kernel 4.x
      Linux kernel 3.x
      Linux kernel 2.6.x
      Linux kernel 2.4.x
  • UNIX Drivers

    • Solaris 10
      UnixWare 7
      SCO OpenServer 5
      SCO OpenServer 6
  • Arm®-based Platform Support

    • Linux Kernel 5.x / 4.x
Power Parameters
  • Input Current

    • 3,414 mA @ 3.3 VDC
Physical Characteristics
  • Dimensions

    • 67.21 x 103 mm (2.65 x 4.06 in)
LED Interface
  • LED Indicators

    • Built-in Tx, Rx LEDs for each port
Environmental Limits
  • Operating Temperature

    • 0 to 55°C (32 to 131°F)
  • Storage Temperature (package included)

    • -20 to 85°C (-4 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 433,077 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
