CP-168U Series

8-port RS-232 Universal PCI serial board

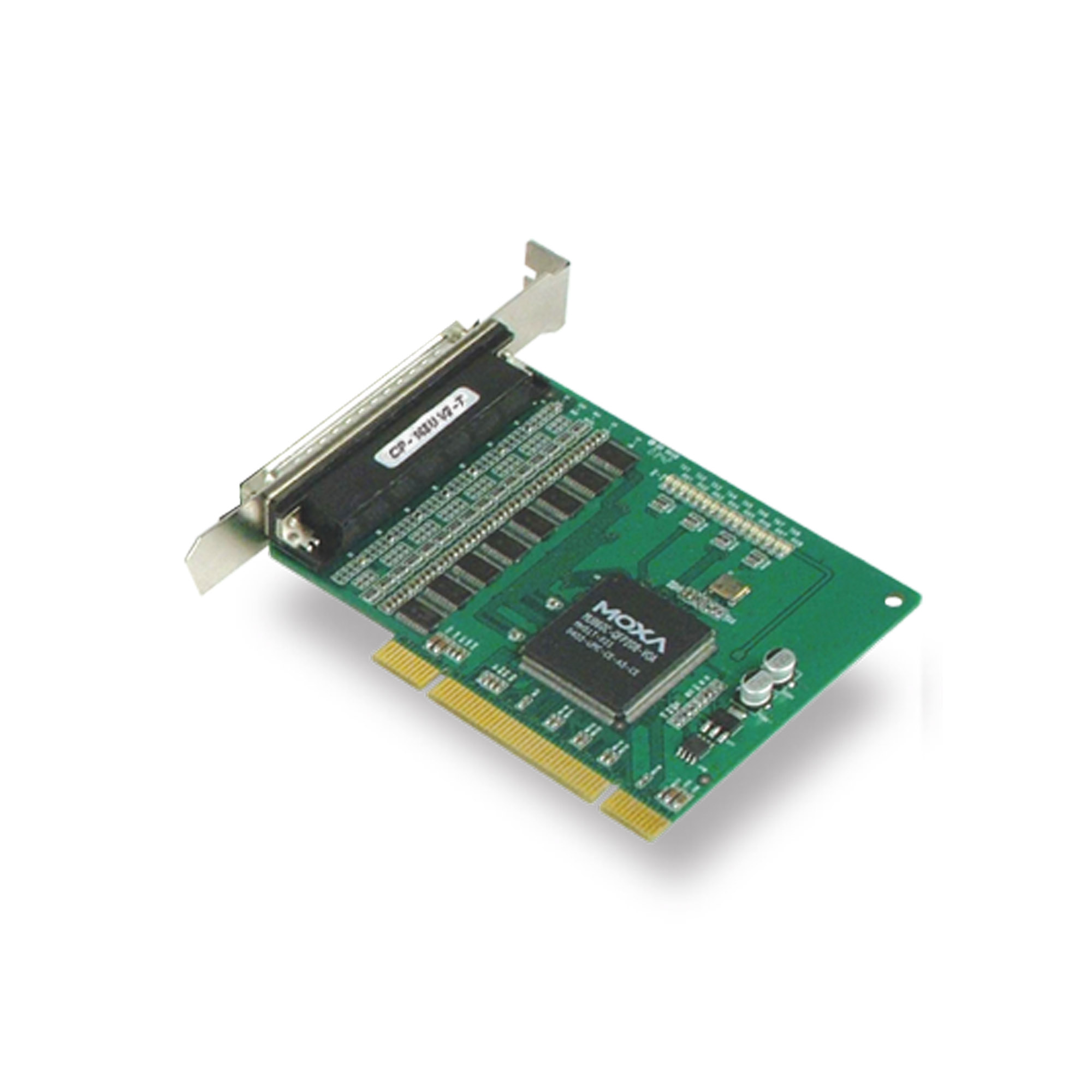

moxa-cp-168u-series-image-1-(1).jpg | Moxa

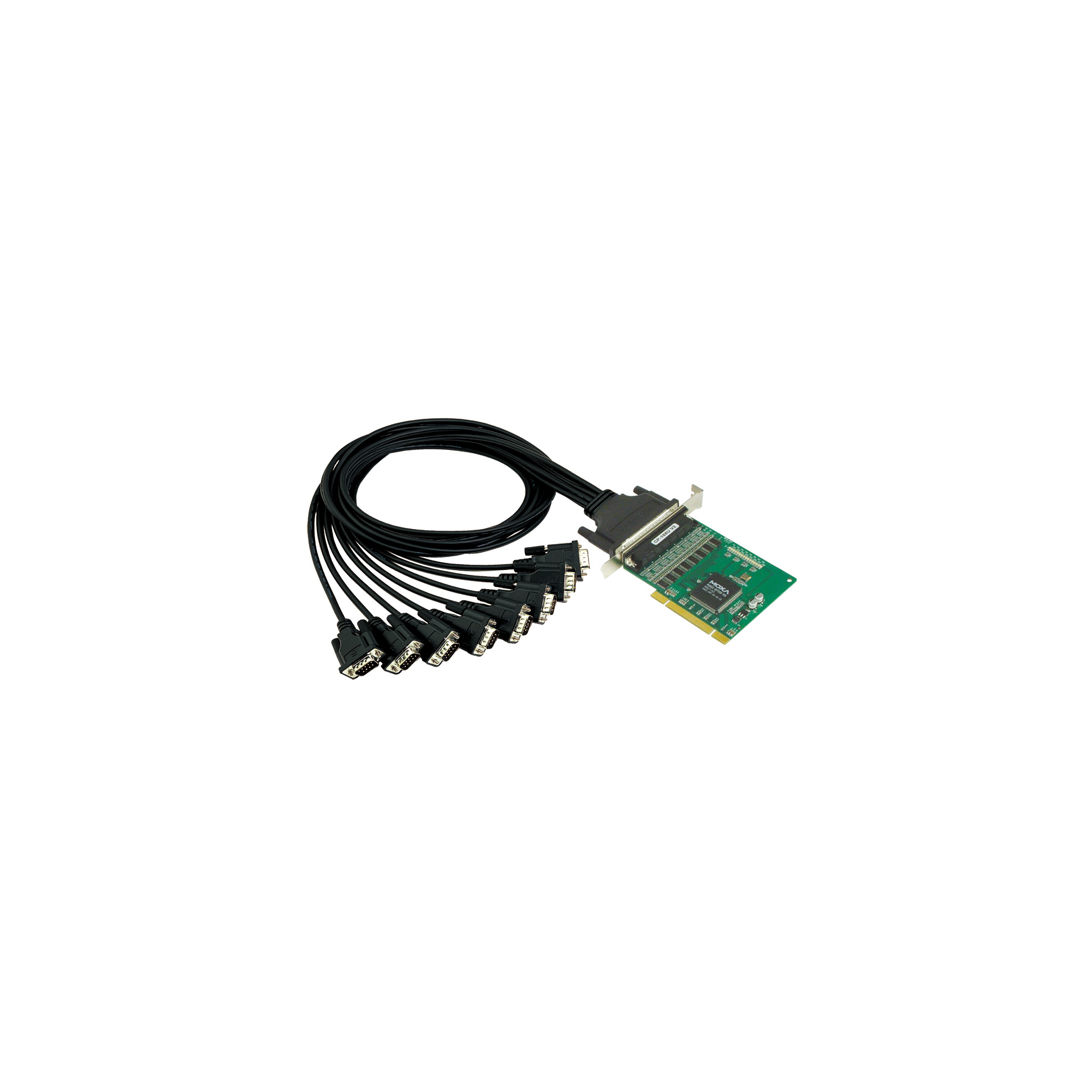

moxa-cp-168u-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Over 700 kbps data throughput for top performance
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Variety of connection cables and boxes available for RS-232/422/485
  • Compatible with 3.3/5 V PCI and PCI-X
  • Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
  • Wide-temperature model available for -40 to 85°C environments

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications. It is a top choice of industrial automation engineers and system integrators, and supports many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the board’s eight RS-232 serial ports supports a fast 921.6 kbps baudrate. The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals, and it works with both 3.3 V and 5 V PCI buses, allowing the board to be installed in virtually any available PC server.

  • Comm. Controller

    MU860 (16C550C compatible)

  • Bus

    32-bit Universal PCI

  • Connector

    DB62 female

  • FIFO

    128 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    8

  • Serial Standards

    RS-232

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, XON/XOFF

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x

  • UNIX Drivers

    QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

  • Input Current

    180 mA @ 5 VDC

  • Dimensions

    82 x 120 mm (3.22 x 4.72 in)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    CP-168U: 0 to 55°C (32 to 131°F)
    CP-168U-T: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV

  • International Approval

    CP-168U: KC

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    280,854 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for CP-168U Series (Windows 10 or later)
1.3 MB
Driver v1.24
  • Windows 7
  • Windows 10
  • Windows Server 2012
  • Windows 8
  • Windows Server 2008
2017-10-18 Oct 18, 2017
Driver for CP-168U Series (Windows 2008 or earlier)
791.1 KB
Driver v1.24
  • Windows XP
  • Windows 2000
  • Windows Vista
  • Windows Server 2008
  • Windows Server 2003
2017-10-18 Oct 18, 2017
Driver for CP-168U Series (Linux)
161.2 KB
Driver v1.16
  • Linux 2.6.x
  • Linux 3.x
  • Linux 2.4.x
2014-03-31 Mar 31, 2014
Driver for CP-168U Series (SCO 5)
649.5 KB
Driver v1.13
  • SCO OpenServer 5
2014-03-31 Mar 31, 2014
Driver for CP-168U Series (SCO 6)
322.0 KB
Driver v1.13
  • SCO OpenServer 6
2014-03-31 Mar 31, 2014
Driver for CP-168U Series (Sun Solaris)
118.0 KB
Driver v1.1
  • Solaris 10
2014-03-31 Mar 31, 2014
Driver for CP-168U Series (UnixWare)
330.0 KB
Driver v1.13
  • SCO UnixWare 7
2014-03-31 Mar 31, 2014
Utility for CP-168U Series (PComm Lite)
1.6 MB
Utility v1.6
  • Windows 7
  • Windows XP
  • Windows 2000
  • Windows Vista
  • Windows Server 2008
  • Windows Server 2003
2012-05-14 May 14, 2012 Release notes
Driver for CP-168U Series (WinCE 5)
370.8 KB
Driver v1.1
  • Windows CE 5.0
2010-07-12 Jul 12, 2010
Driver for CP-168U Series (WinCE 6)
280.7 KB
Driver v1.0
  • Windows CE 6.0
2010-07-12 Jul 12, 2010
Driver for CP-168U Series (Windows 95/98)
341.1 KB
Driver v5.11
  • Windows 98 SE
  • Windows 95
  • Windows 98
  • Windows ME
2010-07-12 Jul 12, 2010
Driver for CP-168U Series (WinNT)
193.5 KB
Driver v5.11
  • Windows NT
2010-07-12 Jul 12, 2010
Driver for CP-168U Series (UnixWare 2.1)
270.0 KB
Driver v1.7
  • SCO UnixWare 2.x
2010-07-12 Jul 12, 2010
Utility for CP-168U Series (Viewcom)
434.6 KB
Utility v1.0
  • Windows XP
  • Windows 2000
  • Windows Vista
  • Windows Server 2008
  • Windows Server 2003
2010-07-12 Jul 12, 2010
Driver for CP-168U Series (QNX6)
120.8 KB
Driver v1.1
  • QNX 6.x
2010-02-11 Feb 11, 2010
Driver for CP-168U Series (FreeBSD)
33.0 KB
Driver v1.3
  • FreeBSD 5.x
  • FreeBSD 4.x
2010-02-11 Feb 11, 2010
Driver for CP-168U Series (WinXP Embedded)
289.1 KB
Driver v1.16
  • Windows XP Embedded
2010-02-09 Feb 09, 2010

Support Documents

Name Type Version Release Date
Datasheet for CP-168U Series
651.4 KB
Datasheet v1.0 2018-11-11 Nov 11, 2018
QIG for CP-168U Series
364.5 KB
QIG v1.0 2017-10-31 Oct 31, 2017
Manual for CP-168U Series
11.5 MB
Manual v12.0 2017-10-16 Oct 16, 2017
3D CAD for CP-168U
149.8 KB
3D CAD 2012-05-14 May 14, 2012
2D CAD for CP-168U TOP
415.9 KB
2D CAD 2012-05-14 May 14, 2012
Tech Note for CP-168U Series (The Secrets of Flow Control in Serial Communication)
41.1 KB
Tech Note v1.0 2010-02-23 Feb 23, 2010
Tech Note for CP-168U Series (The Secrets of RS-485 Half-duplex Communication)
42.8 KB
Tech Note v1.0 2010-02-23 Feb 23, 2010
Tech Note for CP-168U Series (The Secrets of UART FIFO)
35.0 KB
Tech Note v1.0 2010-02-23 Feb 23, 2010
Tech Note for CP-168U Series (Creating WinXP Embedded System Image with Moxa Multiport Serial Board)
133.5 KB
Tech Note v1.0 2010-02-11 Feb 11, 2010
