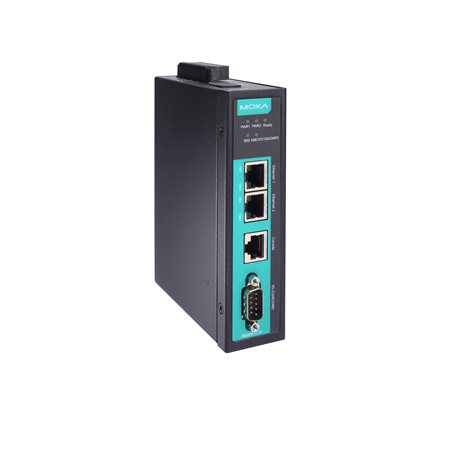

MGate 5119-T
MGate 5119 Series

1-port DNP3/IEC 101/IEC 104/Modbus-to-IEC 61850 gateways, -40 to 75°C operating temperature

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 2
      Auto MDI/MDI-X connection
  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features
  • Industrial Protocols

    • Modbus TCP Client (Master)
      IEC 60870-5-104 Client
      IEC 61850 MMS Server
      DNP3 TCP Master
  • Configuration Options

    • Web Console (HTTP/HTTPS)
      Device Search Utility (DSU)
  • Management

    • ARP
      DHCP Client
      DNS
      HTTP
      HTTPS
      SMTP
      SNMP Trap
      SNMPv1/v2c/v3
      TCP/IP
      Telnet
      SSH
      UDP
      NTP Client
  • MIB

    • RFC1213, RFC1317
  • Time Management

    • NTP Client
Security Functions
  • Authentication

    • Local database
  • Encryption

    • HTTPS
      AES-128
      AES-256
      SHA-256
  • Security Protocols

    • SNMPv3
      SNMPv2c Trap
      HTTPS (TLS 1.3)
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
  • No. of Ports

    • 1
  • Connector

    • DB9 male
  • Serial Standards

    • RS-232/422/485
  • Baudrate

    • 50 bps to 921.6 kbps
  • Data Bits

    • 7, 8
  • Parity

    • Even
      Mark
      None
      Odd
      Space
  • Stop Bits

    • 1, 2
  • Flow Control

    • RTS Toggle (RS-232 only)
      RTS/CTS
  • RS-485 Data Direction Control

    • Automatic Data Direction Control (ADDC)
  • Pull High/Low Resistor for RS-485

    • 1 kilo-ohm, 150 kilo-ohms
  • Terminator for RS-485

    • 120 ohms
  • Isolation

    • 2 kV (built-in)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
Serial Software Features
  • Industrial Protocols

    • Modbus RTU/ASCII Master
      IEC 60870-5-101 Master (Balanced/Unbalanced)
      DNP3 Serial Master
Modbus RTU/ASCII
  • Mode

    • Master
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Commands

    • 128
Modbus TCP
  • Mode

    • Client (Master)
  • Functions Supported

    • 1, 2, 3, 4, 5, 6, 15, 16, 23
  • Max. No. of Server Connections

    • 32
  • Max. No. of Commands

    • 128
IEC 60870-5-104
  • Mode

    • Client
  • Objects Supported

    • Single point
      Double point
      Step position
      Bit string of 32 bit
      Measured value (normalized)
      Measured value (scaled)
      Measured value (floating)
      Integrated totals
  • Max. No. of Server Connections

    • 32
  • Max. No. of Information Objects

    • 1200 points
IEC 60870-5-101
  • Mode

    • Master (Balanced/Unbalanced)
  • Objects Supported

    • Single point
      Double point
      Step position
      Bit string of 32 bit
      Measured value (normalized)
      Measured value (scaled)
      Measured value (floating)
      Integrated totals
  • Max. No. of Slave Connections

    • 1 (Balanced), 31 (Unbalanced)
  • Max. No. of Information Objects

    • 1200 points
DNP3 Serial
  • Mode

    • Master
  • Objects Supported

    • Binary inputs
      Analog inputs
      Counters
      Frozen counters
      Binary outputs
      Analog outputs
  • Max. No. of Outstation Connections

    • 16
  • Max. No. of Objects

    • 1200 points
DNP3 TCP
  • Mode

    • Master
  • Objects Supported

    • Binary inputs
      Analog inputs
      Counters
      Frozen counters
      Binary outputs
      Analog outputs
  • Max. No. of Outstation Connections

    • 16
  • Max. No. of Objects

    • 1200 points
IEC 61850
  • Mode

    • MMS Server
  • Max. No. of Client Connections

    • 16
  • Max. No. of Datasets

    • 99
  • Max. No. of Reports

    • 99
  • Max. No. of Data Objects

    • 1200 points
Memory
  • No. of Data Points Supported

    • 1,200 points
  • microSD Slot

    • Up to 32 GB (SD 2.0 compatible)
Power Parameters
  • Input Voltage

    • 12 to 48 VDC
  • Input Current

    • 455 mA @ 12 VDC
  • Power Connector

    • Screw-fastened Euroblock terminal
Relays
  • Contact Current Rating

    • Resistive load: 2 A @ 30 VDC
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 36 x 120 x 150 mm (1.42 x 4.72 x 5.91 in)
  • Weight

    • 517 g (1.14 lb)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V/m
      IEC 61000-4-8 PFMF: 100 A/m
  • Safety

    • IEC 60950-1
      IEC 62368-1
      UL 60950-1
      UL 62368-1
  • Freefall

    • IEC 60068-2-32
  • Shock

    • IEC 60068-2-27
      IEC 61850-3 Edition 2.0
  • Power Substation

    • IEEE 1613
      IEC 61850-3
  • Vibration

    • IEC 60068-2-6
      IEC 60068-2-64
      IEC 61850-3 Edition 2.0
MTBF
  • Time

    • 1,180,203 hrs
  • Standards

    • Telcordia SR332
