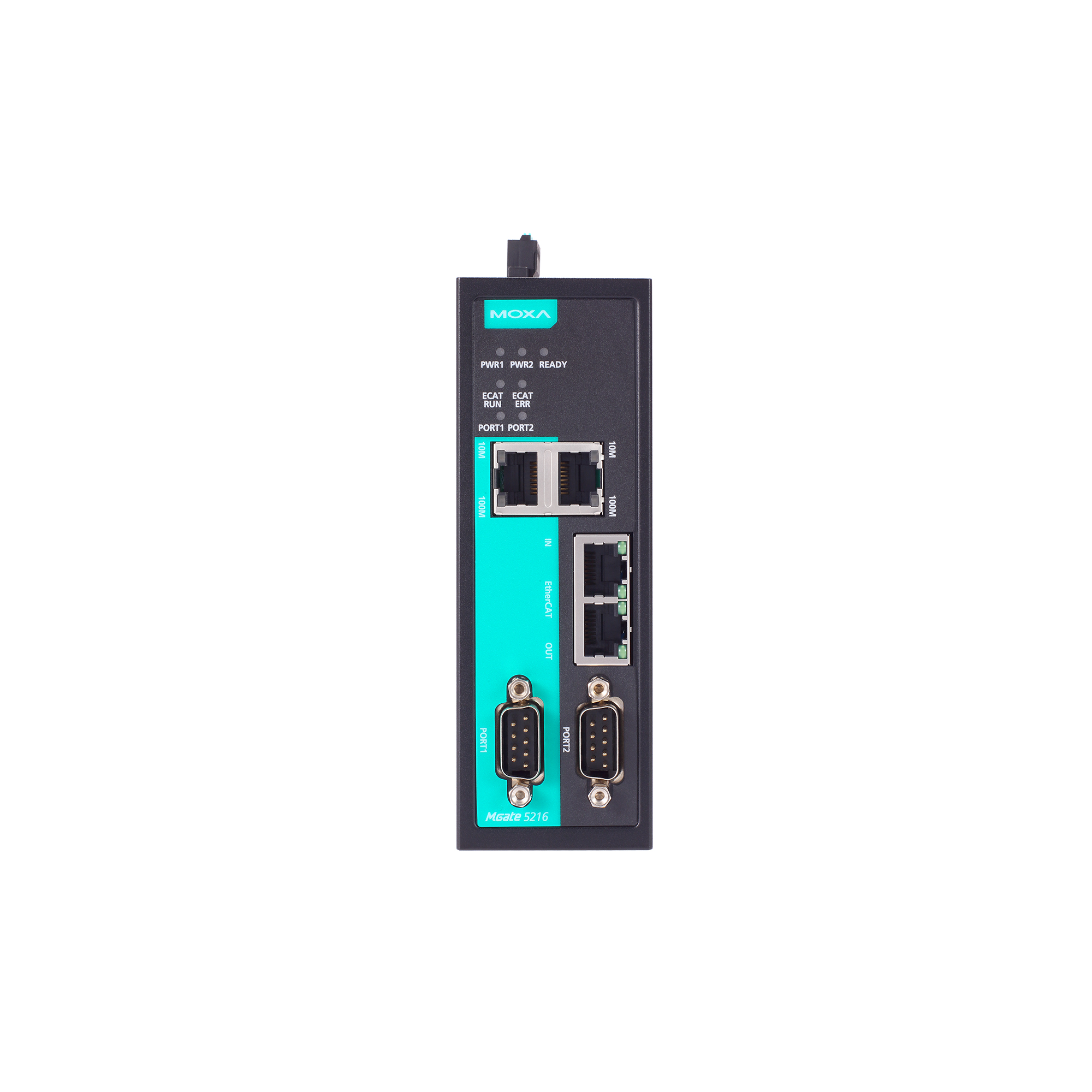

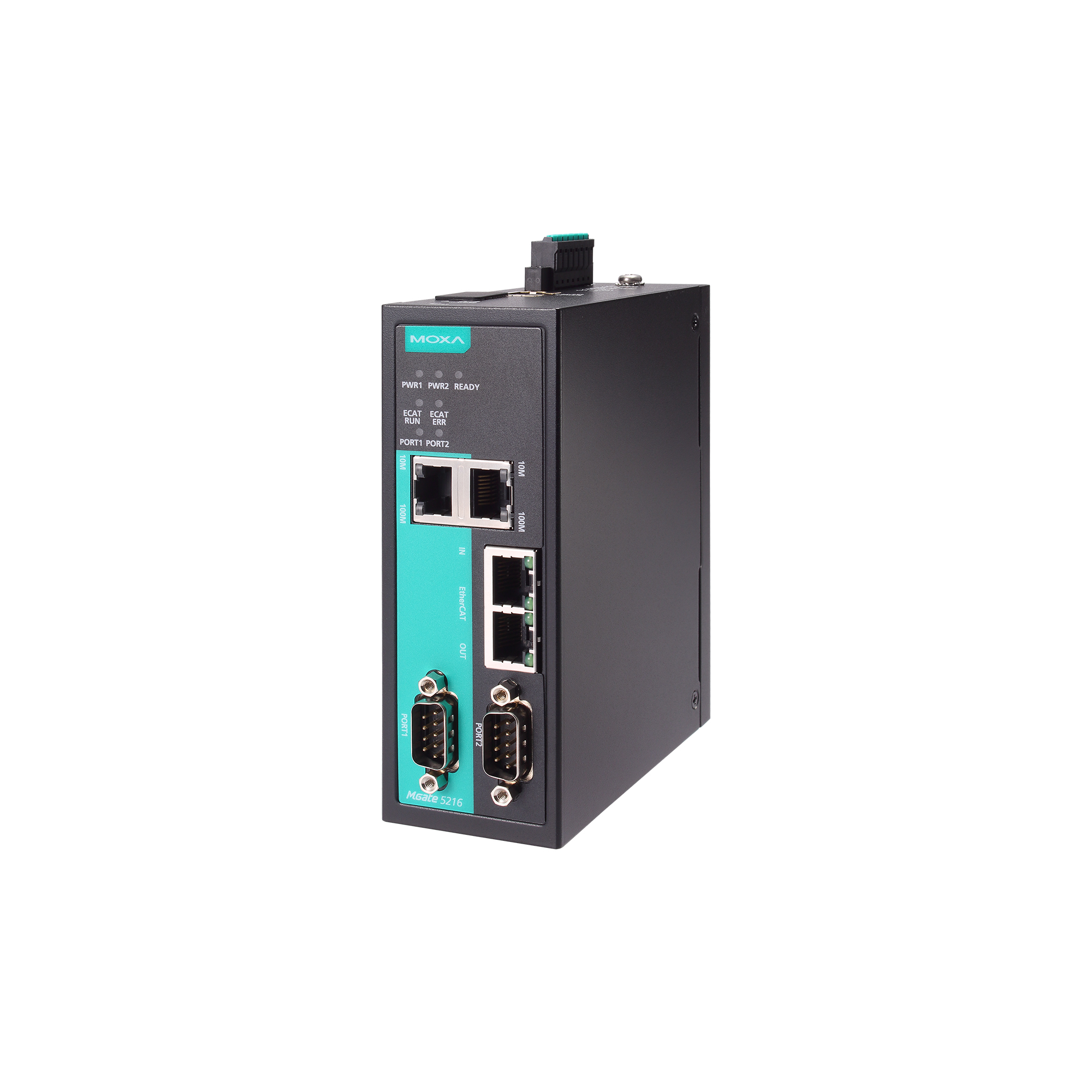

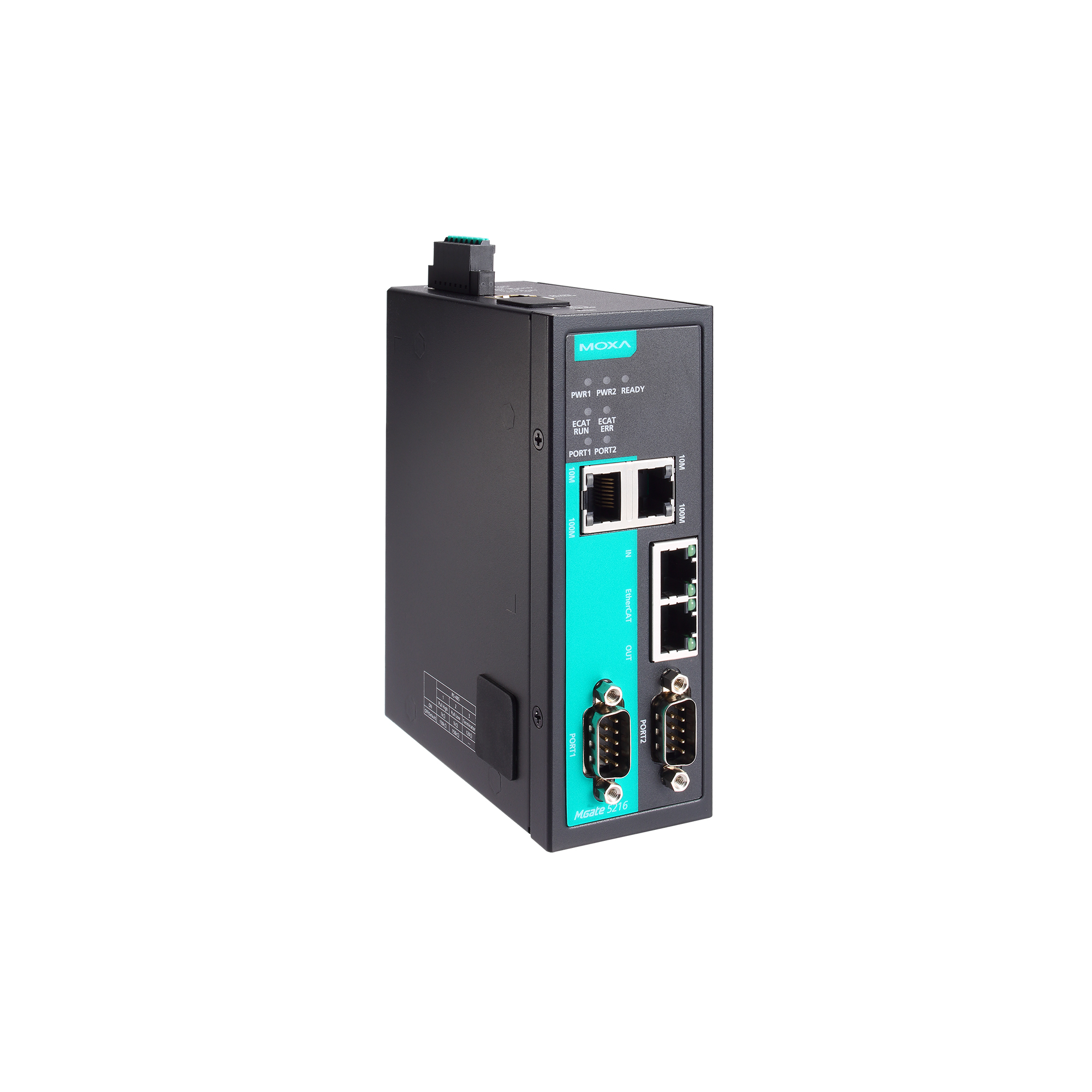

MGate 5216 Series

2-port serial/Modbus-to-EtherCAT gateways

moxa-mgate-5216-series-image-(1).jpg | Moxa
moxa-mgate-5216-series-image-1-(1).jpg | Moxa
moxa-mgate-5216-series-image-2-(1).jpg | Moxa

Features and Benefits

  • Protocol conversion from proprietary serial or Modbus to EtherCAT
  • Supports EtherCAT slave
  • Supports Modbus RTU/ASCII client
  • Maximum data input and output of 512 bytes
  • Serial port with 2 kV isolation protection
  • Supports MicroPython programming for proprietary serial
  • Built-in Ethernet cascading for easy wiring
  • Supports redundant dual DC power inputs and 1 relay output
  • Security features based on IEC 62443-4-2

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

Contact Sales

Introduction

MGate 5216 Series EtherCAT industrial Ethernet gateways convert data between Modbus RTU/ASCII, proprietary serial and EtherCAT protocols. All models are protected by a rugged metal housing, are DIN-rail mountable, and offer built-in serial isolation.

Modbus is one of the most widely used industrial communication protocols, and EtherCAT is commonly used in factory automation and semiconductor fields. MGate 5216 supports both Modbus RTU/ASCII client and MicroPython enabling programming in proprietary serial protocol, so that you can easily connect your Modbus devices or serial devices to EtherCAT host.

The MGate 5216 EtherCAT gateways are designed for easy configuration and quick maintenance. An intuitive web console can be used to implement remote maintenance tasks. A comprehensive collection of troubleshooting tools reduces configuration time and system downtime and the rugged design is suitable for industrial applications.

Easy Configuration

The MGate 5216 EtherCAT gateways have a user-friendly interface that lets you quickly set up protocol conversion routines for most applications, doing away with what were often time-consuming tasks in which users had to implement detailed parameter configurations one by one. The MGate 5216 supports web console for remote maintenance. Encryption communication functions, including HTTPS, are supported to provide better network security. In addition, system monitoring functions are provided to record network connections and system log events.

Easy Maintenance With Built-in Functions

The MGate 5216 supports Protocol Diagnose and Traffic Monitor for easy troubleshooting, especially during the installation stage. Serial communication issues caused by incorrect software parameters, such as slave IDs and register addresses, or incorrect command configurations, can be fished out with Protocol Diagnose and Traffic Monitoring, which let you capture and check data to easily identify root causes.

  • 10/100BaseT(X) Ports (RJ45 connector)

    2
    Auto MDI/MDI-X connection

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Industrial Protocols

    EtherCAT Slave

  • Configuration Options

    Web Console (HTTP/HTTPS)
    Device Search Utility (DSU)

  • Management

    ARP
    DHCP Client
    DNS
    HTTP
    HTTPS
    SMTP
    SNMP Trap
    SNMPv1/v2c/v3
    TCP/IP
    Telnet
    UDP

  • MIB

    MIB-II

  • Time Management

    NTP Client

  • No. of Ports

    2

  • Connector

    DB9 male

  • Console Port

    RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

  • Serial Standards

    RS-232/422/485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None
    Even
    Odd
    Space
    Mark

  • Stop Bits

    1, 2

  • Flow Control

    RTS Toggle (RS-232 only)
    RTS/CTS

  • RS-485 Data Direction Control

    Automatic Data Direction Control (ADDC)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    2 kV (built-in)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Configuration Options

    Serial Console

  • Industrial Protocols

    Modbus RTU/ASCII Client (Master)

  • Mode

    Client (Master)

  • Functions Supported

    1, 2, 3, 4, 5, 6, 15, 16, 23

  • Max. No. of Commands

    128 per serial port

  • Total Input Data Size

    512 bytes

  • Total Output Data Size

    512 bytes

  • Version

    1.20.0

  • Functions Supported

    Input
    Output
    Input/Output

  • Max. No. of Commands

    64 per serial port

  • Total Input Data Size

    512 bytes

  • Total Output Data Size

    512 bytes

  • Mode

    Slave

  • Baudrate

    Full duplex 100 Mbps

  • FMMU

    3

  • Sync Manager

    4

  • Total Input Data Size

    512 bytes

  • Total Output Data Size

    512 bytes

  • microSD Slot

    Up to 32 GB (SD 2.0 compatible)

  • Input Voltage

    12 to 48 VDC

  • Input Current

    416 mA (max)

  • Power Connector

    Spring-type Euroblock terminal

  • Contact Current Rating

    Resistive load: 2 A @ 30 VDC

  • Housing

    Metal

  • IP Rating

    IP30

  • Dimensions (without ears)

    45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)

  • Weight

    589 g (1.30 lb)

  • Operating Temperature

    MGate 5216: 0 to 60°C (32 to 140°F)
    MGate 5216-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 61000-6-2/-6-4

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    IEC 61000-4-5 Surge: Power: 2 kV, Signal: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF

  • Safety

    EN 60950-1
    UL 61010-2-201

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6
    IEC 60068-2-64

  • Time

    2,305,846 hrs

  • Standards

    Telcordia Standard SR-332
