Serial-to-Fiber Converters

Moxa's industrial-grade serial-to-fiber optic converters can convert RS-232/422/485 to optical fiber, which provides users with an easy and reliable way to communicate with their serial devices.

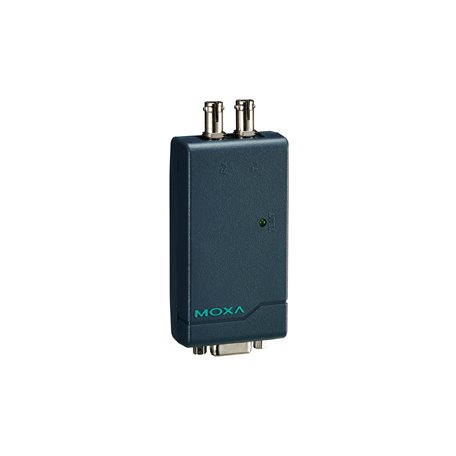

TCF-90-S-ST
TCF-90 Series

RS-232 to single-mode ST fiber optic converter, port powered

Serial Interface
  • No. of Ports

    • 2
  • Serial Standards

    • RS-232
  • Flow Control

    • ADDC (automatic data direction control) for RS-485
  • Connector

    • Single-mode ST connector
  • Optical Fiber

  • Optical Fiber

  • Baudrate

    • 300 bps to 115.2 kbps
Serial Signals
  • RS-232

    • TxD, RxD, GND The DTR, DSR, DCD, CTS, and RTS pins are internally shorted.
Power Parameters
  • Input Current

    • 5 to 12 VDC, 20 mA (max.)
  • Input Voltage

    • 5 to 12 VDC
  • No. of Power Inputs

    • 1
  • Overload Current Protection

    • Supported
  • Source of Input Power

    • Power input jack
Physical Characteristics
  • Housing

    • Plastic
  • IP Rating

    • IP30
  • Dimensions

    • 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
  • Weight

    • 150 g (0.33 lb)
  • Installation

    • Desktop
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -20 to 75°C (-4 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/35
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 3 V
      IEC 61000-4-8 PFMF
  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-14
      IEC 60068-2-2
      IEC 60068-2-3
  • Safety

    • UL 60950-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 2,272,562 hrs
  • Standards

    • Telcordia (Bellcore), GB
Warranty
