NPort 5200A Series

2-port RS-232/422/485 serial device servers

moxa-nport-5200a-series-image-1-(1).jpg | Moxa
moxa-nport-5200a-series-image-2-(1).jpg | Moxa
moxa-nport-5200a-series-image-3-(1).jpg | Moxa
moxa-nport-5200a-series-image-4-(1).jpg | Moxa
moxa-nport-5200a-series-image-5-(1).jpg | Moxa
moxa-nport-5200a-series-image-6-(1).jpg | Moxa

Features and Benefits

  • Fast 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power
  • COM port grouping and UDP multicast applications
  • Screw-type power connectors for secure installation
  • Dual DC power inputs with power jack and terminal block
  • Versatile TCP and UDP operation modes

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The NPort® 5200A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5200A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

A Greener Serial-to-Ethernet Solution

The MiiNe is a small but powerful Arm-based serial-to-Ethernet SoC with RAM and Flash embedded. With the MiiNe inside, the NPort® 5200A Series saves at least 50% on power consumption compared to existing solutions on the market, helping engineers meet the tough environmental compliance challenges found in today’s industrial environments.

Surge Protection for Serial, Ethernet, and Power

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5200A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

3-Step Web-Based Configuration

The NPort® 5200A’s 3-step web-based configuration tool is straightforward and user-friendly. The NPort® 5200A’s web console guides users through three simple configuration steps that are necessary to activate the serial-to-Ethernet application. With this fast 3-step web-based configuration, a user only needs to spend an average of 30 seconds to complete the NPort® settings and enable the application, saving a great amount of time and effort.

COM Port Grouping

The NPort® 5200A’s COM Grouping function allows you to create a COM Group and redirect data from it to several physical COM ports on NPort device servers. With COM Grouping, you will be able to control multiple physical serial ports simultaneously by operating only one COM port.

Appearance

  • 10/100BaseT(X) Ports (RJ45 connector)

    1

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Windows Utility, Serial Console, Telnet Console, Web Console (HTTP)

  • Management

    DHCP Client, IPv4, SMTP, SNMPv1, Telnet, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, ICMP

  • Filter

    IGMP v1/v2

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Linux Real TTY Drivers

    Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Android API

    Android 3.1.x and later

  • MIB

    RFC1213, RFC1317

  • Connector

    NPort 5210A/5250A Series: DB9 male
    NPort 5230A Series: 5-pin terminal block

  • No. of Ports

    2

  • Serial Standards

    NPort 5210A Series: RS-232
    NPort 5230A Series: RS-422, RS-485
    NPort 5250A Series: RS-232, RS-422, RS-485

  • Operation Modes

    Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, UDP

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Terminator for RS-485

    120 ohms

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    119 mA @ 12 VDC

  • Input Voltage

    12 to 48 VDC

  • No. of Power Inputs

    2

  • Power Connector

    1 removable 3-contact terminal block(s)
    Power input jack

  • Automatic Reboot Trigger

    Built-in WDT

  • Housing

    Metal

  • Dimensions (with ears)

    100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)

  • Dimensions (without ears)

    77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)

  • Weight

    340 g (0.75 lb)

  • Installation

    Desktop, DIN-rail mounting (with optional kit), Wall mounting

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • EMI

    CISPR 32, FCC Part 15B Class A

  • Safety

    UL 60950-1

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    847,750 hrs

  • Standards

    Telcordia (Bellcore) Standard TR/SR

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Utility for NPort 5200A Series (Moxa CLI Configuration Tool for Linux)
8.1 MB
Utility 1.1
  • Linux Kernel 2.6.x
  • Linux Kernel 3.x
  • Linux Kernel 4.x
2019-01-17 Jan 17, 2019 Release notes
Utility for NPort 5200A Series (Moxa CLI Configuration Tool for Windows)
1.4 MB
Utility 1.1
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
2019-01-17 Jan 17, 2019 Release notes
Driver for NPort 5200A Series (Windows Driver Manager)
2.7 MB
Driver 3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012 R2
  • Windows Server 2016
2018-08-22 Aug 22, 2018 Release notes
Driver for NPort 5200A Series (Windows Driver Manager)
2.6 MB
Driver 2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2018-08-22 Aug 22, 2018 Release notes
Utility for NPort 5200A Series (MCC Tool for Windows)
626.0 KB
Utility v1.0
  • Windows 10
  • Windows 8
  • Windows 7
2018-02-27 Feb 27, 2018
Utility for NPort 5200A Series (MCC Tool for Linux kernel 4.x, x64)
638.6 KB
Utility v1.0
  • Linux 4.x
  • Linux 2.6.x
  • Linux 3.x
2018-02-27 Feb 27, 2018
Utility for NPort 5200A Series (MCC Tool for Linux kernel 4.x, x86)
626.7 KB
Utility v1.0
  • Linux 4.x
  • Linux 2.6.x
  • Linux 3.x
2018-02-27 Feb 27, 2018
Driver for NPort 5200A Series (Device Server Android API)
18.1 MB
Driver 1.0
  • Android
2018-01-19 Jan 19, 2018 Release notes
Software Package for NPort 5200A Series (MXview)
244.9 MB
Software Package v2.9
  • Windows Server 2012
  • Windows 10
  • Windows 8
  • Windows 7
2017-12-05 Dec 05, 2017 Release notes
Driver for NPort 5200A Series (Linux kernel 2.4.x)
92.8 KB
Driver v1.19
  • Linux Kernel 2.4.x
  • Linux Kernel 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5200A Series (Linux kernel 3.x.x)
88.6 KB
Driver v1.19
  • Linux Kernel 4.x
  • Linux Kernel 3.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5200A Series (Real TTY for Linux 3.x.x, 4.x.x)
88.6 KB
Driver 1.19
  • Linux 3.x
  • Linux 4.x
2017-11-15 Nov 15, 2017 Release notes
Driver for NPort 5200A Series (Real TTY for Linux 2.4.x, 2.6.x)
92.8 KB
Driver 1.19
  • Linux 2.4.x
  • Linux 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Utility for NPort 5200A Series (Device Search Utility)
1.1 MB
Utility v2.2
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Vista
  • Windows 98
  • Windows 2000
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows 10
  • Windows 8
  • Windows Server 2016
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2017-09-05 Sep 05, 2017 Release notes
Firmware for NPort 5200A Series
561.7 KB
Firmware v1.4
2017-03-15 Mar 15, 2017 Release notes
Driver for NPort 5200A Series (NPort Administration Suite)
4.0 MB
Driver v1.22
  • Windows 95
  • Windows Server 2012 R2
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows Server 2008 R2
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows 10
  • Windows Vista
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows 8.1
  • Windows ME
2016-10-28 Oct 28, 2016 Release notes
Utility for NPort 5200A Series (NPort Search Utility)
930.8 KB
Utility v1.15
  • Windows 95
  • Windows 7
  • Windows NT
  • Windows XP
  • Windows 98
  • Windows 2000
  • Windows Server 2012
  • Windows Vista
  • Windows 98 SE
  • Windows 8
  • Windows Server 2008
  • Windows Server 2003
  • Windows ME
2014-06-30 Jun 30, 2014
Library for NPort 5200A Series (MXview Plugin)
264.3 KB
Library v2.2.1
2012-12-26 Dec 26, 2012
Driver for NPort 5200A Series (WinCE 5)
230.5 KB
Driver v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012-11-15 Nov 15, 2012 Release notes
Utility for NPort 5200A Series (PComm Lite)
1.6 MB
Utility v1.6
  • Windows 7
  • Windows XP
  • Windows 2000
  • Windows Vista
  • Windows Server 2008
  • Windows Server 2003
2012-05-14 May 14, 2012 Release notes
Driver for NPort 5200A Series (WinXP Embedded)
1.2 MB
Driver v1.14
  • Windows XP Embedded
2012-04-05 Apr 05, 2012 Release notes
Driver for NPort 5200A Series (UNIX)
73.0 KB
Driver v3.5
  • FreeBSD 8.x
  • QNX 4.x
  • Mac OS X
  • HP-UX
  • Solaris 10
  • IBM AIX 5.3
  • FreeBSD 7.x
  • SCO OpenServer 5
  • SCO UnixWare 7
  • SCO OpenServer 6
  • QNX 6.x
  • FreeBSD 5.x
  • FreeBSD 6.x
2012-03-20 Mar 20, 2012 Release notes

Support Documents

Name Type Version Release Date
Datasheet for NPort 5200A Series
3.7 MB
Datasheet v1.0 2018-11-11 Nov 11, 2018
Manual for NPort 5200A Series
15.2 MB
Manual v3.2 2018-02-08 Feb 08, 2018
QIG for NPort 5200A Series
307.6 KB
QIG v2.0 2016-08-05 Aug 05, 2016
Tech Note for NPort 5200A Series (NPort Real COM Mode for DNP3 Applications)
1.9 MB
Tech Note v1.0 2014-11-18 Nov 18, 2014
Tech Note for NPort 5200A Series (TCP Server Mode for NPort Series)
311.3 KB
Tech Note v1.0 2013-06-30 Jun 30, 2013
Tech Note for NPort 5200A Series (Using DNP3 with the NPort Series)
1.0 MB
Tech Note v1.0 2012-03-30 Mar 30, 2012
3D CAD for NPort 5230A
295.4 KB
3D CAD 2010-03-22 Mar 22, 2010
3D CAD for NPort 5210A/5250A
295.4 KB
3D CAD 2010-03-22 Mar 22, 2010
2D CAD for NPort 5210A/5250A PCBA
273.4 KB
2D CAD 2010-03-22 Mar 22, 2010
2D CAD for NPort 5210A/5250A TOP
222.8 KB
2D CAD 2010-03-22 Mar 22, 2010
2D CAD for NPort 5230A PCBA
259.2 KB
2D CAD 2010-03-22 Mar 22, 2010
2D CAD for NPort 5230A TOP
220.4 KB
2D CAD 2010-03-22 Mar 22, 2010
Tech Note for NPort 5200A Series (Accessing Multiple NPorts Behind NAT for NPort Series)
482.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200A Series (Ethernet Modem Mode for NPort Series)
116.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200A Series (Pair Connection Mode)
211.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200A Series (Real COM Mode for NPort Series)
253.0 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200A Series (Reverse Telnet Mode for NPort Series)
204.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200A Series (TCP Client Mode for NPort Series)
224.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200A Series (UDP Mode for NPort Series)
173.2 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for NPort 5200A Series (Fixed TTY Driver for NPort Series)
207.6 KB
Tech Note v1.0 2009-05-22 May 22, 2009
Tech Note for NPort 5200A Series (Real TTY Driver for NPort Series)
204.2 KB
Tech Note v1.0 2009-05-22 May 22, 2009

Available Models (6)

Show Images
moxa-nport-5210a-image.jpg | MoxaNPort 5210Amoxa-nport-5210a-t-image.jpg | MoxaNPort 5210A-Tmoxa-nport-5230a-image.jpg | MoxaNPort 5230Amoxa-nport-5230a-t-image.jpg | MoxaNPort 5230A-T
Operating Temp.0 to 55°C-40 to 75°C0 to 55°C-40 to 75°C
Baudrate50 bps to 921.6 kbps50 bps to 921.6 kbps50 bps to 921.6 kbps50 bps to 921.6 kbps
Serial StandardsRS-232RS-232RS-422/485RS-422/485
No. of Serial Ports2222
Input Current119 mA @ 12 VDC119 mA @ 12 VDC119 mA @ 12 VDC119 mA @ 12 VDC
Input Voltage12-48 VDC12-48 VDC12-48 VDC12-48 VDC
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-nport-5250a-image.jpg | MoxaNPort 5250Amoxa-nport-5250a-t-image.jpg | MoxaNPort 5250A-T
Operating Temp.0 to 55°C-40 to 75°C
Baudrate50 bps to 921.6 kbps50 bps to 921.6 kbps
Serial StandardsRS-232/422/485RS-232/422/485
No. of Serial Ports22
Input Current119 mA @ 12 VDC119 mA @ 12 VDC
Input Voltage12-48 VDC12-48 VDC
Add to QuoteView BagAdd to QuoteView Bag
Added To Bag

NPort 5200A Series

NPort 5210A

moxa-nport-5210a-image.jpg | Moxa

Buy online from our distributors

NPort 5200A Series

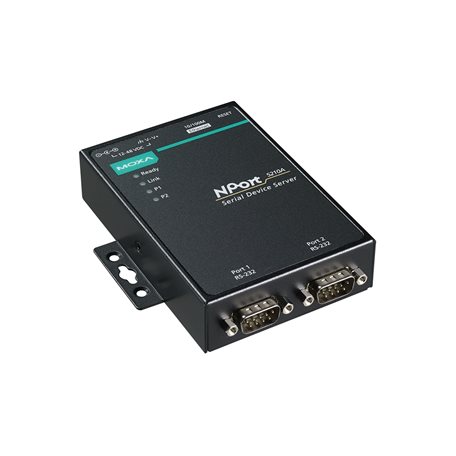

NPort 5210A-T

moxa-nport-5210a-t-image.jpg | Moxa

Buy online from our distributors

NPort 5200A Series

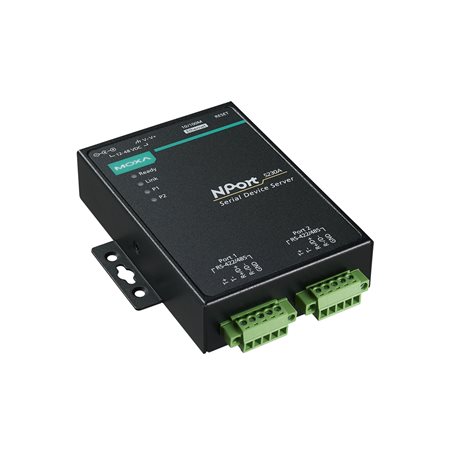

NPort 5230A

moxa-nport-5230a-image.jpg | Moxa

Buy online from our distributors

NPort 5200A Series

NPort 5230A-T

moxa-nport-5230a-t-image.jpg | Moxa

Buy online from our distributors

NPort 5200A Series

NPort 5250A

moxa-nport-5250a-image.jpg | Moxa

Buy online from our distributors

NPort 5200A Series

NPort 5250A-T

moxa-nport-5250a-t-image.jpg | Moxa

Buy online from our distributors
