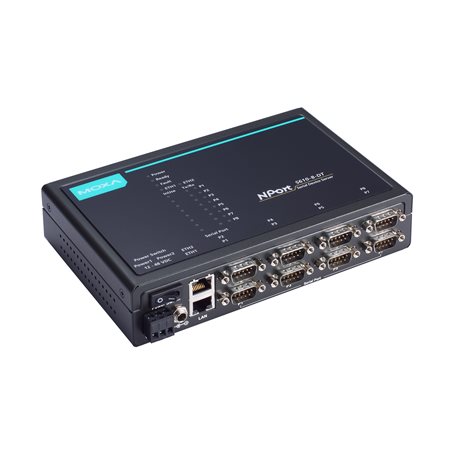

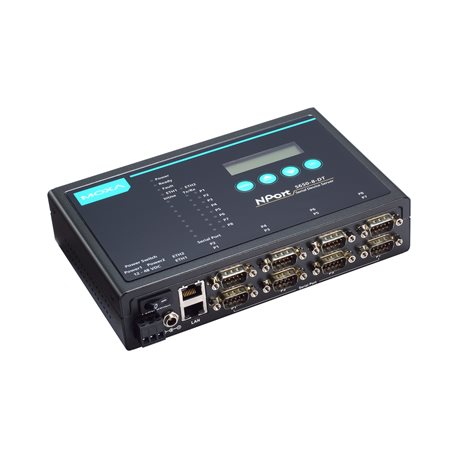

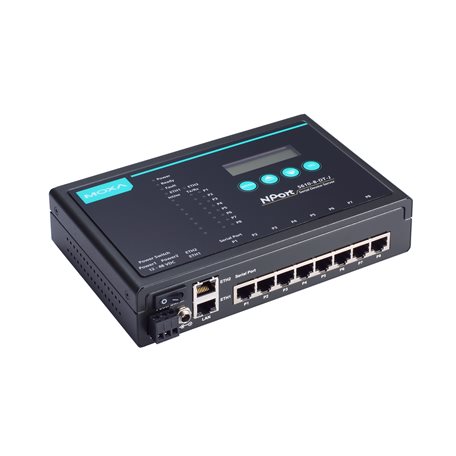

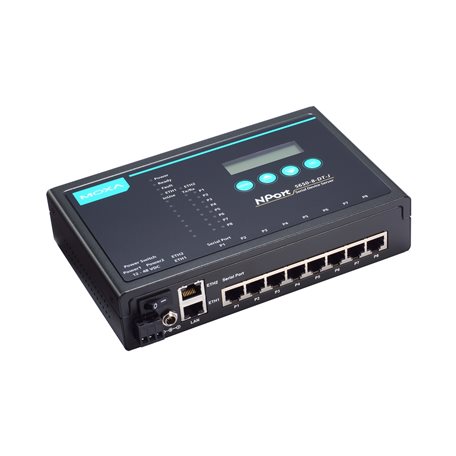

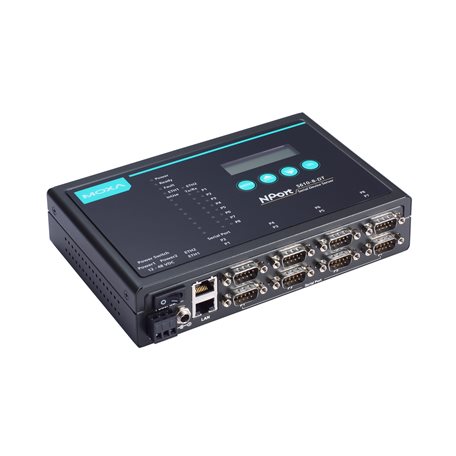

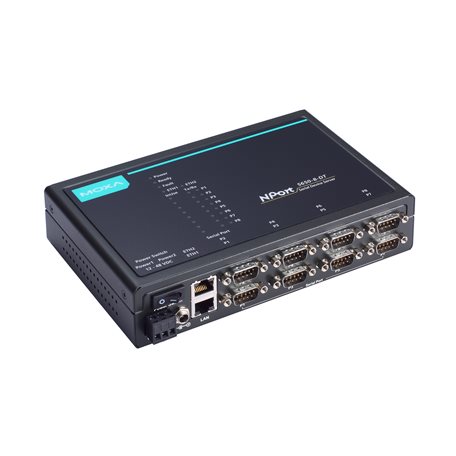

NPort 5600-DT Series

8-port RS-232/422/485 serial device servers

moxa-nport-5600-dt-series-image-(1).jpg | Moxa
moxa-nport-5600-dt-series-image-1-(1).jpg | Moxa
moxa-nport-5600-dt-series-image-2-(1).jpg | Moxa
moxa-nport-5600-dt-series-image-3-(1).jpg | Moxa
moxa-nport-5600-dt-series-image-4-(1).jpg | Moxa
moxa-nport-5600-dt-series-image-5-(1).jpg | Moxa
moxa-nport-5600-dt-series-image-6-(1).jpg | Moxa

Features and Benefits

  • 8 serial ports supporting RS-232/422/485
  • Compact desktop design
  • 10/100M auto-sensing Ethernet
  • Easy IP address configuration with LCD panel
  • Configure by Telnet, web browser, or Windows utility
  • Socket modes: TCP server, TCP client, UDP, Real COM
  • SNMP MIB-II for network management

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

NPort 5600-8-DT device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.

Convenient Design for RS-485 Applications

The NPort 5650-8-DT device servers support selectable 1 kilo-ohm and 150 kilo-ohms pull high/low resistors and a 120-ohm terminator. In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, NPort 5600-8-DT device servers use DIP switches to allow users to adjust termination and pull high/low resistor values manually for each serial port.

Convenient Power Inputs

The NPort 5650-8-DT device servers support both power terminal blocks and power jacks for ease of use and greater flexibility. Users can connect the terminal block directly to a DC power source, or use the power jack to connect to an AC circuit through an adapter.

LED Indicators to Ease Your Maintenance Tasks

The System LED, Serial Tx/Rx LEDs, and Ethernet LEDs (located on the RJ45 connector) provide a great tool for basic maintenance tasks and help engineers analyze problems in the field. The NPort 5600’s LEDs not only indicate current system and network status, but also help field engineers monitor the status of attached serial devices.

Two Ethernet Ports for Convenient Cascade Wiring

The NPort 5600-8-DT device servers come with two Ethernet ports that can be used as Ethernet switch ports. Connect one port to the network or server, and the other port to another Ethernet device. The dual Ethernet ports eliminate the need to connect each device to a separate Ethernet switch, reducing wiring costs.

Appearance

  • 10/100BaseT(X) Ports (RJ45 connector)

    2

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • Configuration Options

    Serial Console, Telnet Console, Web Console (HTTP/HTTPS), Windows Utility

  • Management

    ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, Rtelnet, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP

  • Filter

    IGMP v1/v2

  • MIB

    RFC1213, RFC1317

  • Time Management

    SNTP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, SCO UnixWare 7, Sun Solaris 10, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • Connector

    8-pin RJ45:
    NPort 5610-8-DT-J/5650-8-DT-J
    DB9 male:
    NPort 5610-8-DT models/NPort 5650-8-DT models/NPort 5650I-8-DT models

  • No. of Ports

    8

  • Serial Standards

    NPort 5610-8-DT Series: RS-232
    NPort 5650-8-DT Series: RS-232/422/485

  • Baudrate

    Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    RTS/CTS, DTR/DSR, XON/XOFF

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Isolation

    -I models: 2 kV

  • Surge

    0.5 kV

  • Console Port

    RS-232 (TxD, RxD, GND), 3-pin (19200, n, 8, 1)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Input Current

    NPort 5610-8-DT/NPort 5610-8-DT-J/NPort 5610-8-DT-T: 611 mA @ 12 VDC
    NPort 5650-8-DT/NPort 5650-8-DT-J/NPort 5650-8-DT-T: 615 mA @ 12 VDC
    NPort 5650I-8-DT/NPort 5650I-8-DT-T: 1066 mA @ 12 VDC

  • No. of Power Inputs

    2

  • Input Voltage

    12 to 48 VDC

  • Reverse Polarity Protection

    Supported

  • Automatic Reboot Trigger

    Built-in WDT

  • Alert Tools

    Built-in buzzer and RTC (real-time clock)

  • Housing

    Metal

  • Dimensions (with ears)

    229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)

  • Dimensions (without ears)

    197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)

  • Dimensions (with DIN-rail kit on bottom panel)

    197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)

  • Weight

    NPort 5610-8-DT: 1,570 g (3.46 lb)
    NPort 5610-8-DT-J: 1,520 g (3.35 lb)
    NPort 5610-8-DT-T: 1,320 g (2.91 lb)
    NPort 5650-8-DT: 1,590 g (3.51 lb)
    NPort 5650-8-DT-J: 1,540 g (3.40 lb)
    NPort 5650-8-DT-T: 1,340 g (2.95 lb)
    NPort 5650I-8-DT: 1,660 g (3.66 lb)
    NPort 5650I-8-DT-T: 1,410 g (3.11 lb)

  • Installation

    Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit)

  • Interactive Interface

    LCD panel display
    Push buttons for configuration

  • Operating Temperature

    Standard Models: 0 to 60°C (32 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11

  • Safety

    UL 60950-1, IEC 62368-1

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    836,374 hrs

  • Standards

    Telcordia (Bellcore) Standard
