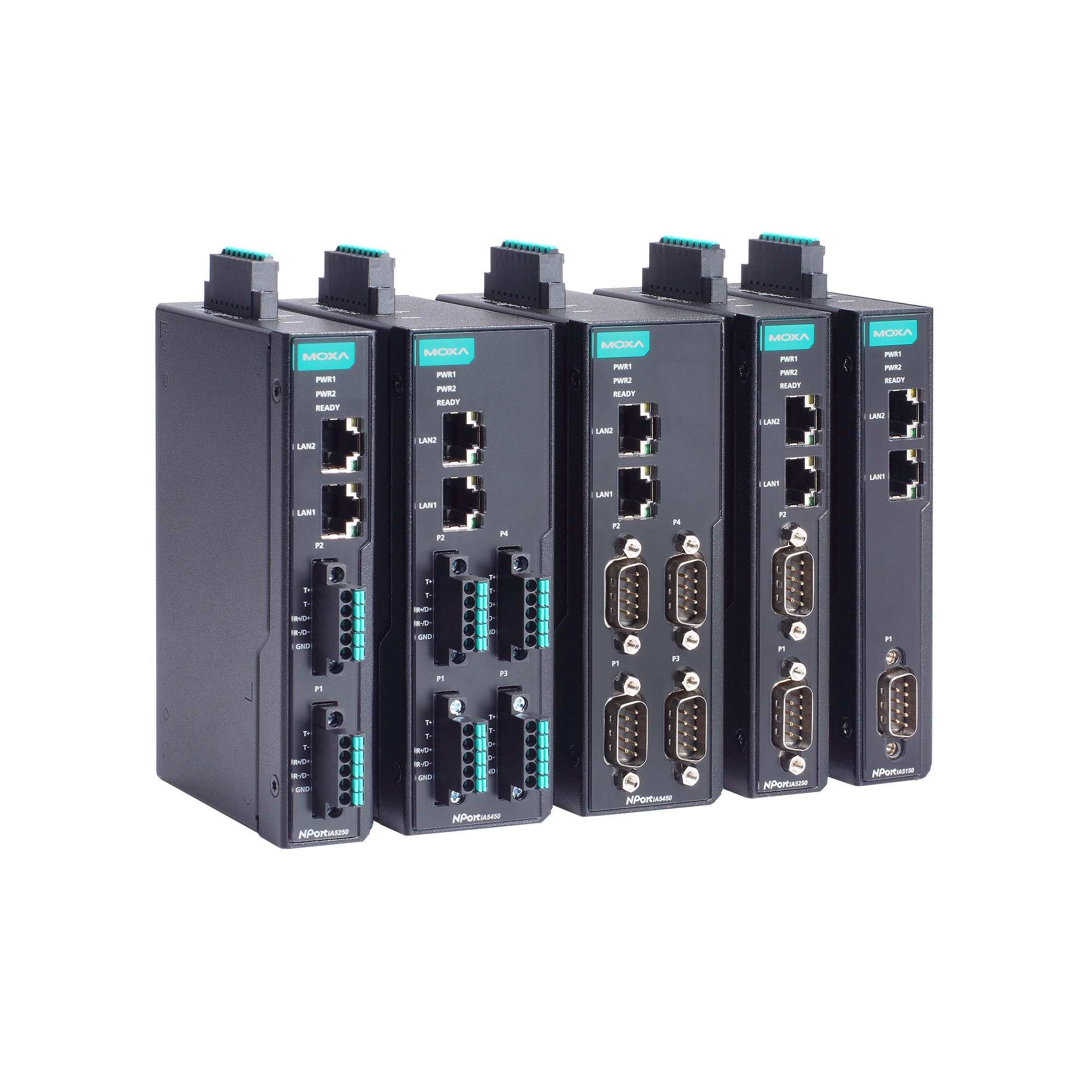

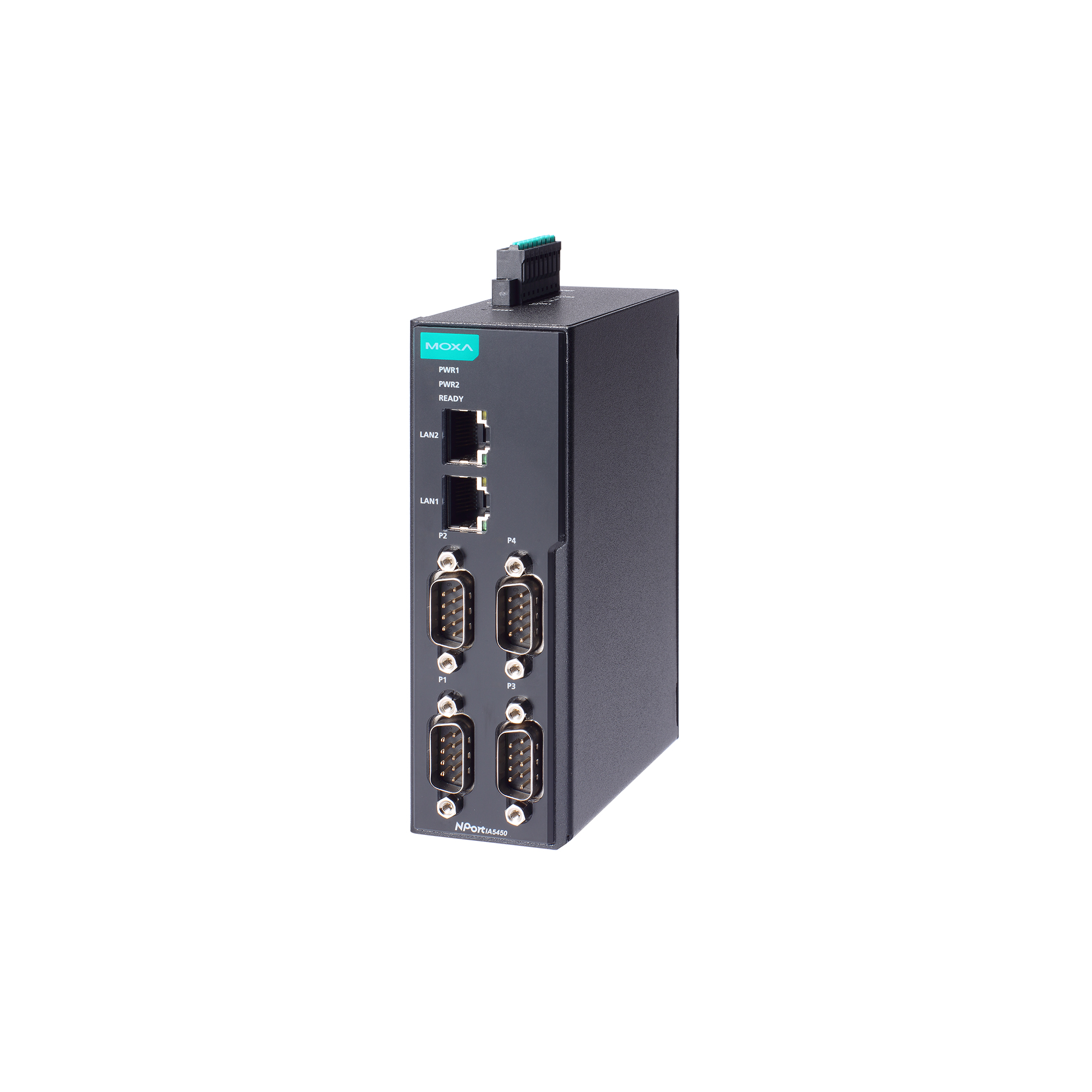

NPort IA5000-G2 Series

1, 2 and 4-port DIN-rail serial device servers for industrial automation

moxa-nport-ia5000-g2-series-image-1-(1).jpg | Moxa

moxa-nport-ia5000-g2-series-image-2-(1).jpg | Moxa

moxa-nport-ia5000-g2-series-image-3-(1).jpg | Moxa

moxa-nport-ia5000-g2-series-image-4-(1).jpg | Moxa

moxa-nport-ia5000-g2-series-image-5-(1).jpg | Moxa

moxa-nport-ia5000-g2-series-image-6-(1).jpg | Moxa

Features and Benefits

30 seconds to complete classic Real COM mode settings with DSU-G2
2 Ethernet ports with the same IP or dual IP addresses for network redundancy
Cascading Ethernet ports for easy wiring
Supports nonstandard baudrates with high precision
Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal
One-click diagnostics for easy troubleshooting
Embedded traffic monitoring for advanced data analysis
10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC/ST connector), and 100Base SFP
DNV, CID2, ATEX Zone 2, and IECEx compliance Approval pending. Please check Moxa’s website for the most up-to-date certification status.

Certifications

You can track updates for your followed products in My Moxa

Preliminary

Contact Sales

Introduction

The NPort® IA5000-G2 device servers are designed for connecting industrial automation serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The device servers are solidly built, come in a metal housing and with screw connectors, and provide full surge protection. The NPort® IA5000-G2 device servers are extremely user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

Cascading Ethernet Ports Make Wiring Easy

The NPort® IA5000-G2 device servers each have two Ethernet ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort IA device server or another Ethernet device. The dual Ethernet ports help reduce wiring costs by eliminating the need to connect each device to a separate Ethernet switch.

Optical Fiber for Ethernet Communication

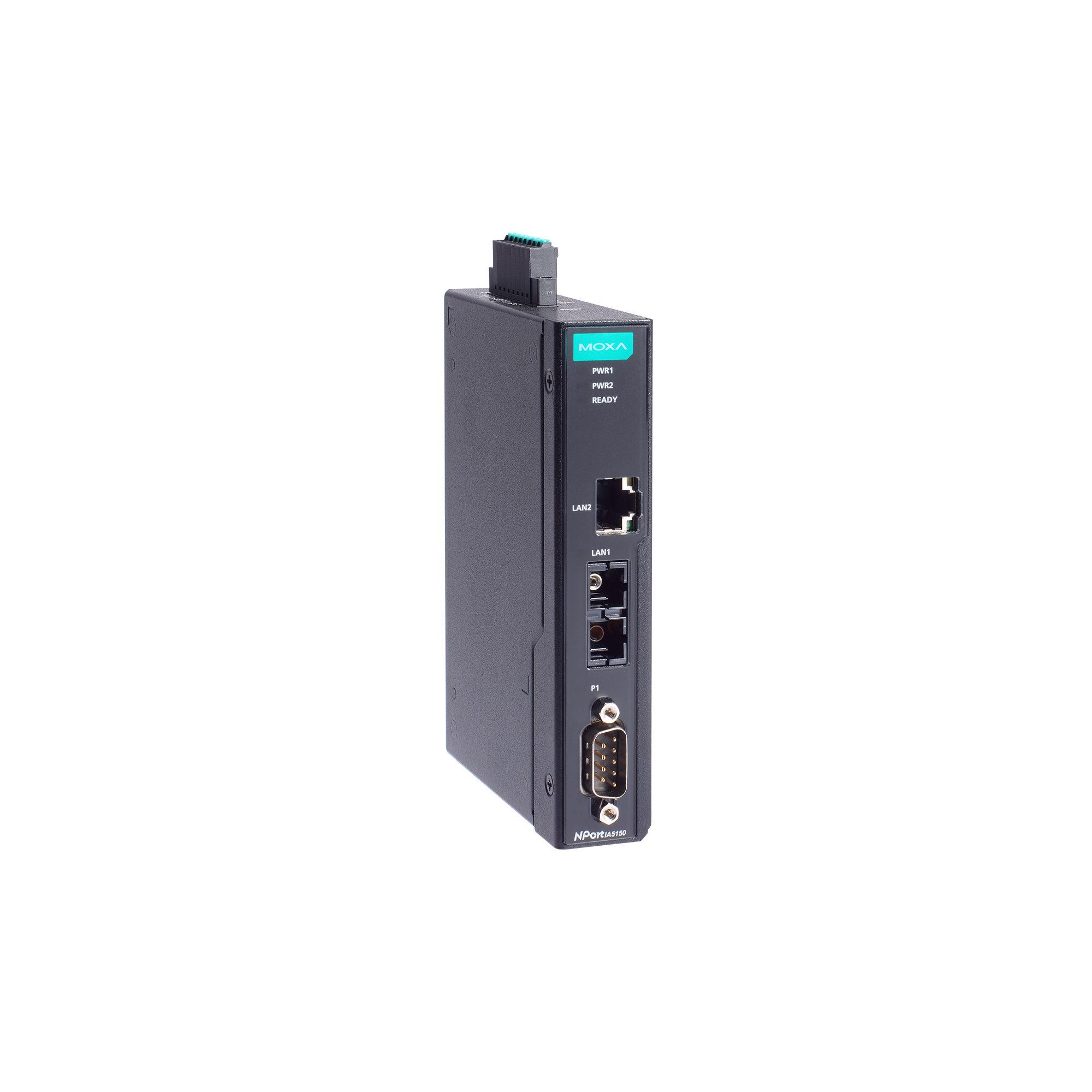

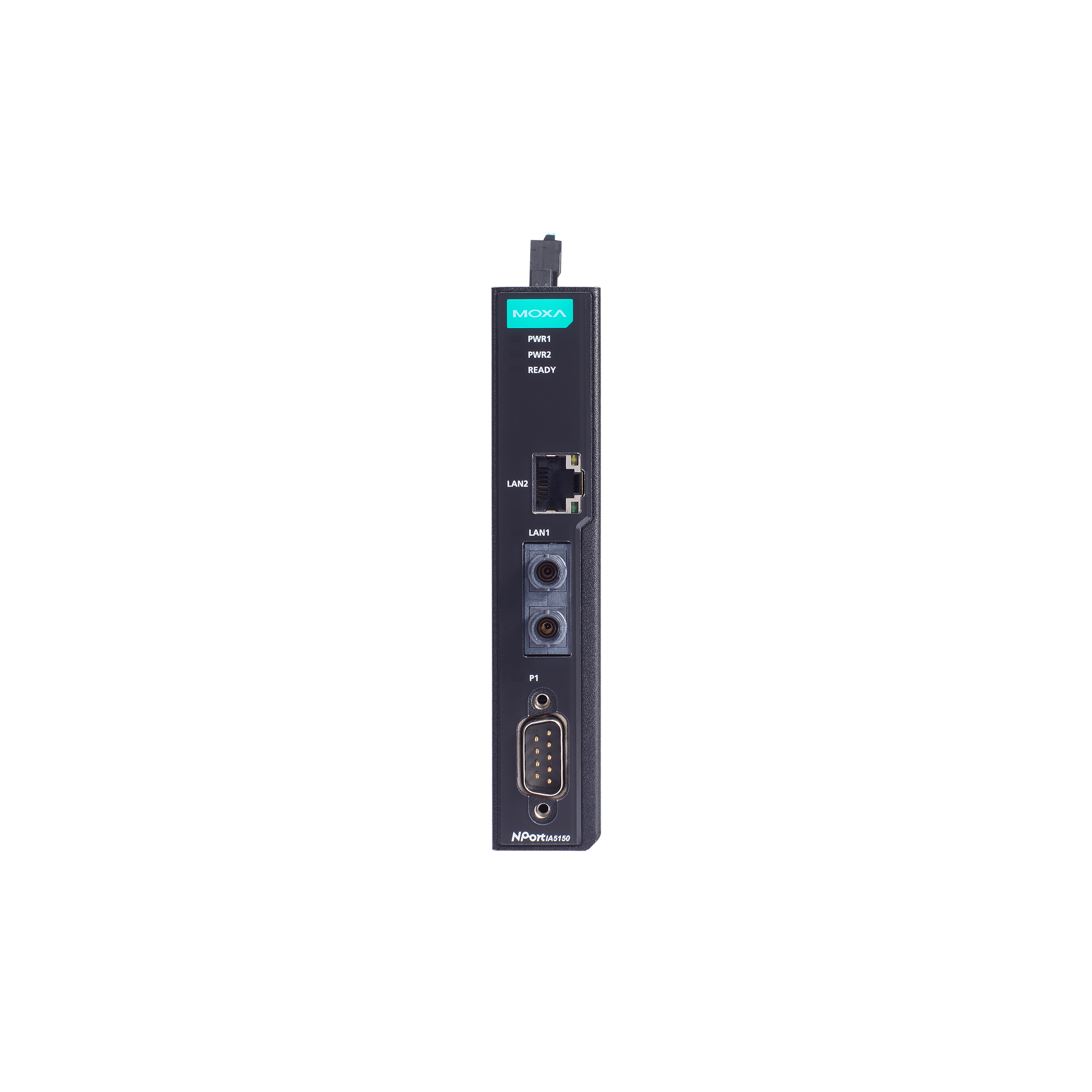

The NPort® IA5000-G2 Series includes 100BaseFX fiber models that support transmission distances up to 4 km for multi-mode models, and up to 40 km for single-mode models. The models also come with a built-in 100BaseTX copper port that makes configuration easier than ever. One of the models in the series supports SFP modules for additional flexibility with Ethernet port options.

Optical fiber is well-suited for industrial applications because it is immune to electromagnetic noise and interference. For environments that experience high ground loop voltages, fiber provides the best isolation protection, and because there is no danger of sparking, optical fiber is safer than copper wire in hazardous environments.

Easy Troubleshooting With One-click Log Collection

At the maintenance stage, system errors may require you to call for help. Device vendors might take a long time to troubleshoot issues because they need to collect information and then hold discussions with the technical support team. The NPort® IA5000-G2 comes with a one-click log collection function to enable logging of data, which can provide all the data that a technical support team needs to quickly troubleshoot system issues.

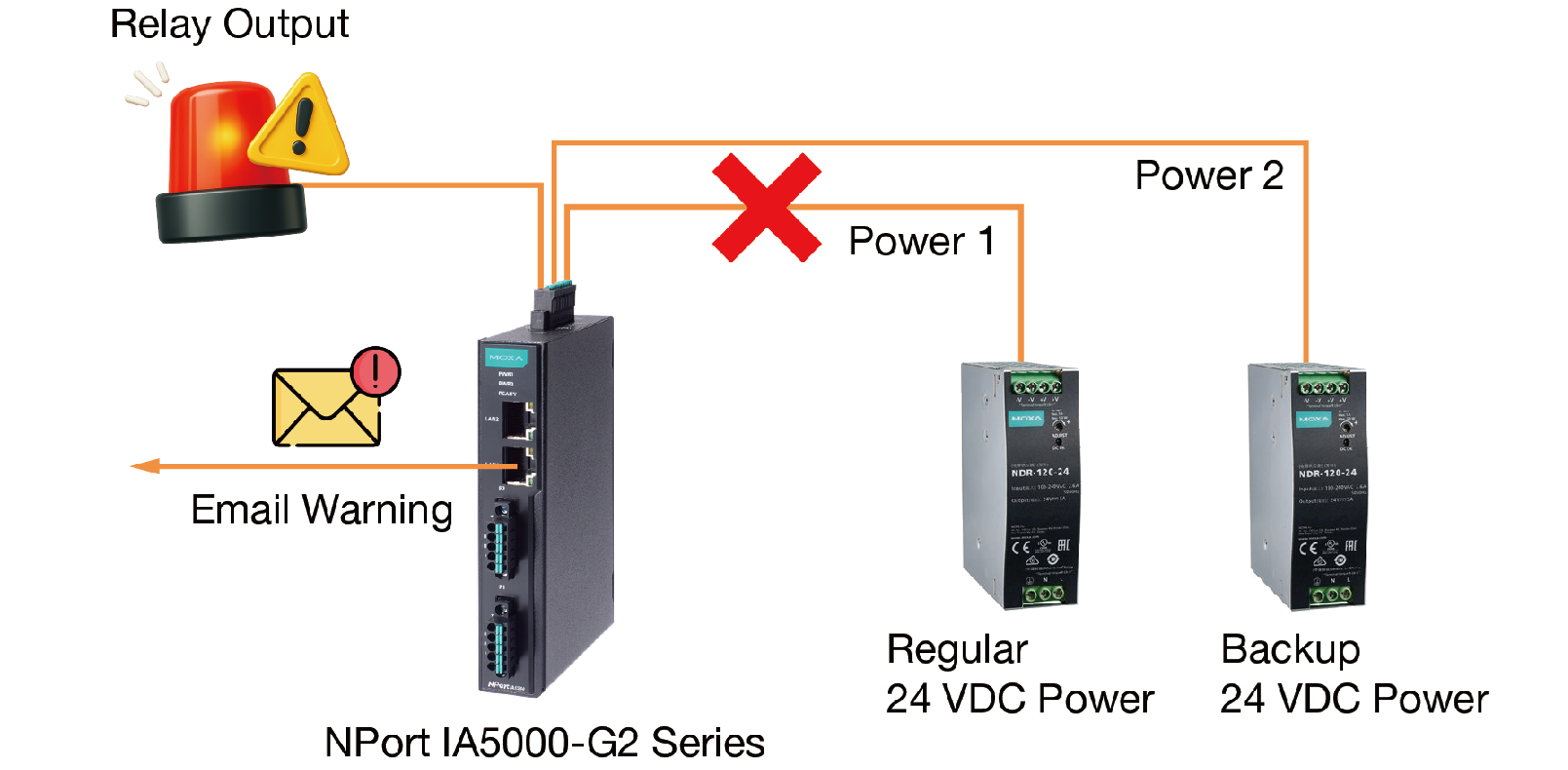

Relay Output Warning and Email Alerts

The built-in relay output can be used to alert administrators when the network is down, when power failure occurs, or when there is a change in the DCD or DSR serial signals. An email warning can also be issued when an abnormality is detected. These functions are valuable tools that enable maintenance engineers to react promptly to emergency situations.

Surge Protection for Serial, Ethernet, and Power

Moxa’s leading-edge surge immunity solution, which is applied to the NPort® IA5000-G2’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This advanced surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and resist electrical interference, such as in oil, gas, and power automation applications.

Industrial-grade Certifications

To ensure safe and reliable operation in industrial environments, the NPort® IA5000-G2 device servers have obtained various industrial certifications, including an IP30 rating for mechanical protection and UL 62368-1 safety certification for industrial control equipment. In addition, approvals are pending for ATEX, Class I Division 2, and IECEx compliance for use in hazardous locations.

Download datasheet
Print this page
Save

You can manage and share your saved list in My Moxa

10/100BaseT(X) Ports (RJ45 connector)

NPort IA5150-S-SC-G2/M-SC-G2/M-ST-G2 models: 1
NPort IA5000-G2 models: 2
Auto MDI/MDI-X connection
Magnetic Isolation Protection

1.5 kV (built-in)

Optical Fiber

		100BaseFX
		Multi-Mode		Single-Mode
Fiber Cable Type		OM1	50/125 µm	G.652
Fiber Cable Type		OM1	800 MHz x km	G.652
Typical Distance		4 km	5 km	40 km
Wavelength	Typical (nm)	1300		1310
	TX Range (nm)	1260 to 1360		1280 to 1340
	RX Range (nm)	1100 to 1600		1100 to 1600
Optical Power	TX Range (dBm)	-10 to -20		0 to -5
	RX Range (dBm)	-3 to -32		-3 to -34
	Link Budget (dB)	12		29
	Dispersion Penalty (dB)	3		1
Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power. Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).

Configuration Options

Web Console (HTTP/HTTPS)
Device Search Utility (DSU)
MCC Tool
Serial Console
Management

ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4, MDNS, LLDP, SMTP, SMTPS, SNMPv1/v2c/v3, TCP/IP, UDP, SNTP, WINS
Windows Real COM Drivers

Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98, and 95
Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
Linux Real TTY Drivers

Kernel versions: 6.x, 5.x, and 4.x
Fixed TTY Drivers

macOS versions: 14, 13, 12, and 11
Arm®-based Platform Support

Windows 11
Linux kernels 6.x, 5.x, and 4.x
macOS 14, 13, 12, and 11
Virtual Machine

VMWare ESXi (Windows 11/10/8.1/8/7 & Linux 6.x, 5.x, and 4.x)
VMware Fusion (Windows on macOS 14, 13, 12, and 11)
Parallels Desktop (Windows on macOS 14, 13, 12, and 11)
Android API

Android 3.1.x and later
Time Management

SNTP Client
Filter

IGMP v1/v2
MIB

RFC1213, RFC1317
Private MIB

Root of Trust

Secure Boot
True Random Number Generator (TRNG)
Authentication

Local database
Encryption

HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, SHA-256, SHA-384, HMAC
SSH: ECC-256, ECC-384, ECC-521, RSA-2048, AES-128, AES-256, SHA-256, SHA-384, HMAC
SNMPv3: AES-128, SHA-256, SHA-384
Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, SHA-256, SHA-384, HMAC
Config file import/export: AES-256, SHA-256, HMAC
Security Protocols

HTTPS (TLS 1.2)
SNMPv3
SSHv2

No. of Ports

NPort IA5150-G2 models: 1
NPort IA5250-G2 models: 2
NPort IA5450-G2 models: 4
Connector

NPort IA5150-G2 models: 1 x DB9 male
NPort IA5250-G2 models: 2 x DB9 male
NPort IA5250-TB-G2 models: 2 x 5-pin terminal block
NPort IA5450-G2 models: 4 x DB9 male
NPort IA5450-TB-G2 models: 4 x 5-pin terminal block
Serial Standards

RS-232/422/485 (software-selectable)
Standard Operation Modes

Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection, Disabled
Secure Operation Modes

Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH, Secure Pair Connection
Baudrate

50 bps to 921.6 kbps (supports non-standard baudrates)
Data Bits

5, 6, 7, 8
Stop Bits

1, 1.5, 2
Parity

None, Even, Odd, Space, Mark
Flow Control

None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF
RS-485 Data Direction Control

ADDC (automatic data direction control)
Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms
(software–configurable)
Terminator for RS-485

120 ohms
(software–configurable)
Isolation

I models: 2 kV

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422

Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w

Data+, Data-, GND

Input Voltage

12 to 48 VDC
Input Current

NPort IA5150-G2/IA5250-G2 models: 270 mA (max.)
NPort IA5250I-G2 models: 330 mA (max.)
NPort IA5450-G2/IA5150-SFP-G2/IA5150I-SFP-G2 models: 377 mA (max.)
Power Connector

8-pin terminal block
(V1+, V1-, NO, NC, GND, V2+, V2-, SG)

Contact Current Rating

Resistive load: 1 A @ 30 VAC

Housing

Metal
IP Rating

IP30
Dimensions

NPort IA5150-G2/IA5250-G2 models: 25 x 89 x 129 mm (0.98 x 3.5 x 5.07 in)
NPort IA5450-G2 models: 42 x 89 x 129 mm (1.65 x 3.5 x 5.07 in)
Weight

NPort IA5150-G2 models: 384 g (0.85 lb)
NPort IA5250-G2 models: 394 g (0.87 lb)
NPort IA5450-G2 models: 512 g (1.13 lb)

Operating Temperature

Standard models: -10 to 60°C (14 to 140°F)
Wide temp. models: -40 to 75°C (-40 to 167°F)
Storage Temperature

-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity

5 to 95% (non-condensing)

EMC

EN 55032/35
EMI

CISPR 32, FCC Part 15B Class A
EMS

IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 2 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Hazardous Locations

ATEX*, Class I Division 2*, IECEx*

*Approval pending
Maritime

DNV*

*Approval pending
Safety

IEC 62368-1
UL 62368-1
EN 62368-1
Vibration

IEC 60068-2-6
IEC 60068-2-64
Freefall

IEC 60068-2-6
IEC 60068-2-32
IEC 60068-2-34

Green Product

RoHS, CRoHS, WEEE

Time

NPort IA5150-G2(-T): 3,238,923 hrs
NPort IA5150I-G2(-T): 3,156,944 hrs
NPort IA5150-SFP-G2(-T): 3,109,327 hrs
NPort IA5250-TB-G2(-T): 2,943,248 hrs
NPort IA5250-G2(-T): 2,931,934 hrs
NPort IA5150-S/M-SC-G2(-T): 2,889,487 hrs
NPort IA5250I-TB-G2(-T): 2,809,979 hrs
NPort IA5250I-G2(-T): 2,799,662 hrs
NPort IA5450-TB-G2(-T): 2,377,791 hrs
NPort IA5450-G2(-T): 2,363,042 hrs
NPort IA5450I-TB-G2(-T): 2,208,607 hrs
NPort IA5450I-G2(-T): 2,195,874 hrs
Standards

Telcordia Standard SR-332

Warranty Period

5 years
Details

See www.moxa.com/warranty
