MiiNePort E3 Series

10/100 Mbps embedded serial device servers

moxa-miineport-e3-series-image-1-(1).jpg | Moxa
moxa-miineport-e3-series-image-2-(1).jpg | Moxa

Features and Benefits

  • IEEE 802.3af compliant PoE passthrough
  • Use Moxa’s high-quality and reliable second-generation MiiNe SoC
  • Variety of operation modes fulfill specific application requirements
  • Green design with extremely low power consumption
  • MiiNePort NetEZ technology makes integration incredibly easy
  • Highly compact embedded device module

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

Moxa’s MiiNePort E3 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E3 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, up to 921.6 kbps serial baudrate, a versatile selection of ready-to-use operation modes, and requires only a small amount of power. By using Moxa’s innovative NetEZ technology, the MiiNePort E3 can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. In addition, the MiiNePort E3 is a compact embedded device server with an RJ45 connector, making it easy to fit into virtually any existing serial device.

Moxa’s Second-Generation SoC

The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E3, which uses the MiiNe for its SoC, is a compact embedded device server that has the lowest power consumption among similar products. The MiiNe has the following features:

  • Designed for serial-to-Ethernet applications

  • Uses an Arm core

  • Uses Moxa’s own advanced UART technology

  • 2 MB Flash and 4 MB SDRAM memory built in

  • CPU

    32-bit Arm Core

  • Flash

    2 MB

  • SDRAM

    4 MB

  • Configurable DIO Channels (by software)

    4

  • Magnetic Isolation Protection

    1.5 kV (built-in)

  • PoE Pass-through

    IEEE 802.3af for PoE

  • 10/100BaseT(X) Ports, Auto MDI/MDI-X

    8-pin RJ45

  • Configuration Options

    Web Console (HTTP), Windows Utility

  • Management

    ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP

  • Windows Real COM Drivers

    Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    Kernel version: 2.4.x, 2.6.x, 3.x, 4.x

  • Fixed TTY Drivers

    SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    Android 3.1.x and later

  • No. of Ports

    1

  • Serial Standards

    TTL

  • Operation Modes

    Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Ethernet Modem mode

  • Baudrate

    MiiNePort E3 Series: 50 bps to 230.4 kbps
    MiiNePort E3-H Series: 50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    None, RTS/CTS, DTR/DSR, XON/XOFF

  • TTL

    • • TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND
  • NetEZ Functions

    EZPower, EZPage, SCM (Serial Command Mode), AutoCFG

  • Input Current

    157 mA @ 3.3 VDC

  • Input Voltage

    3.3 to 5 VDC

  • Dimensions

    MiiNePort E3/E3-H Series: 35 x 52.5 x 18 mm (1.38 x 2.07 x 0.71 in)

  • Weight

    MiiNePort E3/E3-H Series: 12 g (0.03 lb)
    MiiNePort E3-ST/E3-H-ST: 89 g (0.20 lb)

  • Operating Temperature

    Standard models: 0 to 55˚C (32 to 131˚F)
    Wide Temp. models: -40 to 85˚C (-40 to 185˚F)

  • Storage Temperature (package included)

    -40 to 60°C (-40 to 140°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
    IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Environmental Testing

    IEC 60068-2-1
    IEC 60068-2-3

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Freefall

    IEC 60068-2-6

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    5,696,350 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Version Operating System Release Date
Driver for MiiNePort E3 Series (TTY Driver for Unix)
73.0 KB
Driver 3.5
  • FreeBSD 5.x
  • FreeBSD 6.x
  • FreeBSD 7.x
  • HP-UX
  • IBM AIX 5.3
  • Mac OS X
  • QNX 4.x
  • QNX 6.x
  • SCO OpenServer 5
  • SCO OpenServer 6
  • SCO UnixWare 7
  • Solaris 10
2019-01-18 Jan 18, 2019 Release notes
Driver for MiiNePort E3 Series (Real TTY for Linux 3.x.x, 4.x.x)
88.6 KB
Driver 1.19
  • Linux 3.x
  • Linux 4.x
2019-01-18 Jan 18, 2019 Release notes
Driver for MiiNePort E3 Series (Windows Driver Manager)
2.7 MB
Driver 3.0
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
2018-08-23 Aug 23, 2018 Release notes
Driver for MiiNePort E3 Series (Windows Driver Manager)
2.6 MB
Driver 2.0
  • Windows 2000
  • Windows 95
  • Windows 98
  • Windows 98 SE
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2018-08-22 Aug 22, 2018 Release notes
Driver for MiiNePort E3 Series (Device Server Android API)
18.1 MB
Driver 1.0
  • Android
2018-01-19 Jan 19, 2018 Release notes
Driver for MiiNePort E3 Series (Real TTY for Linux 2.4.x, 2.6.x)
92.8 KB
Driver 1.19
  • Linux 2.4.x
  • Linux 2.6.x
2017-11-15 Nov 15, 2017 Release notes
Utility for MiiNePort E3 Series (Device Search Utility)
1.1 MB
Utility v2.2
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 95
  • Windows 98
  • Windows ME
  • Windows NT
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Vista
  • Windows XP
2017-09-04 Sep 04, 2017 Release notes
Firmware for MiiNePort E3 Series
615.4 KB
Firmware v1.1
2016-11-30 Nov 30, 2016 Release notes
Driver for MiiNePort E3 Series (WinCE 5)
230.5 KB
Driver v1.6
  • Windows CE 5.0
  • Windows CE 6.0
2012-11-14 Nov 14, 2012 Release notes
Utility for MiiNePort E3 Series (PComm Lite)
1.6 MB
Utility v1.6
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Server 2008 R2
  • Windows Vista
  • Windows XP
2012-05-13 May 13, 2012 Release notes
Driver for MiiNePort E3 Series (WinXP Embedded)
1.2 MB
Driver v1.14
  • Windows XP Embedded
2012-04-04 Apr 04, 2012 Release notes
Library for MiiNePort E3 Series (EZPage)
489.7 KB
Software Package v1.1
  • Windows 2000
  • Windows 7
  • Windows Server 2003
  • Windows Server 2008
  • Windows Vista
  • Windows XP
2012-03-09 Mar 09, 2012 Release notes
Software Package for MiiNePort E3 Series (EZPage)
489.7 KB
Software Package v1.1
2012-03-09 Mar 09, 2012 Release notes
Software Package for MiiNePort E3 Series (NECI Library)
485.0 KB
Software Package v2.3.0
2008-09-01 Sep 01, 2008 Release notes

Support Documents

Name Type Version Release Date
Datasheet for MiiNePort E3 Series
1.1 MB
Datasheet v1.0 2018-11-11 Nov 11, 2018
Manual for MiiNePort E3 Series
10.6 MB
Manual v10.0 2018-01-18 Jan 18, 2018
3D CAD for MiiNePort E3
75.0 KB
3D CAD 2015-06-24 Jun 24, 2015
2D CAD for MiiNePort E3
78.9 KB
2D CAD 2015-06-24 Jun 24, 2015
Tech Note for MiiNePort E3 Series (AutoCFG for MiiNePort Series)
515.7 KB
Tech Note v1.0 2014-11-18 Nov 18, 2014
Tech Note for MiiNePort E3 Series (NPort Real COM Mode for DNP3 Applications)
1.9 MB
Tech Note v1.0 2013-06-30 Jun 30, 2013
BOM file for MiiNePort E3-ST Board
19.5 KB
Manual v1.0 2012-06-14 Jun 14, 2012
Tech Note for MiiNePort E3 Series (TCP Server Mode for NPort Series)
311.3 KB
Tech Note v1.0 2012-03-30 Mar 30, 2012
Manual for MiiNePort E3 Series (Schematic Design Guide)
428.0 KB
Manual v1.0 2012-01-04 Jan 04, 2012
QIG for MiiNePort E3 Series
1.8 MB
QIG v1.0 2011-10-26 Oct 26, 2011
Tech Note for MiiNePort E3 Series (Accessing Multiple NPorts Behind NAT for NPort Series)
482.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for MiiNePort E3 Series (Ethernet Modem Mode for NPort Series)
116.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for MiiNePort E3 Series (Pair Connection Mode)
211.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for MiiNePort E3 Series (Real COM Mode for NPort Series)
253.0 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for MiiNePort E3 Series (Reverse Telnet Mode for NPort Series)
204.6 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for MiiNePort E3 Series (TCP Client Mode for NPort Series)
224.4 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for MiiNePort E3 Series (UDP Mode for NPort Series)
173.2 KB
Tech Note v1.0 2009-11-04 Nov 04, 2009
Tech Note for MiiNePort E3 Series (Fixed TTY Driver for NPort Series)
207.6 KB
Tech Note v1.0 2009-05-22 May 22, 2009
Tech Note for MiiNePort E3 Series (Real TTY Driver for NPort Series)
204.2 KB
Tech Note v1.0 2009-05-22 May 22, 2009

Available Models (6)

Show Images
moxa-miineport-e3-image.jpg | MoxaMiiNePort E3moxa-miineport-e3-h-image.jpg | MoxaMiiNePort E3-Hmoxa-miineport-e3-t-image.jpg | MoxaMiiNePort E3-Tmoxa-miineport-e3-h-t-image.jpg | MoxaMiiNePort E3-H-T
No. of Serial Ports1111
Supported Baudrates50 bps to 230.4 kbps50 bps to 921.6 kbps50 bps to 230.4 kbps50 bps to 921.6 kbps
Operating Temp.0 to 55°C0 to 55°C-40 to 85°C-40 to 85°C
With MiiNePort E3
With Evaluation Board
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-miineport-e3-st-image.jpg | MoxaMiiNePort E3-STmoxa-miineport-e3-h-st-image.jpg | MoxaMiiNePort E3-H-ST
No. of Serial Ports11
Supported Baudrates50 bps to 230.4 kbps50 bps to 921.6 kbps
Operating Temp.0 to 55°C0 to 55°C
With MiiNePort E3
With Evaluation Board
Add to QuoteView BagAdd to QuoteView Bag
Added To Bag

MiiNePort E3 Series

MiiNePort E3

moxa-miineport-e3-image.jpg | Moxa

Buy online from our distributors

MiiNePort E3 Series

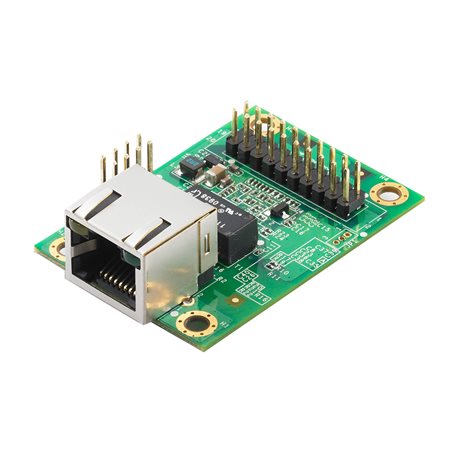

MiiNePort E3-H

moxa-miineport-e3-h-image.jpg | Moxa

Buy online from our distributors

MiiNePort E3 Series

MiiNePort E3-T

moxa-miineport-e3-t-image.jpg | Moxa

Buy online from our distributors

MiiNePort E3 Series

MiiNePort E3-H-T

moxa-miineport-e3-h-t-image.jpg | Moxa

Buy online from our distributors

MiiNePort E3 Series

MiiNePort E3-ST

moxa-miineport-e3-st-image.jpg | Moxa

Buy online from our distributors

MiiNePort E3 Series

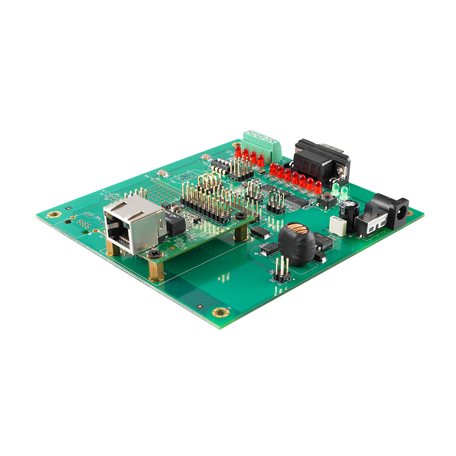

MiiNePort E3-H-ST
