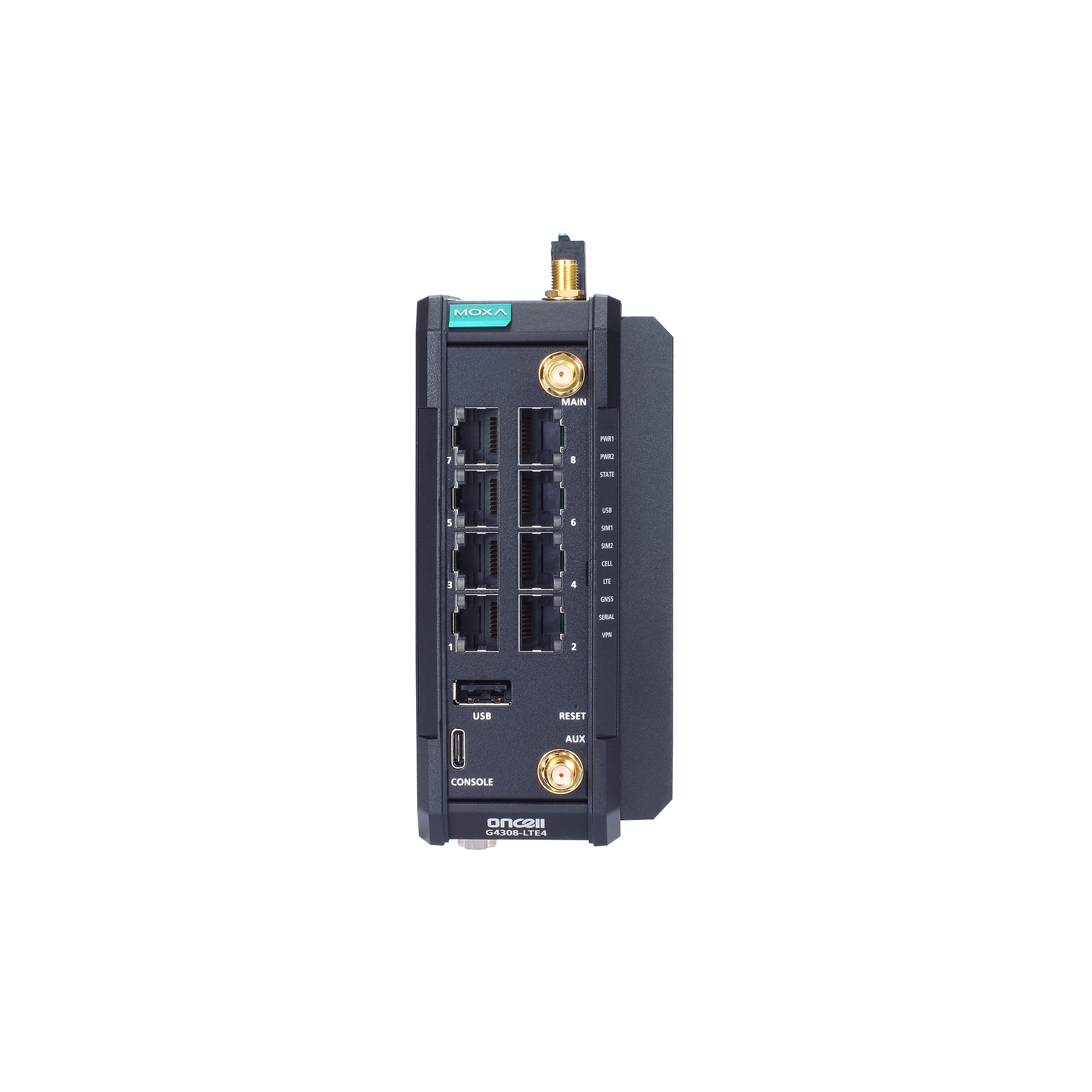

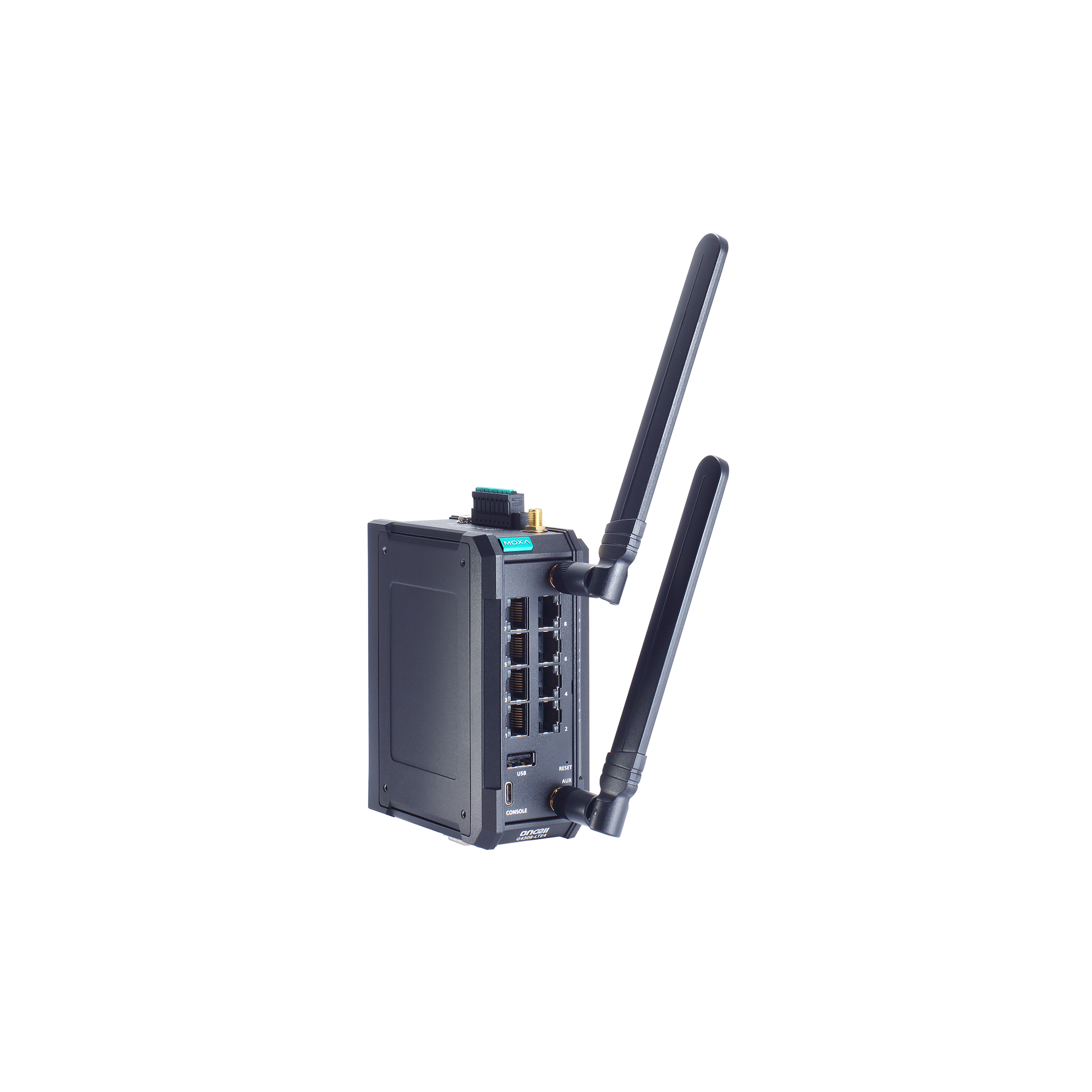

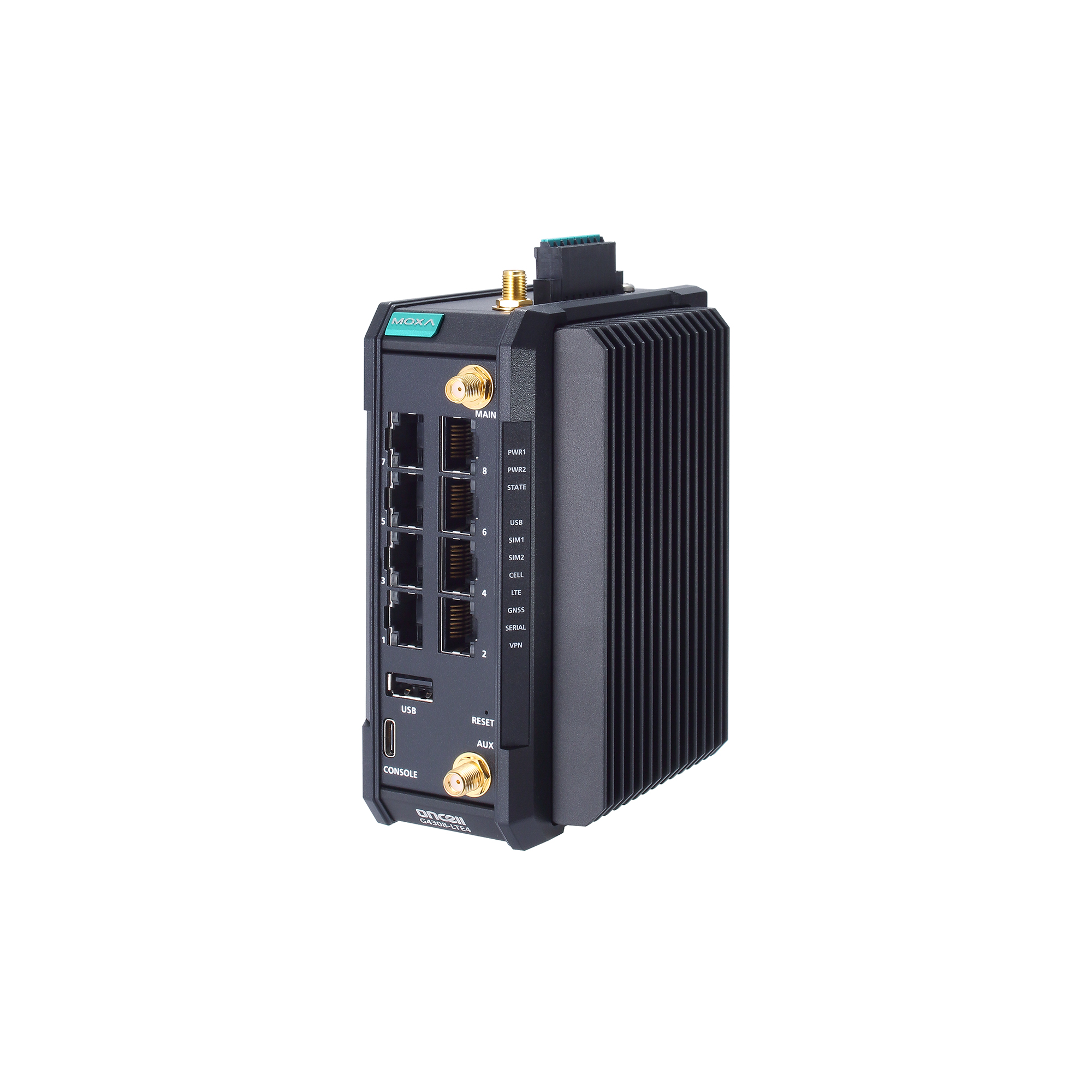

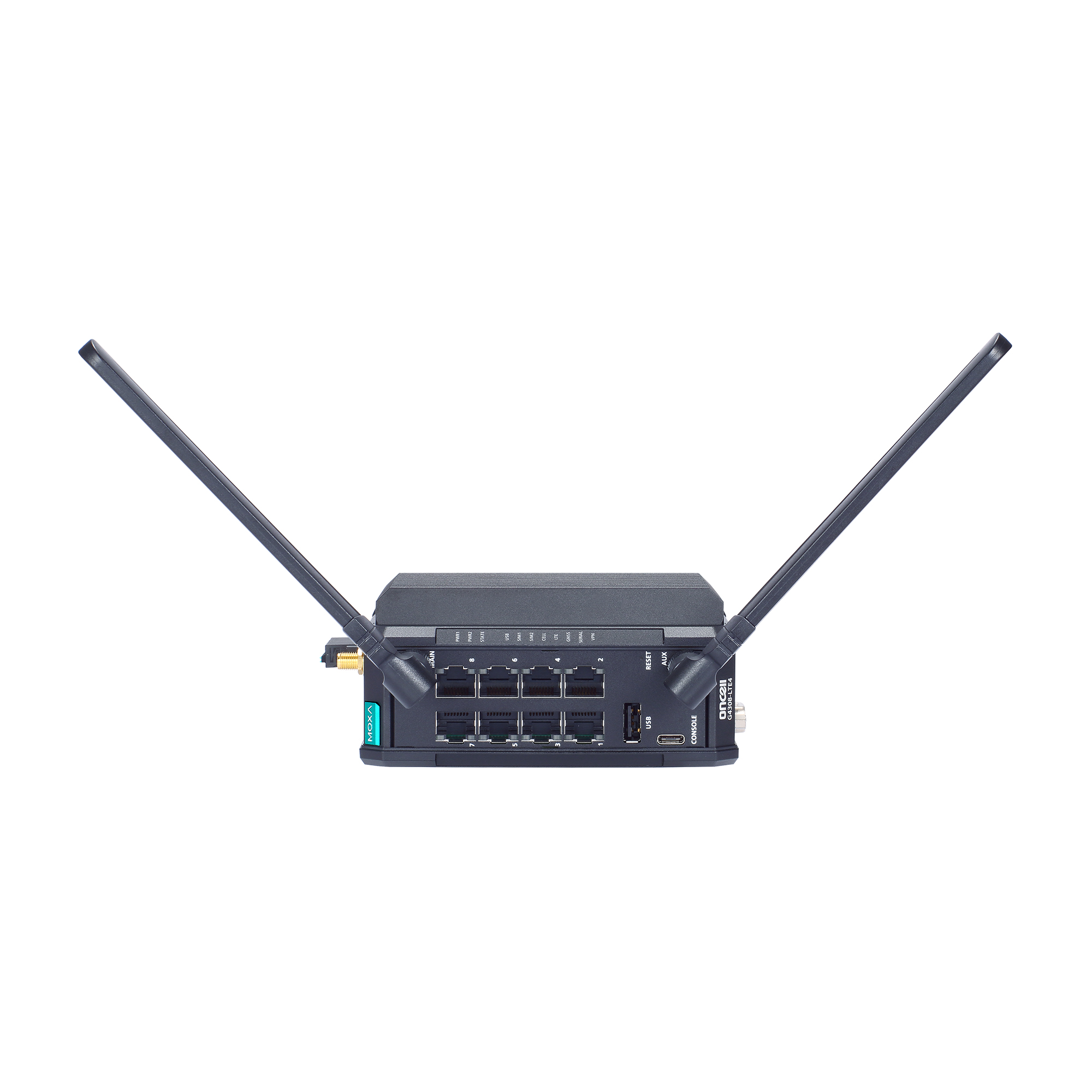

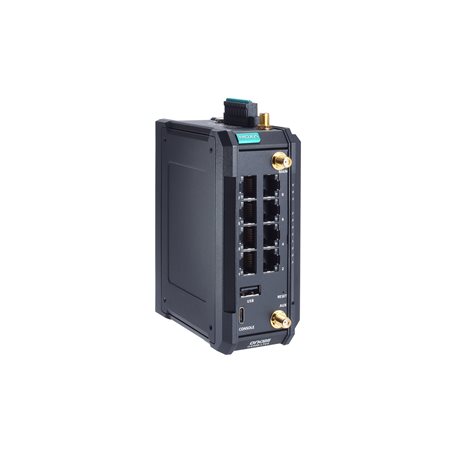

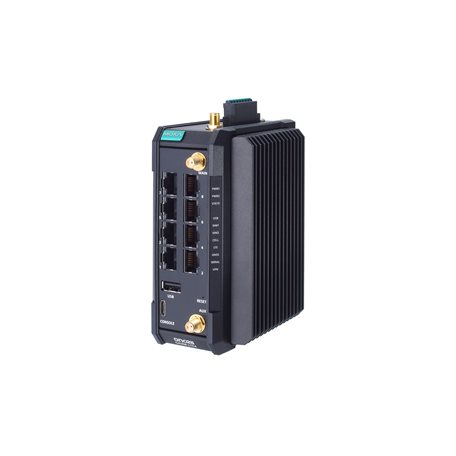

OnCell G4308-LTE4 Series

8-port industrial LTE Cat. 4 secure cellular routers

moxa-oncell-g4308-lte4-series-image-(1).jpg | Moxa
moxa-oncell-g4308-lte4-series-image-1-(1).jpg | Moxa
moxa-oncell-g4308-lte4-series-image-2-(1).jpg | Moxa
moxa-oncell-g4308-lte4-series-image-3-(1).jpg | Moxa
moxa-oncell-g4308-lte4-series-image-4-(1).jpg | Moxa
moxa-oncell-g4308-lte4-series-image-5-(1).jpg | Moxa

Features and Benefits

  • Integrated LTE Cat. 4 module with global band support
  • Cellular link redundancy with dual-SIM GuaranLink support
  • Supports WAN redundancy between cellular and Ethernet
  • Support MRC Quick Link Ultra for centralized monitoring and remote access to the on-site devices
  • Supports serial TSC (Traffic Signal Controller) communication for SCATS (Sydney Coordinated Adaptive Traffic System)
  • Power management support for wake-up time scheduling or digital input signals, suitable for vehicle ignition systems
  • Examine industrial protocol data with Deep Packet Inspection (DPI) technology
  • Rugged and compact design for harsh environments

Certifications

  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa
Preliminary

Contact Sales

Introduction

The OnCell G4308-LTE4 Series is a reliable and powerful secure cellular router with global LTE coverage. This router provides reliable data transfers from serial and Ethernet to a cellular interface that can be easily integrated into legacy and modern applications. WAN redundancy between the cellular and Ethernet interfaces guarantees minimal downtime, while also providing extra flexibility. To enhance cellular connection reliability and availability, the OnCell G4308-LTE4 Series features GuaranLink with dual SIM cards. Moreover, the OnCell G4308-LTE4 Series features dual power inputs, high-level EMS, and a wide operating temperature for deployment in demanding environments. Through the power management function, administrators can set up schedules to fully control the OnCell G4308-LTE4 Series’ power usage and minimize power consumption when idle to save cost.

Designed for robust security, the OnCell G4308-LTE4 Series supports Secure Boot to ensure system integrity, multi-layer firewall policies for managing network access and traffic filtering, and VPN for secure remote communications.

Highly Integrated Industrial Cellular Routers

  • Integrated LTE Cat. 4 module with global band

  • 8 Gigabit ports with managed Layer 2 switch functions

  • Supports serial devices with the 3-in-1 RS232/422/485 port

  • Supports MRC Quick Link Ultra for remote access and is easy to configure. For more information, please visit Secure Remote Access (https://www.moxa.com/en/products/industrial-network-infrastructure/secure-remote-access/moxa-remote-connect-suite).

Defend Against Malicious Threats With Advanced Cybersecurity Features

  • Secure boot for system integrity and to protect against tampering attacks

  • VPN functionality for secure and encrypted data communication

  • Firewall policies to protect the internal network from unauthorized access and DoS attacks

  • Network Address Translation (NAT) provides IP privacy between trusted and untrusted networks

  • Deep Packet Inspection (DPI) examine the data portion of network packets for various OT-specific protocols

Industrial-grade Reliability

  • Dual power inputs for power redundancy

  • GuaranLink and dual SIM card support for reliable cellular connectivity

  • -30 to 70°C wide operating temperature

MX-ROS Addresses Growing Cybersecurity Threats

Moxa’s MX-ROS is a software platform for industrial security routers and firewalls. The platform supports robust security and user-friendly operation of secure routers through simplified web and CLI interfaces. MX-ROS devices offer a wealth of the latest cross-industry Operational Technology (OT) network management features with each release to safeguard your hardware and software.

  • Cellular Standards

    LTE CAT 4, HSPA, UMTS

  • LTE Data Rate

    20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL

  • Band Options (GL)

    GL(-T) models:
    LTE B1 (2100 MHz) / B2 (1900 MHz) / B3 (1800 MHz) / B4 (1700/2100 MHz (AWS)) / B5 (850 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B12 (700 MHz) / B13 (700 MHz) / B14 (700 MHz) / B20 (800 MHz) / B25 (1900 MHz) / B26 (850 MHz) / B28 (700 MHz)

    UMTS/HSPA
    B1 (2100 MHz) / B2 (1900 MHz) / B4 (1700 MHz(AWS)) / B5 (850 MHz) / B6 (800MHz) / B8 (900 MHz) / B19 (800 MHz)

  • No. of SIMs

    2 Push-eject tray type

  • SIM Format

    Nano SIM

  • Cellular Antenna Connectors

    2 SMA female

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    8

  • GNSS Bands

    GPS (1575.42 MHz)
    GLONASS (1597.52 MHz)
    Galileo (1575.42 MHz)
    BeiDou (1561.098 MHz)

  • GNSS Antenna Connectors

    1 SMA female

  • Digital Output Channels

    1
    Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    1

  • Digital Inputs

    0 to +3 V for state 0
    +9 to +36 V for state 1

  • Buttons

    Reset button

  • No. of USB Ports

    1

  • USB Connector

    USB Type A

  • USB Standards

    USB 2.0 For use by ABC-02.

  • No. of Ports

    1

  • Connector

    DB9 male

  • Serial Standards

    RS-232/422/485

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None
    Even
    Odd

  • Baudrate

    300 bps to 921.6 kbps

  • Console Port

    RS-232 (TxD, RxD, GND), USB type-C (115200, n, 8, 1) We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Standards

    Real COM mode
    RFC2217 mode
    SCATS
    TCP Client mode
    TCP Server mode
    UDP mode

  • LED Indicators

    PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN

  • Management

    Back Pressure Flow Control
    GuaranLink
    LLDP
    Moxa Remote Connect (MRC)
    MXconfig
    MXsecurity To be released in Q4 2025.
    MXview One
    Power Management
    Remote SMS Control
    Syslog

  • Broadcast Forwarding

    IP directed broadcast, broadcast forwarding

  • Configuration Options

    Serial Console We recommend using the Moxa CBL-USBCF9-GY-150 console cable, which can be purchased separately.
    Web Console (HTTP/HTTPS)
    Command Line Interface (CLI) through Serial/Telnet/SSH

  • Network Protocols

    DDNS
    DHCP Server/Client
    SMTP
    SNMPv1/v2c/v3
    ARP
    Telnet
    TCP/IP
    UDP

  • Filter

    802.1Q VLAN
    Port-based VLAN

  • Unicast Routing

    Static Route

  • Multicast Routing

    Static Route

  • Routing Redundancy

    VRRP

  • Time Management

    NTP Server/Client
    SNTP

  • Hardware-based Security

    Secure Boot

  • Password

    User-level password protection

  • Authentication

    Local database
    RADIUS
    Access Control List

  • Filter

    DDoS
    Ethernet protocols
    ICMP
    IP address
    MAC address
    Ports
    DPI

  • Features

    1-to-1
    N-to-1
    PAT
    NAT loopback
    Double NAT

  • Authentication

    MD5 and SHA (SHA-256)
    RSA (key size: 1024-bit, 2048-bit)
    Pre-shared Key or X.509 v3 certificate

  • Encryption

    DES
    3DES
    AES-128
    AES-192
    AES-256

  • Concurrent VPN Tunnels

    Max. 15 IPsec VPN tunnels

  • Protocols

    IPsec

  • OpenVPN

    OpenVPN (client)

  • Encryption

    AES-128/192/256 CBC
    AES-128/192/256 GCM
    CHACHA20-POLY1305

  • Input Current

    1.16 A (max.)

  • Input Voltage

    12 to 48 VDC

  • Power Consumption

    47 mW at 12 V (idle)
    11.05 W at 12 V (typ.)
    14.28 W at 48 V (max.)

  • Power Connector

    Screw-locked terminal block

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • Dimensions

    125 x 58.2 x 100 mm (4.92 x 2.29 x 3.94 in)

  • Weight

    707 g (1.56 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • IP Rating

    IP40 With the rubber SIM slot cover closed.

  • Operating Temperature

    Standard Models: -10 to 55°C (14 to 131°F)
    Wide Temp. Models: -30 to 70°C (-22 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35
    EN 61000-6-2/-6-4
    CISPR 32/35

  • EMI

    ICES-003, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV (level 4) This device demonstrates a capacity that exceeds the requirements set by certification standards.
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (level 3); 1.8, 2.6, 3.5, 5GHz: 3V/m (level 2)
    IEC 61000-4-4 EFT: Power: 2 kV; IO: 1 kV (level 3) This device demonstrates a capacity that exceeds the requirements set by certification standards.
    IEC 61000-4-5 Surge: Power: Power: 2 kV, Signal: 2 kV (level 3) This device demonstrates a capacity that exceeds the requirements set by certification standards.
    IEC 61000-4-6 CS: 0.15 MHz to 80 MHz; Signal: 10 V (level 3)
    IEC 61000-4-8: 30 A/m (level 4)

  • Freefall

    IEC 60068-2-32

  • Radio Frequency

    FCC ID RI7LE910CXWWX
    EN 303 413

  • Radio

    RCM
    IC: 5131A-LE910CXWWX
    UKCA

  • Cellular Standards

    EN 301 489-1/-19 (GPS)
    EN 301 489-1/-52 (WCDMA/LTE)
    EN 301 511
    EN 301908-1/-2/-13

  • Safety

    UL 62368-1
    EN 62368-1

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6

  • Time

    1,533,742 hrs

  • Standards

    Telcordia Standard SR-332
