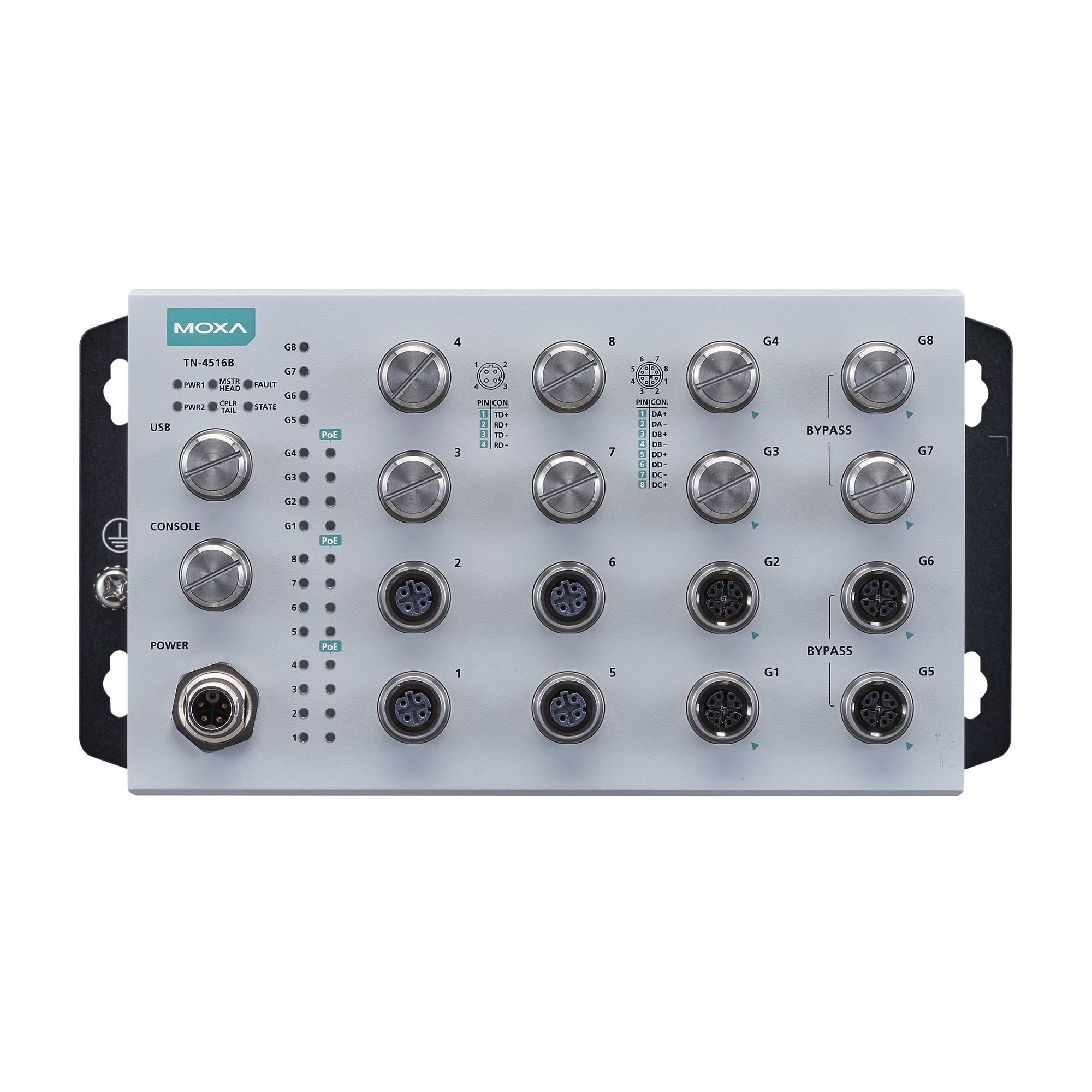

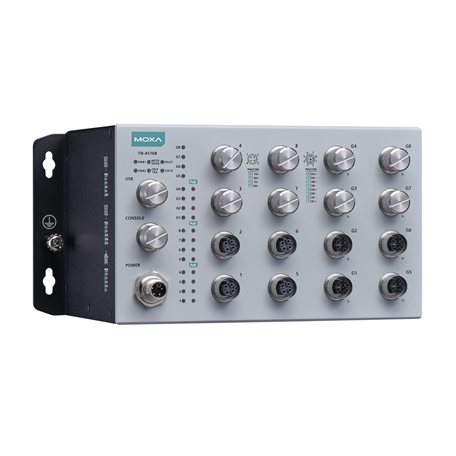

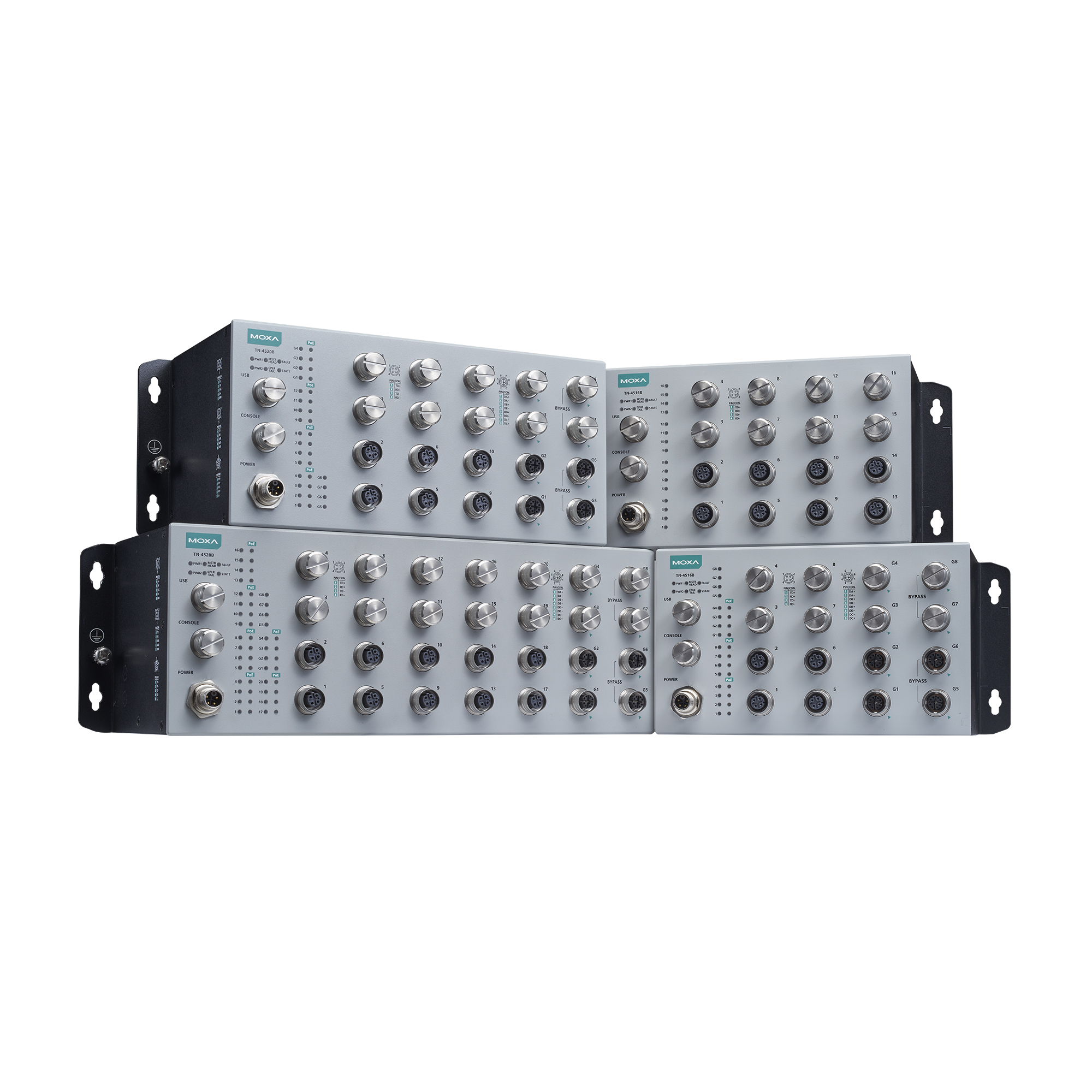

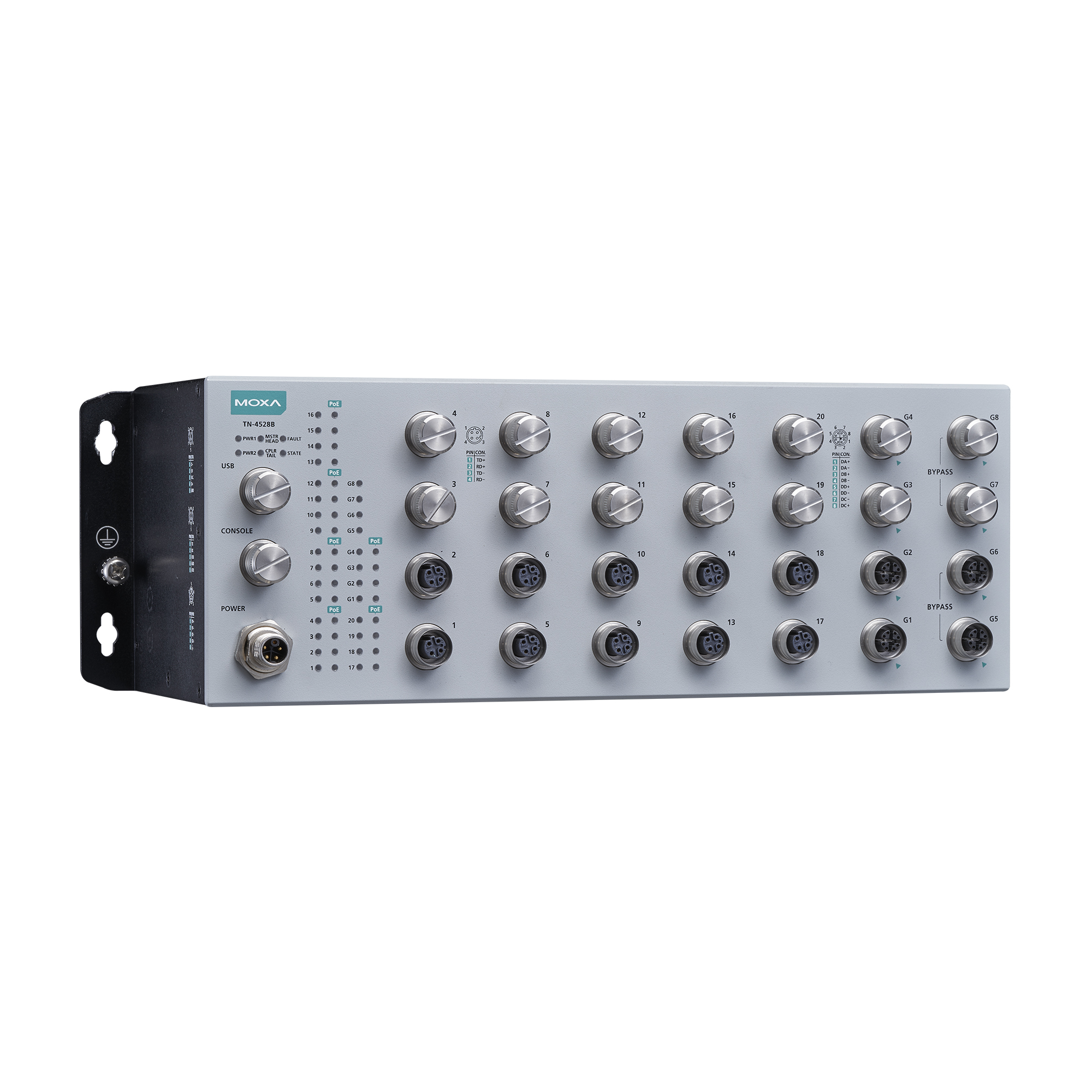

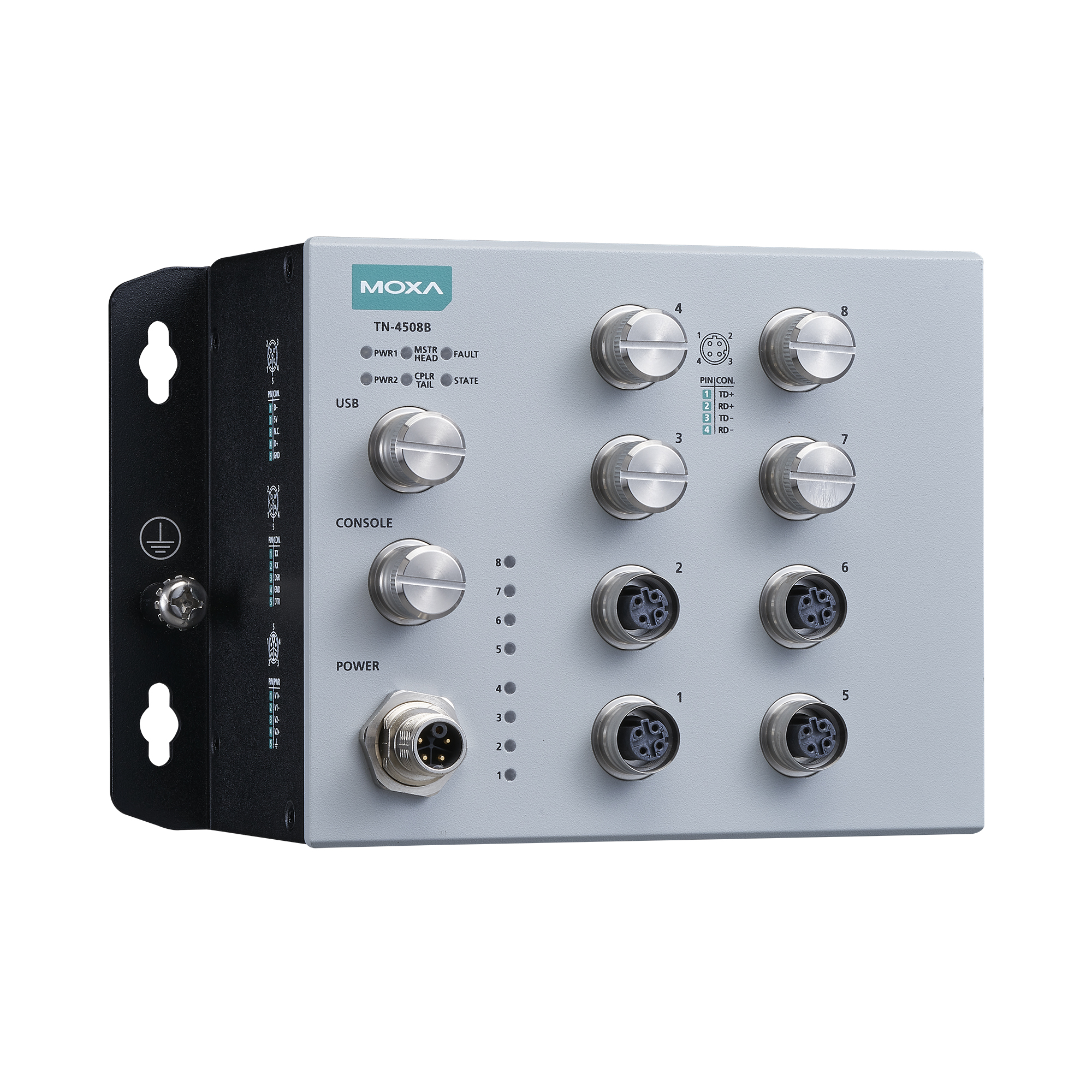

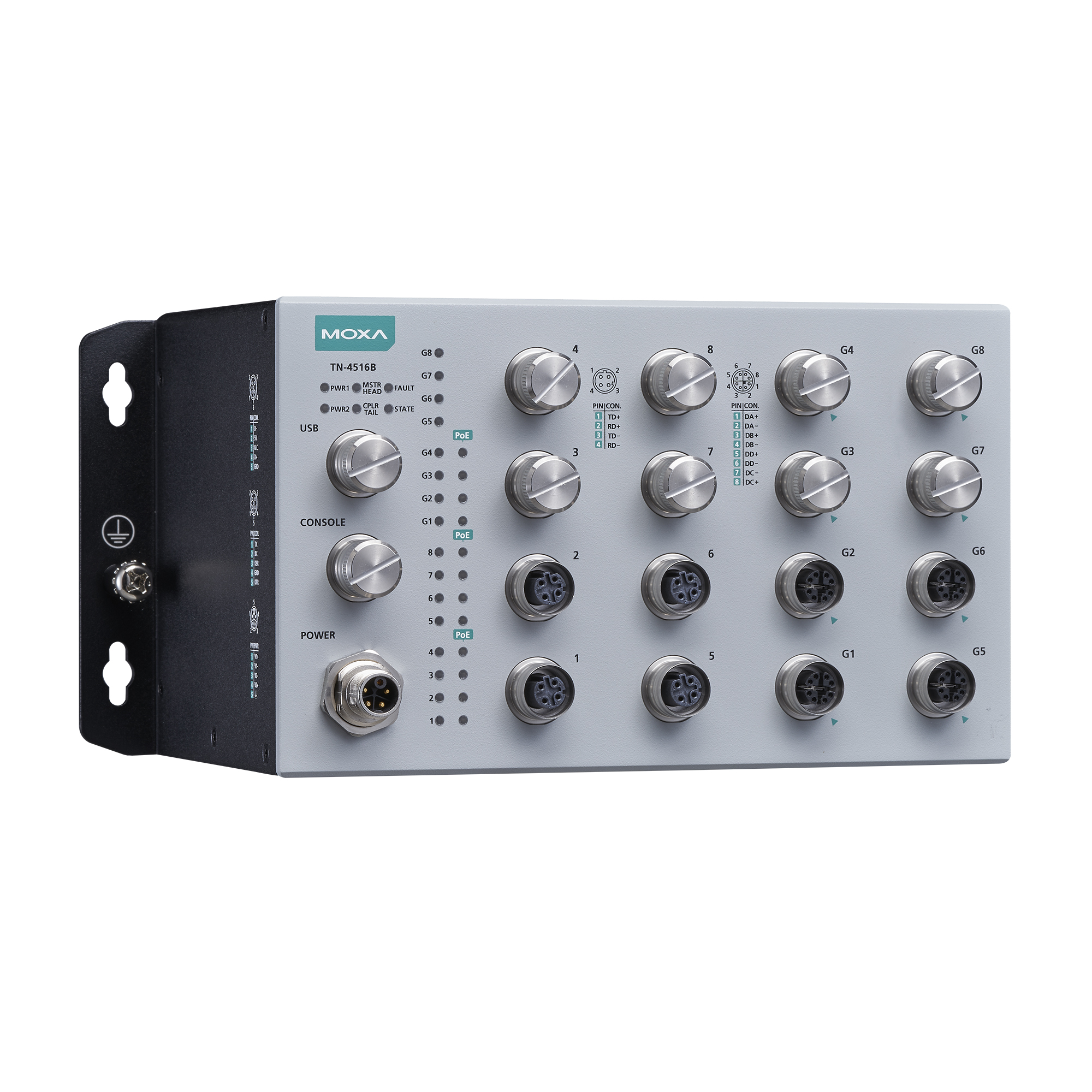

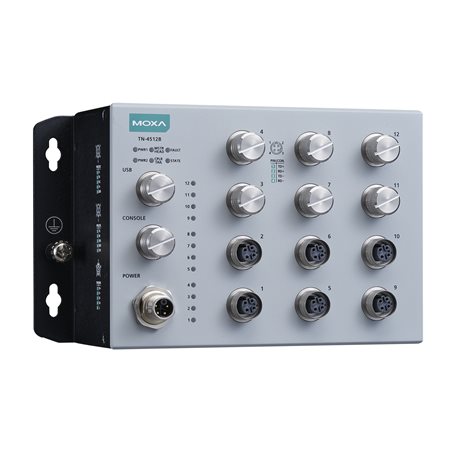

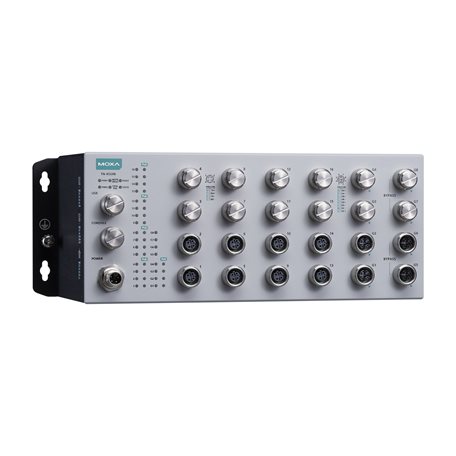

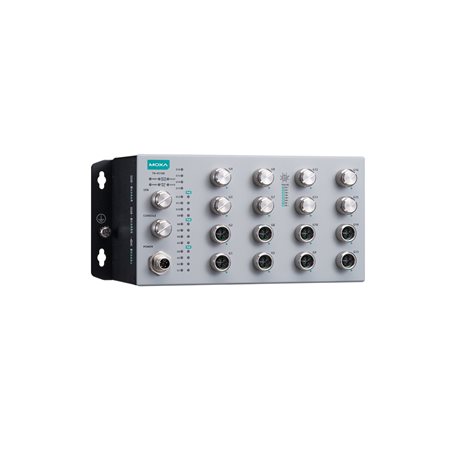

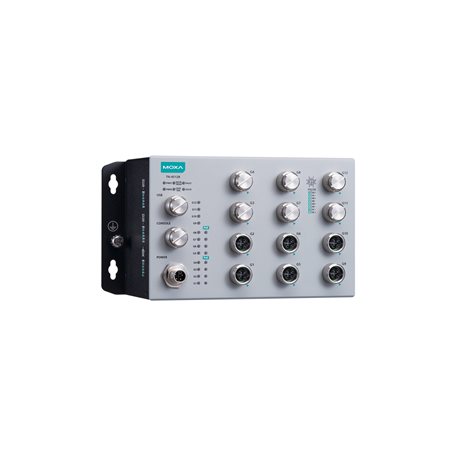

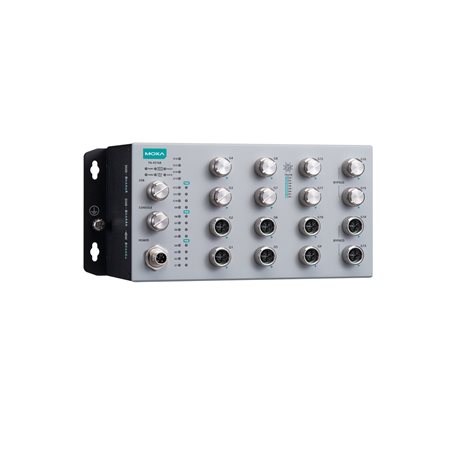

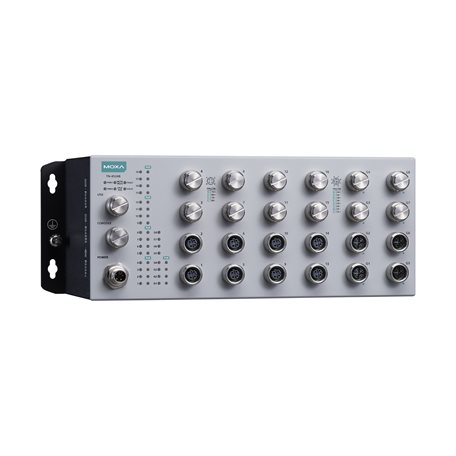

TN-4500B Series

EN 50155 8 to 28 ports Ethernet managed switches

moxa-tn-4500b-series-image-(1).jpg | Moxa
moxa-tn-4500b-series-image-1-(1).jpg | Moxa
moxa-tn-4500b-series-image-2-(1).jpg | Moxa
moxa-tn-4500b-series-image-3-(1).jpg | Moxa
moxa-tn-4500b-series-image-4-(1).jpg | Moxa
moxa-tn-4500b-series-image-5-(1).jpg | Moxa

Features and Benefits

  • Developed according to the IEC 62443-4-1 and compliant with the IEC 62443-4-2 industrial cybersecurity standards
  • Up to 28 Ethernet ports with M12 push-pull connectors
  • Up to 8 Gigabit ports with optional dual relay bypass functionality
  • Up to 24 PoE ports with a 150 W total PoE power budget
  • Isolated power with 24 to 110 VDC power supply range
  • -40 to 70°C system operating temperature range
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

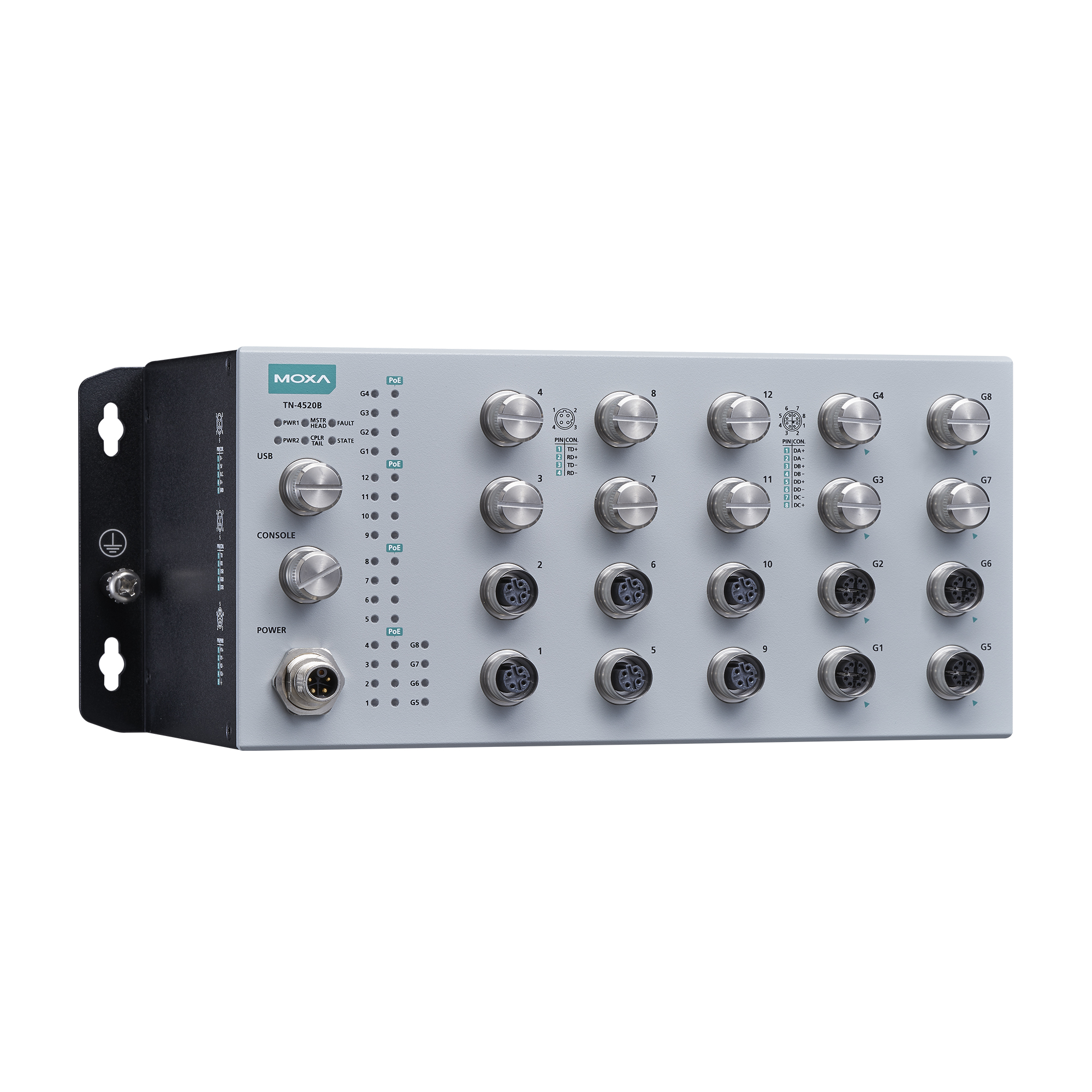

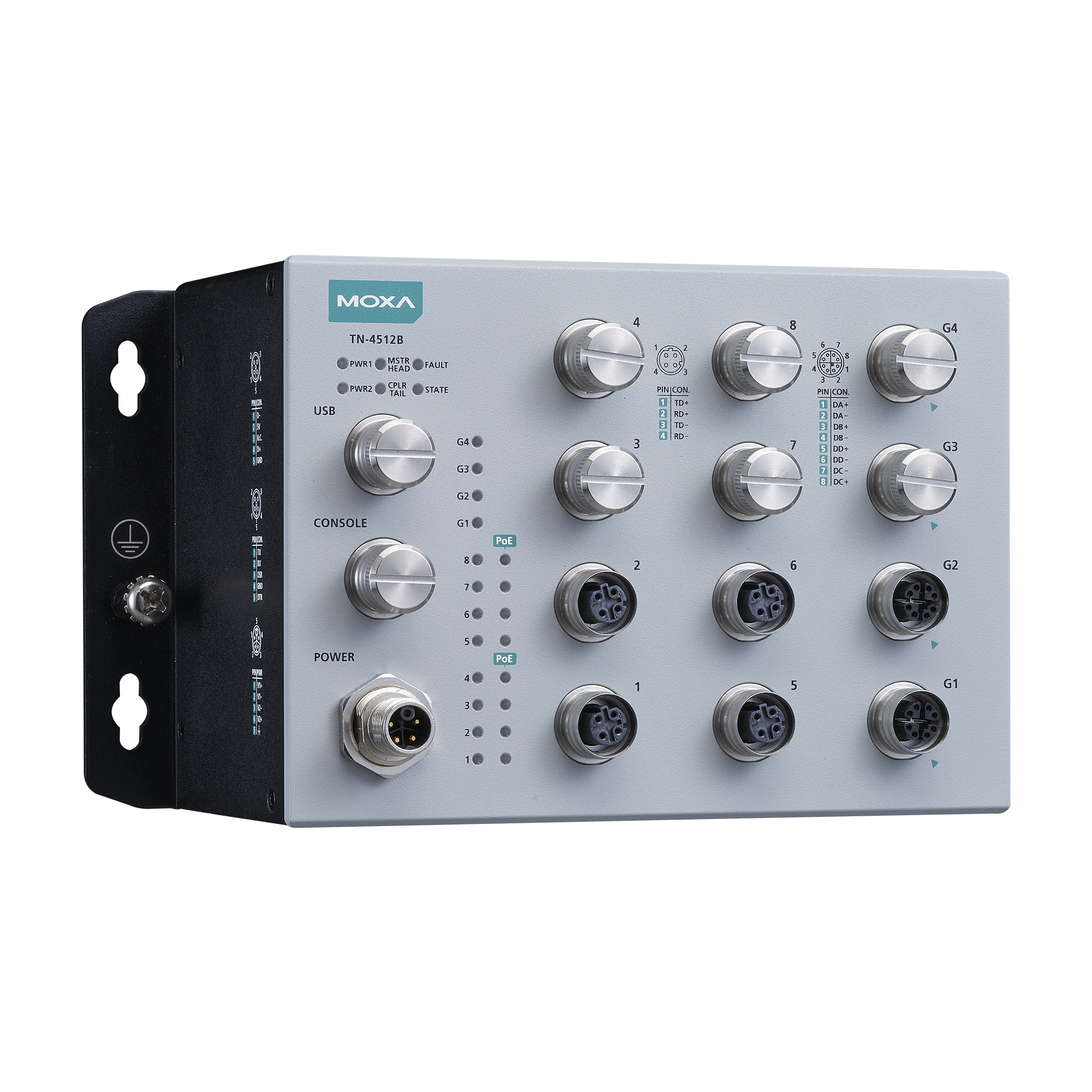

The ToughNet TN-4500B Series M12 managed Ethernet switches are designed for railway applications, including rolling stock installations. The switches use M12 circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-4500B Series Ethernet switches provide 8 to 28 Ethernet ports with or without IEEE 802.3at/af compliant PoE functionality. The Gigabit models further feature up to 8 Gigabit Ethernet ports.

The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communication systems. Furthermore, the -40 to 70°C operating temperature range of the switches ensures they can be deployed in harsh environments. TN-4500B Series Ethernet switches are compliant with the mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.

Additional Features and Benefits

  • IEC 62443-4-2:2019 compliant cybersecurity features

  • Robust EN 50155 Ethernet switches for rolling stock applications

  • Turbo Ring and RSTP/MSTP/STP/MRP for network redundancy

  • Wall mounting installation

  • Automatic recovery of the IP address of connected devices

  • Configurable by web browser, Telnet/serial console, or Windows utility

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    TN-4516B-CT-T: 16
    TN-4516B-8G-CT-T: 8

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    TN-4516B PoE models: 8
    TN-4520B models: 12

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector)

    TN-4516B-8G-CT-T: 8
    TN-4516B-8P-4G-4GP-CT-T: 4
    TN-4520B-12P-4G-4GP-CT-T: 4

  • PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

    16/20-port PoE models: 4

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    -4GBP models: 4

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3af/at for PoE/PoE+ output
    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3x for flow control

  • Configuration Options

    Command Line Interface (CLI) through Serial/Telnet/SSH
    Web Console (HTTP/HTTPS)
    Windows Utility

  • Filter

    GMRP
    GVRP
    GARP
    802.1Q VLAN
    IGMP Snooping v1/v2/v3
    IGMP Querier
    Static Multicast

  • Management

    IPv4/IPv6
    Flow control
    Back Pressure Flow Control
    DHCP Server
    DHCP Client
    DHCP Relay Agent (Option 82)
    QoS/CoS/ToS
    ARP
    RARP
    LLDP
    Port Mirror
    Linkup Delay
    SMTP
    SNMP Trap
    SNMP Inform
    SNMPv1/v2c/v3
    RMON
    TFTP
    SFTP
    HTTP
    HTTPS
    Telnet
    Syslog
    Private MIB
    Loop Protection

  • MIB

    P-BRIDGE MIB
    Q-BRIDGE MIB
    Ethernet-like MIB
    IEEE8021-SPANNING-TREE-MIB
    IEEE8021-PAE-MIB
    IEEE8023-LAG-MIB
    LLDP-EXT-DOT1-MIB
    LLDP-EXT-DOT3-MIB
    SNMPv2-MIB
    RMON MIB Groups 1, 2, 3, 9

  • Redundancy Protocols

    STP
    RSTP
    MSTP
    Turbo Ring v2
    Link Aggregation
    Ring Coupling
    Static Port Trunk
    LACP
    MRP

  • Security

    Rate Limit
    Trust access control
    Port Lock
    Sticky MAC
    HTTPS/SSL
    SSH
    RADIUS
    TACACS+
    Access control list
    Login and password policy
    DHCP Snooping

  • Time Management

    SNTP Server/Client
    NTP Server/Client

  • MAC Table Size

    16 K

  • IGMP Groups

    1024

  • Max. No. of VLANs

    256

  • VLAN ID Range

    VID 1 to 4094

  • Priority Queues

    8

  • LED Indicators

    PWR1, PWR2, FAULT, STATE, MSTR/HEAD, CPLR/TAIL, Ethernet ports, PoE ports

  • Console Port

    M12 B-coded 5-pin female connector (RS-232)

  • M12 Connector

    M12 A-coded 5-pin female (for ABC-02 USB storage)

  • Input Current

    TN-4516B non-PoE models: 0.83 A @ 24 VDC
    TN-4516B PoE models: 9.3 A @ 24 VDC
    TN-4520B PoE models: 9.3 A @ 24 VDC

  • Input Voltage

    24/36/48/72/96/110 VDC
    Redundant dual inputs
    No. of power inputs: 2

  • Operating Voltage

    16.8 to 137.5 VDC

  • Power Connector

    M12 K-coded 5-pin male connector

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Total PoE Power Budget

    TN-4516B/TN-4520B PoE models: 150 W

  • Housing

    Metal

  • Dimensions

    TN-4516B non-PoE models: 230 x 115 x 98 mm (9.06 x 4.53 x 3.86 in)
    TN-4516B PoE models: 230 x 115 x 133 mm (9.06 x 4.53 x 5.24 in)
    TN-4520B models: 280 x 115 x 133 mm (11.02 x 4.53 x 5.24 in)

  • IP Rating

    IP42

  • Weight

    TN-4516B non-PoE models: 1,500 g (2.48 lb)
    TN-4516B PoE models: 2,310 g (5.10 lb)
    TN-4520B models: 2,419 g (5.33 lb)

  • Installation

    Wall mounting

  • Protection

    PCB conformal coating

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    3000 m

  • EMC

    EN 55032/35

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Radio Frequency

    FCC

  • Railway

    IEC 60068-2-1, EN 50155
    IEC 60068-2-2, EN 50155
    IEC 60068-2-30, EN 50155
    IEC 60068-2-78
    EN 50121-4
    EN 50155
    IEC 60571

  • Railway Fire Protection

    EN 45545-2

  • Safety

    UL 62368-1
    IEC 62368-1
    EN 62368-1
    BSMI

  • Salt Spray Test

    EN 50155

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Package Vibration Test

    ISTA 1A

  • Package Drop Test

    ISTA 1A

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    TN-4516B-CT-T: 1,346,637 hrs
    TN-4516B-8G-CT-T: 1,148,405 hrs
    TN-4516B-8P-4G-4GP-CT-T: 881,578 hrs
    TN-4516B-8P-4GP-4GBPCT-T: 707,988 hrs
    TN-4520B-12P-4G-4GP-CT-T: 851,025 hrs
    TN-4520B-12P-4GP-4GBPCT-T: 688,231 hrs

  • Standards

    Telcordia SR332 Issue 4

Support Documents

FILTER

All Datasheet Declaration Manual
Name Type Version Release Date
MX-NOS Rail Version V1 Command Line Interface Manual
5.3 MB 		Manual v1.0 Sep 25, 2024 Sep 25, 2024
Moxa FOSS Statement_MX-NOS Rail Version V1
1.7 MB 		Declaration v1.0 Sep 24, 2024 Sep 24, 2024
MX-NOS Rail Version V1 User Manual
13.5 MB 		Manual v1.0 Sep 24, 2024 Sep 24, 2024
Datasheet for TN-4500B Series
1.9 MB 		Datasheet v1.0 Sep 19, 2024 Sep 19, 2024

Available Models (6)

Show Images
Compare

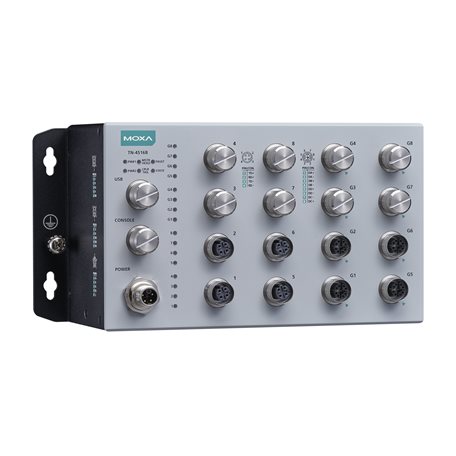

moxa-tn-4516b-8g-ct-t-image.jpg | MoxaTN-4516B-8G-CT-T
Compare

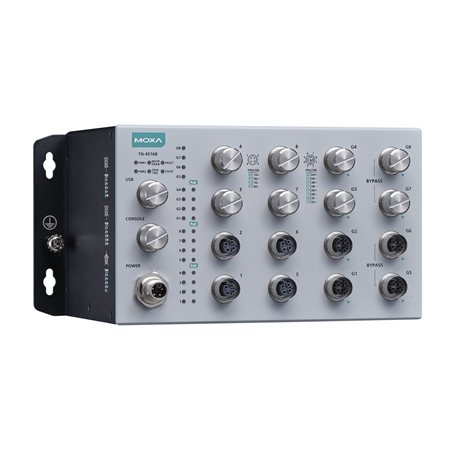

moxa-tn-4516b-8p-4gp-4gbp-ct-t-image.jpg | MoxaTN-4516B-8P-4GP-4GBP-CT-T
Compare

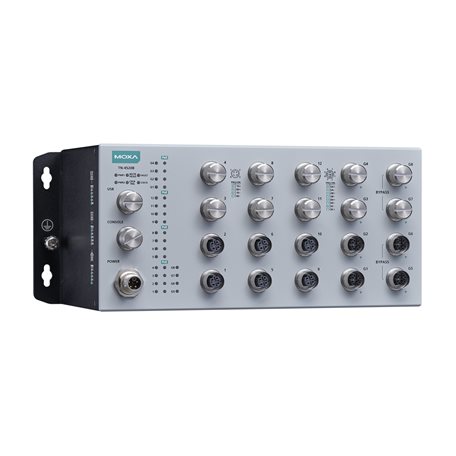

moxa-tn-4520b-12p-4gp-4gbp-ct-t-image.jpg | MoxaTN-4520B-12P-4GP-4GBP-CT-T
Compare

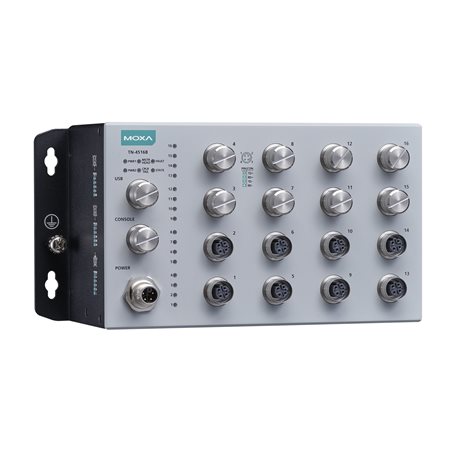

moxa-tn-4516b-ct-t-image.jpg | MoxaTN-4516B-CT-T
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector8–––
10/100/1000BaseT(X) PoE Ports, M12 X-coded 8–pin Female Connector–44–
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector With Bypass Relay–44–
10/100BaseT(X) Ports, M12 D-coded 4-pin Female Connector8––16
10/100BaseT(X) PoE PoE Ports, M12 D-coded 4-pin Female Connector–812–
PoE Power Budget–150 W150 W–
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
Compare
moxa-tn-4516b-8p-4g-4gp-ct-t-image.jpg | MoxaTN-4516B-8P-4G-4GP-CT-T
Compare
moxa-tn-4520b-12p-4g-4gp-ct-t-image.jpg | MoxaTN-4520B-12P-4G-4GP-CT-T
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector44
10/100/1000BaseT(X) PoE Ports, M12 X-coded 8–pin Female Connector44
10/100/1000BaseT(X) Ports, M12 X-coded 8–pin Female Connector With Bypass Relay––
10/100BaseT(X) Ports, M12 D-coded 4-pin Female Connector––
10/100BaseT(X) PoE PoE Ports, M12 D-coded 4-pin Female Connector812
PoE Power Budget150 W150 W
Add to QuoteView BagAdd to QuoteView Bag
