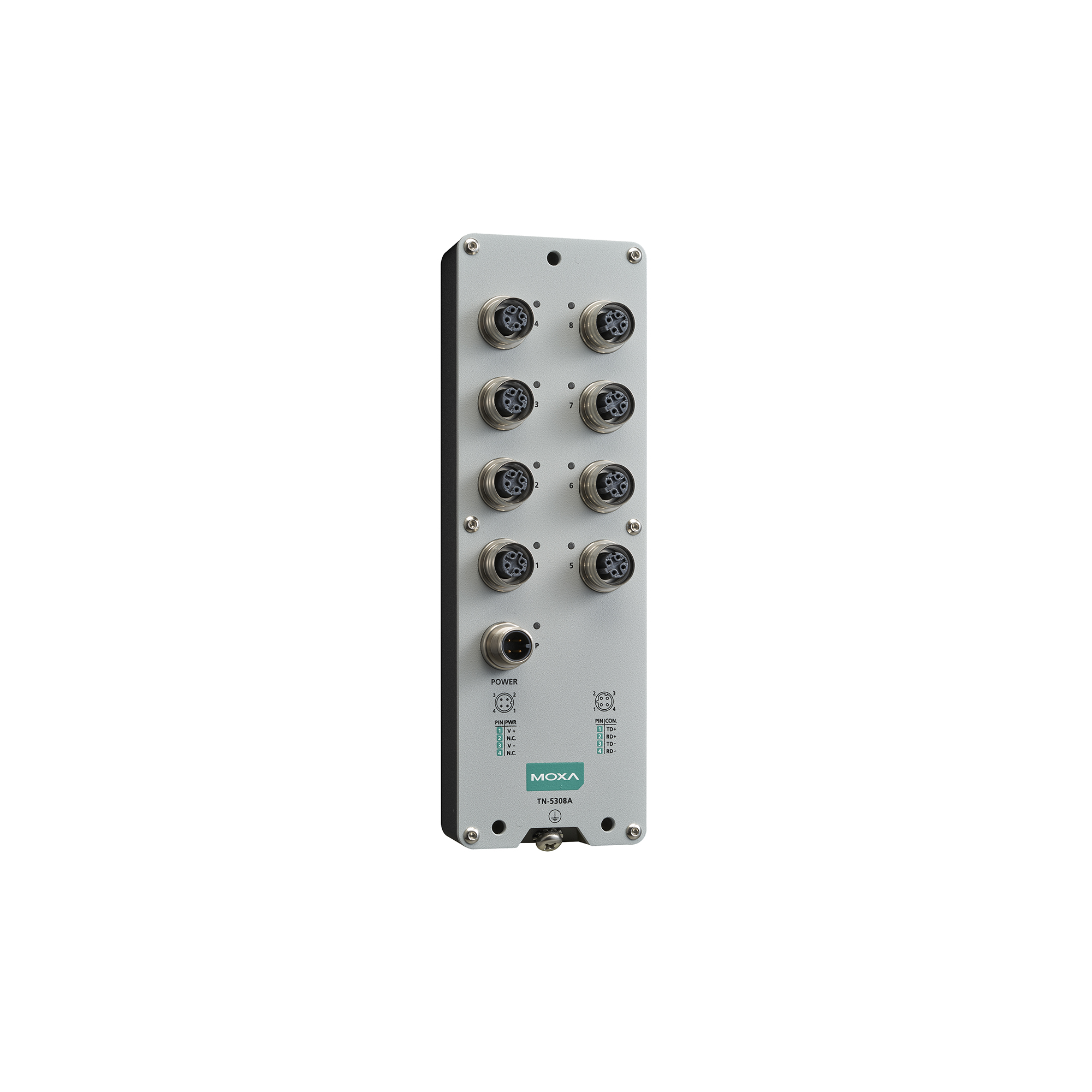

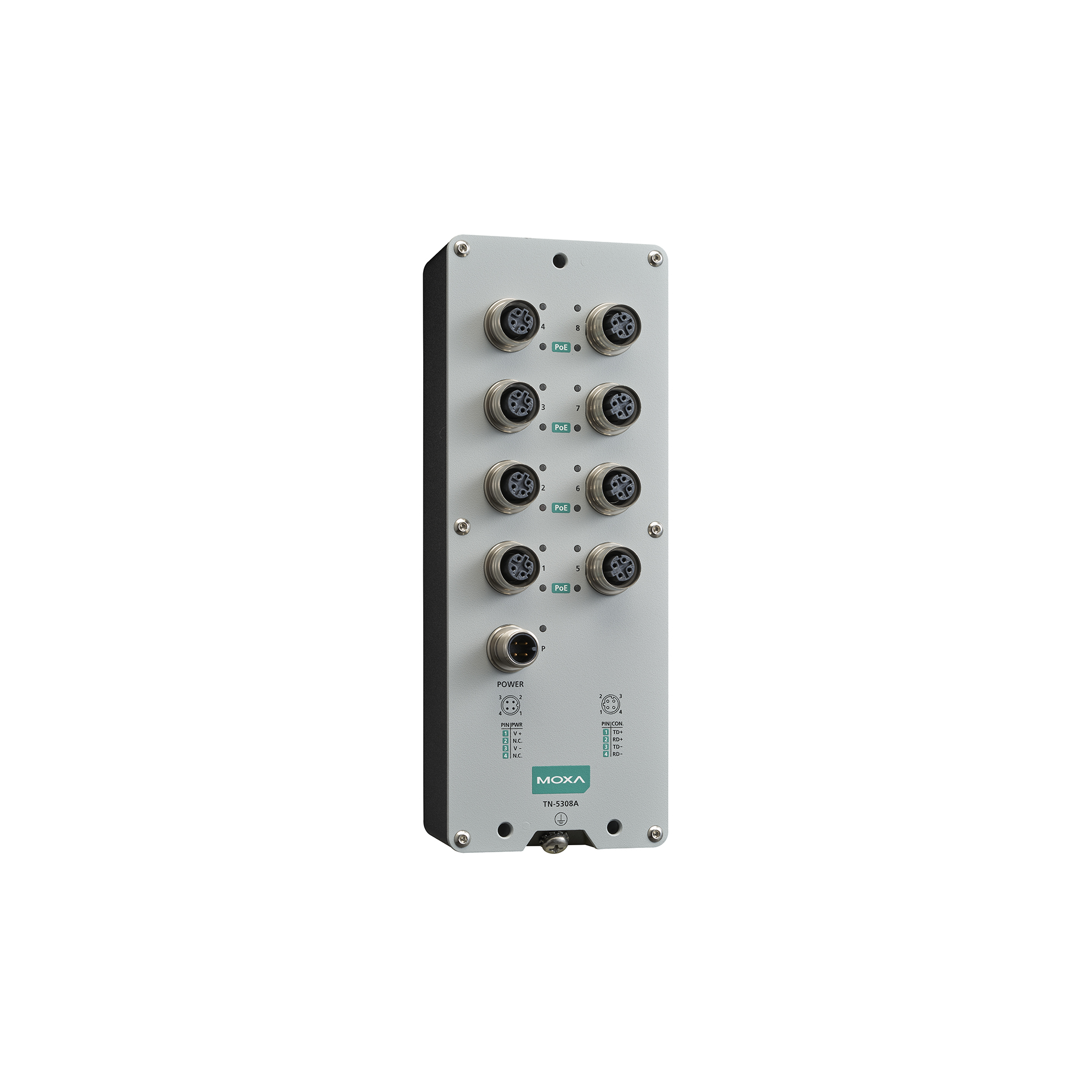

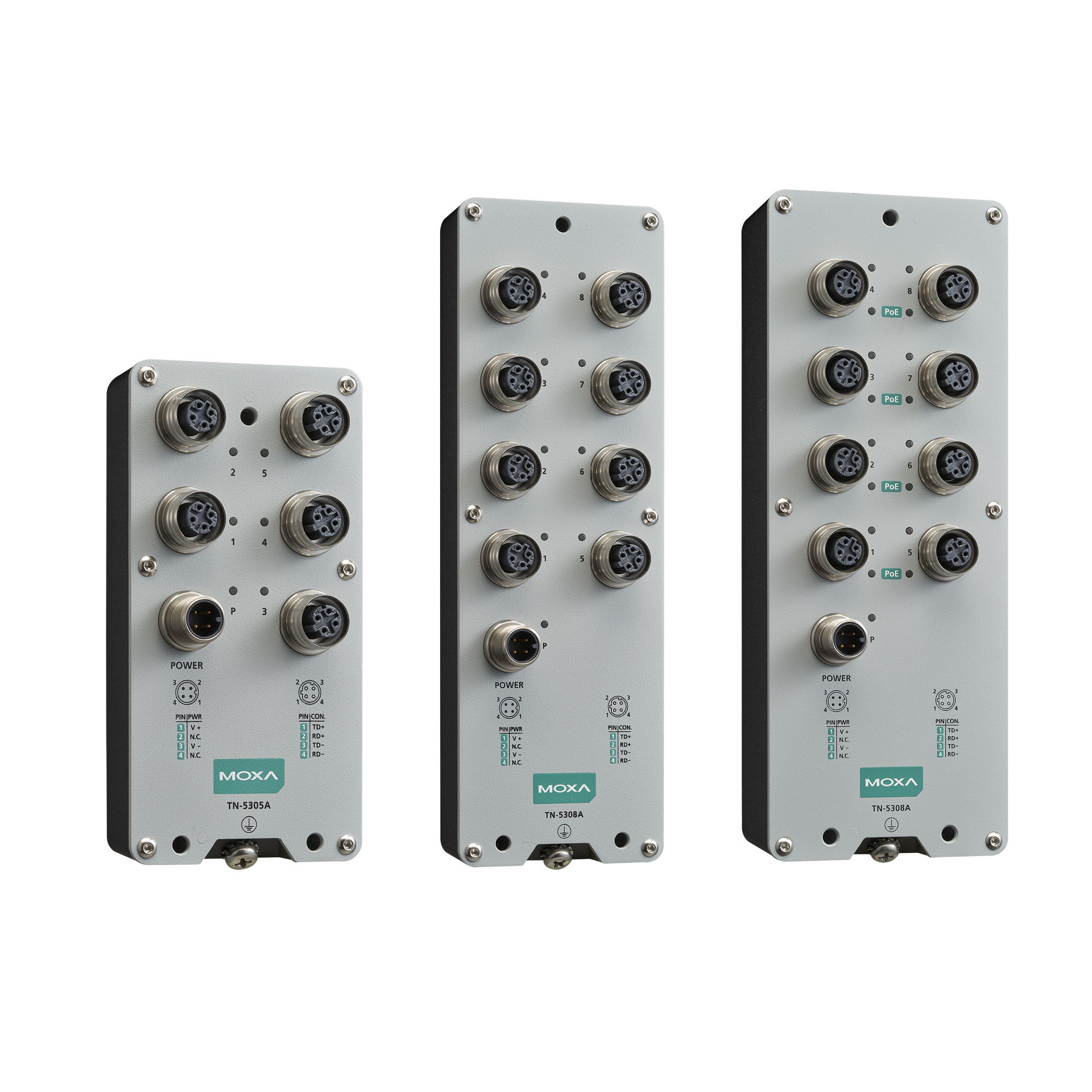

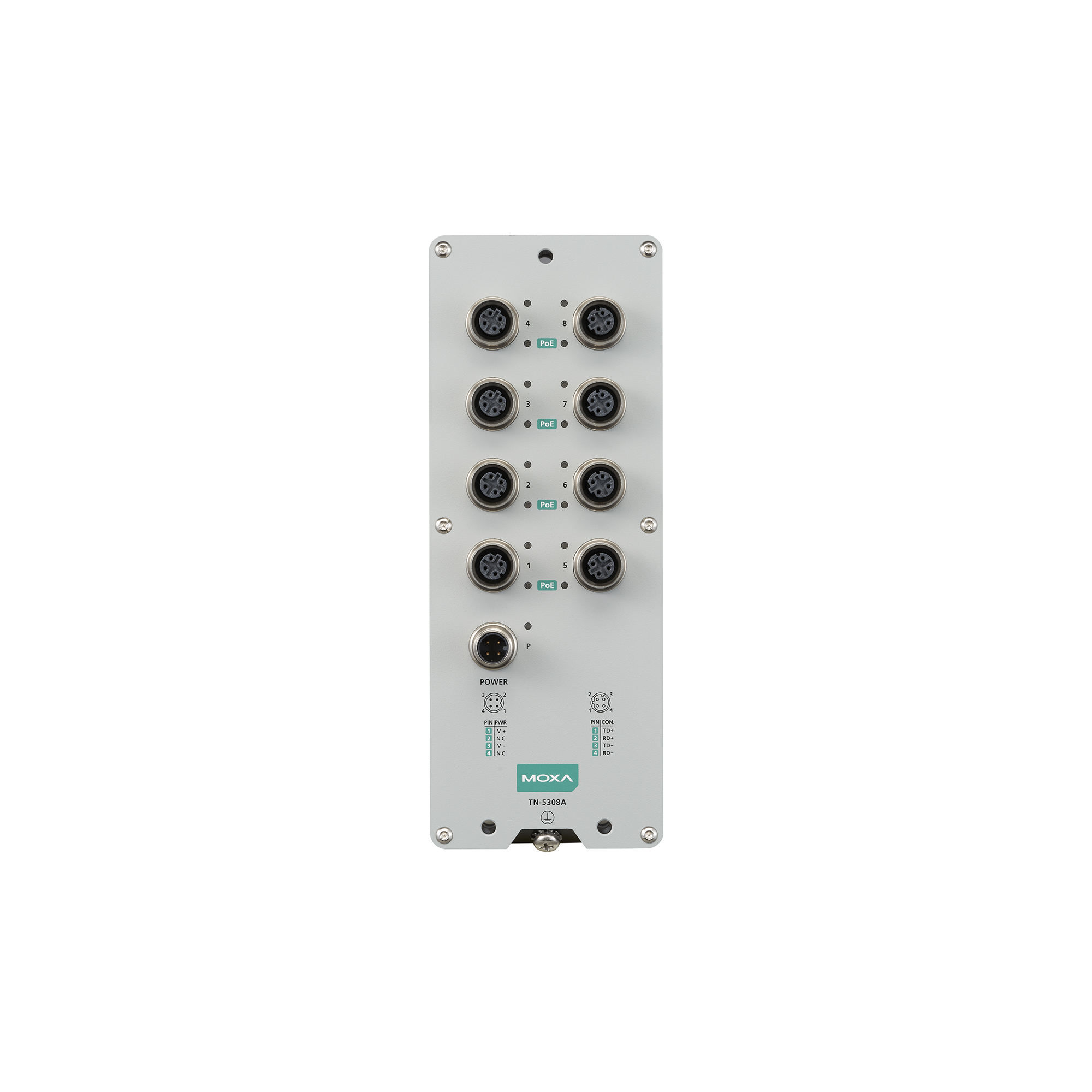

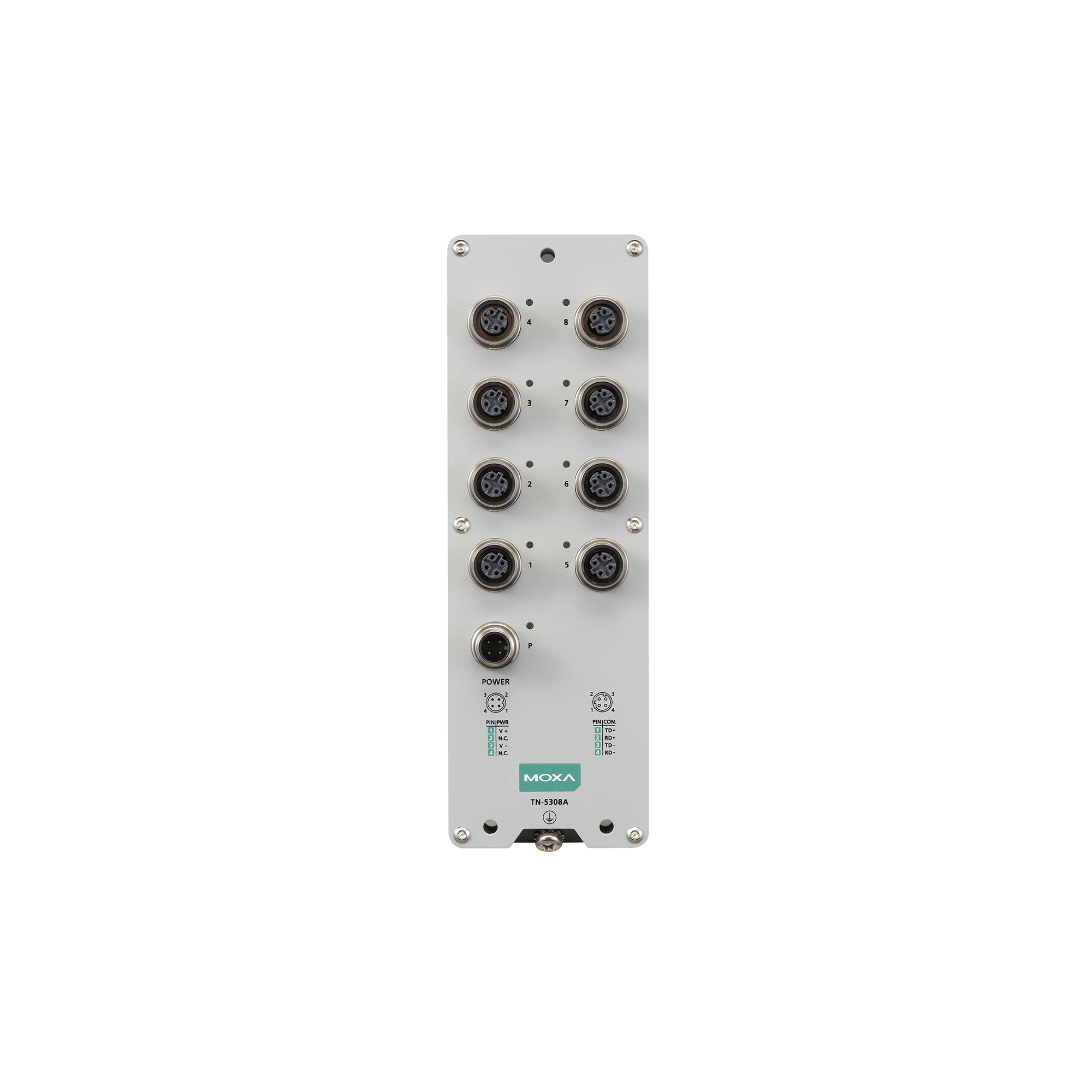

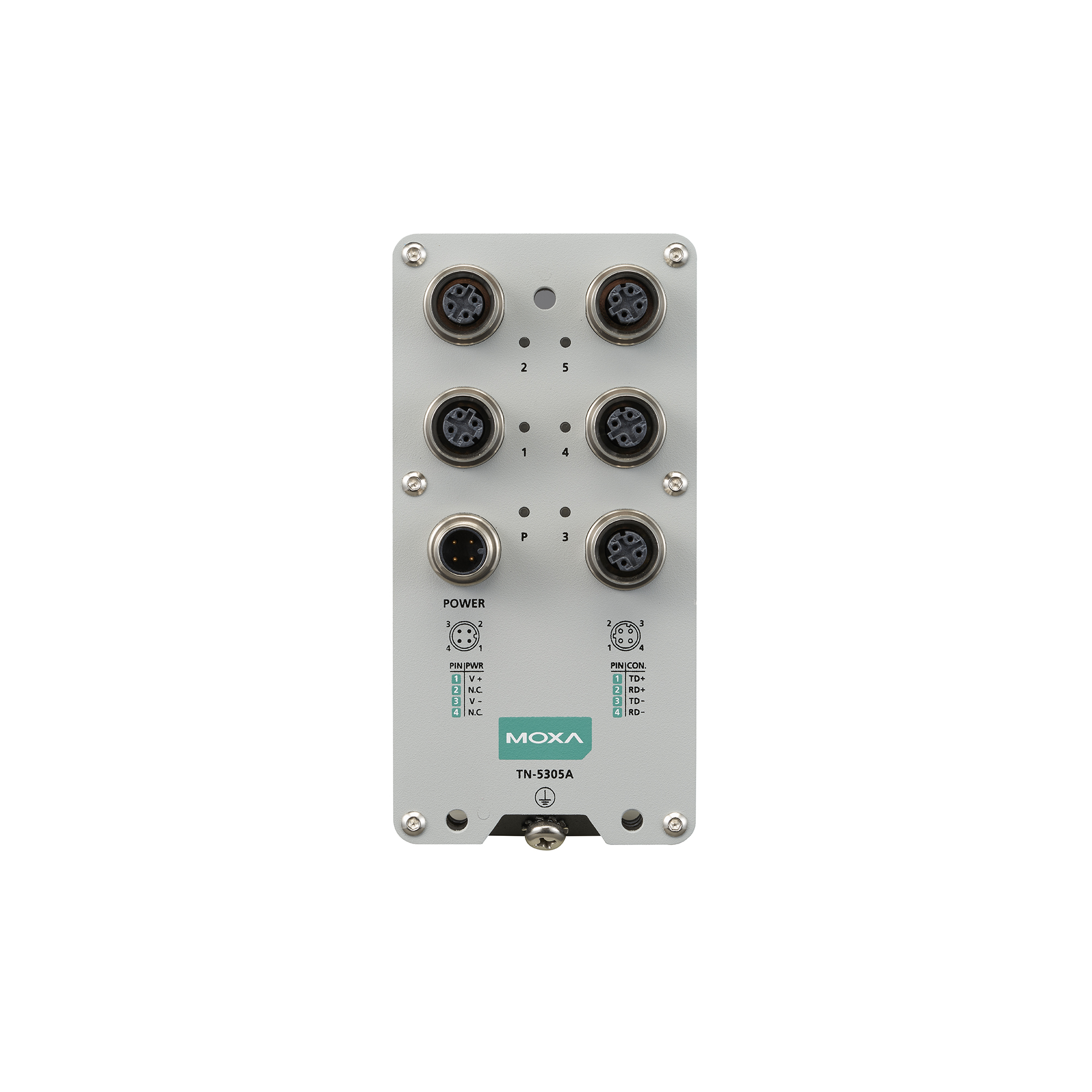

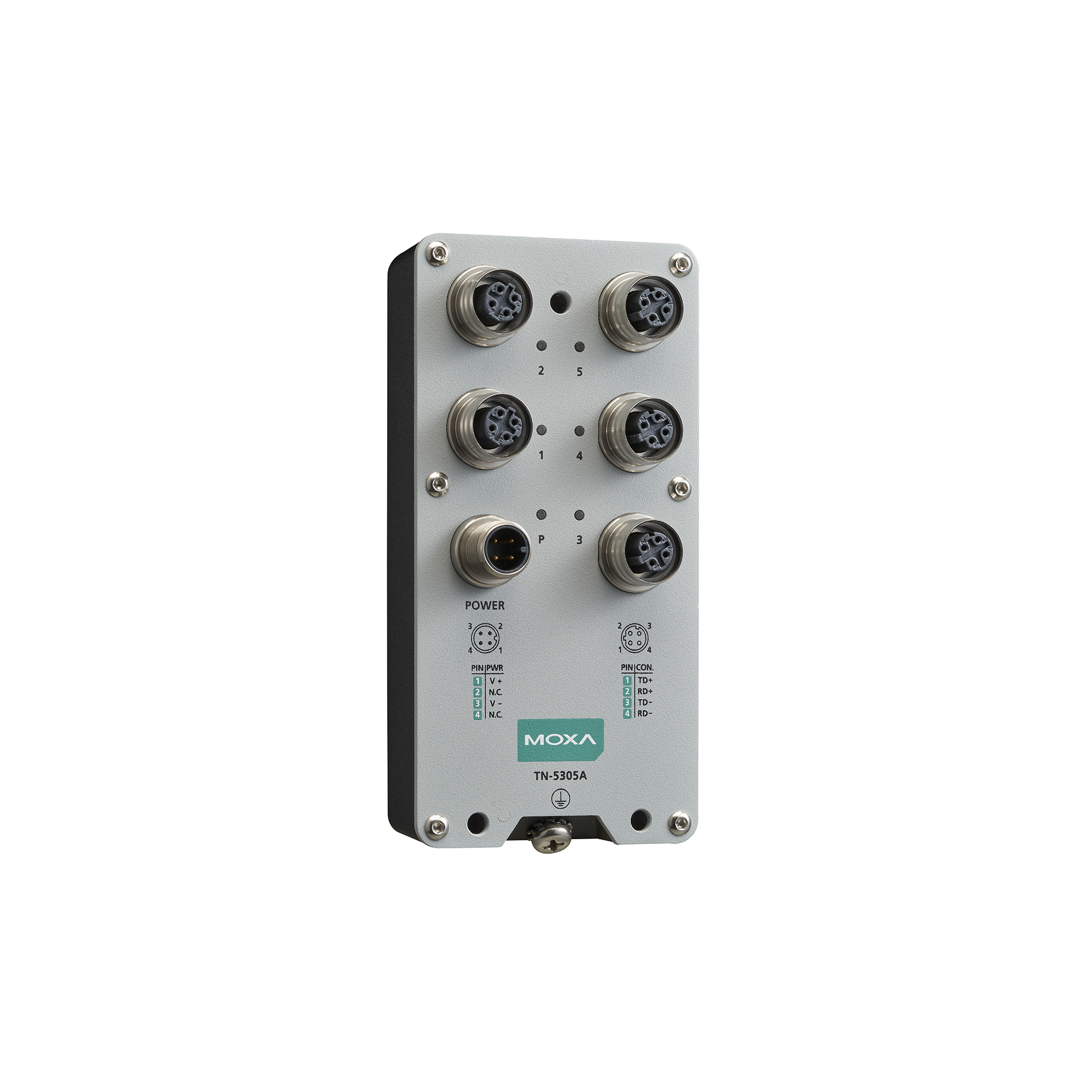

TN-5300A Series

EN 50155 5/8-port unmanaged Ethernet switches

moxa-tn-5300a-series-image-(1).jpg | Moxa
moxa-tn-5300a-series-image-1-(1).jpg | Moxa
moxa-tn-5300a-series-image-2-(1).jpg | Moxa
moxa-tn-5300a-series-image-3-(1).jpg | Moxa
moxa-tn-5300a-series-image-4-(1).jpg | Moxa
moxa-tn-5300a-series-image-5-(1).jpg | Moxa
moxa-tn-5300a-series-image-6-(1).jpg | Moxa

Features and Benefits

  • Rugged die-cast design for use in harsh environments
  • Isolated power input range from 24 to 110 VDC
  • Supports regular and push-pull M12 connectors
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 70°C wide-temperature design

Certifications

  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa

Contact Sales

Introduction

The ToughNet TN-5300A Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The TN-5300A Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable resistance against environmental disturbances, such as vibration and shock. The TN-5300A Series Ethernet switches provide 5 or 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

All TN-5300A Series models support an extended operating temperature range of -40 to 70°C. The TN-5300A Series also comply with all mandatory requirements of the EN 50155 standard including operating temperature, power input voltage, surge, ESD, and vibration, making these switches suitable for rolling stock and a variety of other industrial applications.

The TN-5300A Series features a single power input with overload, reverse polarity, and inrush current protection. Additionally, the TN-5308A PoE models provide 8 IEEE 802.3af/at compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 30 watts of power per port and have a total power PoE budget of 50.2 Watts.



  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    TN-5305A Series models: 5
    TN-5308A Series non-PoE models: 8

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    TN-5308A Series PoE models: 8

  • Standards

    All models:
    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control

    TN-5308A Series PoE models only:
    IEEE 802.3af/at for PoE/PoE+

  • LED Indicators

    PWR, Ethernet ports, PoE ports

  • Packet Buffer Size

    768 kbits

  • MAC Table Size

    2 K

  • Input Current

    TN-5305A Series models: max. 0.1 A @ 24 VDC
    TN-5308A Series non-PoE models: max. 0.1 A @ 24 VDC
    TN-5308A Series PoE models: max 3.2 A @ 24 VDC

  • Input Voltage

    24/36/48/72/96/110 VDC

  • Max. PoE Power Output per Port

    TN-5308A Series PoE models: 30 W

  • Total PoE Power Budget

    50.2 W

  • No. of Power Inputs

    1

  • Operating Voltage

    16.8 to 137.5 VDC

  • Power Connector

    M12 A-coded male connector

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • IP Rating

    IP54

  • Dimensions

    TN-5305A Series models: 62.4 x 125.4 x 37.5 mm (2.46 x 4.94 x 1.48 in)
    TN-5308A Series non-PoE models: 62.4 x 190.4 x 37.5 mm (2.46 x 7.50 x 1.48 in)
    TN-5308A Series PoE models: 72.4 x 190.4 x 50.0 mm (2.85 x 7.50 x 1.97 in)

  • Weight

    TN-5305A models: 315 g (0.69 lb)
    TN-5308A non-PoE models: 455 g (1.00 lb)
    TN-5308A PoE models: 765 g (1.69 lb)

  • Installation

    Wall mounting
    DIN-rail mounting (with optional kit)

  • Protection

    TN-5300A Series -CT models: PCB conformal coating

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    3000 m

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Radio Frequency

    FCC

  • Environmental Testing

    IEC 60068-2-1, EN 50155
    IEC 60068-2-14, EN 50155
    IEC 60068-2-2, EN 50155
    IEC 60068-2-30, EN 50155
    IEC 60068-2-78

  • Railway

    EN 50121-4
    EN 50155
    IEC 60571

  • Railway Fire Protection

    EN 45545-2

  • Safety

    IEC 62368-1
    UL 62368-1
    EN 62368-1

  • Salt Spray Test

    EN 50155

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Package Vibration Test

    ISTA 1A

  • Package Drop Test

    ISTA 1A

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    TN-5305 models: 6,612,892 hrs
    TN-5308 non-PoE models: 5,260,454 hrs
    TN-5308 PoE models: 1,816,546 hrs

  • Standards

    Telcordia SR332 Issue 4

Support Documents

FILTER

All Datasheet QIG
Name Type Version Release Date
Datasheet for TN-5300A Series
1.7 MB 		Datasheet v1.0 Jan 31, 2024 Jan 31, 2024
QIG for TN-5300A Series
4.2 MB 		QIG v1.1 Jan 05, 2024 Jan 05, 2024

Related Content

FILTER

All Spotlight

Available Models (4)

Show Images
Compare
moxa-tn-5305a-wv-ct-t-image.jpg | MoxaTN-5305A-WV-CT-T
Compare
moxa-tn-5305a-wv-t-image.jpg | MoxaTN-5305A-WV-T
Compare
moxa-tn-5308a-wv-t-image.jpg | MoxaTN-5308A-WV-T
Compare
moxa-tn-5308a-wv-ct-t-image.jpg | MoxaTN-5308A-WV-CT-T
10/100BaseT(X) Ports, M12 D-coded 4-pin Female Connector5588
10/100BaseT(X) PoE Ports, M12 D-coded 4-pin Female Connector––––
Conformal Coating✓––✓
