Layer 2 Managed Switches

Moxa's Layer 2 managed switches feature industrial-grade reliability, network redundancy, and security features based on the IEC 62443 standard. We offer toughened, industry-specific products with multiple industry certifications, such as parts of the EN 50155 standard for rail applications, IEC 61850-3 for power automation systems, and NEMA TS2 for intelligent transportation systems.

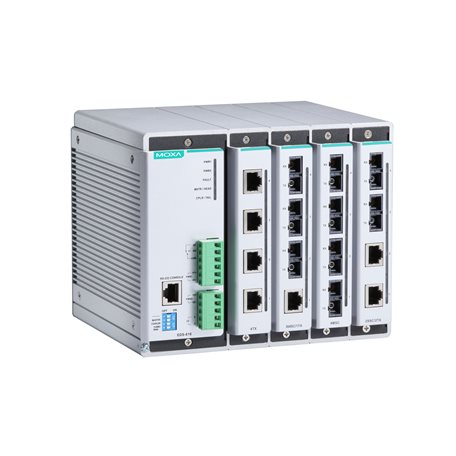

EDS-616-T
EDS-616 Series

Compact managed Ethernet switch system with 4 slots for 4-port fast Ethernet interface modules, for a total of up to 16 ports, -40 to 75°C operating temperature

Input/Output Interface
  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
  • Alarm Contact Channels

    • Relay output with current carrying capacity of 1 A @ 24 VDC
Ethernet Interface
  • Module

    • 4 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX
  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
Ethernet Software Features
  • Filter

    • GMRP
      GVRP
      IGMP v1/v2
      Port-based VLAN
  • Industrial Protocols

    • EtherNet/IP
      Modbus TCP
  • Management

    • Back Pressure Flow Control
      BOOTP
      DHCP Option 66/67/82
      DHCP Server/Client
      Flow control
      IPv4/IPv6
      LLDP
      Port Mirror
      RARP
      RMON
      SMTP
      SNMP Inform
      SNMPv1/v2c/v3
      Syslog
      Telnet
      TFTP
  • MIB

    • Bridge MIB
      Ethernet-like MIB
      MIB-II
      P-BRIDGE MIB
      Q-BRIDGE MIB
      RMON MIB Groups 1, 2, 3, 9
      RSTP MIB
  • Redundancy Protocols

    • Link Aggregation
      MSTP
      RSTP
      STP
      Turbo Chain
      Turbo Ring v1/v2
  • Security

    • Broadcast storm protection
      HTTPS/SSL
      Port Lock
      RADIUS
      SSH
      TACACS+
  • Time Management

    • NTP Server/Client
      SNTP
Switch Properties
  • IGMP Groups

    • 256
  • MAC Table Size

    • 8 K
  • Max. No. of VLANs

    • 64
  • Packet Buffer Size

    • 1 Mbits
  • Priority Queues

    • 4
  • VLAN ID Range

    • VID 1 to 4094
LED Interface
  • LED Indicators

    • PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
  • Ethernet Interface

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters
  • Connection

    • 1 removable 6-contact terminal block(s)
  • Input Voltage

    • 12/24/48 VDC
      Redundant dual inputs
  • Input Current

    • 2.4 A @ 12 VDC
      Note: These are the input current ratings for the device with the maximum number of modules installed.
  • Power Consumption (Max.)

    • 28.8 W @ 12 VDC
      Note: These are the power consumption ratings for the device with the maximum number of modules installed.
  • Overload Current Protection

    • Supported
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • IP Rating

    • IP30
  • Dimensions

    • 185 x 151 x 157.4 mm (7.28 x 5.95 x 6.20 in)
  • Weight

    • 2,448 g (5.40 lb)
  • Installation

    • DIN-rail mounting
      Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Freefall

    • IEC 60068-2-32
  • EMC

    • EN 55032/35
      EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Hazardous Locations

    • ATEX
      Class I Division 2
  • Maritime

    • ABS
      DNV
      LR
      NK
  • Railway

    • EN 50121-4
  • Safety

    • EN 62368-1
      UL 508
  • Shock

    • IEC 60068-2-27
  • Traffic Control

    • NEMA TS2
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 546,937 hrs
  • Standards

    • Telcordia (Bellcore), GB
