TN-G6500 Series

EN 50155 Full Gigabit Ethernet switches with up to 8 PoE ports

moxa-tn-g6500-series-image-(1).jpg | Moxa
moxa-tn-g6500-series-image-1-(1).jpg | Moxa
moxa-tn-g6500-series-image-2-(1).jpg | Moxa

Features and Benefits

  • 12 Gigabit ports with push-pull M12 connectors
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 70°C operating temperature range
  • IP67-rated housing protection
  • Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
  • 8 IEEE 802.3at/af compliant PoE and Ethernet combo ports
  • Provides up to 30 W per PoE port

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

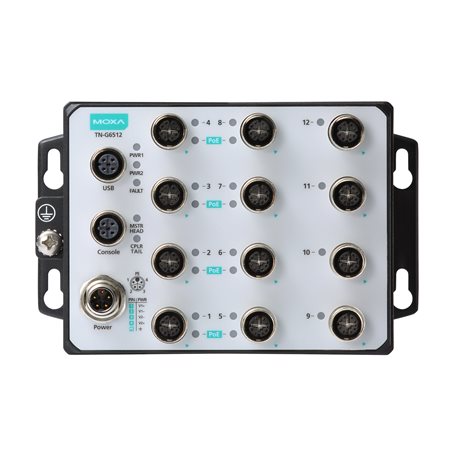

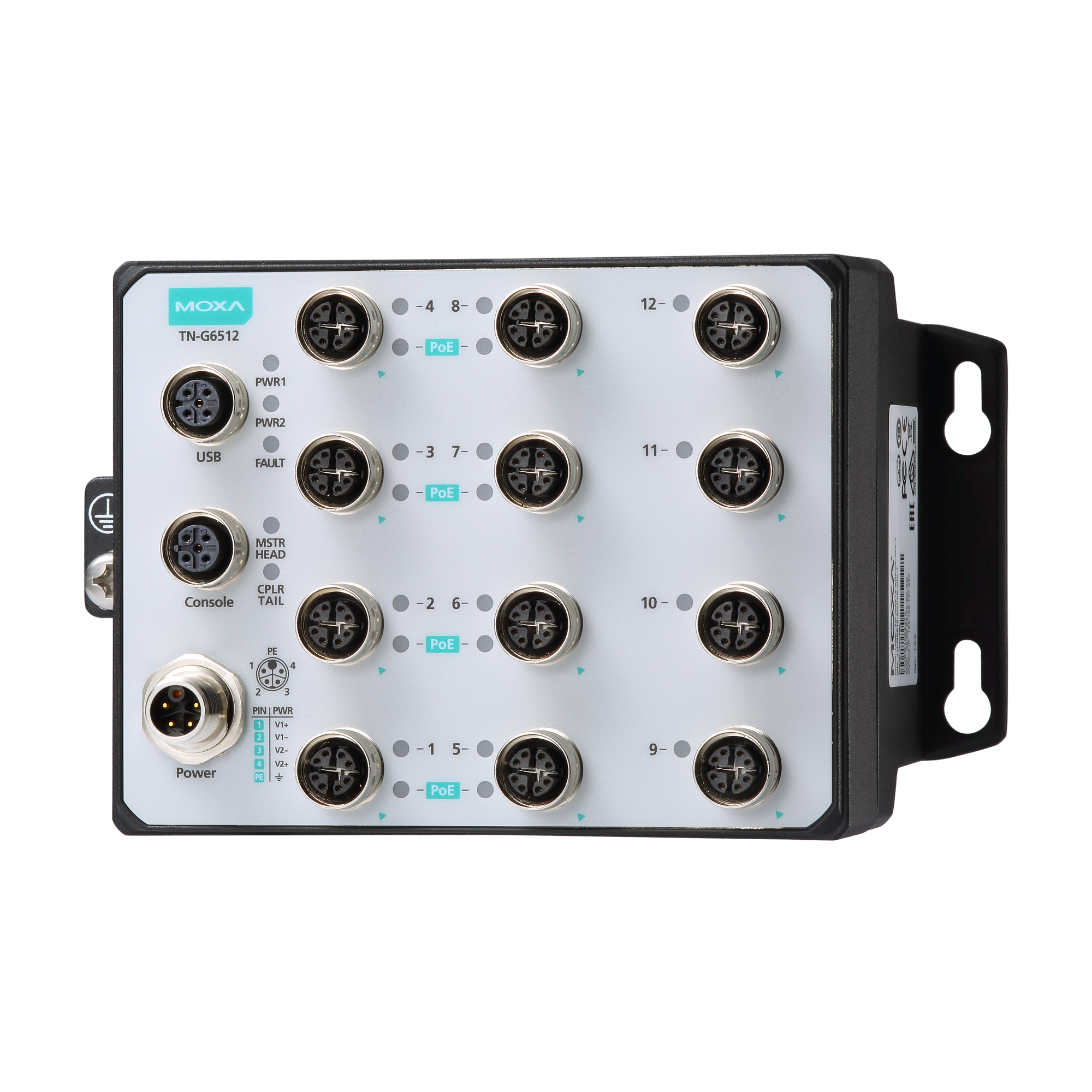

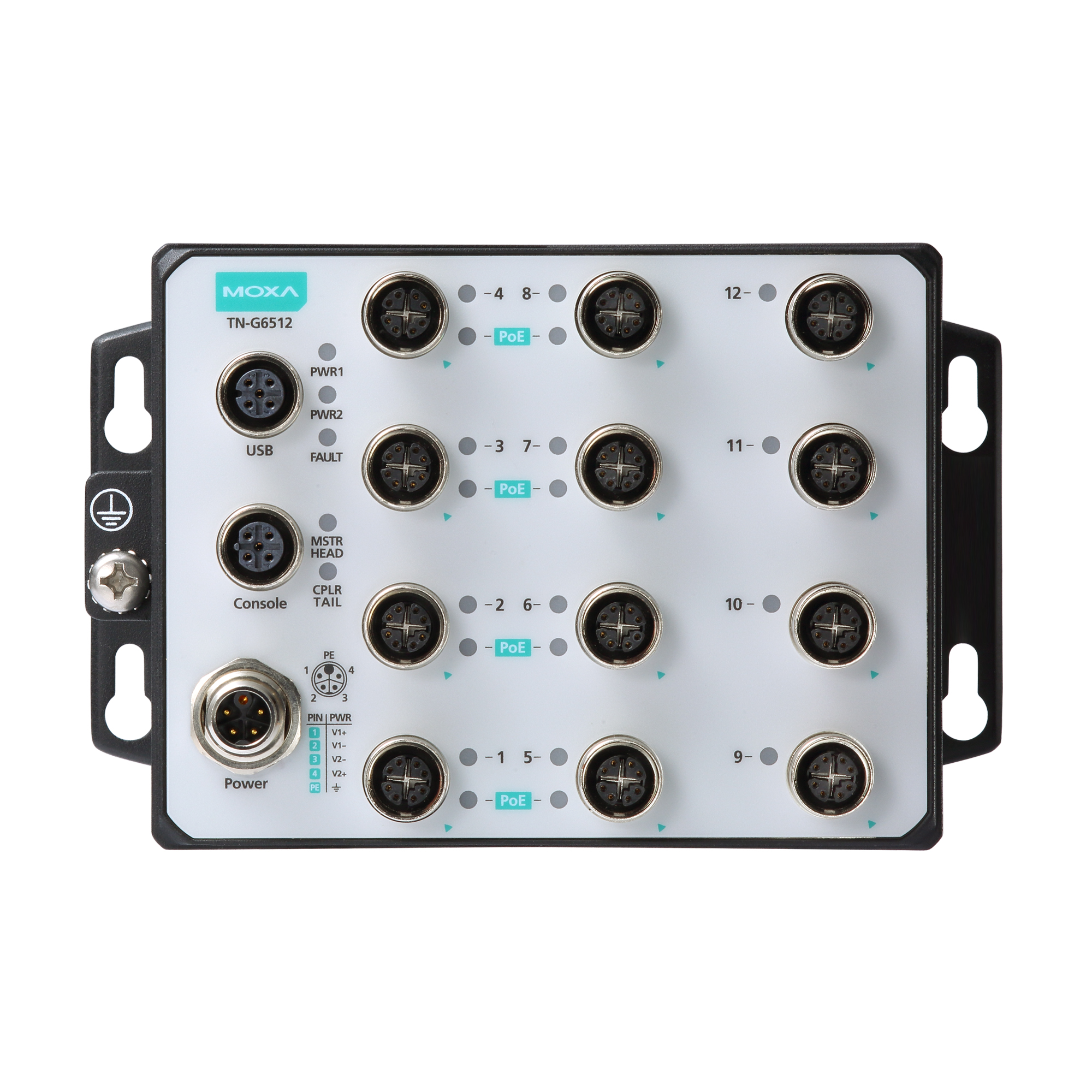

The ToughNet TN-G6500 Series M12 managed Ethernet switches are designed for railway applications, including rolling stock and wayside installations. The switches use M12 and other circular connectors to ensure tight, robust connections, and guarantee reliable operation in industrial environments where vibration and shock are commonplace. The TN-G6500 Series Ethernet switches provide 12 Gigabit Ethernet M12 ports; 8 ports support IEEE 802.3at/af-compliant PoE functionality. These PoE switches are classified as power source equipment (PSE); they provide up to 30 watts of power per port, and can be used to power IEEE 802.3at/af-compliant powered devices (PDs), such as IP cameras, wireless access points, and IP phones.

The TN-G6500 Series has push-pull M12 connectors that are tailor-made for push-pull cables in order to facilitate quick installation, and also allow M12 rotary cables to be utilized. The 24 to 110 VDC wide power input range and isolated dual power inputs not only allow you to use the same type of power source at different sites around the globe, but also increase the reliability of your communications system. Furthermore, the -40 to 70°C operating temperature and IP67-rated enclosure allow deployment in harsh environments. The TN-G6512 Series Ethernet switches are compliant with the essential sections of the EN 50155 standard, covering operating temperature, power input voltage, surge, ESD, vibration, power isolation, and includes a model with conformal coating to ensure suitability for a variety of industrial applications.

Additional Features and Benefits

  • Provides up to 30 watts per PoE port with a total power budget of 96 watts per switch

  • IPv6 Ready logo awarded (IPv6 Logo Committee certified)

  • DHCP Option 82 for IP address assignment with different policies

  • IGMP snooping and GMRP for filtering multicast traffic

  • EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-time traffic classification and prioritization

  • IEEE 802.3ad, LACP for optimal bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • RMON for efficient network monitoring and proactive capability

  • Bandwidth management prevents unpredictable network conditions

  • Port locking to only allow access to authorized MAC addresses

  • Port mirroring for online debugging

  • Automatic warning notifications through email and relay output

  • Line-swap fast recovery

  • LLDP for automatic topology discovery in network management software

  • Configurable by web browser, Telnet/serial console, CLI, and Windows utility

  • Loop protection to prevent network loops

  • Panel mounting installation

  • 10/100/1000BaseT(X) Ports (M12 A-coded 8-pin female connector)

    4

  • PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector)

    8

  • Standards

    IEEE 802.1D-2004 for Spanning Tree Protocol
    IEEE 802.1p for Class of Service
    IEEE 802.1Q for VLAN Tagging
    IEEE 802.1s for Multiple Spanning Tree Protocol
    IEEE 802.1w for Rapid Spanning Tree Protocol
    IEEE 802.1X for authentication
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    IEEE 802.3ad for Port Trunk with LACP
    IEEE 802.3af/at for PoE/PoE+ output
    IEEE 802.3x for flow control
    IEEE 802.3u for 100BaseT(X)

  • Broadcast Forwarding

    Broadcast forwarding

  • Configuration Options

    Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

  • Filter

    802.1Q
    GMRP
    GVRP
    Port-based VLAN
    Static Multicast
    IGMP Querier
    DHCP Filter
    IGMP Snooping v1/v2/v3

  • Industrial Protocols

    SNMPv1/v2c/v3

  • Management

    Account Management
    Back Pressure Flow Control
    Flow control
    HTTP
    IPv4/IPv6
    LLDP
    Port Mirror
    QoS/CoS/ToS
    RARP
    RMON
    SMTP
    SNMP Inform
    Syslog
    Telnet
    SNMP Trap
    DHCP Client (options 1/3/50/51/53/54/55/57/66/67)
    DHCP Server (options 1/3/12/15/42/50/55)
    DNS Server
    Port-based DHCP Server
    DHCP option 82 (relay agent)
    Loop Protection
    ICMP

  • MIB

    Bridge MIB
    Ethernet-like MIB
    MIB-II
    P-BRIDGE MIB
    Q-BRIDGE MIB
    RMON MIB Groups 1, 2, 3, 9
    RSTP MIB

  • Redundancy Protocols

    Static Port Trunk
    MSTP
    RSTP
    Turbo Ring v2
    STP
    LACP
    Turbo Chain
    Turbo Ring with DRC

  • Security

    Trust access control
    TACACS+
    Broadcast storm protection
    HTTPS/SSL
    Local Account Accessibility
    Port Lock
    RADIUS
    Rate Limit
    Access control list
    SSH

  • Time Management

    NTP Server/Client
    SNTP

  • IGMP Groups

    256

  • Max. No. of VLANs

    256

  • Priority Queues

    4

  • VLAN ID Range

    VID 1 to 4094

  • Jumbo Frame Size

    9.216 KB

  • LED Indicators

    PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, Ethernet, PoE

  • Console Port

    RS-232 (M12 B-coded 5-pin female connector)

  • Input Voltage

    24/36/48/72/96/110 VDC

  • No. of Power Inputs

    2

  • Operating Voltage

    16.8 to 137.5 VDC

  • Overload Current Protection

    Supported

  • Reverse Polarity Protection

    Supported

  • Total PoE Power Budget

    96 W

  • Input Current

    5.8 A @ 24 VDC

  • Power Connector

    M12 K-coded 5-pin male connector

  • Housing

    Metal

  • IP Rating

    IP67

  • Dimensions

    159 x 97 x 100 mm (6.26 x 3.82 x 3.94 in)

  • Weight

    1,750 g (3.86 lb)

  • Installation

    Wall mounting

  • Protection

    TN-G6512-8GPoE-WV-CT-T: PCB conformal coating

  • Operating Temperature

    -40 to 70°C (-40 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m

  • EMC

    EN 55032/35

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 6 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Freefall

    IEC 60068-2-31

  • Radio Frequency

    FCC

  • Railway

    EN 50121-4
    EN 50155
    IEC 60571

  • Railway Fire Protection

    EN 45545-2

  • Safety

    IEC 62368-1
    UL 62368-1

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    478,246 hrs

  • Standards

    Telcordia SR332

Software, Firmware, and Drivers

FILTER

Name Type Checksum Version Operating System Release Date
Software Package for MXview One Series (Windows version)
300.8 MB
Software Package
SHA-512
v1.4.1
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
Sep 20, 2024 Sep 20, 2024 Release notes
Software Package for MXview One Series (Linux version)
404.8 MB
Software Package
SHA-512
v1.4.1
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
Sep 20, 2024 Sep 20, 2024 Release notes
Firmware for TN-G6500 Series
6.8 MB
Firmware
SHA-512
v5.4
Nov 16, 2021 Nov 16, 2021 Release notes
Firmware for TN-G6500 Series
6.5 MB
Firmware
SHA-512
v5.0
Nov 29, 2018 Nov 29, 2018 Release notes

Support Documents

Name Type Version Release Date
FOSS statement for TN-4500A,TN-5500A, TN-G4500, TN-G6500 Series
282.3 KB
Declaration v1.0 Jul 31, 2024 Jul 31, 2024
Datasheet for TN-G6500 Series
1.8 MB
Datasheet v1.4 Oct 27, 2023 Oct 27, 2023
QIG for TN-G6500 Series
1.8 MB
QIG v2.3 Jul 28, 2023 Jul 28, 2023
Manual for TN Series Ethernet Switches (TN-G4500/TN-G6500 Series)
7.0 MB
Manual v1.1 Jan 06, 2022 Jan 06, 2022
Manual for TN-G6500 Series (Communication Redundancy)
3.9 MB
Manual V1.0 Nov 29, 2018 Nov 29, 2018
Manual for TN-G6500 Series (Command Line)
1.9 MB
Manual V1.0 Nov 29, 2018 Nov 29, 2018
2D CAD for TN-G6500 Series
1.1 MB
2D CAD Nov 28, 2018 Nov 28, 2018

Available Models (2)

Show Images

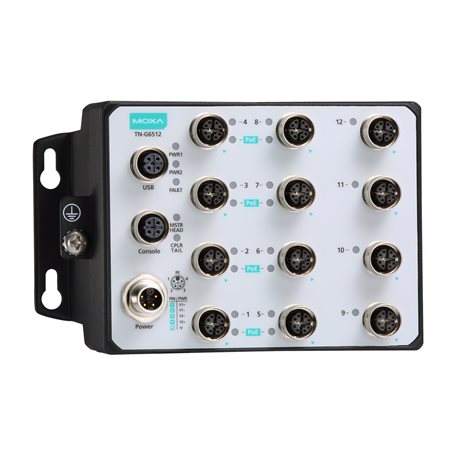

moxa-tn-g6512-8gpoe-wv-ct-t-image.jpg | MoxaTN-G6512-8GPoE-WV-CT-Tmoxa-tn-g6512-8gpoe-wv-t-image.jpg | MoxaTN-G6512-8GPoE-WV-T
10/100/1000BaseT(X) Ports, 10M12 X-Coded 8-Pin Female Connector44
PoE Ports 100/1000BaseT(X), 10M12 X-Coded 8-Pin Female Connector88
Conformal Coating
