MOXA

Rackmount Switches

Industrial rackmount switches provide modular flexibility with 24 to 64-port routing and up to 10GbE switching capabilities, security features based on the IEC 62443 standard, and millisecond-level, fast multicast traffic redundancy to strengthen IIoT infrastructure such as power, transportation, manufacturing, and surveillance applications.

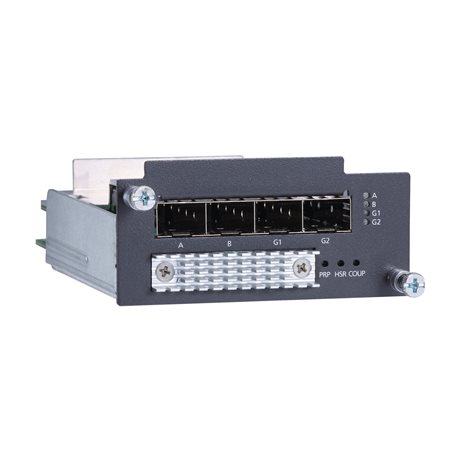

PM-7200-4GSFP-PHR-PTP
PM-7200 Module Series

Gigabit Ethernet module with 4 100/1000Base SFP slots, PRP/HSR protocol support

Ethernet Software Features

  • Time Management

    • IEEE 1588 PTP v1/v2 (hardware-based)

  • Redundancy Protocols

    • HSR
      PRP
Ethernet Interface

  • 100/1000BaseSFP PRP/HSR Ports

    • 2

  • 100/1000BaseSFP Ports

    • 2

  • Optical Fiber

    • 100BaseFX
      Multi-Mode Single-Mode
      Fiber Cable Type OM1 50/125 µm G.652
      800 MHz x km
      Typical Distance 4 km 5 km 40 km
      Wavelength Typical (nm) 1300 1310
      TX Range (nm) 1260 to 1360 1280 to 1340
      RX Range (nm) 1100 to 1600 1100 to 1600
      Optical Power TX Range (dBm) -10 to -20 0 to -5
      RX Range (dBm) -3 to -32 -3 to -34
      Link Budget (dB) 12 29
      Dispersion Penalty (dB) 3 1
      Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.
      Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
Warranty
