TN-5308 Series

EN 50155 8-port unmanaged Ethernet switches

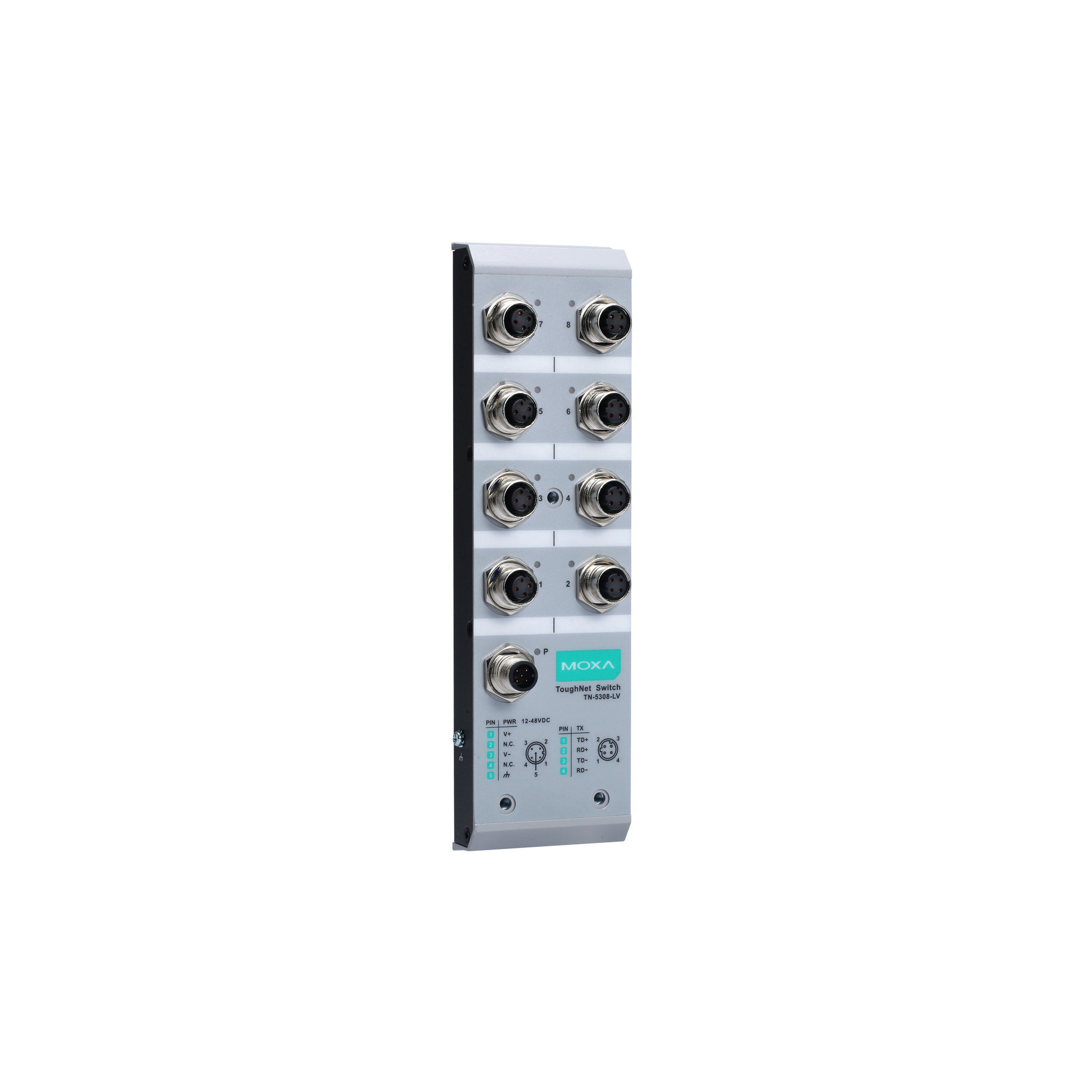

moxa-tn-5308-series-image-1-(1).jpg | Moxa

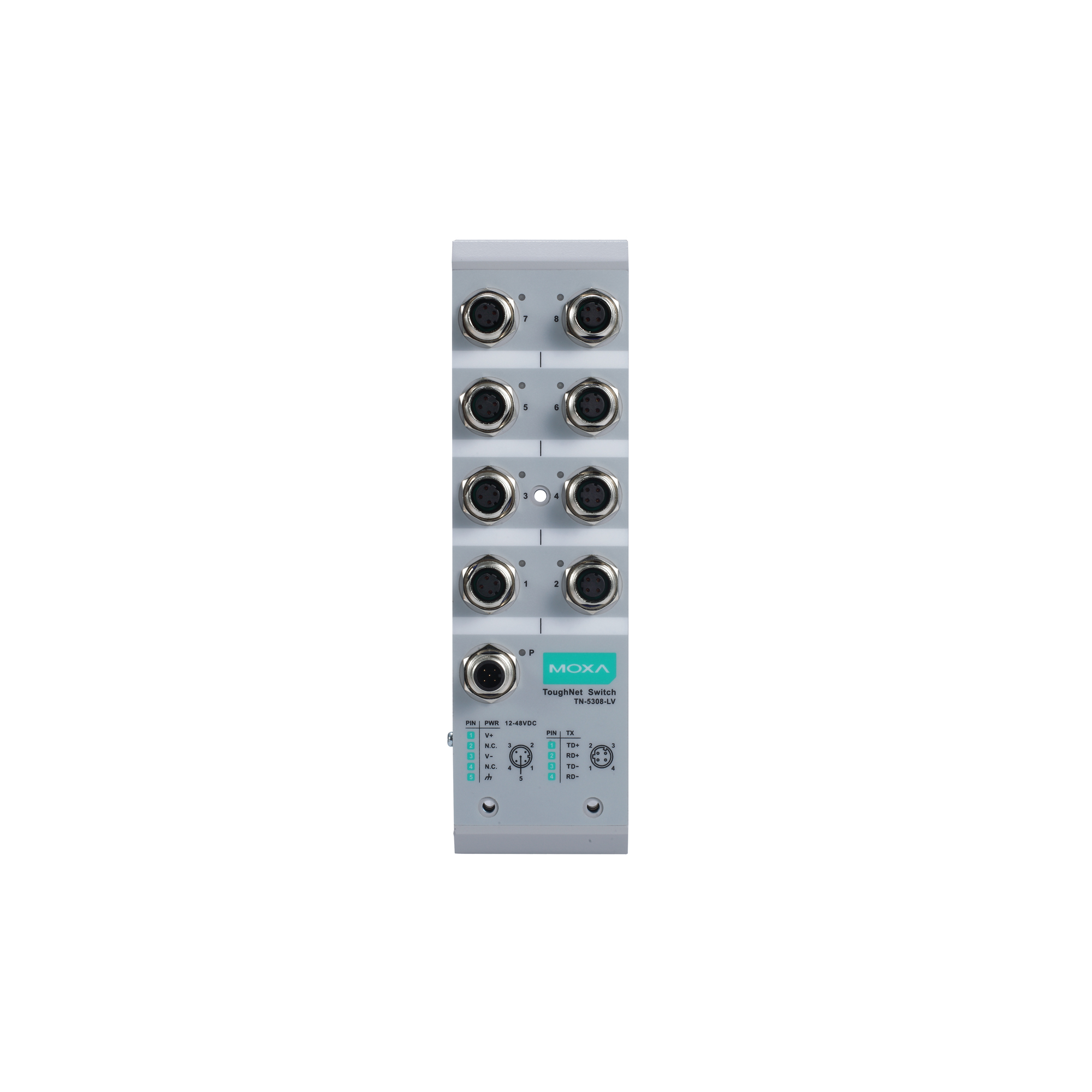

moxa-tn-5308-series-image-2-(1).jpg | Moxa

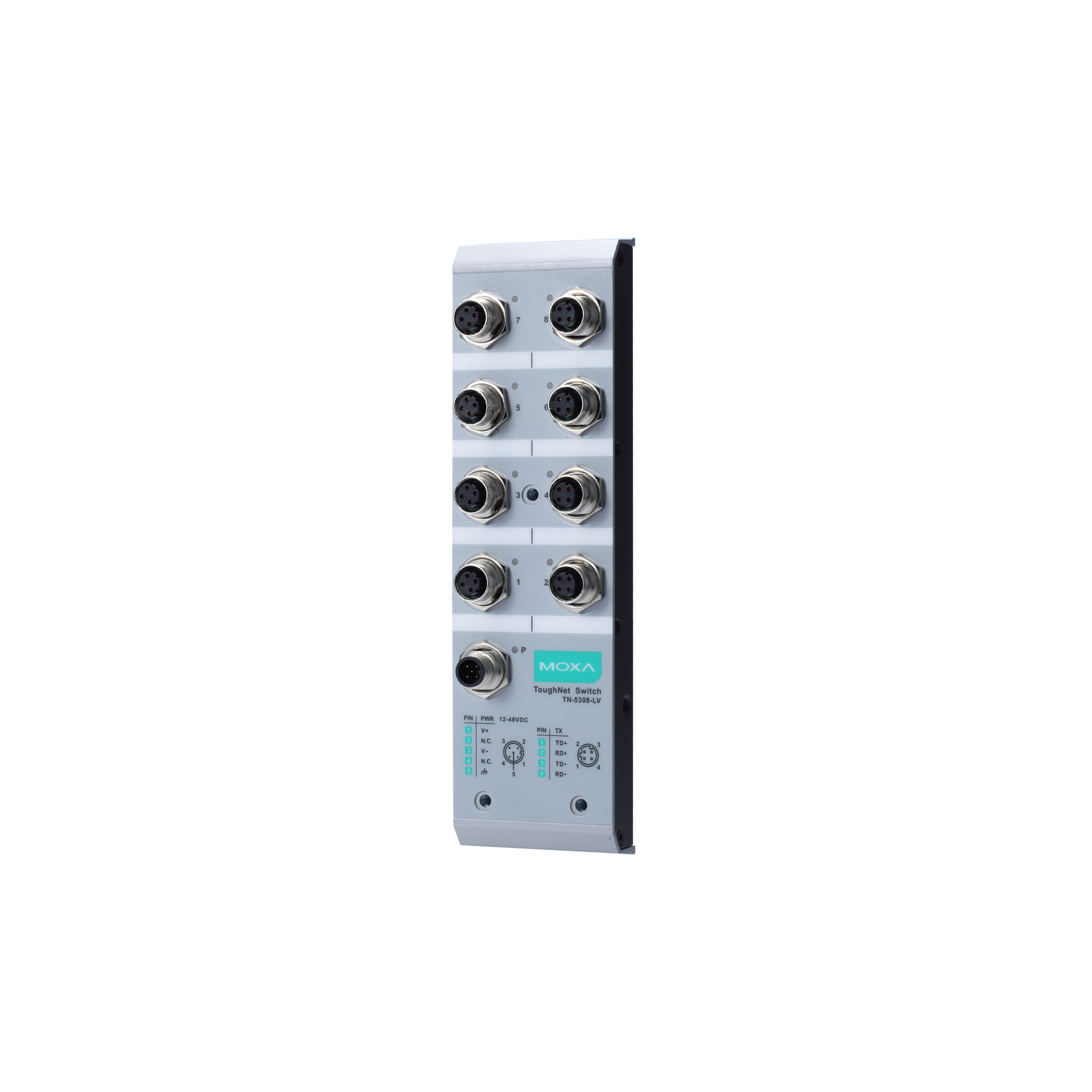

moxa-tn-5308-series-image-3-(1).jpg | Moxa

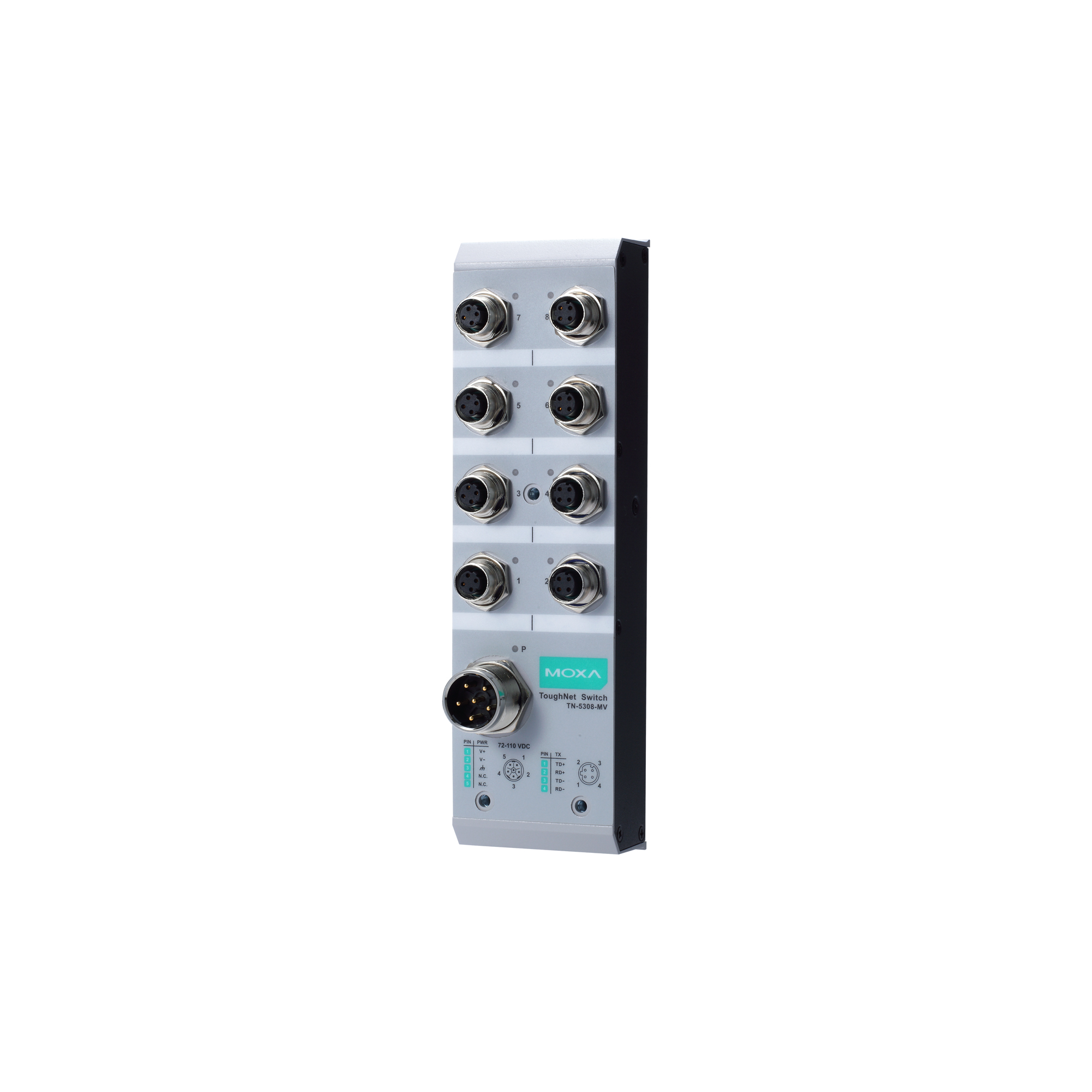

moxa-tn-5308-series-image-4-(1).jpg | Moxa

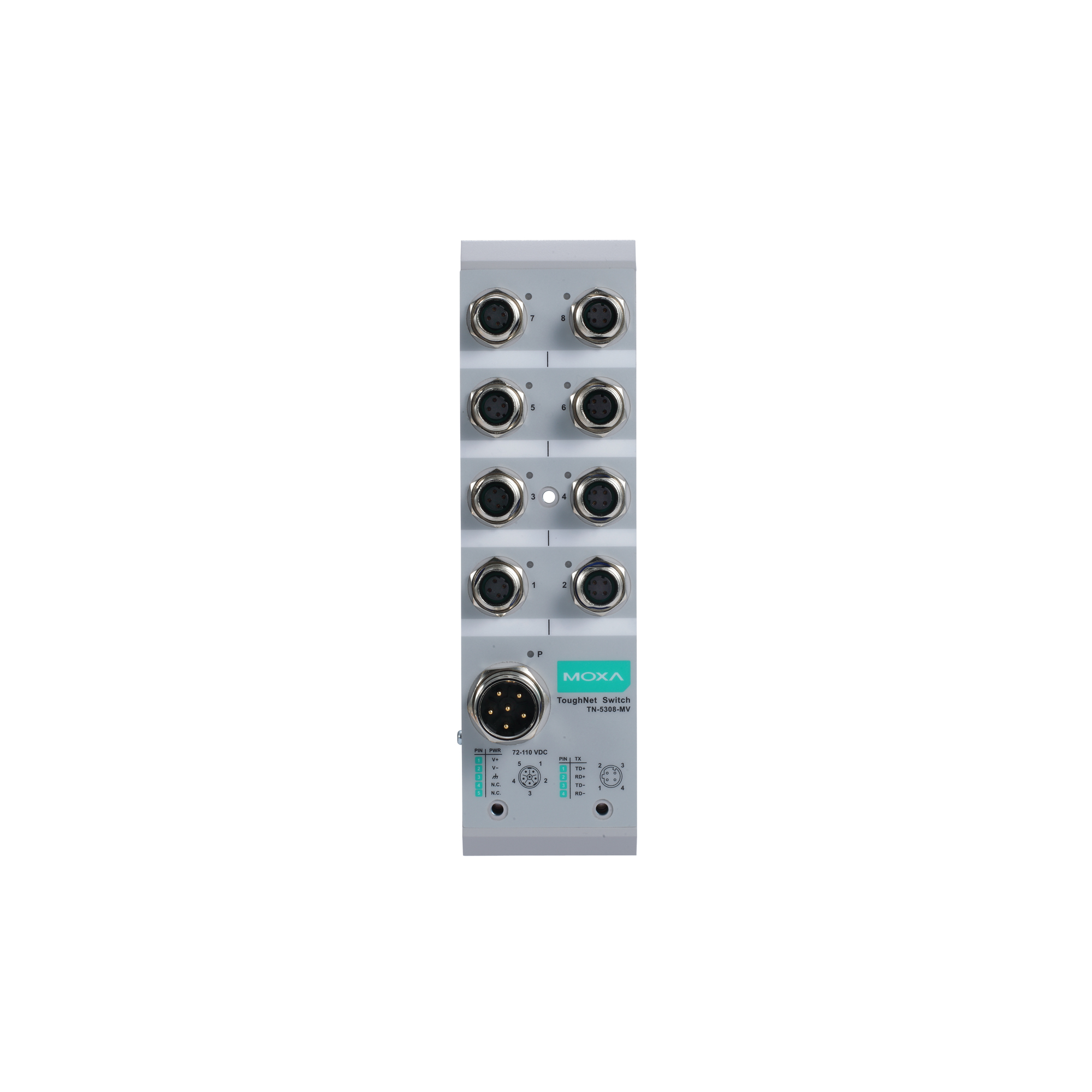

moxa-tn-5308-series-image-5-(1).jpg | Moxa

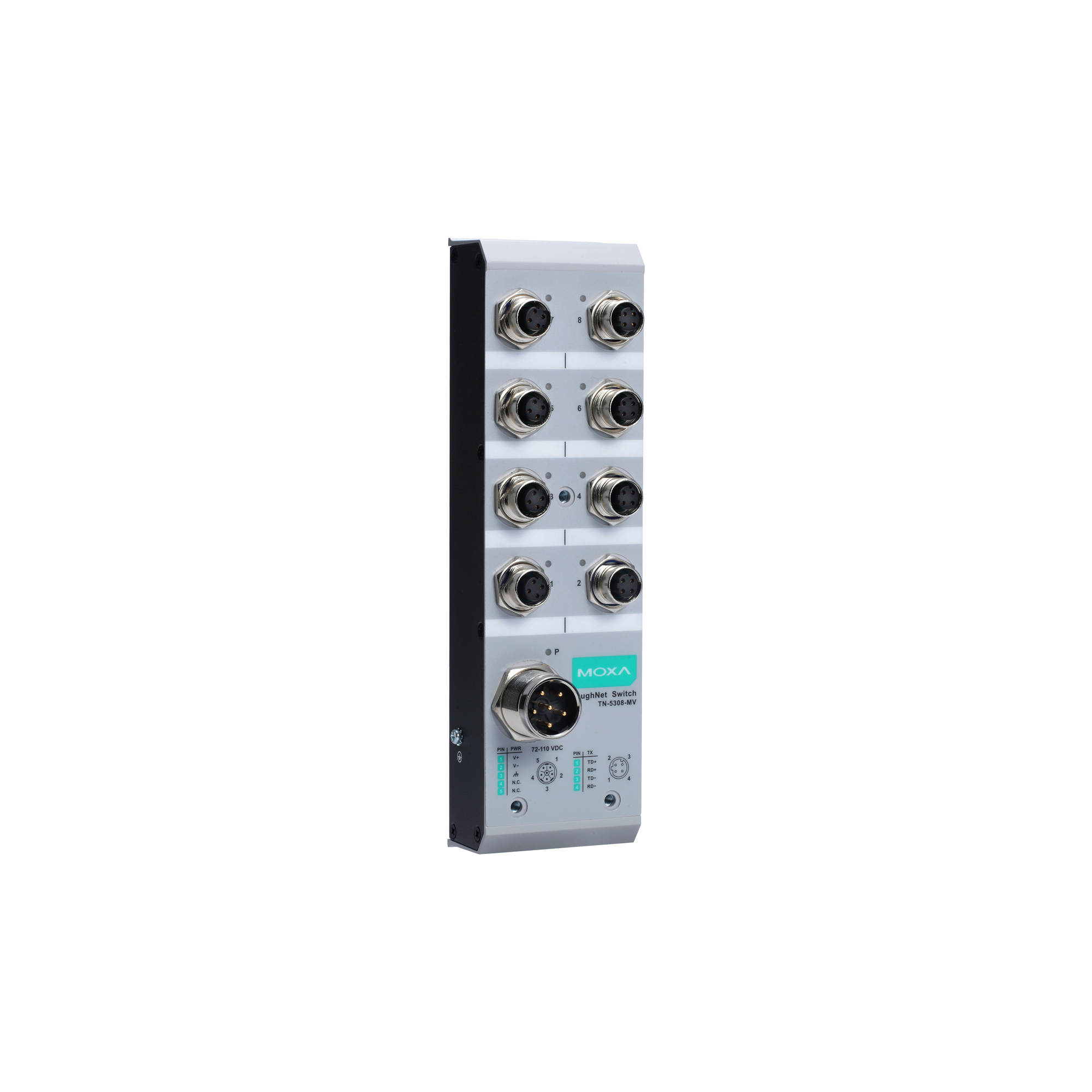

moxa-tn-5308-series-image-6-(1).jpg | Moxa

Features and Benefits

  • M12 connectors and IP40 metal housing
  • Up to 8 IEEE 802.3af compliant PoE and Ethernet combo ports
  • Supports IEEE 802.3/802.3u/802.3x
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 75°C operating temperature range (-T models)

Certifications

  • moxa-en50155-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

Contact Sales

Introduction

The ToughNet TN-5308 Series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. TN-5308 Series switches use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The TN-5308 Series Ethernet switches provide 8 Fast Ethernet M12 ports, support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. TN-5308 Ethernet switches comply with those EN 50155 requirements that make products more suitable for rolling stock applications, including operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications. TN-5308 PoE Ethernet switches provide 4 or 8 IEEE 802.3af compliant PoE ports. These switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port.

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    TN-5308 Series non-PoE models: 8

  • PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector)

    TN-5308-4PoE Series: 4
    TN-5308-8PoE Series: 8

  • Standards

    IEEE 802.3 for 10BaseT
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control
    TN-5308 Series PoE models: IEEE 802.3af for PoE

  • Input Current

    TN-5308-LV Series: 0.19 A @ 12 VDC, 0.10 A @ 24 VDC, 0.05 A @ 48 VDC
    TN-5308-MV Series: 0.033 A @ 72 VDC, 0.024 A @ 96 VDC, 0.021 A @ 110 VDC
    TN-5308-4PoE Series: 1.6 A @ 48 VDC
    TN-5308-8PoE Series: 2.9 A @ 48 VDC

  • Input Voltage

    TN-5308-LV Series: 12 to 48 VDC
    TN-5308-MV Series: 72 to 110 VDC
    PoE models: 48 VDC

  • Max. PoE Power Output per Port

    TN-5308 Series PoE models: 15.4 W

  • No. of Power Inputs

    1

  • Operating Voltage

    TN-5308-LV Series: 8.4 to 60 VDC
    TN-5308-MV Series: 50.4 to 137.5 VDC
    TN-5308 Series PoE models: 46 to 50 VDC

  • Power Connector

    TN-5308-LV Series and TN-5308 Series PoE models: M12 A-coded male connector
    TN-5308-MV Series: M23 connector

  • Housing

    Metal

  • IP Rating

    IP40

  • Dimensions

    TN-5308-LV Series: 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in)
    TN-5308-MV Series: 60 x 216.6 x 58.0 mm (2.36 x 8.53 x 2.28 in)
    TN-5308-4PoE Series: 60 x 216.6 x 48.7 mm (2.36 x 8.53 x 1.91 in)
    TN-5308-8PoE Series: 60 x 216.6 x 52.9 mm (2.36 x 8.53 x 2.1 in)

  • Weight

    TN-5308-LV Series: 485 g (1.07 lb)
    TN-5308-MV Series: 685 g (1.51 lb)
    TN-5308-4PoE Series: 675 g (1.49 lb)
    TN-5308-8PoE Series: 970 g (2.14 lb)

  • Installation

    DIN-rail mounting (with optional kit)
    Wall mounting

  • Protection

    TN-5308 Series -CT models: PCB conformal coating

  • Operating Temperature

    Standard Models: -25 to 60°C (-13 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Altitude

    2000 m

  • Freefall

    IEC 60068-2-32

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Environmental Testing

    IEC 60068-2-1, EN 50155
    IEC 60068-2-14, EN 50155
    IEC 60068-2-2, EN 50155
    IEC 60068-2-30, EN 50155

  • International Approval

    RCM

  • Railway

    EN 50121-4
    EN 50155

  • Railway Fire Protection

    EN 45545-2

  • Safety

    EN 60950-1
    UL 508

  • Salt Spray Test

    IEC 60068-2-11, EN 50155

  • Shock

    IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    IEC 60068-2-64, IEC 61373, EN 50155

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    TN-5308-LV Series: 2,804,342 hrs
    TN-5308-MV Series: 2,555,525 hrs
    TN-5308-4PoE Series: 2,070,877 hrs
    TN-5308-8PoE Series: 1,621,869 hrs

  • Standards

    Telcordia SR332

Support Documents

Name Type Version Release Date
QIG for TN-5308 Series
3.7 MB
QIG v6.2 Jul 28, 2023 Jul 28, 2023
Datasheet for TN-5308 Series
2.1 MB
Datasheet v2.1 May 19, 2023 May 19, 2023
2D CAD for TN-5308 Series (TN-5308-MV-XX)
479.4 KB
2D CAD Nov 28, 2018 Nov 28, 2018
2D CAD for TN-5308 Series (TN-5308-LV-XX)
329.3 KB
2D CAD Nov 28, 2018 Nov 28, 2018

Available Models (16)

Show Images
moxa-tn-5308-4poe-48-image.jpg | MoxaTN-5308-4PoE-48moxa-tn-5308-8poe-48-image.jpg | MoxaTN-5308-8PoE-48moxa-tn-5308-4poe-48-ct-image.jpg | MoxaTN-5308-4PoE-48-CTmoxa-tn-5308-lv-image.jpg | MoxaTN-5308-LV
PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector484
10/100BaseT(X) Ports, M12 D-Coded Female Connector448
Power InputSingle inputSingle inputSingle inputSingle input
Input Voltage48 VDC48 VDC48 VDC12/24/36/48 VDC
Operating Temp.-25 to 60°C-25 to 60°C-25 to 60°C-25 to 60°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-tn-5308-8poe-48-ct-image.jpg | MoxaTN-5308-8PoE-48-CTmoxa-tn-5308-mv-image.jpg | MoxaTN-5308-MVmoxa-tn-5308-lv-ct-image.jpg | MoxaTN-5308-LV-CTmoxa-tn-5308-4poe-48-ct-t-image.jpg | MoxaTN-5308-4PoE-48-CT-T
PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector84
10/100BaseT(X) Ports, M12 D-Coded Female Connector884
Power InputSingle inputSingle inputSingle inputSingle input
Input Voltage48 VDC72/96/110 VDC12/24/36/48 VDC48 VDC
Operating Temp.-25 to 60°C-25 to 60°C-25 to 60°C-40 to 75°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-tn-5308-4poe-48-t-image.jpg | MoxaTN-5308-4PoE-48-Tmoxa-tn-5308-8poe-48-t-image.jpg | MoxaTN-5308-8PoE-48-Tmoxa-tn-5308-mv-ct-image.jpg | MoxaTN-5308-MV-CTmoxa-tn-5308-8poe-48-ct-t-image.jpg | MoxaTN-5308-8PoE-48-CT-T
PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector488
10/100BaseT(X) Ports, M12 D-Coded Female Connector48
Power InputSingle inputSingle inputSingle inputSingle input
Input Voltage48 VDC48 VDC72/96/110 VDC48 VDC
Operating Temp.-40 to 75°C-40 to 75°C-25 to 60°C-40 to 75°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-tn-5308-lv-t-image.jpg | MoxaTN-5308-LV-Tmoxa-tn-5308-lv-ct-t-image.jpg | MoxaTN-5308-LV-CT-Tmoxa-tn-5308-mv-t-image.jpg | MoxaTN-5308-MV-Tmoxa-tn-5308-mv-ct-t-image.jpg | MoxaTN-5308-MV-CT-T
PoE, 10/100BaseT(X) Ports, M12 D-Coded Female Connector
10/100BaseT(X) Ports, M12 D-Coded Female Connector8888
Power InputSingle inputSingle inputSingle inputSingle input
Input Voltage12/24/36/48 VDC12/24/36/48 VDC72/96/110 VDC72/96/110 VDC
Operating Temp.-40 to 75°C-40 to 75°C-40 to 75°C-40 to 75°C
Conformal Coating
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
