Secure Routers

Moxa's EDR Series industrial secure routers protect the control networks of critical facilities while maintaining fast data transmission. They are specifically designed for automation networks, and are integrated cybersecurity solutions that combine an industrial firewall, VPN, router, and L2 switching functions into a single product that protects the integrity of remote access and critical devices.

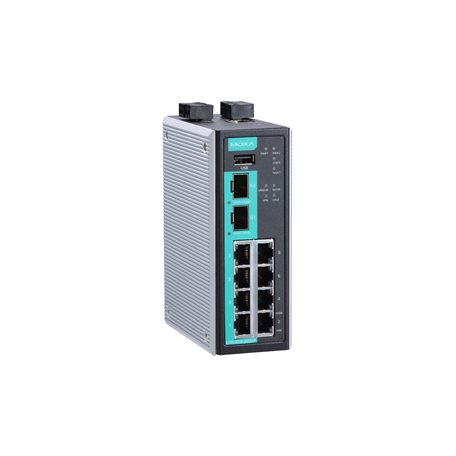

EDR-810-2GSFP
EDR-810 Series

8+2G SFP industrial multiport secure router with Firewall/NAT, -10 to 60°C operating temperature

Input/Output Interface
  • Alarm Contact Channels

    • Resistive load: 1 A @ 24 VDC
  • Buttons

    • Reset button
  • Digital Input Channels

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA
Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 8
  • 100/1000BaseSFP Slots

    • 2
  • Standards

    • IEEE 802.1Q for VLAN Tagging
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      Static Port Trunk
      IEEE 802.3u for 100BaseT(X)
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features
  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding
  • Management

    • Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP
  • Multicast Routing

    • DVMRP, PIM-SM, PIM-SSM
  • Redundancy Protocols

    • RSTP, STP, Turbo Ring v2
  • Routing

    • Throughput: 10,000 packets per second (max. 100 Mbps)
  • Routing Redundancy

    • VRRP
  • Security

    • HTTPS/SSL, SSH, L2TP (server), RADIUS
  • Time Management

    • NTP Server/Client, SNTP
  • Unicast Routing

    • OSPF, RIPV1/V2, Static Route
  • Filter

    • IGMP v1/v2/v3
Switch Properties
  • VLAN ID Range

    • VID 1 to 4094
  • IGMP Groups

    • 256
  • Max. No. of VLANs

    • 16
LED Interface
  • LED Indicators

    • STATE, PWR1, PWR2, FAULT, 10/100/1000M
DoS and DDoS Protection
  • Technology

    • ARP-Flood, FIN Scan, ICMP-Death, NEWWithout-SYN Scan, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan
Firewall
  • Deep Packet Inspection

    • Modbus TCP
      Modbus UDP
  • Filter

    • DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
  • Quick Automation Profiles

    • DNP, EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, FTP, HTTP, IEC 60870-104, IPsec, L2TP, LonWorks, Modbus TCP, PPTP, PROFINET, RADIUS, SSH, Telnet
  • Stateful Inspection

    • Router firewall
      Transparent (bridge) firewall
  • Throughput

    • Max. 10,000 packets per second (max. 100 Mbps)
NAT
  • Features

    • 1-to-1, N-to-1, Port forwarding
Real-Time Firewall / VPN Event Log
  • Event Type

    • Firewall event
  • Media

    • Local storage, SNMP Trap, Syslog server
Serial Interface
  • Console Port

    • RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Power Parameters
  • Connection

    • Removable terminal block
  • Input Voltage

    • 12/24/48 VDC, 0.32 A @ 24 VDC
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • Dimensions

    • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Weight

    • 830 g (2.10 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508
  • EMC

    • EN 55032/24
  • Hazardous Locations

    • UL/cUL Class I Division 2 Groups A/B/C/D
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4
  • Traffic Control

    • NEMA TS2
  • Shock

    • IEC 60068-2-27
  • Freefall

    • IEC 60068-2-32
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 981,954 hrs
  • Standards

    • Telcordia (Bellcore), GB
