EDR-810 Series

8 10/100BaseT(X) copper + 2 GbE SFP multiport industrial secure routers

moxa-edr-810-series-image-1-(1).jpg | Moxa

Features and Benefits

  • 8+2G all-in-one firewall/NAT/VPN/router/switch
  • Secure remote access tunnel with VPN
  • Stateful firewall protects critical assets
  • Inspect industrial protocols with PacketGuard technology
  • Easy network setup with Network Address Translation (NAT)
  • RSTP/Turbo Ring redundant protocol enhances network redundancy
  • -40 to 75°C operating temperature range (-T model)
  • Security features based on IEC 62443/NERC CIP
  • Compliant with the IEC 61162-460 marine cybersecurity standard
  • Check firewall settings with the intelligent SettingCheck feature

Certifications

  • moxa-dnv-gl-certification-logo-image.png | Moxa
  • moxa-en50121-4-certification-logo-image.png | Moxa
  • moxa-nema-ts2-certification-logo-image.png | Moxa
  • moxa-atex-certification-logo-image.png | Moxa

Contact Sales

Introduction

The EDR-810 is a highly integrated industrial multiport secure router with firewall/NAT/VPN and managed Layer 2 switch functions. It is designed for Ethernet-based security applications on critical remote control or monitoring networks, and it provides an electronic security perimeter for the protection of critical cyber assets including pump-and-treat systems in water stations, DCS systems in oil and gas applications, and PLC/SCADA systems in factory automation. The EDR-810 Series includes the following cybersecurity features:

  • Firewall/NAT: Firewall policies control network traffic between different trust zones, and Network Address Translation (NAT) shields the internal LAN from unauthorized activity by outside hosts.

  • VPN: Virtual Private Networking (VPN) is designed to provide users with secure communication tunnels when accessing a private network from the public Internet. VPNs use IPsec (IP Security) server or client mode for encryption and authentication of all IP packets at the network layer to ensure confidentiality and sender authentication.

The EDR-810’s “WAN Routing Quick Setting” provides an easy way for users to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810’s “Quick Automation Profile” gives engineers a simple way to configure the firewall filtering function with general automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET. Users can easily create a secure Ethernet network from a user-friendly web UI with a single click, and the EDR-810 is capable of performing deep Modbus TCP packet inspection. Wide-temperature range models that operate reliably in hazardous, -40 to 75°C environments are also available.

  • Alarm Contact Channels

    Resistive load: 1 A @ 24 VDC

  • Buttons

    Reset button

  • Digital Input Channels

    +13 to +30 V for state 1
    -30 to +3 V for state 0
    Max. input current: 8 mA

  • 10/100BaseT(X) Ports (RJ45 connector)

    8

  • 100/1000BaseSFP Slots

    2

  • Standards

    IEEE 802.1Q for VLAN Tagging
    IEEE 802.3 for 10BaseT
    IEEE 802.3ab for 1000BaseT(X)
    Static Port Trunk
    IEEE 802.3u for 100BaseT(X)
    IEEE 802.3x for flow control
    IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

  • Broadcast Forwarding

    IP directed broadcast, broadcast forwarding

  • Management

    Back Pressure Flow Control
    DDNS
    DHCP Server/Client
    Web Console (HTTP/HTTPS)
    LLDP
    QoS/CoS/ToS
    SNMPv1/v2c/v3
    Telnet
    TFTP

  • Multicast Routing

    DVMRP
    PIM-SM
    PIM-SSM

  • Redundancy Protocols

    RSTP
    STP
    Turbo Ring v2

  • Routing

    Throughput: 10,000 packets per second (max. 100 Mbps)

  • Routing Redundancy

    VRRP

  • Security

    All models: HTTPS/SSL, SSH, L2TP (server), RADIUS
    EDR-810-VPN-2GSFP Series: HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS
    L2TP (server)
    RADIUS

  • Time Management

    NTP Server/Client
    SNTP

  • Unicast Routing

    OSPF
    RIPV1/V2
    Static Route

  • Filter

    IGMP v1/v2/v3

  • VLAN ID Range

    VID 1 to 4094

  • IGMP Groups

    256

  • Max. No. of VLANs

    16

  • LED Indicators

    STATE, PWR1, PWR2, FAULT, 10/100/1000M

  • Technology

    ARP-Flood
    FIN Scan
    ICMP-Death
    NEWWithout-SYN Scan
    NMAP-ID Scan
    NMAP-Xmas Scan
    Null Scan
    SYN/FIN Scan
    SYN/RST Scan
    SYN-Flood
    Xmas Scan

  • Deep Packet Inspection

    Modbus TCP
    Modbus UDP

  • Filter

    DDoS
    Ethernet protocols
    ICMP
    IP address
    MAC address
    Ports

  • Quick Automation Profiles

    DNP
    EtherCAT
    EtherNet/IP
    FOUNDATION Fieldbus
    FTP
    HTTP
    IEC 60870-104
    IPsec
    L2TP
    LonWorks
    Modbus TCP
    PPTP
    PROFINET
    RADIUS
    SSH
    Telnet

  • Stateful Inspection

    Router firewall
    Transparent (bridge) firewall

  • Throughput

    Max. 10,000 packets per second (max. 100 Mbps)

  • Authentication

    EDR-810-VPN-2GSFP Series: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate

  • Concurrent VPN Tunnels

    EDR-810-VPN-2GSFP Series: Max. 10 IPsec VPN tunnels

  • Encryption

    EDR-810-VPN-2GSFP Series: DES, 3DES, AES-128, AES-192, AES-256

  • Protocols

    EDR-810-VPN-2GSFP Series: IPsec, L2TP (server), PPTP (client)

  • Throughput

    EDR-810-VPN-2GSFP Series: Max. 17 Mbps (Conditions: AES-256, SHA-256)

  • Features

    1-to-1
    N-to-1
    Port forwarding

  • Authentication

    EDR-810-VPN-2GSFP Series: User password by MD5 and SHA1

  • Concurrent VPN Tunnels

    EDR-810-VPN-2GSFP Series:
    Client Mode: max. 2 external servers
    Server Mode: max. 5 external clients

  • Encryption

    EDR-810-VPN-2GSFP Series: AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC

  • Protocols

    EDR-810-VPN-2GSFP Series:
    OpenVPN (client and server), UDP, and TCP
    Tunnel mode (routing) and TAP mode (bridge)

  • Throughput

    EDR-810-VPN-2GSFP Series: Max. 5 Mbps

  • Event Type

    All models: Firewall event
    EDR-810-VPN-2GSFP Series: VPN event

  • Media

    Local storage
    SNMP Trap
    Syslog server

  • Console Port

    RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)

  • Connection

    Removable terminal block

  • Input Voltage

    12 to 48 VDC

  • Input Current

    0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC

  • Reverse Polarity Protection

    Supported

  • Housing

    Metal

  • Dimensions

    53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

  • Weight

    830 g (2.10 lb)

  • Installation

    DIN-rail mounting
    Wall mounting (with optional kit)

  • Operating Temperature

    Standard Models: -10 to 60°C (14 to 140°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    UL 508

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF

  • Hazardous Locations

    ATEX
    Class I Division 2

  • Maritime

    DNV

  • Traffic Control

    NEMA TS2

  • Railway

    EN 50121-4

  • Shock

    IEC 60068-2-27

  • Freefall

    IEC 60068-2-32

  • Vibration

    IEC 60068-2-6

  • Industrial Cybersecurity

    IEC 61162-460

  • Time

    981,954 hrs

  • Standards

    Telcordia (Bellcore), GB

Software, Firmware, and Drivers

FILTER

All Firmware Software Package
Name Type Checksum Version Operating System Release Date
Firmware for EDR-810 Series
25.3 MB 		Firmware
SHA-512
v5.12.33
Sep 02, 2024 Sep 02, 2024 Release notes
Software Package for MXview One Series (Windows version)
325.4 MB 		Software Package
SHA-512
v1.4.0
  • Windows 10
  • Windows 11
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
 Jul 31, 2024 Jul 31, 2024 Release notes
Software Package for MXview One Series (Linux version)
501.5 MB 		Software Package
SHA-512
v1.4.0
  • Ubuntu 18.04
  • Ubuntu 20.04
  • Ubuntu 22.04
 Jul 31, 2024 Jul 31, 2024 Release notes
Firmware for EDR-810 Series
25.3 MB 		Firmware
SHA-512
v5.12
Feb 15, 2022 Feb 15, 2022 Release notes
SNMP MIB file for EDR-810 Series
123.7 KB 		Software Package
SHA-512
v5.10
Nov 08, 2021 Nov 08, 2021 Release notes

Support Documents

FILTER

All 2D CAD Datasheet Manual QIG Tech Note
Name Type Version Release Date
QIG for EDR-810 Series
1.2 MB 		QIG v4.4 Feb 06, 2024 Feb 06, 2024
Datasheet for EDR-810 Series
874.7 KB 		Datasheet v1.6 Jan 09, 2023 Jan 09, 2023
Tech Note: Recommended Procedure for STP Cable Grounding on Moxa's Industrial Ethernet Switches
558.3 KB 		Tech Note v1.0 Feb 12, 2019 Feb 12, 2019
Manual for EDR-810 Series
16.6 MB 		Manual v4.0 Apr 20, 2018 Apr 20, 2018
2D CAD for EDR-810
644.3 KB 		2D CAD Jan 18, 2018 Jan 18, 2018
Moxa Industrial Secure Router CLI Command Set User's Manual
510.4 KB 		Manual v1.0 Dec 16, 2014 Dec 16, 2014

Related Content

FILTER

All Article Case Study Solution Brochure Spotlight Technology Guide White Paper

Available Models (4)

Show Images
Compare

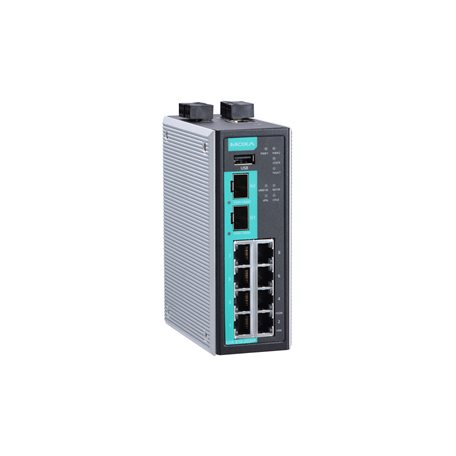

moxa-edr-810-vpn-2gsfp-image.jpg | MoxaEDR-810-VPN-2GSFP
Compare
moxa-edr-810-vpn-2gsfp-t-image.jpg | MoxaEDR-810-VPN-2GSFP-T
Compare
moxa-edr-810-2gsfp-image.jpg | MoxaEDR-810-2GSFP
Compare
moxa-edr-810-2gsfp-t-image.jpg | MoxaEDR-810-2GSFP-T
10/100BaseT(X) Ports
RJ45 Connector		8888
100/1000Base SFP Slots2222
Firewall✓✓✓✓
NAT✓✓✓✓
VPN✓✓––
Operating Temp.-10 to 60°C-40 to 75°C-10 to 60°C-40 to 75°C
