電源轉接器

交流電源轉接器

moxa-power-adapters-image-(1).jpg | Moxa
moxa-power-adapters-image-1-(1).jpg | Moxa
moxa-power-adapters-image-2-(1).jpg | Moxa
moxa-power-adapters-image-3-(1).jpg | Moxa
moxa-power-adapters-image-4-(1).jpg | Moxa
moxa-power-adapters-image-5-(1).jpg | Moxa

特色與優點

  • 100 至 240 VAC 電源輸入
  • -40 至 75°C 操作溫度範圍(-T 型號)

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

Moxa 電源轉接器系列為 Moxa 產品提供可靠的電源。



  • Voltage Range

    100 to 240 VAC (50 to 60 Hz)

  • Input Plug Type

    PWR-AU Models: Australia plug type
    PWR-CN Models: China plug type
    PWR-EU Models: Europe plug type
    PWR-UK Models: United Kingdom plug type
    PWR-USJP Models: United States/Japan plug type
    PWR-KR Models: Korea plug type

  • Output Power Rating

    PWR-12050 Models: 0.5 A @ 12 VDC
    PWR-12150 Models: 1.5 A @ 12 VDC
    PWR-12200-DT-S1: 2 A @ 12 VDC
    PWR-12300 Models: 3 A @ 12 VDC

  • Output Plug Type

    PWR-12050-S1 Models: S-Type 5.5/2.1/7.5
    PWR-12050-S2 Models: S-Type 5.5/2.1/9.5
    PWR-12150-S2 Models: S-Type 5.5/2.1/9.5
    PWR-12200-DT-S1: S-Type 5.5/2.1/7.5
    PWR-12300 Models: S-Type 5.5/2.1/7.5
    PWR-12150-SA-T Models: L-Type 5.5/2.1/7.5
    Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in)
    Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in)

  • Dimensions

    PWR-12050-AU-S1: 67.9 x 33.5 x 39.4 mm (2.67 x 1.32 x 1.55 in)
    PWR-12050-CN-S1: 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in)
    PWR-12050-EU-S1: 68.0 x 33.0 x 55.0 mm (2.68 x 1.30 x 2.17 in)
    PWR-12050-KR-S1: 67.7 x 33.0 x 55.1 mm (2.67 x 1.30 x 2.17 in)
    PWR-12050-UK-S1: 67.8 x 50.3 x 43.0 mm (2.67 x 1.98 x 1.69 in)
    PWR-12050-USJP-S1: 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in)
    PWR-12050-AU-S2: 67.9 x 39.4 x 42.5 mm (2.67 x 1.55 x 1.67 in)
    PWR-12050-CN-S2: 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in)
    PWR-12050-EU-S2: 68.0 x 33.0 x 55.0 mm (2.68 x 1.30 x 2.17 in)
    PWR-12050-KR-S2: 67.7 x 33.0 x 55.1 mm (2.67 x 1.30 x 2.17 in)
    PWR-12050-UK-S2: 67.9 x 50.3 x 43.0 mm (2.67 x 1.98 x 1.69 in)
    PWR-12050-USJP-S2: 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in)
    PWR-12150-WPAU-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPCN-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPEU-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12300-WPUK-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPUSJP-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPAU-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPCN-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPEU-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPKR-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPUK-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12150-WPUSJP-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    PWR-12300-WPAU-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    PWR-12300-WPCN-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    PWR-12300-WPEU-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    PWR-12300-WPUK-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    PWR-12300-WPUSJP-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    PWR-12150-AU-SA-T: 41 x 73.9 x 89.5 mm (1.61 x 2.91 x 3.52 in)
    PWR-12150-CN-SA-T: 32 x 60 x 88 mm (1.26 x 2.36 x 3.46 in)
    PWR-12150-EU-SA-T: 32 x 85.3 x 88 mm (1.26 x 3.36 x 3.46 in)
    PWR-12150-UK-SA-T: 50 x 91 x 82.5 mm (1.97 x 3.58 x 3.25 in)
    PWR-12150-USJP-SA-T: 32 x 70.3 x 88 mm (1.26 x 2.77 x 3.46 in)
    PWR-12200-DT-S1: 110.8 x 51.8 x 32 mm (4.36 x 2.04 x 1.26 in)

  • Weight

    PWR-12050 Models: 71~87 g ( 0.16 ~ 0.19 lb )
    PWR-12150 Models: 200 g ( 0.44 lb )
    PWR-12150-S2 Models: 115 g ( 0.25 lb)
    PWR-12300-S1 Models: 163 g ( 0.36 lb )
    PWR-DT Models: 200 g ( 0.44 lb )

  • Cord Length

    PWR-12050 Models: 1500±100 mm (59.06±3.94 in)
    PWR-12150 Models: 1500±100 mm (59.06±3.94 in)
    PWR-12300 Models: 1500±100 mm (59.06±3.94 in)
    PWR-12200-DT-S1: 1800±200 mm (70.87±7.87 in)

  • Operating Temperature

    Standard Models: 0 to 40°C (32 to 104°F)
    Wide Temp. Models: -40 to 75°C (-40 to 167°F)

  • Storage Temperature

    Standard Models: -20 to 70°C (-4 to 158°F)
    Wide Temp.Models: -40 to 75°C (-40 to 167°F)

  • Safety

    PWR-12050-AU Models: RCM
    PWR-12050-CN Models: CCC
    PWR-12050-EU Models: CE/GS
    PWR-12050-KR Models: KCC
    PWR-12050-UK Models: CE
    PWR-12050-USJP Models: FCC/UL/PSE
    PWR-12150 Models: CE/FCC/UL/RCM/PSE/CCC/GS/KCC
    PWR-12300 Models: CE/FCC/UL/RCM/PSE/CCC/GS
    PWR-12200-DT-S1: Efficiency Level 5: CE/FCC/UL/RCM/PSE/CCC; Efficiency Level 6: CE/FCC/UL/PSE
    PWR-12150-AU-SA-T: RCM
    PWR-12150-CN-SA-T: CCC
    PWR-12150-EU-SA-T: TUV/CE/GS
    PWR-12150-UK-SA-T: CE
    PWR-12150-USJP-SA-T: FCC/UL/PSE

支援文件

名稱 類型 語言 版本 發布日期
電源轉接器產品資料表
2.4 MB
產品資料表 中文 v1.3 2021年10月20日 2021年10月20日

可供選擇的機型 (7)

顯示圖片
moxa-pwr-12150-uk-sa-t-image.jpg | MoxaPWR-12150-UK-SA-Tmoxa-pwr-12150-au-sa-t-image.jpg | MoxaPWR-12150-AU-SA-Tmoxa-pwr-12150-cn-sa-t-image.jpg | MoxaPWR-12150-CN-SA-Tmoxa-pwr-12150-eu-sa-t-image.jpg | MoxaPWR-12150-EU-SA-T
Barrel-plug TypeLockingLockingLockingLocking
Input-plug TypeUKAUCNEU
Output Rating1.5 A @ 12 VDC1.5 A @ 12 VDC1.5 A @ 12 VDC1.5 A @ 12 VDC
Operating Temperature-40 to 75°C-40 to 75°C-40 to 75°C-40 to 75°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
moxa-pwr-12150-usjp-sa-t-image.jpg | MoxaPWR-12150-USJP-SA-TPWR-12050-CN-S1PWR-12050-AU-S1
Barrel-plug TypeLockingLockingLocking
Input-plug TypeUS/JPCNAU
Output Rating1.5 A @ 12 VDC0.5 A @ 12 VDC0.5 A @ 12 VDC
Operating Temperature-40 to 75°C0 to 40°C0 to 40°C
加入詢價查看詢價明細加入詢價查看詢價明細加入詢價查看詢價明細
已加入詢價列表

電源轉接器

PWR-12050-AU-S1

Buy online from our distributors

電源轉接器

PWR-12050-CN-S1

Buy online from our distributors

電源轉接器

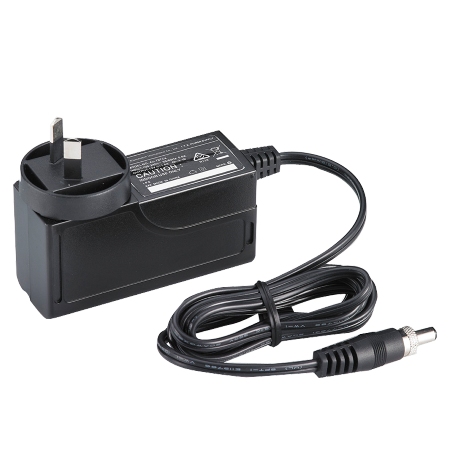

PWR-12150-AU-SA-T

moxa-pwr-12150-au-sa-t-image.jpg | Moxa

Buy online from our distributors

電源轉接器

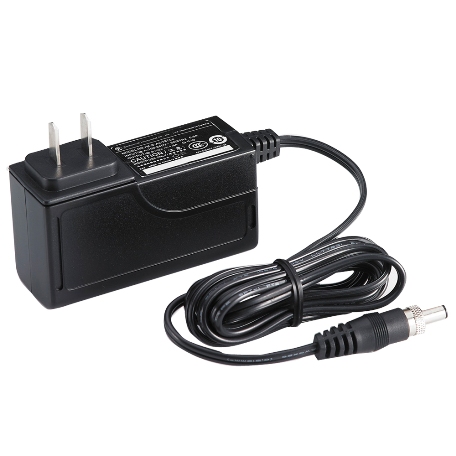

PWR-12150-CN-SA-T

moxa-pwr-12150-cn-sa-t-image.jpg | Moxa

Buy online from our distributors

電源轉接器

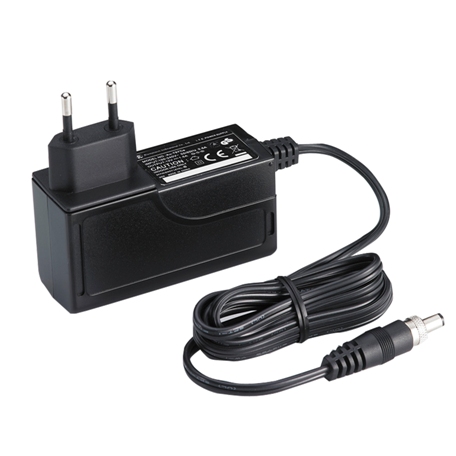

PWR-12150-EU-SA-T

moxa-pwr-12150-eu-sa-t-image.jpg | Moxa

Buy online from our distributors

電源轉接器

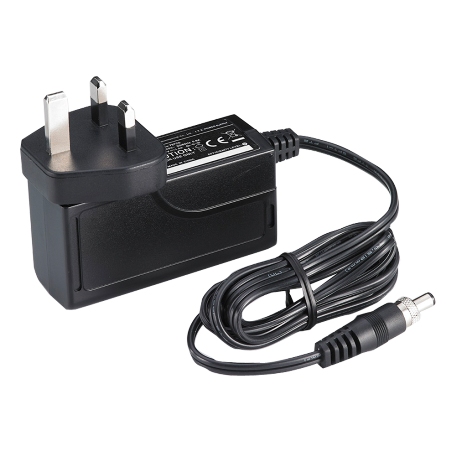

PWR-12150-UK-SA-T

moxa-pwr-12150-uk-sa-t-image.jpg | Moxa

Buy online from our distributors

電源轉接器

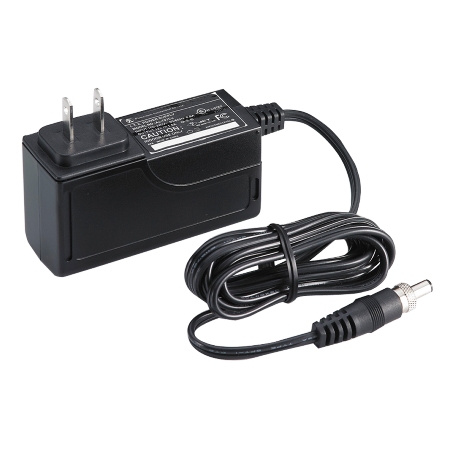

PWR-12150-USJP-SA-T
