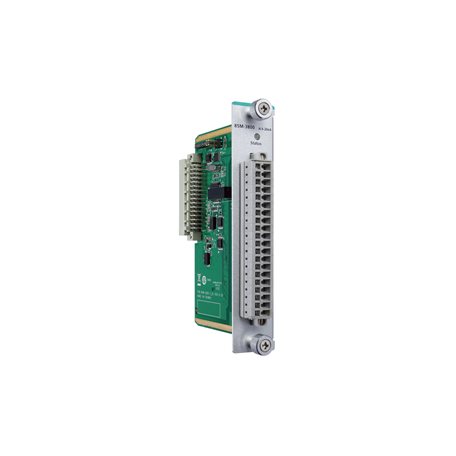

86M-4420-T
ioPAC 8600 系列 (86M) 模組

Module for the ioPAC 8600 Series, 4 AOs, 0 to 10 V, -10 to 10 V, 0 to 20 mA, or 4 to 20 mA, -40 to 75°C operating temperature

Input/Output Interface
  • Analog Output Channels

    • 4
  • Isolation

    • 3k VDC or 2k Vrms
Digital Outputs
  • Connector

    • Spring-type Euroblock terminal
  • I/O Mode

    • DO or PWM
Analog Outputs
  • Connector

    • Spring-type Euroblock terminal
  • I/O Mode

    • Static or waveform mode
  • Accuracy

    • ±0.1% FSR @ 25°C
      ±0.3% FSR @ -40 to 75°C
  • Current Load Resistance

    • External 24 VDC power: 1000 ohms
      Internal power: 400 ohms
  • Output Range

    • 0 to 10 VDC
      0 to 20 mA
      -10 to 10 V
      4 to 20 mA
  • Resolution

    • 12-bit
  • Voltage Output

    • 10 mA (max.)
  • Waveform Frequency

    • 125 Hz
  • Waveform Type

    • Sine, Square, Triangle
Power Parameters
  • Power Consumption

    • 143.8 mA @ 24 VDC
Physical Characteristics
  • Dimensions

    • 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in)
  • Weight

    • Under 80 g
  • Wiring

    • I/O cable, 16 to 28 AWG
Environmental Limits
  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
  • Altitude

    • 2000 m Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
Standards and Certifications
  • EMC

    • EN 55032/24, EN 61000-6-2/-6-4
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 5100 MHz to 6000 MHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4, EN 50155
  • Safety

    • UL 508
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 2,409,345 hrs
  • Standards

    • Telcordia SR332
Warranty
