CP-118U/138U 系列

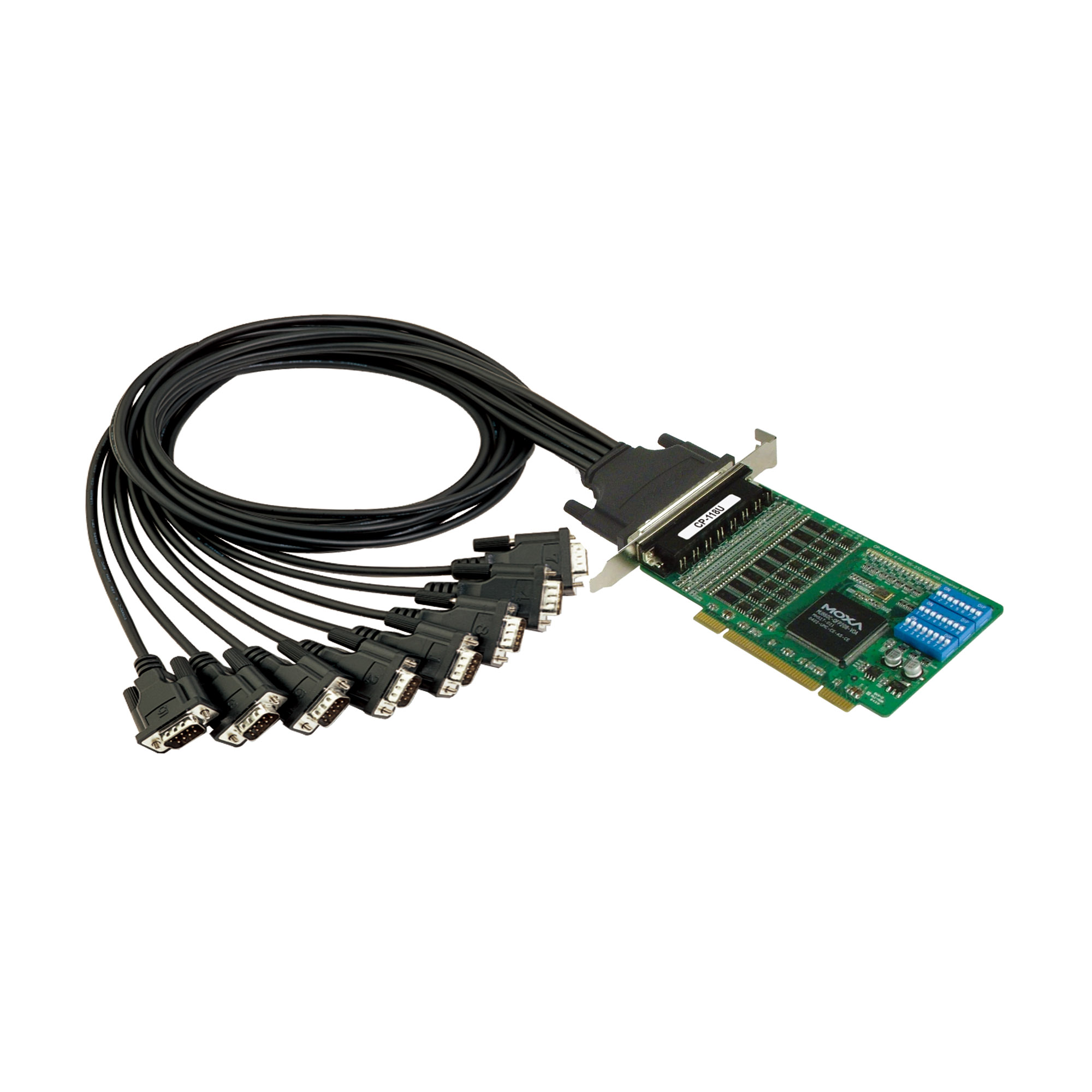

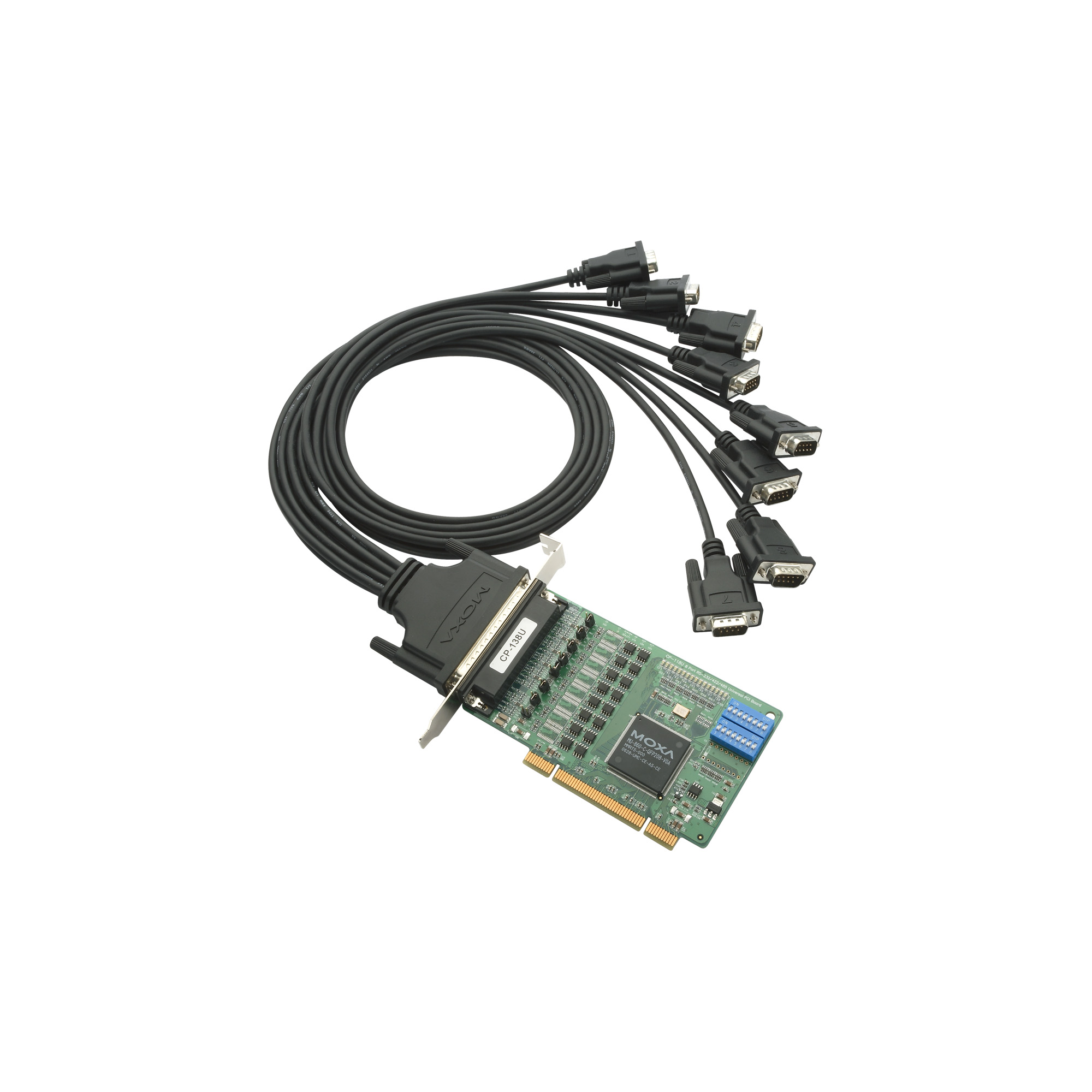

8 埠 RS-232/422/485 Universal PCI 串列擴充卡

moxa-cp-118u-138u-series-image-1-(1).jpg | Moxa
moxa-cp-118u-138u-series-image-2-(1).jpg | Moxa

特色與優點

  • 超過 700 kbps 數據傳輸量,可提供最高效能
  • 快速資料傳輸,最高傳輸率達 921.6 Kbps
  • 128 位元 FIFO 和晶片內建軟硬體流量控制
  • 與 3.3/5 V PCI 和 PCI-X 相容
  • 為多種作業系統提供的驅動程式,包括 Windows、Linux 和 UNIX
  • 內建 LED 與管理軟體,可輕鬆維護
  • 提供寬溫版本,適合 -40 至 85°C 的作業環境

認證

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-fcc-certification-logo-image.png | Moxa

聯絡銷售顧問

簡介

CP-118U 和 CP-138U 是智慧型 8 埠 Universal PCI 串列擴充卡,專為 POS 和 ATM 應用程式以及用於工業自動化系統製造商與系統整合商所設計。這兩種串列擴充卡都與所有主要的作業系統相容。此外,CP-118U 的 8 RS-232/422/485 埠和 CP-138U 的 8 RS-422/485 埠支援高達 921.6 kbps 的數據傳輸率,可提供完整數據機控制訊號,以確保與廣泛串列週邊設備的相容性。CP-118U 和 CP-138U 支援 3.3 V 和 5 V PCI 匯流排,因此它們非常適合安裝在多數 PC 伺服器上。



為 Windows、Linux 和 UNIX 提供的驅動程式

Moxa 持續為各種不同的作業系統提供支援,CP-118U 和 CP-138U 串列擴充卡也不例外。我們提供適用於所有 Moxa 擴充卡並且極為可靠的 Windows 和 Linux/UNIX 驅動程式,而其他作業系統(例如 WEPOS)也支援嵌入式整合。



  • Comm. Controller

    MU860 (16C550C compatible)

  • Bus

    32-bit Universal PCI

  • Connector

    CP-118U/138U Series: DB62 female
    CP-118U-I/138U-I Series: DB78 female

  • FIFO

    128 bytes

  • Max. No. of Boards per PC

    8

  • No. of Ports

    8

  • Serial Standards

    CP-118U Series: RS-232, RS-422, RS-485
    CP-138U Series: RS-422, RS-485

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    5, 6, 7, 8

  • Stop Bits

    1, 1.5, 2

  • Parity

    None, Even, Odd, Space, Mark

  • Flow Control

    CP-118U Series: None, RTS/CTS, XON/XOFF
    CP-138U Series: None, XON/XOFF

  • Isolation

    CP-118U-I/138U-I Series: 2 kV

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • Windows Drivers

    DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Drivers

    Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x

  • UNIX Drivers

    QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD

  • Input Current

    CP-118U Series: 240 mA @ 5 VDC (RS-232); 300 mA @ 5 VDC (RS-422)
    CP-138U Series: 135 mA @ 5 VDC (RS-422)

  • Dimensions

    82 x 135 mm (3.22 x 5.31 in)

  • LED Indicators

    Built-in Tx, Rx LEDs for each port

  • Operating Temperature

    Standard Models: 0 to 55°C (32 to 131°F)
    Wide Temp. Models: -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032/35

  • EMI

    CISPR 32, FCC Part 15B Class B

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

  • International Approval

    CP-138U: KC

  • Green Product

    RoHS, CRoHS, WEEE

  • Time

    CP-118U Series: 1,073,385 hrs
    CP-138U Series: 1,147,210 hrs

  • Standards

    Telcordia SR332
