串列至串列轉換器

Moxa 串列轉串列媒體轉換器可在 RS-232、RS-422 和 RS-485 之間進行轉換,可避免在不同串列介面之間進行通訊時經常遇到的相容性問題。

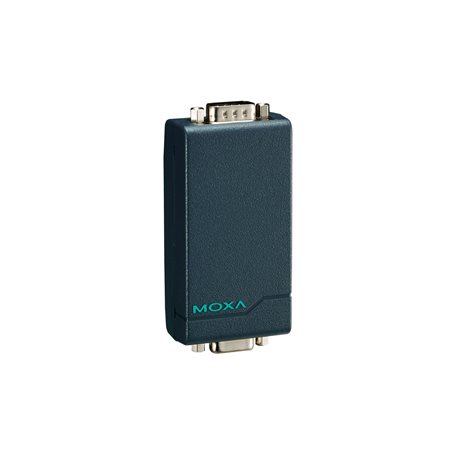

TCC-82
TCC-82

Port-powered RS-232 isolator with 4 kV isolation and 15 KV serial ESD protection

Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 2
  • Serial Standards

    • RS-232
  • Baudrate

    • 50 bps to 921.6 kbps (supports non-standard baudrates)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
  • Input Current

    • 20 mA @ 5 to 12 VDC
  • Input Voltage

    • 5 to 12 VDC
  • No. of Power Inputs

    • 1
  • Overload Current Protection

    • Supported
  • Power Consumption

    • 20 mA @ 5 to 12 VDC
  • Source of Input Power

    • Power input jack
Physical Characteristics
  • Housing

    • Plastic
  • IP Rating

    • IP30
  • Dimensions

    • 42 x 80 x 23.6 mm (1.65 x 3.15 x 0.93 in)
  • Weight

    • 60 g (0.13 lb)
  • Installation

    • Desktop
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -20 to 75°C (-4 to 167°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class B
  • EMS

    • IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  • Environmental Testing

    • IEC 60068-2-1
      IEC 60068-2-2
      IEC 60068-2-3
  • Safety

    • EN 60950-1, IEC 60950-1
  • Vibration

    • IEC 60068-2-6
MTBF
  • Time

    • 959,780 hrs
  • Standards

    • MIL-HDBK-217F
Warranty
