機架式交換器

Moxa 工業級機架式交換器提供 24 至 52 埠路由和交換功能、基於 IEC 62443 標準的安全功能，以及毫秒級快速多播流量備援的模組化靈活性，可大幅強化部署於都市、運輸、製造和監控應用之 IIoT 基礎設施的效能。

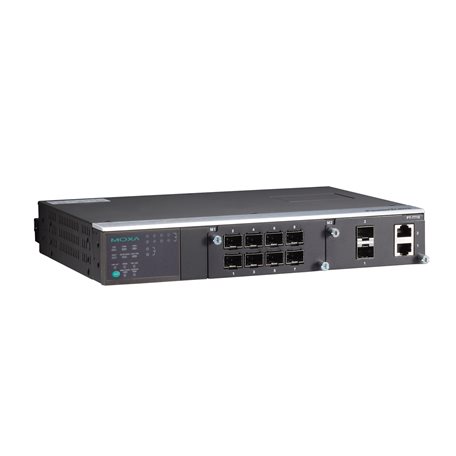

PT-7710-F-LV
PT-7710 系列

IEC 61850-3 modular managed rackmount Ethernet switch system with 1 slot for Fast Ethernet modules and 1 slot for Fast Ethernet or Gigabit Ethernet modules, for a total of up to 10 or 8+2G ports, cabling on front panel, 1 power supply (12/24/48 VDC), 88-300 VDC or 85-264 VAC), -40 to 85°C operating temperature

Ethernet Interface

  • Cabling Direction

    • Front cabling

  • Compatible Modules

    • Slot 1: PM-7200-8TX, PM-7200-2MSC4TX, PM-7200-2MST4TX, PM-7200-2SSC4TX, PM-7200-4MSC2TX, PM-7200-4MST2TX, PM-7200-4SSC2TX, PM-7200-6MSC, PM-7200-6MST, PM-7200-6SSC, PM-7200-8SFP, PM-7200-4M12, PM-7200-8MTRJ

      Slot 2: PM-7200-2GTXSFP, PM-7200-1MSC, PM-7200-1MST, PM-7200-2MSC, PM-7200-2MST, PM-7200-2SSC

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
      IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet Software Features

  • Filter

    • 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware

  • Industrial Protocols

    • EtherNet/IP, Modbus TCP

  • Management

    • Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP

  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Power Substation

    • IEC 61850 QoS

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2

  • Security

    • Broadcast storm protection, HTTPS/SSL, TACACS+, Port Lock, RADIUS, Rate Limit, SSH

  • Time Management

    • NTP Server/Client, SNTP
Switch Properties

  • IGMP Groups

    • 256

  • Max. No. of VLANs

    • 64

  • VLAN ID Range

    • VID 1 to 4094

  • Priority Queues

    • 4
Serial Interface

  • Console Port

    • RS-232 (RJ45)
Input/Output Interface

  • Alarm Contact Channels

    • Resistive load: 3 A @ 30 VDC, 240 VAC
Power Parameters

  • Connection

    • 10-pin terminal block

  • Input Voltage

    • 12/24/48 VDC (9 to 60 VDC)

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported

  • Input Current

    • 0.75 A @ 0.24 VDC, 0.39 A @ 48 VDC
Physical Characteristics

  • Housing

    • Aluminum

  • IP Rating

    • IP30

  • Dimensions (without ears)

    • 266.5 x 44 x 195 mm (10.5 x 1.7 x 7.7 in)

  • Weight

    • 2200 g (4.89 lb)

  • Installation

    • 19-inch rack mounting, Wall mounting (with optional kit)
Environmental Limits

  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
      Note: Cold start requires minimum of 100 VAC @ -40°C

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1

  • EMI

    • EN 55032 Class A, CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs

  • Power Substation

    • IEC 61850-3, IEEE 1613

  • Railway

    • EN 50121-4, EN 50155 (complies with a portion of EN 50155 specifications)

  • Traffic Control

    • NEMA TS2
MTBF

  • Time

    • 316,716 hrs

  • Standards

    • Telcordia SR332
Warranty
