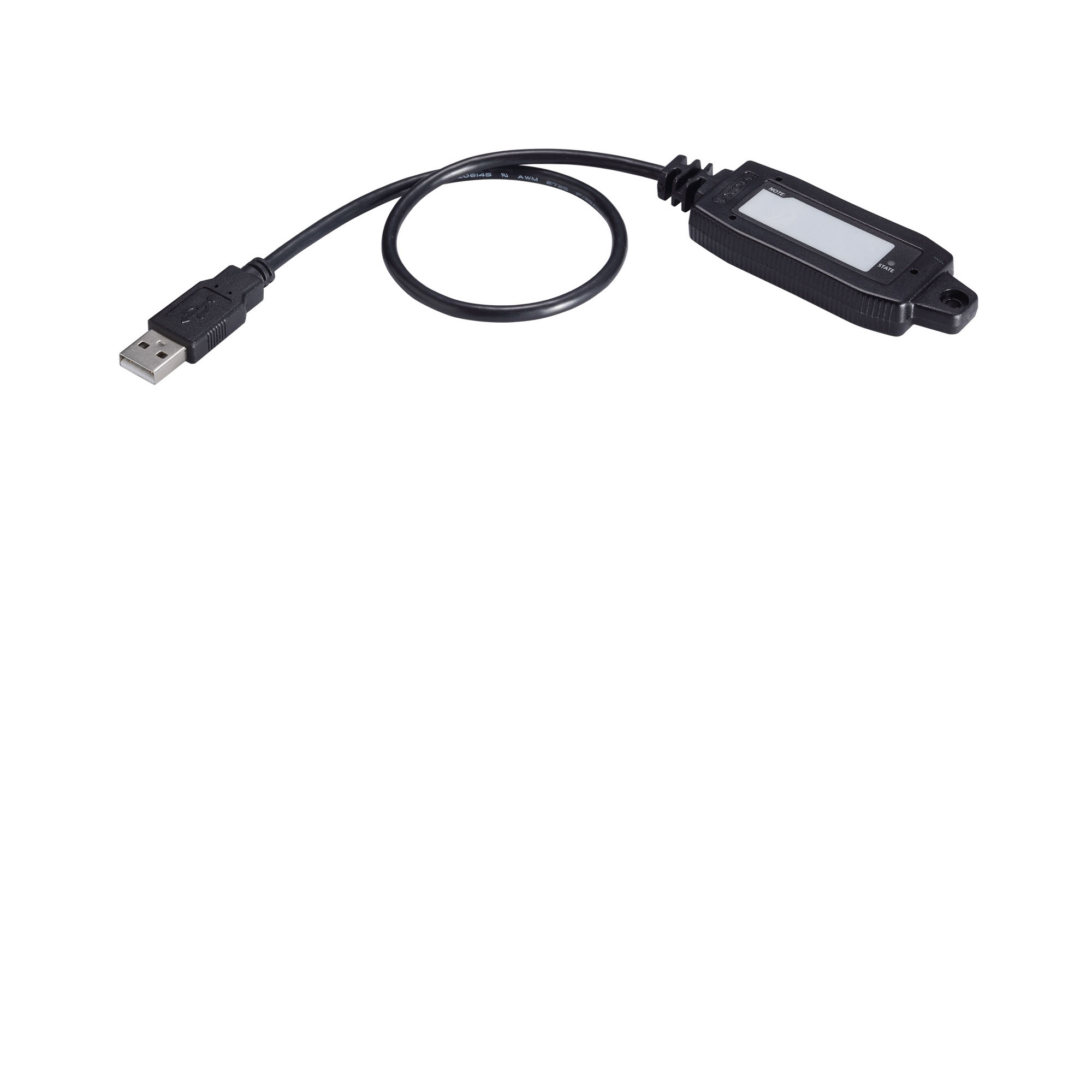

ABC-02 Series

USB-based configuration backup and restoration tool for managed switches and WLAN products

moxa-abc-02-series-image-(1).jpg | Moxa

Features and Benefits

  • One-click backup and auto-load technology to reduce system downtime
  • Powerful troubleshooting tool to record mass event logs
  • Supports Moxa’s managed Ethernet switches and wireless APs/bridges/clients
  • Auto-backup of switch configuration files when any setting is changed
  • Plug-and-Play system configuration backup and restoration

Certifications

  • moxa-ce-certification-logo-image.png | Moxa

Contact Sales

Introduction

The ABC-02 Series USB automatic backup configurators are designed for Moxa's products. The ABC-02 Series can save and load configuration files, back up event logs, and load firmware via the USB interface. The ABC-02 Series makes it easier to manage the backup of system parameters and perform configurations.

  • Connector

    USB 2.0 Type A

  • Storage Capacity

    1GB SLC type NAND Flash

  • Input Voltage

    5 VDC (through USB interface)

  • Housing

    PVC molding

  • IP Rating

    IP40

  • Dimensions

    32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)

  • Weight

    50 g (0.11 lb)

  • Installation

    M4 screws (<4 mm)

  • Operating Temperature

    ABC-02-USB: 0 to 60°C (32 to 140°F)
    ABC-02-USB-T: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • EMC

    EN 55032 Class A

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m

Support Documents

FILTER

All 2D CAD Datasheet Declaration QIG
Name Type Version Release Date
Declaration of Conformity for ABC-02 Series
301.2 KB 		Declaration v1.0 Feb 18, 2025 Feb 18, 2025
QIG for ABC-02 Series
351.2 KB 		QIG v2.2 May 03, 2021 May 03, 2021
Datasheet for ABC-02 Series
197.8 KB 		Datasheet v1.3 May 22, 2020 May 22, 2020
2D CAD for ABC-02 Series
414.9 KB 		2D CAD Nov 29, 2018 Nov 29, 2018

Available Models (2)

Show Images
Compare
moxa-abc-02-usb-image.jpg | MoxaABC-02-USB
Compare
moxa-abc-02-usb-t-image.jpg | MoxaABC-02-USB-T
ConnectorUSB 2.0 Type AUSB 2.0 Type A
Storage1 GB1 GB
Operating Temp.0 to 60°C-40 to 75°C
Add to QuoteView BagAdd to QuoteView Bag
