OPT 8S
Connection Boxes

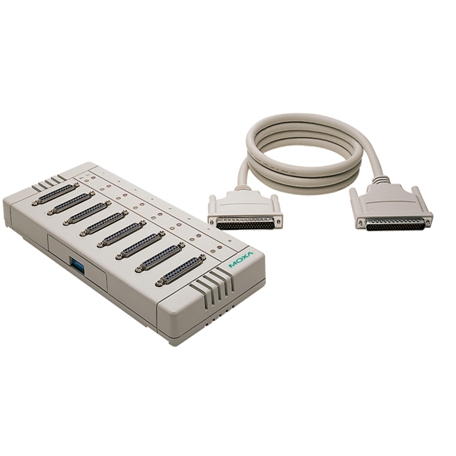

M62 to 8 x DB25 female connection box with surge protection and a DB62 male to DB62 male cable, 1.5 m

Connector
  • Board-side Connector

    • DB62 (male) x 1
  • Device-side Connector

    • DB25 (female) x 8
  • Connection Cable

    • DB62 (male) to DB62 (male) 1.5 m connection cable for connecting to the serial board
LED Interface
  • LED Indicators

    • TxD, RxD indicators for each device-side port
Serial Interface
  • Baudrate

    • 50 bps to 921.6 kbps
Physical Characteristics
  • Dimensions

    • 247 x 108 x 35 mm (9.72 x 4.25 x 1.38 in)
  • Surge Protection

    • 25 kV ESD, 2 kV EFT surge protection
