Serial Cables

Serial connection cables

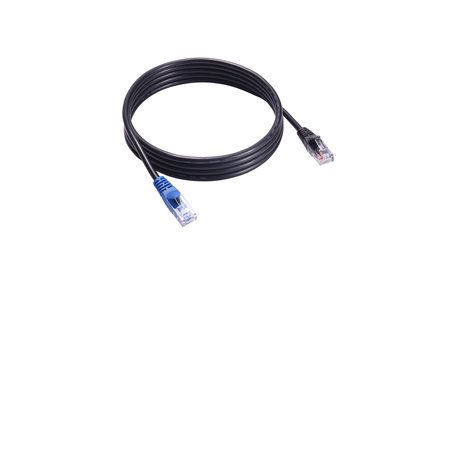

moxa-serial-cables-image-(1).jpg | Moxa
moxa-serial-cables-image-1-(1).jpg | Moxa

Features and Benefits

  • Extend the transmission distance of serial signals

Contact Sales

Introduction

Moxa’s serial cables extend the transmission distance for your multiport serial cards. It also expands the serial com ports for a serial connection.

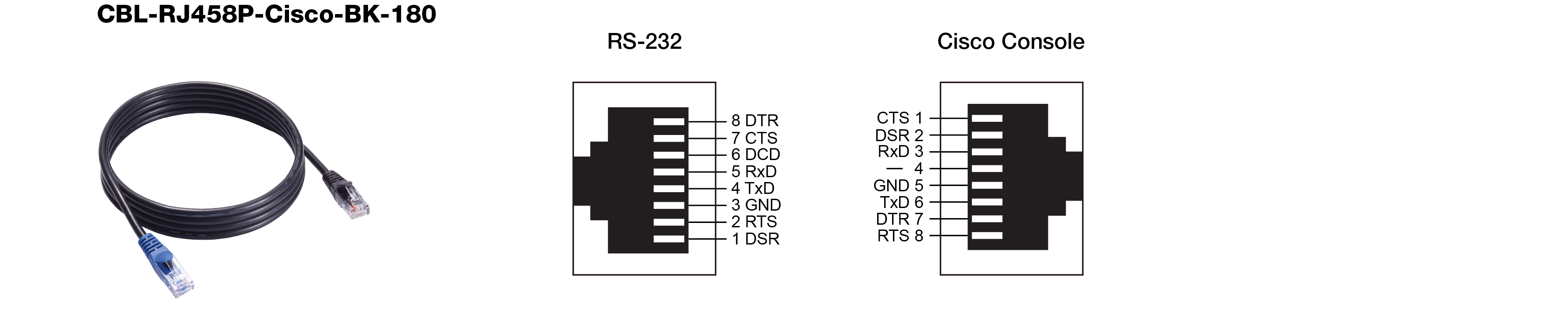

Pin Assignments

  • Board-side Connector

    CBL-F9M9-20: DB9 (female) x 1
    CBL-F9M9-150: DB9 (female) x 1
    CBL-HSF2x10-15: 20-pin (female) x 1
    CBL-M9HSF1x10H-15-01: 10-pin (female) x 1
    CBL-M9HSF1x10H-15-02: 10-pin (female) x 1
    CBL-M9x2HSF2x10H-15: 20-pin (female) x 1
    CBL-M25M9x2-50: DB25 (male) x 1
    CBL-M44M25x4-50: DB44 (male) x 1
    CBL-M44M9x4-50: DB44 (male) x 1
    CBL-M62M25x8-100: DB62 (male) x 1
    CBL-M62M9x8-100: DB62 (male) x 1
    CBL-M68M25x8-100: VHDCI 68 x 1
    CBL-M68M9x8-100: VHDCI 68 x 1
    CBL-M78M25x8-100: DB78 (male) x 1
    CBL-M78M9x8-100: DB78 (male) x 1
    CBL-RJ45F9-150: 8-pin RJ45 x 1
    CBL-RJ45F25-150: 8-pin RJ45 x 1
    CBL-RJ45M9-150: 8-pin RJ45 x 1
    CBL-RJ45M25-150: 8-pin RJ45 x 1
    CBL-RJ45SF9-150: 8-pin RJ45 x 1
    CBL-RJ45SF25-150: 8-pin RJ45 x 1
    CBL-RJ45SM9-150: 8-pin RJ45 x 1
    CBL-RJ45SM25-150: 8-pin RJ45 x 1
    CBL-USBAP-50: USB Type A x 1
    CN20030: 10-pin RJ45 x 1
    CN20040: 10-pin RJ45 x 1
    CN20060: 10-pin RJ45 x 1
    CN20070: 10-pin RJ45 x 1
    NP21101: DB25 (male) x 1
    NP21102: DB25 (male) x 1
    NP21103: DB25 (male) x 1

  • Device-side Connector

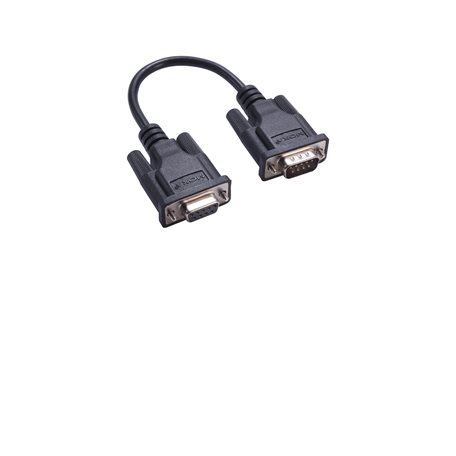

    CBL-F9M9-20: DB9 (male) x 1

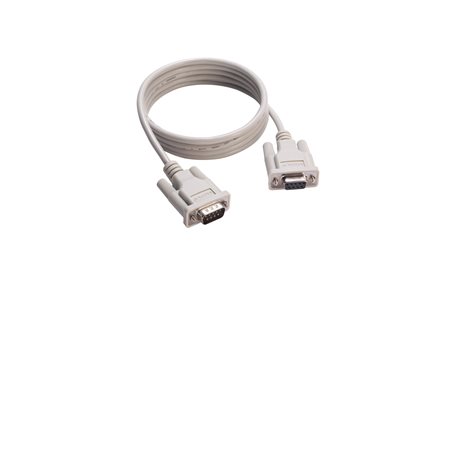

    CBL-F9M9-150: DB9 (male) x 1
    CBL-HSF2x10-15: 20-pin (female) x 1
    CBL-M9HSF1x10H-15-01: DB9 male x 1
    CBL-M9HSF1x10H-15-02: DB9 male x 1
    CBL-M9x2HSF2x10H-15: DB9 male x 2
    CBL-M25M9x2-50: DB9 (male) x 2
    CBL-M44M25x4-50: DB25 (male) x 4
    CBL-M44M9x4-50: DB9 (male) x 4
    CBL-M62M25x8-100: DB25 (male) x 8
    CBL-M62M9x8-100: DB9 (male) x 8
    CBL-M68M25x8-100: DB25 (male) x 8
    CBL-M68M9x8-100: DB9 (male) x 8
    CBL-M78M25x8-100: DB25 (male) x 8
    CBL-M78M9x8-100: DB9 (male) x 8
    CBL-RJ45F9-150: DB9 (female) x 1
    CBL-RJ45F25-150: DB25 (female) x 1
    CBL-RJ45M9-150: DB9 (male) x 1
    CBL-RJ45M25-150: DB25 (male) x 1
    CBL-RJ45SF9-150: DB9 (female) x 1
    CBL-RJ45SF25-150: DB25 (female) x 1
    CBL-RJ45SM9-150: DB9 (male) x 1
    CBL-RJ45SM25-150: DB25 (male) x 1

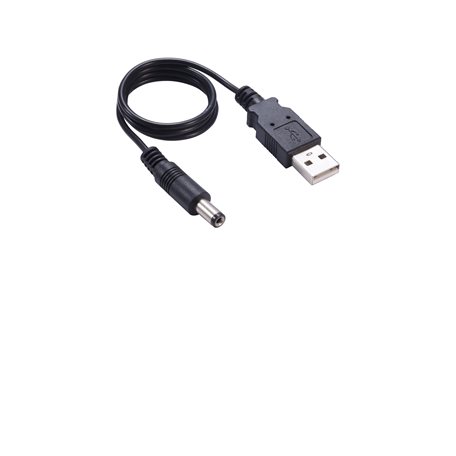

    CBL-USBAP-50: DC Jack x 1
    CN20030: DB25 (female) x 1
    CN20040: DB25 (male) x 1
    CN20060: DB9 (male) x 1
    CN20070: DB9 (female) x 1

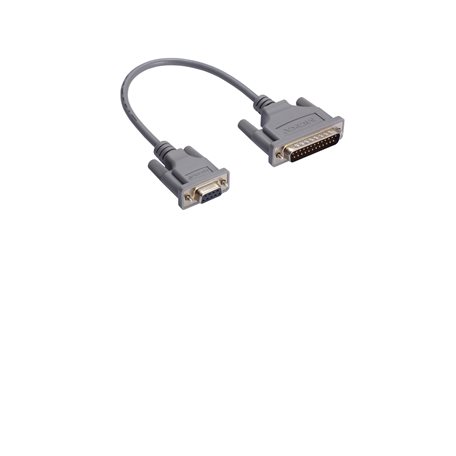

    NP21101: DB9 (female) x 1

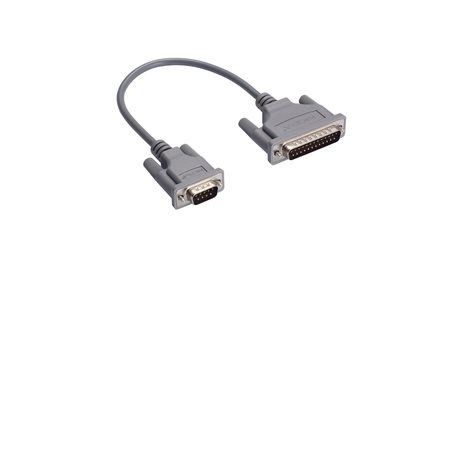

    NP21102: DB9 (male) x 1

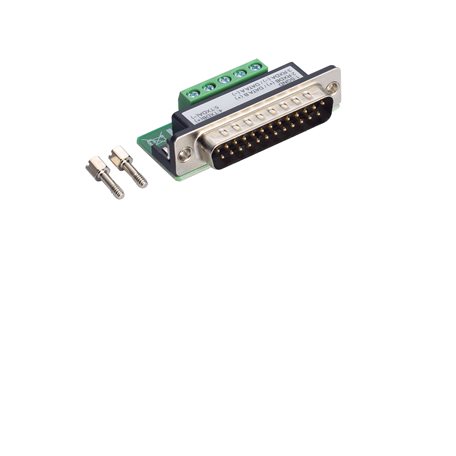

    NP21103: Terminal block x 1

  • Cable Length

    CBL-F9M9-20: 20 cm (7.87 in)
    CBL-F9M9-150: 150 cm (4.9 ft)
    CBL-HSF2x10-15: 15 cm (0.49 ft)
    CBL-M9HSF1x10H-15-01: 15 cm (0.49 ft)
    CBL-M9HSF1x10H-15-02: 15 cm (0.49 ft)
    CBL-M9x2HSF2x10H-15: 15 cm (0.49 ft)
    CBL-M25M9x2-50: 50 cm (19.69 in)
    CBL-M44M9x4-50: 50 cm (19.69 in)
    CBL-M44M25x4-50: 50 cm (19.69 in)
    CBL-M62M9x8-100: 100 cm (3.3 ft)
    CBL-M62M25x8-100: 100 cm (3.3 ft)
    CBL-M68M9x8-100: 100 cm (3.3 ft)
    CBL-M68M25x8-100: 100 cm (3.3 ft)
    CBL-M78M9x8-100: 100 cm (3.3 ft)
    CBL-M78M25x8-100: 100 cm (3.3 ft)
    CBL-RJ45F9-150: 150 cm (4.9 ft)
    CBL-RJ45F25-150: 150 cm (4.9 ft)
    CBL-RJ45SM9-150: 150 cm (4.9 ft)
    CBL-RJ45SM25-150: 150 cm (4.9 ft)
    CBL-RJ45SF9-150: 150 cm (4.9 ft)
    CBL-RJ45SF25-150: 150 cm (4.9 ft)
    CBL-RJ45M9-150: 150 cm (4.9 ft)
    CBL-RJ45M25-150: 150 cm (4.9 ft)
    CN20030: 150 cm (4.9 ft)
    CN20040: 150 cm (4.9 ft)
    CN20060: 150 cm (4.9 ft)
    CN20070: 150 cm (4.9 ft)
    NP21101: 30 cm (11.81 in)
    NP21102: 30 cm (11.81 in)
    CBL-USBAP-50: 50 cm (19.69 in)

Support Documents

Name Type Version Release Date
Datasheet for Serial Cables
2.8 MB
Datasheet v1.2 Apr 20, 2023 Apr 20, 2023

Available Models (31)

Show Images
moxa-cbl-m68m25x8-100-image.jpg | MoxaCBL-M68M25x8-100moxa-cbl-rj45f25-150-image.jpg | MoxaCBL-RJ45F25-150moxa-cbl-rj45sf25-150-image.jpg | MoxaCBL-RJ45SF25-150moxa-cn20030-image.jpg | MoxaCN20030
Board-side Connectors1 x VHDCI 68 1 x 8-pin RJ45 1 x 8-pin RJ45 1 x 10-pin RJ45
Device-side Connectors8 x DB25 (male) 1 x DB25 (male) 1 x DB25 (male) 1 x DB25 (female)
Cable Length100 cm150 cm150 cm150 cm
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-cbl-m25m9x2-50-image.jpg | MoxaCBL-M25M9x2-50moxa-cbl-m62m9x8-100-image.jpg | MoxaCBL-M62M9x8-100CBL-F9M9-150CBL-F9M9-20
Board-side Connectors1 x DB25 (male) 1 x DB62 (male) 1 x DB9 (female)1 x DB9 (female)
Device-side Connectors2 x DB9 (male) 8 x DB9 (male) 1 x DB9 (male) 1 x DB9 (male)
Cable Length50 cm100 cm150 cm20 cm
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
NP21103NP21102CBL-M9HSF1x10H-15-02CBL-M9HSF1x10H-15-01
Board-side Connectors1 x DB25 (male) 1 x DB25 (male) 1 x 10-pin housing cable (female)1 x 10-pin housing cable (female)
Device-side Connectors1 x Terminal block1 x DB9 (male) 1 x DB9 (male)1 x DB9 (male)
Cable Length150 cm15 cm15 cm
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
CBL-M9x2HSF2x10H-15moxa-cbl-m78m9x8-100-image.jpg | MoxaCBL-M78M9x8-100moxa-cbl-m68m9x8-100-image.jpg | MoxaCBL-M68M9x8-100moxa-cbl-rj45m9-150-image.jpg | MoxaCBL-RJ45M9-150
Board-side Connectors1 x 20-pin housing cable (female)1 x DB78 (male) 1 x VHDCI 68 1 x 8-pin RJ45
Device-side Connectors2 x DB9 (male)8 x DB9 (male) 8 x DB9 (male) 1 x DB9 (male)
Cable Length15 cm100 cm100 cm150 cm
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-cbl-rj45sm9-150-image.jpg | MoxaCBL-RJ45SM9-150moxa-cn20070-image.jpg | MoxaCN20070moxa-cbl-m62m25x8-100-image.jpg | MoxaCBL-M62M25x8-100NP21101
Board-side Connectors1 x 8-pin RJ45 1 x 10-pin RJ45 1 x DB62 (male) 1 x DB25 (male)
Device-side Connectors1 x DB9 (male) 1 x DB9 (female) 8 x DB25 (male) 1 x DB9 (female)
Cable Length150 cm150 cm100 cm150 cm
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
CBL-USBAP-50CBL-HSF2x10-15moxa-cbl-m78m25x8-100-image.jpg | MoxaCBL-M78M25x8-100moxa-cbl-rj45m25-150-image.jpg | MoxaCBL-RJ45M25-150
Board-side Connectors1 x Type A1 x 20-pin housing cable (female)1 x DB78 (male) 1 x 8-pin RJ45
Device-side Connectors1 x DC jack1 x 20-pin housing cable (female)8 x DB25 (male) 1 x DB25 (male)
Cable Length50 cm15 cm100 cm150 cm
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-cbl-rj45sf9-150-image.jpg | MoxaCBL-RJ45SF9-150moxa-cn20060-image.jpg | MoxaCN20060moxa-cbl-rj45f9-150-image.jpg | MoxaCBL-RJ45F9-150moxa-cbl-m44m9x4-50-image.jpg | MoxaCBL-M44M9x4-50
Board-side Connectors1 x 8-pin RJ45 1 x 10-pin RJ45 1 x 8-pin RJ45 1 x DB44 (male)
Device-side Connectors1 x DB9 (male) 1 x DB9 (male) 1 x DB9 (female) 4 x DB9 (male)
Cable Length150 cm150 cm150 cm50 cm
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
moxa-cbl-rj45sm25-150-image.jpg | MoxaCBL-RJ45SM25-150moxa-cn20040-image.jpg | MoxaCN20040moxa-cbl-m44m25x4-50-image.jpg | MoxaCBL-M44M25x4-50
Board-side Connectors1 x 8-pin RJ45 1 x 10-pin RJ45 1 x DB44 (male)
Device-side Connectors1 x DB25 (male) 1 x DB25 (male) 4 x DB25 (male)
Cable Length150 cm150 cm50 cm
Add to QuoteView BagAdd to QuoteView BagAdd to QuoteView Bag
