Fiber Optic Adapters and Bypass Units

Moxa’s fiber optic adapters and fiber bypass units are optional accessories that provide more fiber optic connection options for Moxa’s industrial Ethernet switches.

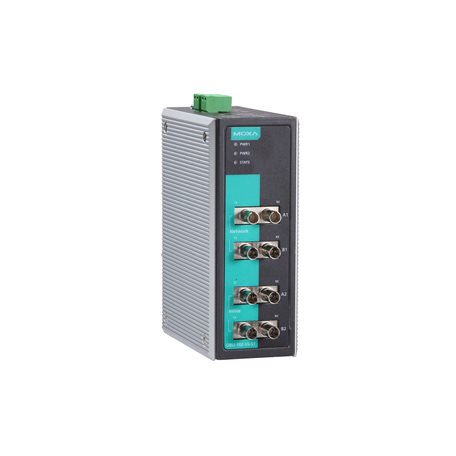

OBU-102-SS-ST
OBU-102 Series

2-channel optical fiber bypass unit with 4 single-mode ports, ST, -20 to 70°C operating temperature

Ethernet Interface
  • Single-Mode Fiber, ST Female Connector

    • 4
Bypass Properties
  • Optical Switching Time

    • 10 ms (max.)
  • Insertion Loss

    • 1.6 dB (max.)
Rotary Switch Configuration
  • Boot Delay Interval

    • 10 steps, each step represents a 5 second delay
Power Parameters
  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs
  • Input Current

    • 0.1 A @ 48 VDC
  • Reverse Polarity Protection

    • Supported
Physical Characteristics
  • Housing

    • Metal
  • IP Rating

    • IP30
  • Dimensions

    • 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
  • Weight

    • 700 g (1.54 lb)
  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)
Environmental Limits
  • Operating Temperature

    • -20 to 70°C (-4 to 158°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 508
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF
  • Freefall

    • IEC 60068-2-31
  • Shock

    • IEC 60068-2-27
  • Vibration

    • IEC 60068-2-6
Warranty
