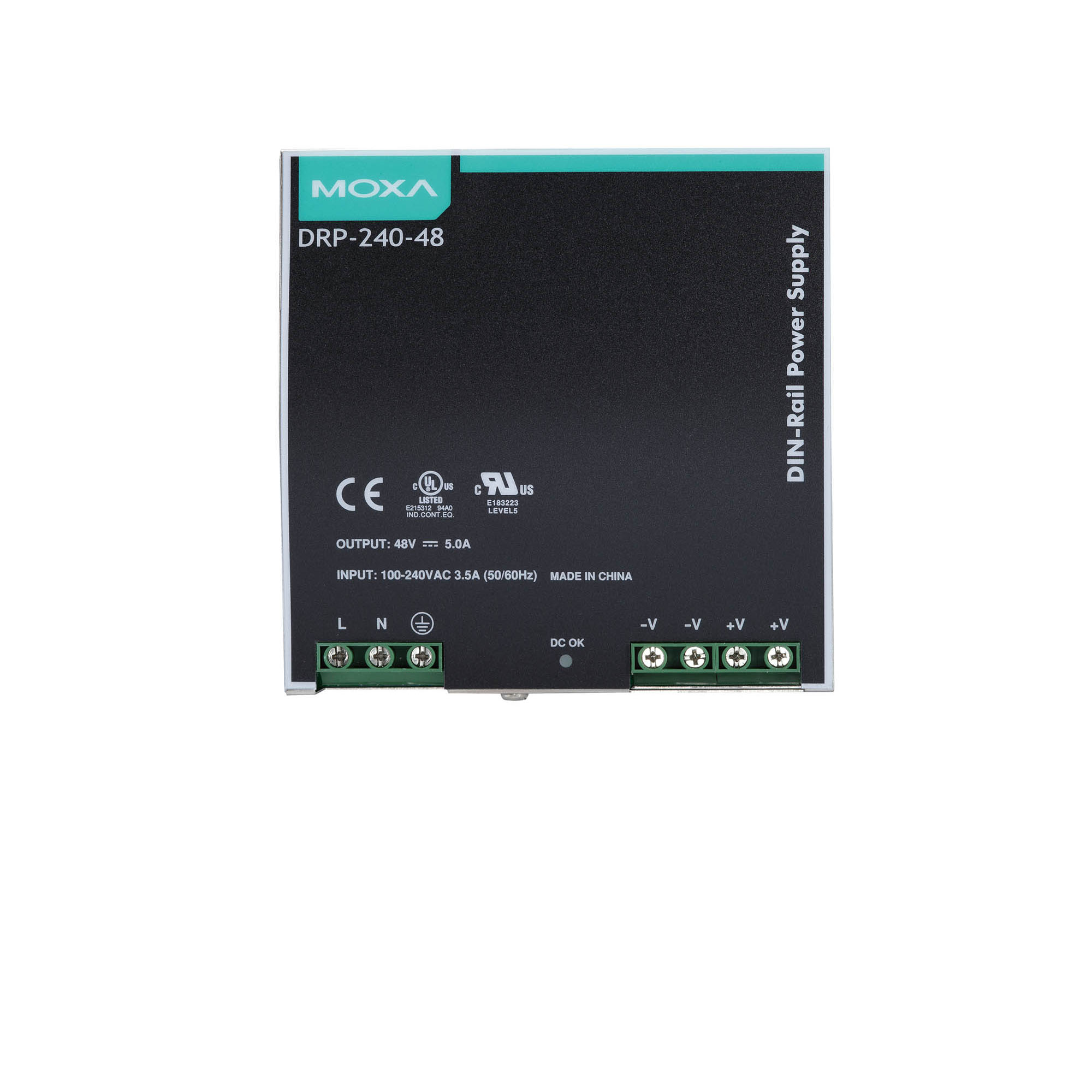

DRP Power Supply Series

240 W power supply for DIN-rail mounted products

moxa-drp-power-supply-series-image-(1).jpg | Moxa

Features and Benefits

  • 240 W high power wattage
  • 48 VDC power output
  • -10 to 70°C operating temperature ability
  • Compact form factor

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The DRP Power Supply Series provides a reliable 48 VDC power source for industrial control systems. This series has passed a 100% full load burn-in test, is UL/CUL listed, and CE marked. Furthermore, the series has an operating temperature range of -10 to 70°C and a three year warranty, which ensures suitability for operating in harsh environments.

  • Wattage

    240 W

  • Voltage

    48 VDC

  • Current Rating

    0 to 5 A

  • Ripple and Noise

    150 mVp-p

  • Voltage Adjustment Range

    48 to 53 VDC

  • Setup/Rise Time at Full Load

    800 ms, 40 ms at 115 VAC
    800 ms, 40 ms at 230 VAC

  • Typical Hold Up Time at Full Load

    24 ms at 230 VAC
    24 ms at 115 VAC

  • Voltage Range

    85 to 264 VAC (47 to 63 Hz)
    120 to 370 VDC

  • Typical Efficiency

    85%

  • Typical Current

    1.4 A @ 230 VAC, 2.8 A @ 115 VAC

  • Inrush Current (cold start)

    40 A @ 230 VAC, 27 A @ 115 VAC

  • Rated Output Power

    105 to 150%

  • Protection Type

    Constant current limiting, recovers automatically after fault condition is removed

  • Over-Voltage Range

    54 to 60 V

  • Protection Type

    Shut down operating voltage, repower on to recover

  • Dimensions

    40 x 90 x 100 mm (1.57 x 3.54 x 3.94 in)

  • Weight

    1,200 g (2.65 lb)

  • Operating Temperature

    10 to 70°C (14 to 158°F)

  • Max. Operating Temperature at Full Load

    55°C @ 230 VAC
    40°C @ 110 VAC

  • Ambient Relative Humidity

    20 to 90% (non-condensing)

  • EMC

    EN 50082-2
    EN 55022 Class B
    EN 61000-3-2 Class A
    ENV 50204

  • Safety

    EN 60950-1

Support Documents

Name Type Version Release Date
Datasheet for DRP Power Supply Series
301.4 KB
Datasheet v1.0 2018-11-30 Nov 30, 2018
QIG for DRP Power Supply Series (DRP-240 Series)
172.4 KB
QIG v1.0 2017-01-17 Jan 17, 2017

Available Models (1)

Show Images
moxa-drp-240-48-image.jpg | MoxaDRP-240-48
Input Voltage85 to 264 VAC
120 to 370 VDC
Output Voltage48 VDC
Output Wattage240 W
Operating Temp.-10 to 70°C
