HDR Power Supply Series

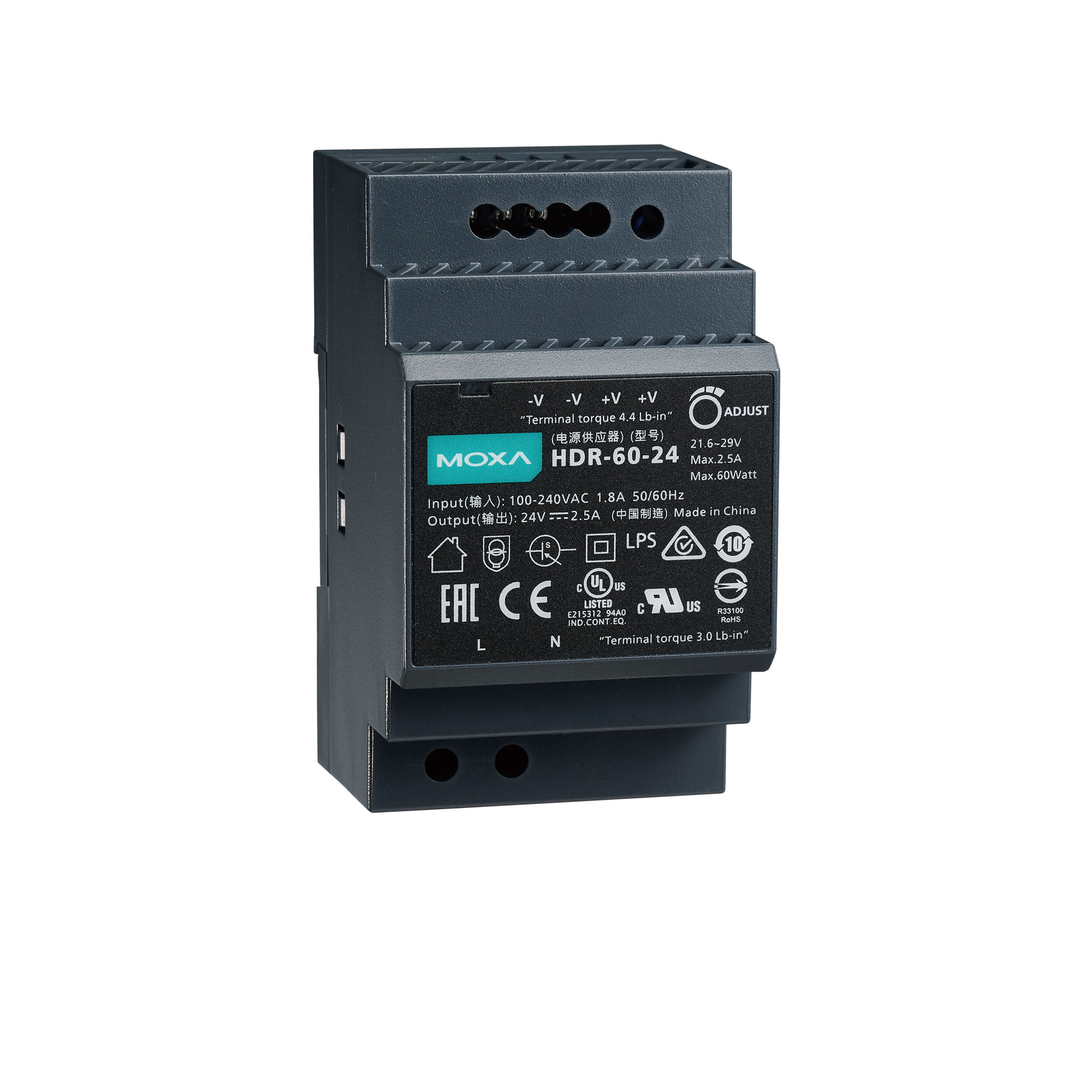

60 W slim form factor power supplies for DIN-rail mounted products

moxa-hdr-power-supply-series-image-(1).jpg | Moxa

Features and Benefits

  • DIN-rail mounted power supply
  • Slim form factor that is ideal for cabinet installation
  • Universal AC power input
  • High power conversion efficiency

Certifications

  • moxa-ul-listed-certification-logo-image.png | Moxa
  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-eac-certification-logo-image.png | Moxa

Contact Sales

Introduction

The HDR-60-24 Power Supply Series has been specifically designed for industrial applications. The small form factor makes it ideal for installation in limited spaces, and the devices have been built to operate between -30 to 70°C. The devices have a plastic housing and support AC input ranges from 85 to 264 VAC and conform to the EN 61000-3-2 standard, which the European Union uses to regulate harmonic current. Furthermore, the devices are equipped with constant current mode for overload protection.

  • Wattage

    60 W

  • Voltage

    24 VDC

  • Current Rating

    0 to 2.5 A

  • Ripple and Noise

    150 mVp-p

  • Voltage Adjustment Range

    21.6 to 29 VDC

  • Setup/Rise Time at Full Load

    500 ms, 50 ms at 230 VAC
    500 ms, 50 ms at 115 VAC

  • Typical Hold Up Time at Full Load

    30 ms at 230 VAC
    12 ms at 115 VAC

  • Voltage Range

    100 to 240 VAC (50 to 60 Hz)
    120 to 370 VDC

  • Typical Efficiency

    90%

  • Typical Current

    0.8 A @ 230 VAC, 1.2 A @ 115 VAC

  • Inrush Current (cold start)

    60 A @ 230 VAC, 30 A @ 115 VAC

  • Rated Output Power

    105 to 160%

  • Protection Type

    Constant current limiting, recovers automatically after fault condition is removed

  • Overvoltage Range

    30 to 36 V

  • Protection Type

    Shut down operating voltage, repower on to recover

  • Housing

    Plastic

  • Dimensions

    52.5 x 90 x 54.5 mm (2.07 x 3.54 x 2.15 in)

  • Weight

    230 g (0.5 lb)

  • Operating Temperature

    -30 to 70°C (-22 to 158°F)

  • Max. Operating Temperature at Full Load

    45°C (113°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    20 to 90% (non-condensing)

  • Safety

    UL 508
    EN 62368-1
    UL 62368-1
    IEC 62368-1

  • EMC

    EN 55032/35
    EN 61000-3-2 Class A
    EN 61000-3-3
    EN IEC 61204-3
    EN IEC 61000-6-2

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV
    IEC 61000-4-5 Surge: Power: 4 kV
    IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms
    IEC 61000-4-8 PFMF: 30 A/m
    IEC 61000-4-11

  • Time

    927,560 hrs

  • Standards

    MIL-HDBK-217F

Support Documents

Name Type Version Release Date
Declaration of Conformity for HDR-60-24
300.0 KB
Declaration v1.0 Jun 03, 2024 Jun 03, 2024
Datasheet for HDR Power Supply Series
1.2 MB
Datasheet v1.4 Aug 16, 2023 Aug 16, 2023
QIG for HDR Power Supply Series
201.0 KB
QIG v1.2 Jun 01, 2021 Jun 01, 2021

Available Models (1)

Show Images
moxa-hdr-60-24-image.jpg | MoxaHDR-60-24
Input Voltage85 to 264 VAC
47 to 63 Hz
120 to 370 VDC
Wattage60 W
Weight (Packaged)267 g (0.59 lb)
Package Dimensions58 x 98 x 66 mm
(2.23 x 3.86 x 2.60 in)
