MDR Power Supply Series

40/60 W slim form factor power supplies for DIN-rail mounted products

moxa-mdr-power-supply-series-image-(1).jpg | Moxa

Features and Benefits

  • High inrush current protection
  • 24 VDC power output
  • -20 to 70°C operating temperature range
  • 85 to 264 VAC or 120 to 370 VDC input

Certifications

  • moxa-ce-certification-logo-image.png | Moxa
  • moxa-ul-listed-certification-logo-image.png | Moxa

Contact Sales

Introduction

The MDR Power Supply Series supports inrush current protection of 30 A at 115 VAC and 60 A at 230 VAC. The series has an operating temperature range of -20 to 70°C and a three year warranty, which ensures suitability for operating in harsh environments. In addition, the MDR Series has passed a 100% full load burn-in test, is UL/CUL listed, TÜV/CB certified, and CE marked. There are also models available with output ratings from 40 W to 60 W with 24 VDC output.

  • Wattage

    MDR-40-24: 40 W
    MDR-60-24: 60 W

  • Voltage

    24 VDC

  • Current Rating

    MDR-40-24: 0 to 1.7 A
    MDR-60-24: 0 to 2.5 A

  • Ripple and Noise

    150 mVp-p

  • Voltage Adjustment Range

    24 to 30 VDC

  • Setup/Rise Time at Full Load

    500 ms, 30 ms at 115 VAC
    500 ms, 30 ms at 230 VAC

  • Typical Hold Up Time at Full Load

    20 ms at 115 VAC
    50 ms at 230 VAC

  • Voltage Range

    85 to 264 VAC (47 to 63 Hz)
    120 to 370 VDC

  • Typical Efficiency

    88%

  • Typical Current

    MDR-40-24: 0.7 A @ 230 VAC, 1.1 A @ 115 VAC
    MDR-60-24: 1.0 A @ 230 VAC, 1.8 A @ 115 VAC

  • Typical Current (cold start)

    60 A @ 230 VAC, 30 A @ 115 VAC

  • Rated Output Power

    105 to 150%

  • Protection Type

    Constant current limiting, recovers automatically after fault condition is removed

  • Overvoltage Range

    31.2 to 36 V

  • Protection Type

    Shut down operating voltage, repower on to recover

  • Dimensions

    40 x 90 x 100 mm (1.57 x 3.54 x 3.94 in)

  • Weight

    MDR-40-24: 260 g (0.57 lb)
    MDR-60-24: 280 g (0.62 lb)

  • Operating Temperature

    -20 to 70°C (-4 to 158°F)

  • Max. Operating Temperature at Full Load

    MDR-40-24: 60°C
    MDR-60-24: 55°C

  • Ambient Relative Humidity

    20 to 90% (non-condensing)

  • Safety

    UL 508
    EN 62368-1
    IEC 62368-1

  • EMC

    EN 55032/35
    EN 61000-3-2 Class A
    EN 61000-3-3
    EN IEC 61204-3
    EN IEC 61000-6-2

  • EMS

    IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 2 kV
    IEC 61000-4-5 Surge: Power: 4 kV
    IEC 61000-4-6 CS: 0.15 kHz to 80 MHz: 10 Vrms
    IEC 61000-4-8 PFMF: 30 A/m
    IEC 61000-4-11

Support Documents

FILTER

All Datasheet Declaration QIG
Name Type Version Release Date
Declaration of Conformity for MDR Power Supply Series
305.1 KB 		Declaration v1.0 Mar 20, 2024 Mar 20, 2024
Datasheet for MDR Power Supply Series
234.9 KB 		Datasheet v1.2 Aug 17, 2023 Aug 17, 2023
QIG for MDR Power Supply Series
565.0 KB 		QIG v1.2 Jun 07, 2021 Jun 07, 2021

Available Models (2)

Show Images
Compare

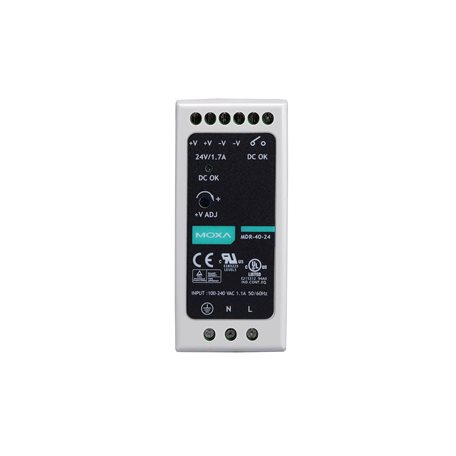

moxa-mdr-40-24-image.jpg | MoxaMDR-40-24
Compare

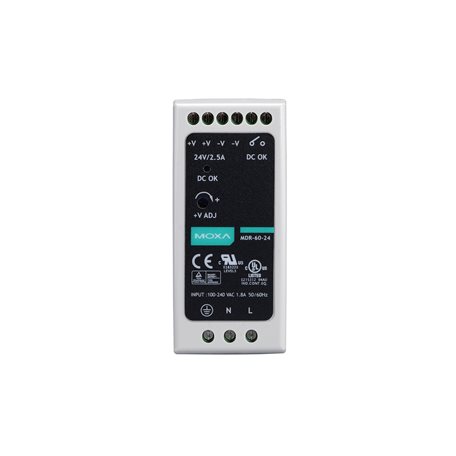

moxa-mdr-60-24-image.jpg | MoxaMDR-60-24
Input Voltage85 to 264 VAC
120 to 370 VDC		85 to 264 VAC
120 to 370 VDC
Output Voltage24 VDC24 VDC
Output Wattage40 W60 W
Operating Temp.-20 to 70°C-20 to 70°C
Add to QuoteView BagAdd to QuoteView Bag
