Gigabit Ethernet SFP Modules

Moxa's small form-factor pluggable transceiver (SFP) Ethernet fiber modules for Gigabit Ethernet provide coverage across a wide range of communication distances.

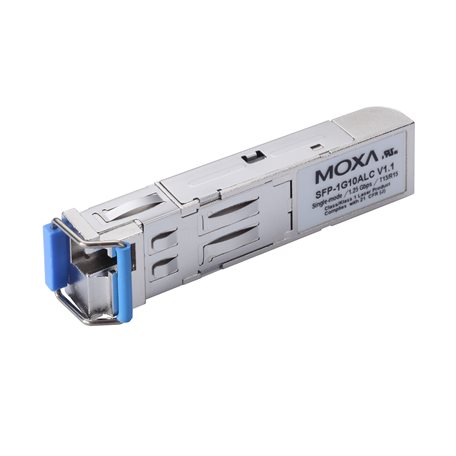

SFP-1G10ALC
SFP-1G Series

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature

Ethernet Interface
  • Ports

    • 1
  • Connectors

    • Duplex LC connector
      Simplex LC connector (WDM-type only)
  • Optical Fiber

  • Optical Fiber

  • Optical Fiber

  • Optical Fiber

  • Optical Fiber

  • Optical Fiber

    • Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
Power Parameters
  • Power Consumption

    • Max. 1 W
Environmental Limits
  • Operating Temperature

    • 0 to 60°C (32 to 140°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • Safety

    • UL 62368-1
      IEC 62368-1
      IEC 60825-1
  • EMC

    • EN 55032/35
  • EMI

    • FCC 15B Test Report
      ICES-003: 2020 Issue 7
  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV(AC), 0.5 kV(DC); Signal: 0.5 kV
      IEC 61000-4-5 Surge: Power: 1 kV / 2 kV(AC), 0.5 kV(DC); Signal: 1 kV
      IEC 61000-4-6 CS: 0.15 MHz to 10 MHz: 3 V, 10 MHz to 30 MHz: 3 to 1 V, 30 MHz to 80 MHz: 1V
      IEC 61000-4-8 PFMF: 1 A/m at 50 Hz
      IEC61000-4-11 Voltage Dips and Interruption
  • Maritime

    • DNV
Warranty
