ANT-5G-ASM-03 Series

Wireless GSM/UMTS/LTE/5G NR dipole antennas with SMA (male) connector

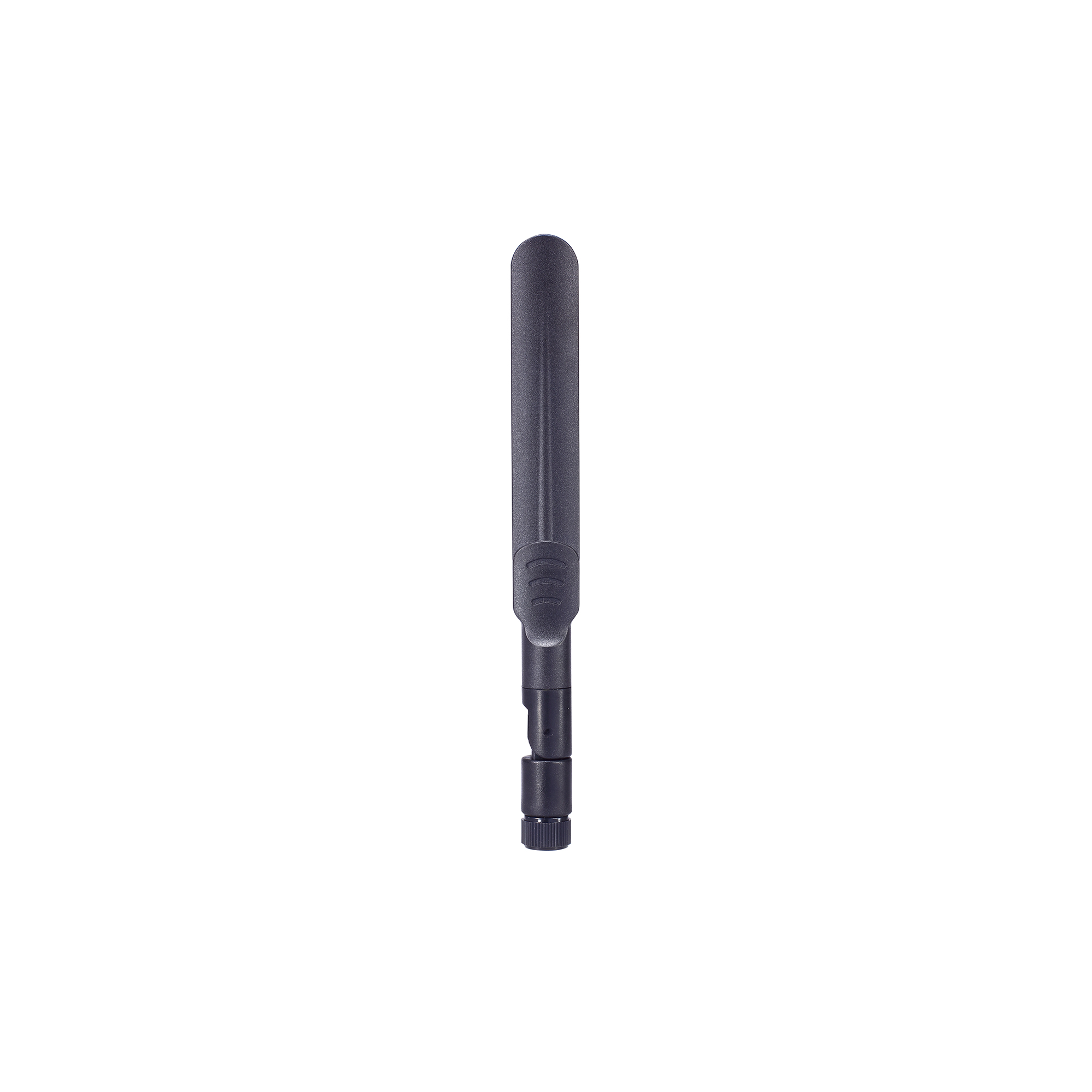

moxa-ant-5g-asm-03-series-image-(1).jpg | Moxa

Features and Benefits

  • Supports all global LTE bands
  • Lightweight
  • Tilt and swivel design
  • Flexible installation
  • SMA connector (male) supported

Contact Sales

Introduction

The ANT-5G-ASM-03 Series is an omnidirectional lightweight compact antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 3 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

  • Frequency

    617 to 960 MHz
    1420 to 1561 MHz
    1710 to 2170 MHz
    2300 to 2690 MHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    3.02 dBi @ 617 to 698 MHz (5G NR n71)
    0.70 dBi @ 698 to 824 MHz (LTE 700)
    0.63 dBi @ 824 to 960 MHz (GSM 850/900)
    2.50 dBi @ 1420 to 1561 MHz (LTE Japan B74, 75, 76)
    2.83 dBi @ 1710 to 1880 MHz (DCS)
    2.91 dBi @ 1850 to 1990 MHz (PCS)
    3.65 dBi @ 1920 to 2170 MHz (UMTS1)
    3.67 dBi @ 2300 to 2690 MHz (LTE 2600)

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Vertical
    Linear

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    < 5.85 @ 617 to 960 MHz
    < 2 @ 1420 to 1561 MHz
    < 3 @ 1710 to 2690 MHz

  • Weight

    35.8 g (0.08 lb)

  • Length

    157.5 mm (6.2 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Straight mount

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-5G-ASM-03 Series
399.8 KB 		Datasheet v1.0 May 31, 2023 May 31, 2023

Available Models (1)

Show Images
Compare

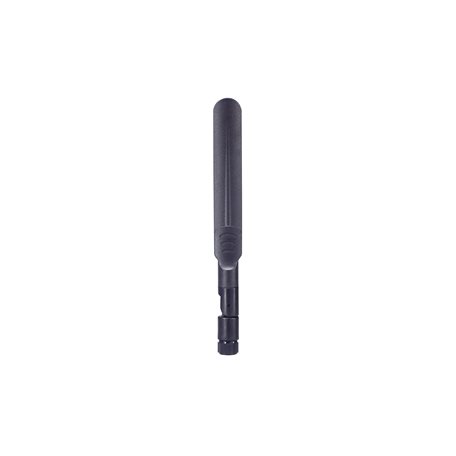

moxa-ant-5g-asm-03-image.jpg | MoxaANT-5G-ASM-03
