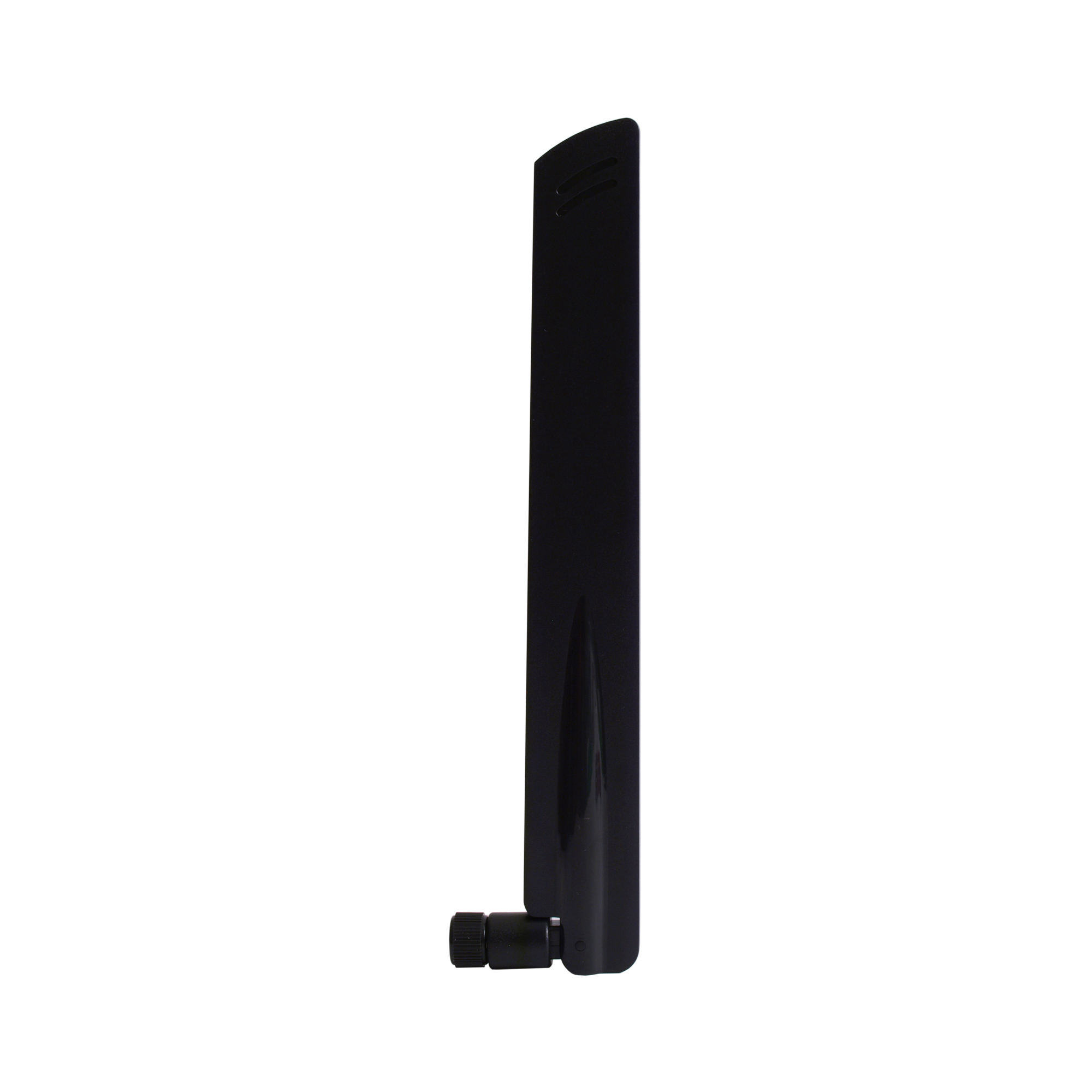

ANT-5G-ASM-07 Series

GSM/UMTS/LTE/5G NR, 7 dBi, omnidirectional, rubber-duck antennas

moxa-ant-5g-asm-07-series-image-(1).jpg | Moxa

Features and Benefits

  • Supports 5G NR and 4G LTE
  • High-gain antenna to enhance performance
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • SMA connector (male) supported

Contact Sales

Introduction

The ANT-5G-ASM-07 Series is an omnidirectional lightweight compact antenna suitable for GSM, UMTS, LTE, and 5G NR bands. The antenna provides a gain of 7 dBi and is designed to operate in temperatures ranging from -40 to 85°C.

  • Frequency

    617 to 960, 1710 to 2170, 2300 to 2690, 3300 to 3800, 4200 to 4700, 5000 to 5925 MHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    1.29 dBi @ 617 to 698 MHz
    2.00 dBi @ 698 to 824 MHz
    1.29 dBi @ 824 to 960 MHz
    3.77 dBi @ 1710 to 1880 MHz
    4.55 dBi @ 1850 to 1990 MHz
    5.49 dBi @ 1920 to 2170 MHz
    5.21 dBi @ 2300 to 2690 MHz
    5.14 dBi @ 3300 to 3800 MHz
    6.57 dBi @ 4200 to 4700 MHz
    7.72 dBi @ 5000 to 5925 MHz

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Linear, Vertical

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    < 7.5 @ 617 to 698 MHz
    < 4.5 @ 698 to 824 MHz
    < 4.4 @ 824 to 960 MHz
    < 1.9 @ 1710 to 1880 MHz
    < 2.7 @ 1850 to 1990 MHz
    < 4.1 @ 1920 to 2170 MHz
    < 2.1 @ 2300 to 2690 MHz
    < 2.5 @ 3300 to 3800 MHz
    < 1.9 @ 4200 to 4700 MHz
    < 2.0 @ 5000 to 5925 MHz

  • Weight

    35.8 g (0.08 lb)

  • Length

    220 mm (8.66 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Straight mount

  • Operating Temperature

    -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

Name Type Version Release Date
Datasheet for ANT-5G-ASM-07 Series
505.4 KB
Datasheet v1.0 Dec 07, 2021 Dec 07, 2021

Available Models (1)

Show Images
moxa-ant-5g-asm-07-image.jpg | MoxaANT-5G-ASM-07
Frequency617 to 960 MHz,
1710 to 2170 MHz,
2300 to 2690 MHz,
3300 to 3800 MHz,
4200 to 4700 MHz,
5000 to 5925 MHz
Antenna TypeOmnidirectional
Antenna Gain7 dBi
Connector TypeSMA (male)
