Cellular Antennas

Moxa offers a wide variety of cellular antennas that are easy to install and simplify the process of establishing wireless networks.

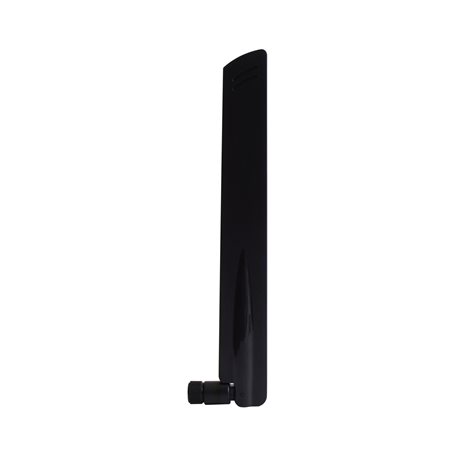

ANT-5G-ASM-07
ANT-5G-ASM-07 Series

7 dBi, omnidirectional rubber-duck antenna for GSM, UMTS, LTE, and 5G NR applications

Antenna Characteristics
  • Frequency

    • 617 to 960, 1710 to 2170, 2300 to 2690, 3300 to 3800, 4200 to 4700, 5000 to 5925 MHz
  • Antenna Type

    • Omni-directional
  • Typical Antenna Gain

    • 1.29 dBi @ 617 to 698 MHz
      2.00 dBi @ 698 to 824 MHz
      1.29 dBi @ 824 to 960 MHz
      3.77 dBi @ 1710 to 1880 MHz
      4.55 dBi @ 1850 to 1990 MHz
      5.49 dBi @ 1920 to 2170 MHz
      5.21 dBi @ 2300 to 2690 MHz
      5.14 dBi @ 3300 to 3800 MHz
      6.57 dBi @ 4200 to 4700 MHz
      7.72 dBi @ 5000 to 5925 MHz
  • Connector

    • SMA (male)
  • Impedance

    • 50 ohms
  • Polarization

    • Linear, Vertical
  • HPBW/Horizontal

    • 360°
  • V.S.W.R.

    • < 7.5 @ 617 to 698 MHz
      < 4.5 @ 698 to 824 MHz
      < 4.4 @ 824 to 960 MHz
      < 1.9 @ 1710 to 1880 MHz
      < 2.7 @ 1850 to 1990 MHz
      < 4.1 @ 1920 to 2170 MHz
      < 2.1 @ 2300 to 2690 MHz
      < 2.5 @ 3300 to 3800 MHz
      < 1.9 @ 4200 to 4700 MHz
      < 2.0 @ 5000 to 5925 MHz
Physical Characteristics
  • Weight

    • 35.8 g (0.08 lb)
  • Length

    • 220 mm (8.66 in)
  • Radome Color

    • Black
  • Radome Material

    • Plastic
  • Installation

    • Straight mount
Environmental Limits
  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (30°C, non-condensing)
Warranty
