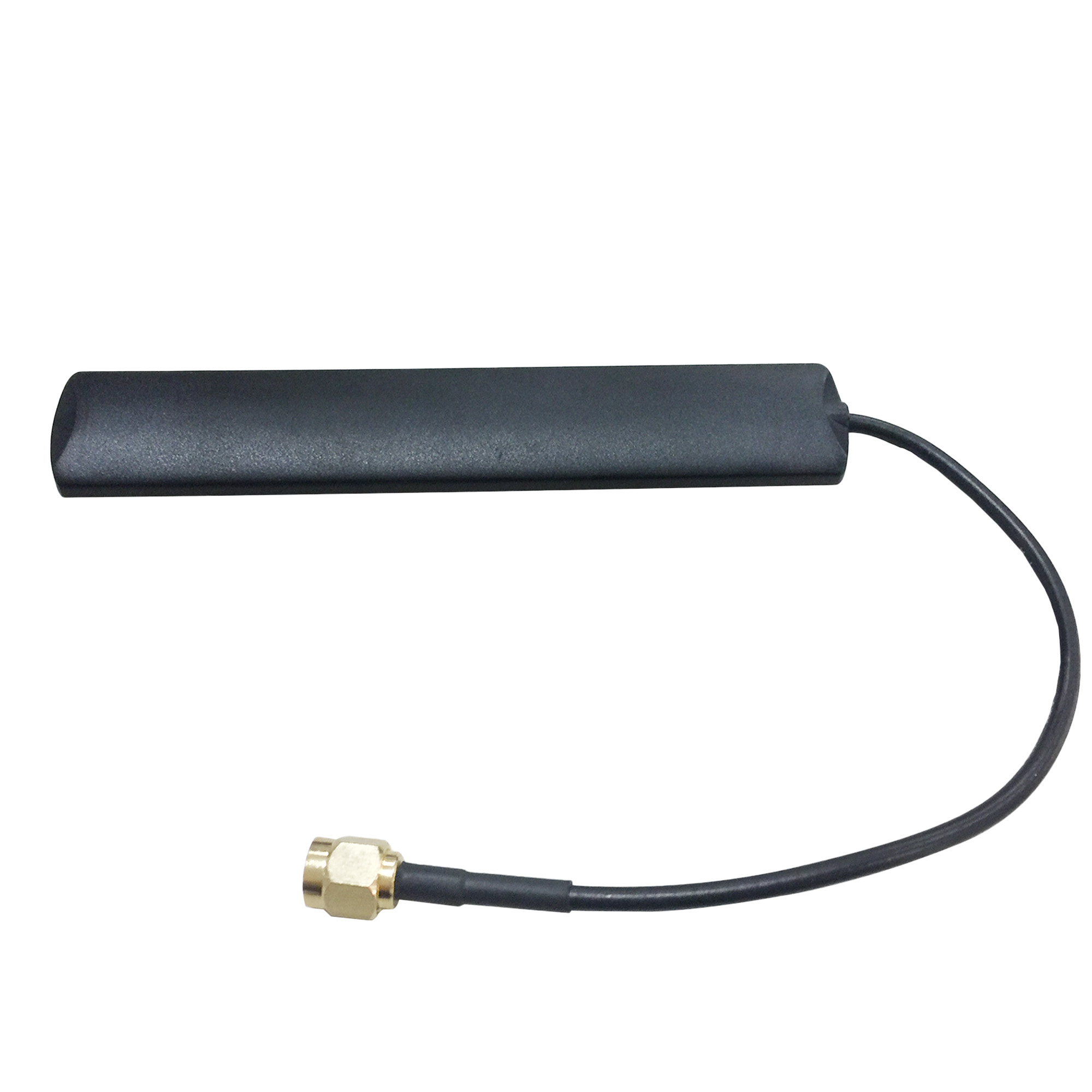

ANT-5G-OSM-03 Series

3 dBi LTE/5G NR omnidirectional adhesive antennas for LTE and 5G NR applications

moxa-ant-5g-osm-03-series-image-(1).jpg | Moxa

Features and Benefits

  • Supports all global 5G bands
  • Lightweight
  • 1 m, 1.5 m, 2 m options available
  • Flexible installation
  • SMA connector (male) supported

Contact Sales

Introduction

The ANT-5G-OSM-03 Series is a lightweight omnidirectional antenna with adhesive tape, suitable for LTE and 5G NR bands. The antenna provides a gain of 4 dBi and is designed to operate in temperatures ranging from -30 to 70°C.

  • Frequency

    617 to 960 MHz
    1452 to 2690 MHz
    3300 to 5850 MHz
    5850 to 7150 MHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    1.5 dBi @ 617 to 960 MHz
    4 dBi @ 1452 to 2690 MHz
    4 dBi @ 3300 to 5850 MHz
    4 dBi @ 5850 to 7150 MHz

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Vertical
    Linear

  • V.S.W.R.

    ≤ 2.5 @ 617 to 960 MHz
    ≤ 2.0 @ 1452 to 2690 MHz
    ≤ 2.0 @ 3300 to 5850 MHz
    ≤ 2.5 @ 5850 to 7150 MHz

  • Weight

    24 g (0.05 lb)

  • Dimensions

    110 x 20 x 5.4 mm (4.33 x 0.79 x 0.21 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Cable

    RG-174

  • Cable Length

    ANT-5G-OSM-03-1m: 1 m
    ANT-5G-OSM-03-1.5m: 1.5 m
    ANT-5G-OSM-03-2m: 2 m

  • Installation

    Adhesive mount

  • Operating Temperature

    -30 to 70°C (-22 to 158°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

FILTER

All Datasheet
Name Type Version Release Date
Datasheet for ANT-5G-OSM-03 Series
829.0 KB 		Datasheet v1.0 Feb 28, 2024 Feb 28, 2024

Available Models (3)

Show Images
Compare
ANT-5G-OSM-03-1m
Compare
ANT-5G-OSM-03-1.5m
Compare
ANT-5G-OSM-03-2m
Frequency617 to 960 MHz
1452 to 2690 MHz
3300 to 5850 MHz
5850 to 7150 MHz		617 to 960 MHz
1452 to 2690 MHz
3300 to 5850 MHz
5850 to 7150 MHz		617 to 960 MHz
1452 to 2690 MHz
3300 to 5850 MHz
5850 to 7150 MHz
Cable Length1 m1.5 m2 m
Antenna Gain0.39 dBi @ 617 to 960 MHz
2.92 dBi @ 1452 to 2690 MHz
2.06 dBi @ 3300 to 5850 MHz
0.50 dBi @ 5850 to 7150 MHz		-0.36 dBi @ 617 to 960 MHz
2.01 dBi @ 1452 to 2690 MHz
-1.49 dBi @ 3300 to 5850 MHz
-1.35 dBi @ 5850 to 7150 MHz		-0.83 dBi @ 617 to 960 MHz
1.35 dBi @ 1452 to 2690 MHz
-2.70 dBi @ 3300 to 5850 MHz
-3.14 dBi @ 5850 to 7150 MHz
Connector TypeSMA (male)SMA (male)SMA (male)
