ANT-LTEUS-ASM-01 Series

1 dBi, GSM/GPRS/EDGE/UMTS/HSPA/LTE, omnidirectional, rubber-duck antennas

moxa-ant-lteus-asm-01-series-image-1-(1).jpg | Moxa

Features and Benefits

  • Small size for easy installation
  • Lightweight for portable deployment
  • Tilt and swivel design
  • Flexible installation
  • SMA connector (male) supported

Contact Sales

Introduction

The ANT-LTEUS-ASM-01 is an omni-directional lightweight compact antenna suitable for GSM/GPRS/EDGE/UMTS/HSPA/LTE bands. The antenna provides a gain of 1 dBi and is designed to operate in temperatures from -30 to 75°C.

  • Frequency

    700/850/900/1700/1900/2600 MHz

  • Antenna Type

    Omni-directional

  • Typical Antenna Gain

    1 dBi @ 698 to 960 MHz
    2 dBi @ 1710 to 1990 MHz
    2 dBi @ 2300 to 2400 MHz
    2 dBi @ 2500 to 2700 MHz

  • Connector

    SMA (male)

  • Impedance

    50 ohms

  • Polarization

    Linear, Vertical

  • HPBW/Horizontal

    360°

  • V.S.W.R.

    < 3

  • Weight

    26 g (0.06 lb)

  • Length

    205 mm (8.07 in)

  • Radome Color

    Black

  • Radome Material

    Plastic

  • Installation

    Straight mount

  • Operating Temperature

    -30 to 75°C (-22 to 167°F)

  • Storage Temperature (package included)

    -30 to 75°C (-22 to 167°F)

  • Ambient Relative Humidity

    5 to 95% (30°C, non-condensing)

Support Documents

Name Type Version Release Date
Datasheet for ANT-LTEUS-ASM-01 Series
299.3 KB
Datasheet v1.0 Nov 12, 2018 Nov 12, 2018

Available Models (1)

Show Images

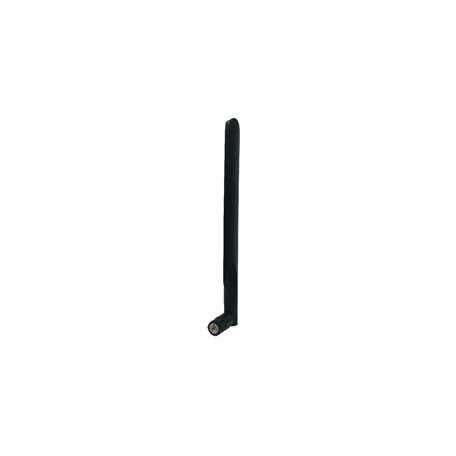

moxa-ant-lteus-asm-01-image.jpg | MoxaANT-LTEUS-ASM-01
Frequency700/850/900/1700/1900/2600 MHz
Antenna TypeOmni-directional
Antenna Gain1 dBi @ 698 to 960 MHz
2 dBi @ 1710 to 1990 MHz
2 dBi @ 2300 to 2400 MHz
2 dBi @ 2500 to 2700 MHz
ConnectorSMA (male)
